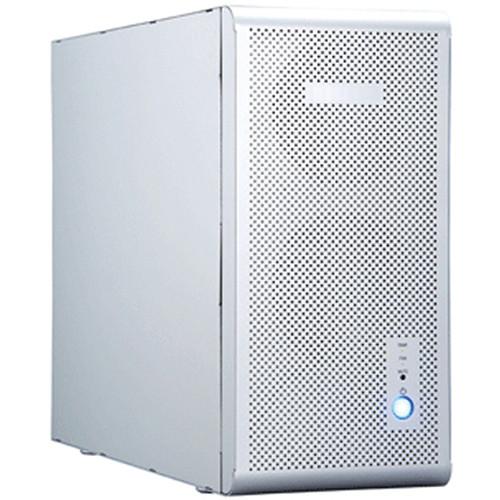

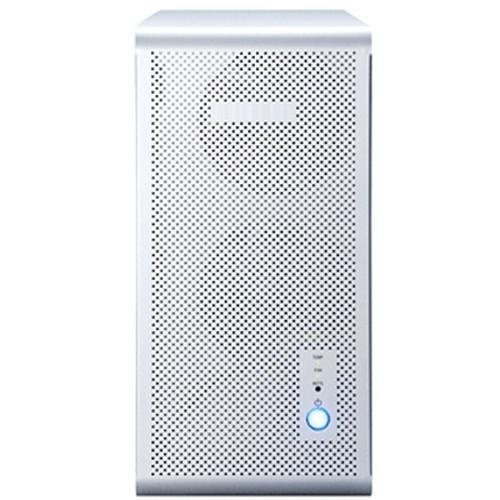

User Manual for Dynapower USA Netstor NA255A 4-Slot External Performance Desktop PCIe Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Dynapower USA Netstor NA255A 4-Slot External
- Product category: Expansion Chassis Dynapower USA
- Brand: Dynapower USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynapower USA Expansion Chassis
 |
User manual for the Dynapower USA Netstor NA255A 4-Slot External contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynapower USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynapower USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynapower USA product will considerably shorten its lifespan!
|

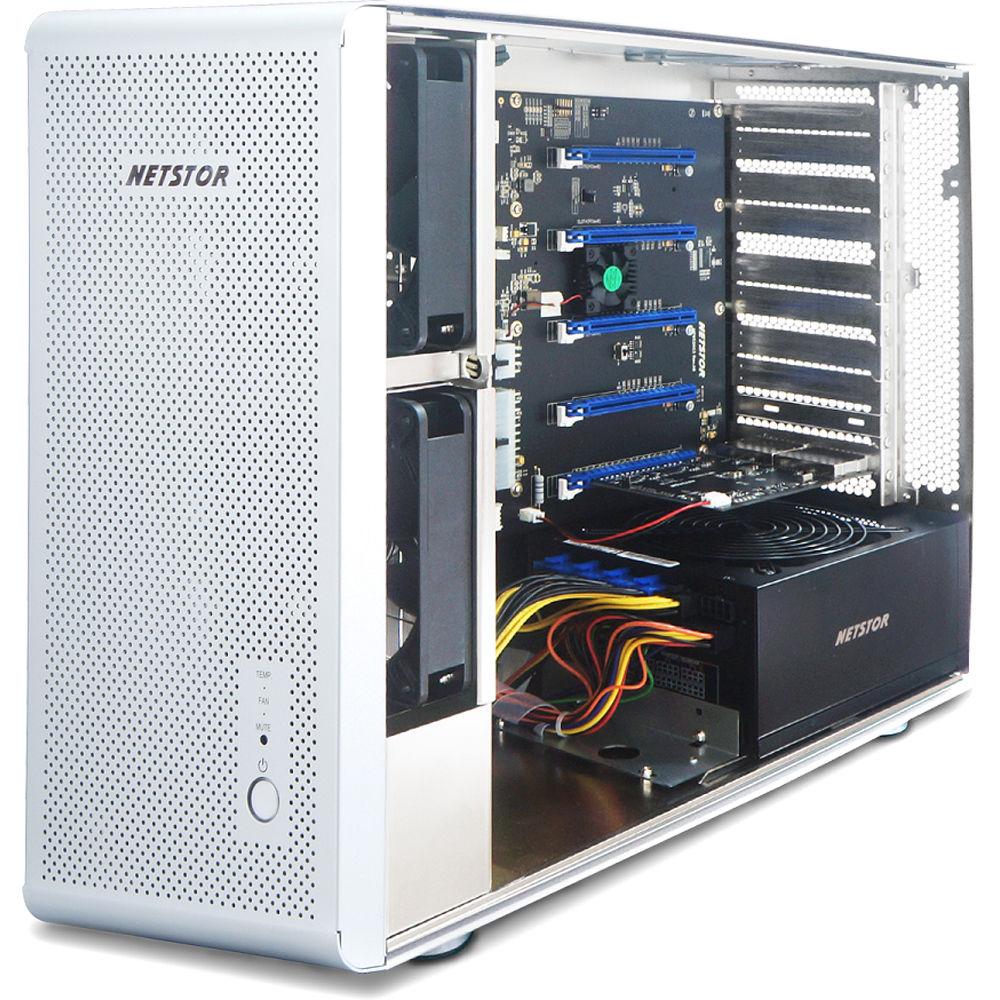

Product description Designed for GPU-accelerated applications, the Netstor NA255A 4-Slot External Performance Desktop PCIe Expansion Chassis from Dynapower USA implements PCIe 3.0 technology and a PCIe Gen3 16-lane host interface with a throughput of 8 Gp/s per lane, offering data transfer rates of 128 Gb/s. The GPU enclosure features four PCIe x16 slots (x8 electrical) on a NA255A backplane supporting up to four double-width PCIe Gen3 GPU cards, or single-slot PCIe cards. In addition, the enclosure can accommodate all combinations of PCIe 3.0 x1, x4, x8, and x16 GPU/PCIe cards for every application with backward compatibility for Gen2 cards to work with host, server, or workstation in areas such as HPC, telecom, and data management. - High-Performance Computing
- By adding the Netstor NA255A GPU enclosure with up to four high-end GPU cards to your host/workstation, you can turn your conventional host computer into a high-performance computing workstation to meet the processing demands of professional applications.
- Extra Graphics Card Holders
- The graphics card holders close to each PCIe slot enable the NA255A enclosure to accommodate GPU cards up to 11.8" long.
- Adjustable Fan Speed
- The NA255A is equipped with two front-mounted 4.7 x 4.7" cooling fan modules, each with an airflow capacity of 75 CFM, ensuring efficient heat dissipation. Moreover, the fan speed of each cooling fan can be adjusted manually to fit the GPU application at hand.
UPC: 696726255017 In the Box Dynapower USA Netstor NA255A 4-Slot External Performance Desktop PCIe Expansion Chassis PCIe 3.0 x16 Host Adapter with Full-Height Bracket PCIe 3.0 x16 Target Board for Upstream Port 2 x Power Cords Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynapower USA Netstor NA255A 4-Slot External Performance Desktop PCIe Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynapower USA NA255A Specs | Form Factor | Desktop | | Host Interface | Up to 128 Gb/s external PCIe 3.0 x16 | | Number of Slots | 4 x PCIe 3.0 x8 (x16 connector) | | Card Length | Full-length, full-height PCIe cards | | LED Indicators | Power-On: Blue
Fan Normal: Green
Fan Failure: Red
Temperature Normal: Green
Temperature over 137°F / 55°C: Red | | Cooling | Front: Two 4.72 x 4.72 x 0.98" / 120 x 120 x 25 mm cooling fans, 75 CFM each at full speed | | Alarm | Buzzer beeps to indicate fan failure or temperature over 131°F / 55°C | | Material | Solid metal structure with aluminum housing | | Power Supply | 1 x 1200 W
Input: 90 to 230 VAC, 50/60 Hz universal | | O.S. Support | O.S. independent | | Host Requirements | 1 x PCIe 3.0 x16 slot | | Dimension (D x W x H) | 17.7 x 6.9 x 14.7" / 45.0 x 17.6 x 37.4 mm | | Weight | 21.4 lb / 9.7kg | | | | Package Weight | 29.8 lb | | Box Dimensions (LxWxH) | 23.4 x 13.7 x 10.6" |
