User Manual for Dynapower USA Netstor Single Server-Grade 1000 W Power Supply Unit Click to enlarge the picture
Contents of the user manual for the Dynapower USA Netstor Single Server-Grade 1000
- Product category: Computer Case & Chassis Accessories Dynapower USA
- Brand: Dynapower USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynapower USA Computer Case & Chassis Accessories
 |
User manual for the Dynapower USA Netstor Single Server-Grade 1000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynapower USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynapower USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynapower USA product will considerably shorten its lifespan!
|

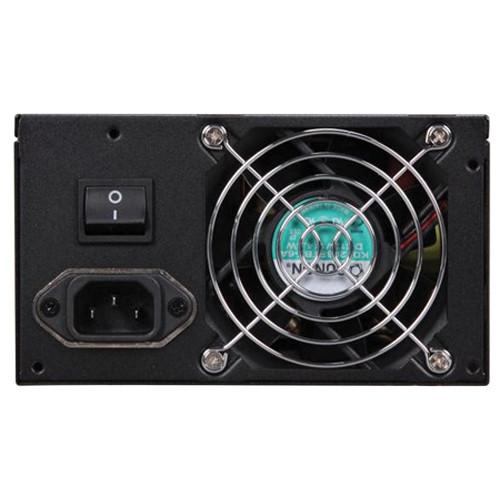

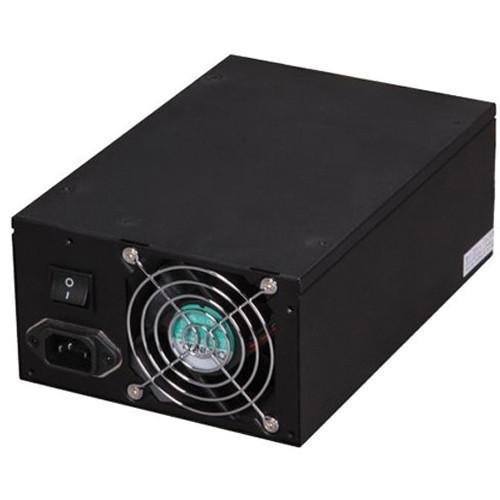

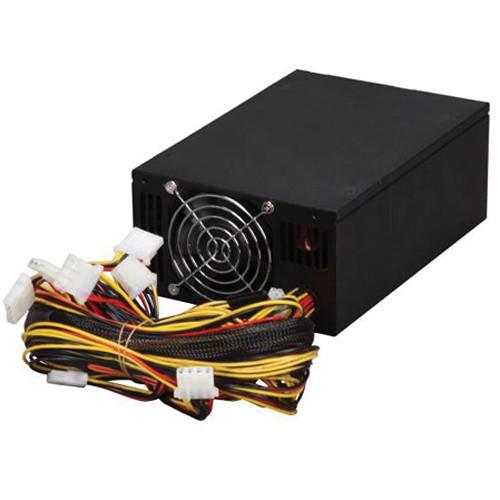

Product description The Netstor Single Server-Grade 1000 W Power Supply Unit from Dynapower USA is an IPC grade, industrial EPS 12V and ATX 12V 1000 W switching power supply unit. It is a replacement PSU for the NA250A-GPU/ NA260A-GPU-S PCIe expansion box. This PSU efficiently delivers 1000 W of reliable and stable power and also achieves up to 78% operating efficiency. It provides 16 ms hold-up time at maximum load and normal input voltage. The PSU features triple circuit protection that protects power supply and system from being damaged. An active power factor correction (PFC) achieves up to 99% PF for high performance and energy savings. The 3.15" (80 mm) dual cooling fan keeps the unit cool. Its Nickel-plated enclosure provides protection against corrosion. The PSU has UL and TUV safety approvals. - Compatible with NA250A-GPU / NA260A-GPU-S
- The Netstor Single Server-Grade 1000 W Power Supply Unit is a replacement power supply unit for the NA250A-GPU / NA260A-GPU-S PCIe Expansion Box
- 1000 W Continuous Power
- The PSU provides guaranteed 1000 W of continuous power and achieves up to 78% operating efficiency
- Triple Circuit Protection
- The over power, over voltage and short circuit protection protects the power supply and the system from being damaged
- 16 ms Hold-Up Time
- The PSU provides 16 ms hold-up time at maximum load and normal input voltage
- Active PFC
- The active power factor correction (PFC) achieves up to 99% PF for high performance and energy savings
- Dual Cooling Fan
- 3.15" (80 mm) dual cooling fan cools and improves the performance of your power supply
- Nickel Enclosure
- Nickel-plated enclosure protects the unit against corrosion
- UL, TUV Certified
- The Power Supply Unit has UL and TUV safety approvals
In the Box Dynapower USA Netstor Single Server-Grade 1000 W Power Supply Unit AC Power Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynapower USA Netstor Single Server-Grade 1000 W Power Supply Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynapower USA ZSTC1000PC01 Specs | Power Supply | 1000 W | | Compatibility | NA250A-GPU / NA260A-GPU-S PCIe Expansion Box | | AC Input | Voltage: 100 to 240 V, (Active PFC / full range) Frequency: 47 to 63 Hz Power Factor Correction (PFC): 0.99 Input Current: 14 A Inrush Current: 65 A / 125 A max for 115 / 230 VAC | | DC Output | Voltage: +3.3 V, Max Load: 30 A Voltage: +5 V, Max Load: 35 A Voltage: +12 V1, Max Load: 16 A Voltage: +12 V2, Max Load: 16 A Voltage: +12 V3, Max Load: 16 A Voltage: +12 V4, Max Load: 16 A Voltage: +5 V SB (standby), Max Load: 3 A | | Cooling Fan | 2x 3.15" (80 mm) | | Operating Efficiency | 78% at full load | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Certifications | UL, TUV | | Connectors | 1x 24 (20+4) Pin 1x 8 (4+4) Pin ATX 12 V / EPS 12 V 8x (6+2) PCIe 1x Molex 4 Pin 1x 3 Pin | | Dimensions (DxWxH) | 8.66 x 5.90 x 3.38" (220 x 150 x 86 mm) | | Weight | 7 lb (3.18 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
