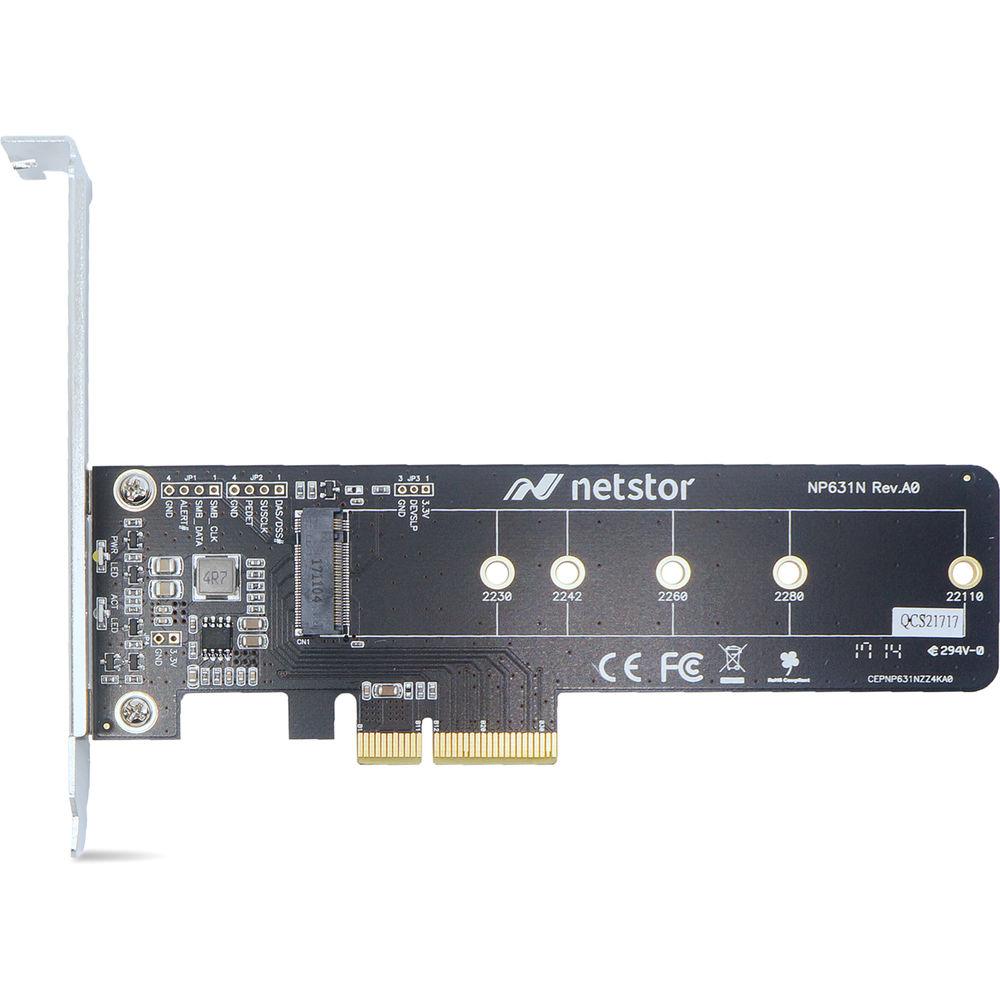

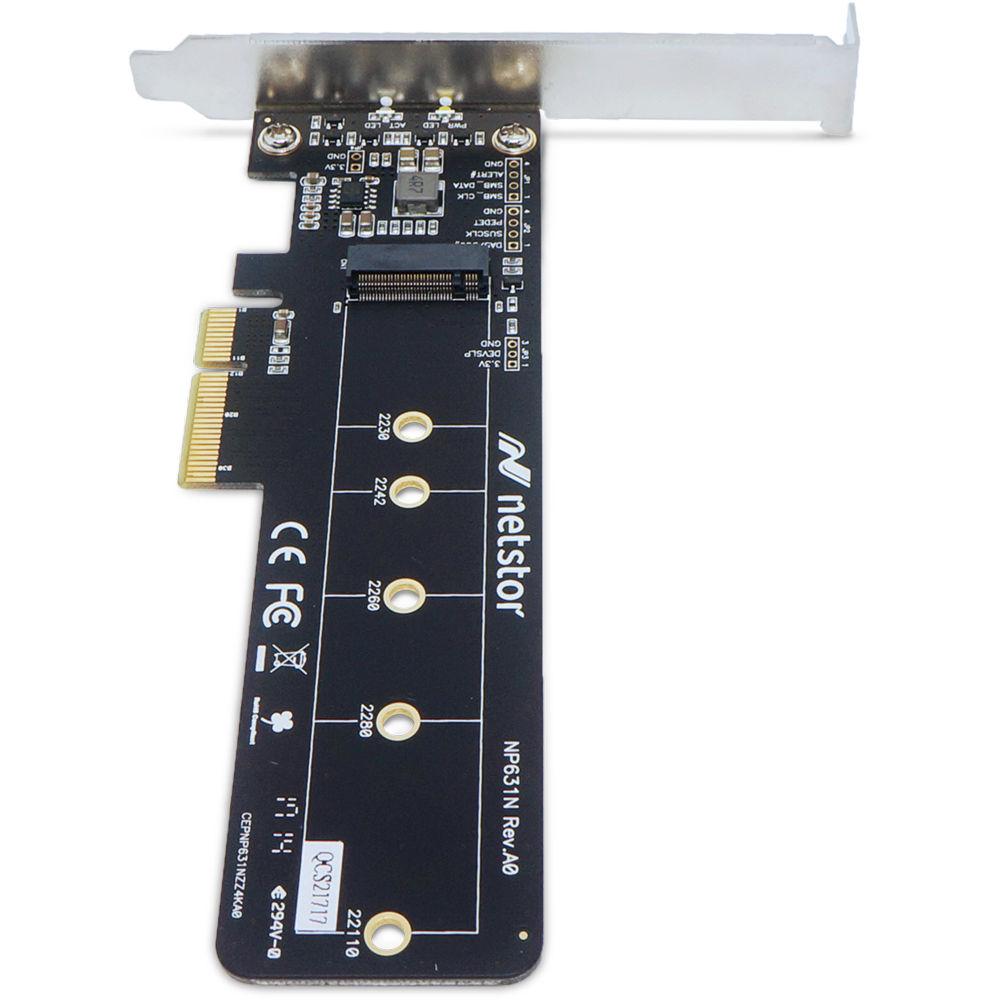

Product description The NP631N M.2 NVMe to PCIe Host Adapter from Dynapower USA is a PCIe 3.0 x4 add-in card for your computer, providing M.2 achievement up to 32 Gb/s. It fits in any PCIe x4, x8, and x16 slot within host to bring an enterprise-class PC/workstation build scheme. The movable M.2 standoff and multiple plated-holes supports M.2 SSD cards including 2230 (30 mm), 2242, 2260, 2280, and full-length 22110 (110 mm). The DC-to-DC controller and inductor are implemented to ensure the M.2 adapter transfers precise voltages within PCB and to the M.2 SSD. The power and activity bracket-side LED indicators let users know the status of M.2 adapter and M.2 PCIe NVMe SSD. - Fits any PCIe x4, x8, and x16 slot within host
- Comes with a movable M.2 standoff and multiple plated holes to support M.2 SSD cards
- Supports data transfer rates up to 32 GB/s
- DC-to-DC controller and inductors
In the Box Dynapower USA NP631N M.2 NVMe to PCIe Host Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynapower USA NP631N M.2 NVMe to PCIe Host Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynapower USA NP631N Specs | Host Interface | PCI Express 3.0 x4 interface (Compatible with PCI Express x8 and x16 slots) | | Data Transfer Rate | 32 Gb/s | | NVMe (or #Ports) | Interface: 1 x M.2 x4 M key (M.2 NGFF)
Type: Supports 2230/2242/2260/2280/22110 PCIe SSD | | Power Supply | 3.3 V at 3 A for M.2 NVMe SSD | | LED Display for Each Tray | White (Power On indicator)
Flash blue (HDD accessing indicator) | | Operating System Supported | Native driver support PCIe-NVMe and PCIe-AHCI:
Windows 10/8.1, Windows Server 2012 R2
Linux series, Fedora, SUSE, Ubuntu, Red Hat
Requires Microsoft Update:
Windows 7, Windows Server 2008 R2 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Relative Humidity | 20 to 80% (non-condensing) | | Dimensions | 6.2 x 2" / 16 x 5 cm | | Compatibility | 600p, SM961, 960 EVO, and 960 PRO SSDs | | Weight | Not specified by manufacturer | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 10.45 x 6.9 x 3.25" |
