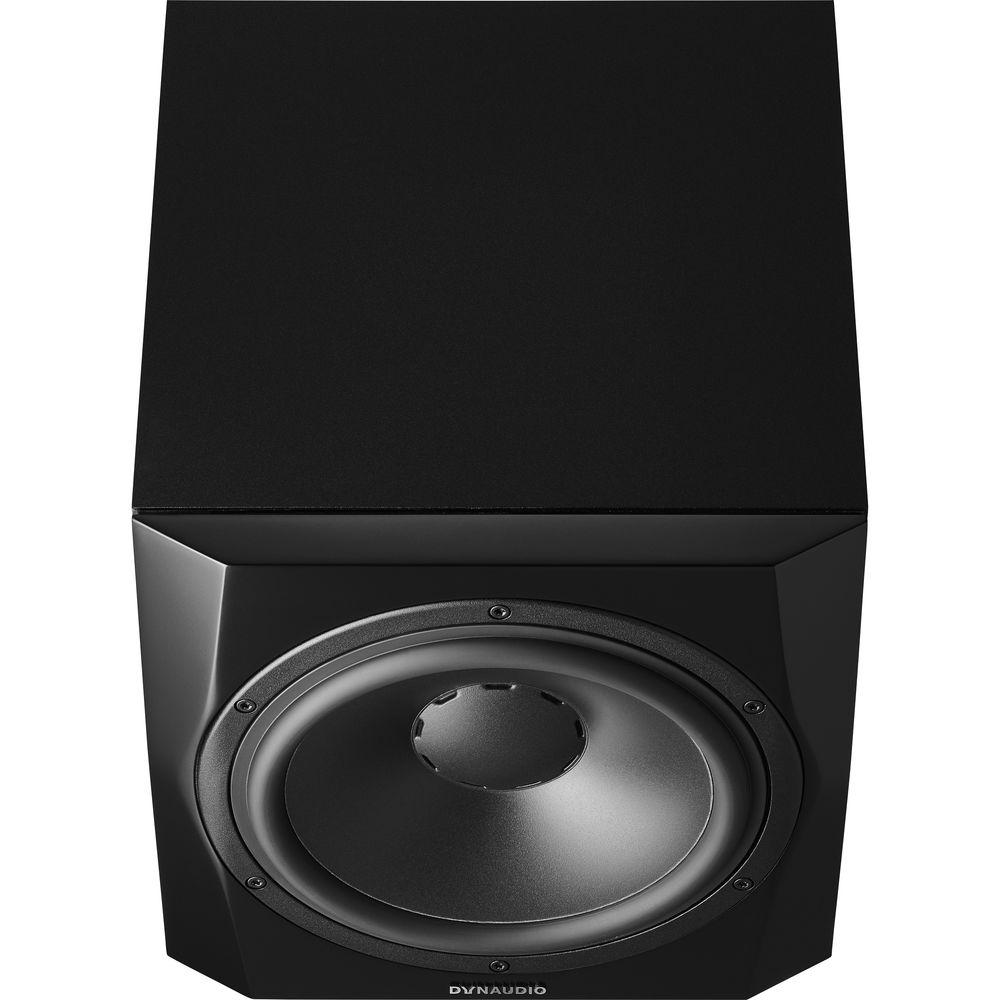

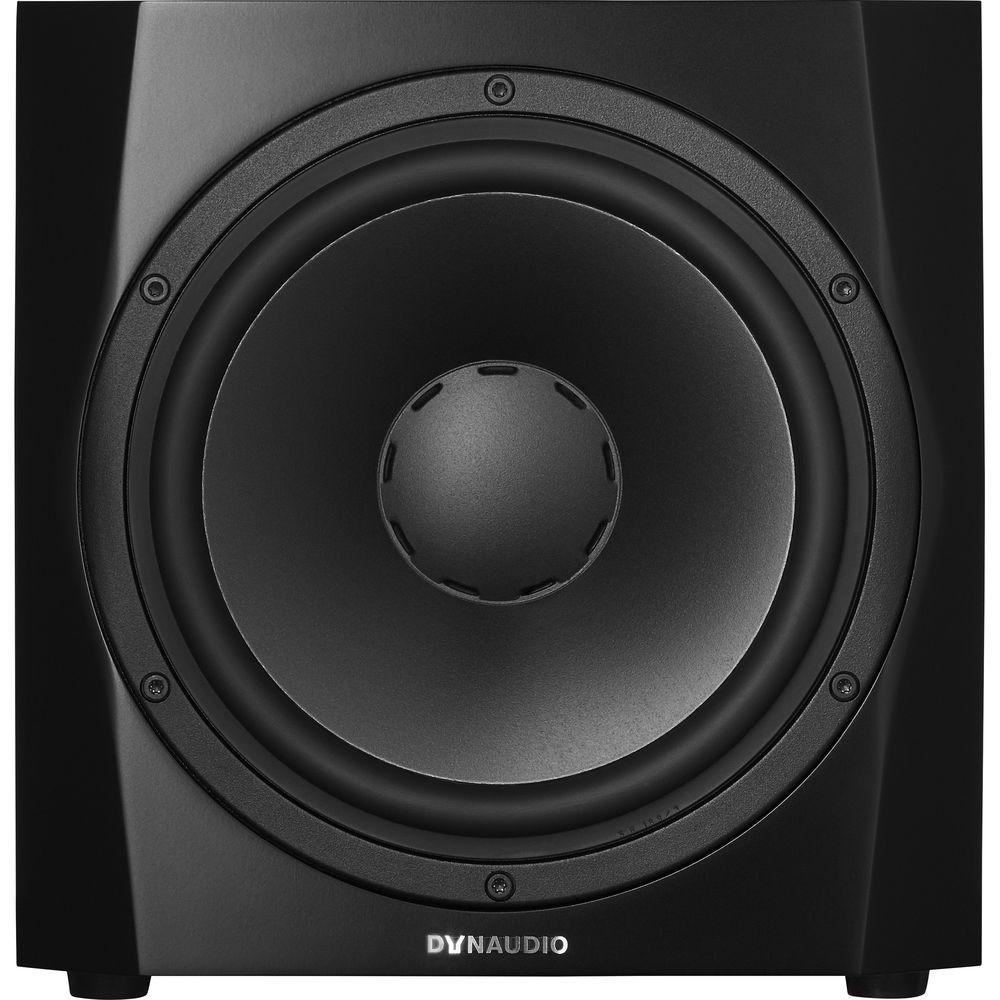

Product description The Dynaudio Acoustics 9S True Bass Active Subwoofer utilizes a powerful Class-D amplifier to power the onboard 9.5" woofer and is well suited for any mixing or mastering project. The 9S outperforms its predecessor, the BM 9S II, by utilizing the long-throw driver, which ensures the accurate reproduction of frequencies from 22 Hz to 175 Hz and max SPL output of 106 dB.

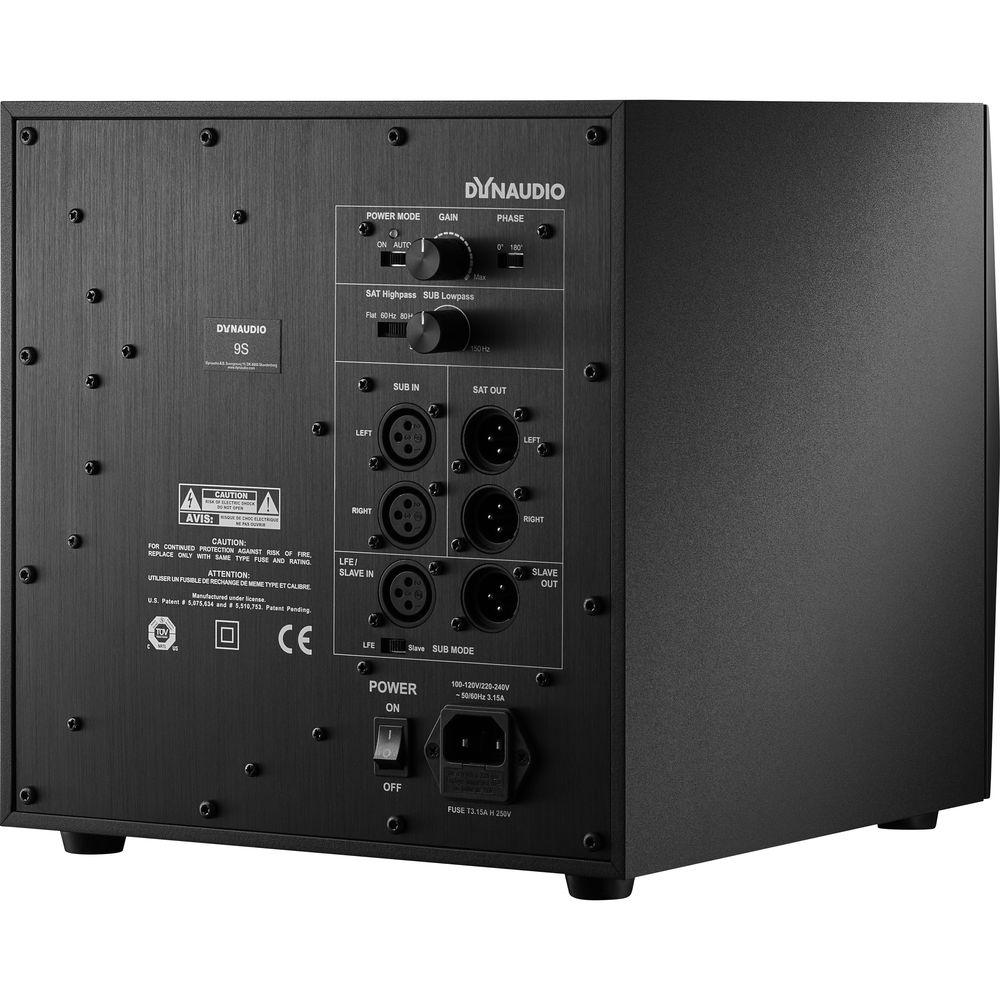

The rear panel offers stereo satellite XLR inputs and outputs with a variable crossover (50 to 150 Hz), which ensures that the connected full-range speakers perform at their best. Additionally, there is an XLR LFE input and output, allowing the subwoofer to daisy-chain additional subwoofers. What's more is there is a master/slave switch, which allows the control of the additional subwoofers to be set from the master, making for easy and simple adjustments. The Dynaudio Acoustics 9S True Bass subwoofer ships with a detachable baffle grille and a power cord. -
- 300W Class-D amplifier module
- 9.5" long-throw MSP woofer for accurate low-end frequency reproduction
- Frequency Range: 22 to 175 Hz
- Sealed, black-vinyl cabinet
- 1.5" front baffle
- Master/Slave feature for daisy-chaining multiple subwoofers
- Adjustable low-pass filter to set the crossover frequency
- SAT output with defeatable high-pass filter
In the Box Dynaudio Acoustics 9S True Bass 300W 9.5" Active Subwoofer Power Cord Detachable Baffle Grille Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynaudio Acoustics 9S True Bass 300W 9.5" Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynaudio Acoustics 9S Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Sealed, Shielded | | Power Rating | 300 W | | Drivers | LF Driver: 1 x 9.5" / 241.3 mm Polymer Cone with 3" / 76.2 mm Voice Coil | | Amplification | Subwoofer: Class-D Rated at 300 W | | | | Frequency Response | 22 Hz to 175 Hz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 106 dB | | Phase Adjustment | Phase Inversion 0 / 180° | | | | Filters | High-Pass at 60 Hz
High-Pass at 80 Hz
Low-Pass at 150 Hz Low-Pass Filter is Adjustable from 50 to 150 Hz | | | | I/O | 3 x 3-Pin XLR Balanced Analog Input
3 x 3-Pin XLR Balanced Analog Output XLR Inputs/Outputs are "Sub Right," "Sub Left," and "LFE/Slave." | | | | AC Input Power | 100 to 120 VAC at 60 Hz
200 to 240 VAC at 50 Hz | | Power Consumption | 0.5 W (Standby)
350 W (Maximum) | | | | Dimensions (W x H x D) | 10.5 x 11.8 x 10.5" / 266.7 x 298.5 x 266.7 mm | | Weight | 23.2 lb / 10.5 kg | | | | Package Weight | 27.85 lb | | Box Dimensions (LxWxH) | 16.7 x 15.7 x 15.3" |
