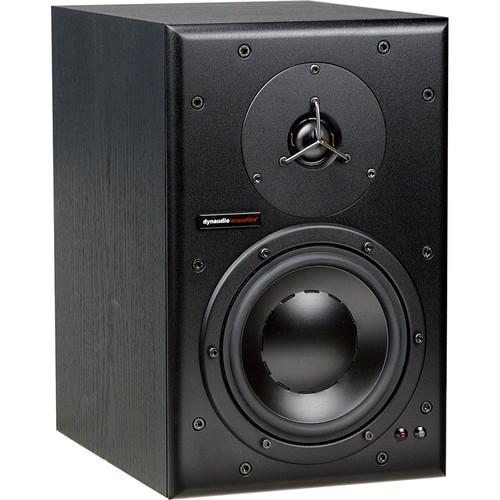

User Manual for Dynaudio Acoustics BM6A - 2-Way Active 6.5" Nearfield Monitors Click to enlarge the picture
Contents of the user manual for the Dynaudio Acoustics BM6A - 2-Way Active
- Product category: Studio Monitors Dynaudio Acoustics
- Brand: Dynaudio Acoustics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynaudio Acoustics Studio Monitors
|
User manual for the Dynaudio Acoustics BM6A - 2-Way Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynaudio Acoustics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynaudio Acoustics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynaudio Acoustics product will considerably shorten its lifespan!
|
Product description The Dynaudio Acoustics BM6A is a 2-way, Active studio monitor powered by twin 50 Watt amplifiers, featuring a 6.5" woofer and a 1" dome tweeter, housed in a no-nonsense cabinet with a black and aluminum finish, and sold as a pair.The cabinet interior has been treated with damping material to minimize aberrant, vibration-related distortion, and the fluid-protected tweeter features a rear acoustic chamber. The amps are convection cooled, and there are a pair of front panel LED's indicating power, and overdrive or thermal protection activity, respectively.The rear panel of the BM6A is refreshingly minimalist, featuring a trio of High, Mid and Low frequency boost/cut switches, a balanced or unbalanced level sensitivity switch, and a dedicated High Pass filter switch. The lone connector is a balanced XLR female. The frequency switches are provided for subtle adjustment to the given room environment, not playback enhancement.The BM6A is actually about this: if your mix is really good, it'll sound really good, and if it isn't, it won't. Neutrality, and balanced, un-hyped frequency delivery on playback, should be the objective in studio monitor speaker design. There are many active monitors available to choose from these days , and neutrality is both a manufacturing boast, and an engineering holy grail, that the BM6A actually delivers. - 2-Way Active Monitors with dual 100-Watt amplifiers and electronic crossover
- Full magnetic shielding for use in close proximity to computer monitors
- Unique linear phase and frequency response ensures neutral playback, minimizes listening fatigue
- Interior damping of speaker cabinet minimizes resonance and vibration-related distortion
- Thermally protected tweeter with rear acoustic chamber
- Slow-attack optical High-Frequency Limiter
- Overdrive protection circuitry for Low-Frequency amplifier with True Clipping front panel LED indicator
- Input sensitivity level switch for balanced or unbalanced operation
- High and Low-Frequency trim controls with 5dB range for subtle adjustment to room acoustic environment
- High-Frequency control from 3kHz upward, Low-Frequency control from 100Hz downward
- Switchable 115-230 VAC power supply for international use
In the Box Dynaudio Acoustics BM6A - 2-Way Active 6.5" Nearfield Monitors (Single) 2 x Power Cable Owner's Manual Limited 1-Year Warranty User Manual PDF 125.5kbxxfycwtsvxdqfwffeurzzccuysuvcxtuzsev Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynaudio Acoustics BM6A - 2-Way Active 6.5" Nearfield Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynaudio Acoustics BM6A Specs | | | Monitor Type | Active 2-Way | | Enclosure | Sealed, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Soft Dome Tweeter with 0.15" / 4 mm Voice Coil
LF Driver: 1 x 6.5" / 16.5 cm Polypropylene Cone with 3" / 7.62 cm Voice Coil | | Amplification | HF Amplifier: Rated at 100 W
LF Amplifier: Rated at 100 W | | | | Frequency Response | 41 Hz to 21 kHz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 118 dB | | | | Crossover Frequency | 2.2 kHz, 24 dB/Octave Slope | | Crossover Type | Active | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x RCA Unbalanced Analog Input | | | | Dimensions (W x H x D) | 8.5 x 13.3 x 12.6" / 217.0 x 338.0 x 321.0 mm | | Weight | 24.2 lb / 11.0 kg | | | | Package Weight | 29.3 lb | | Box Dimensions (LxWxH) | 17.25 x 16.5 x 12.6" |
