User Manual for Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor Click to enlarge the picture
Contents of the user manual for the Dynaudio Acoustics LYD 48 - 3-Way
- Product category: Studio Monitors Dynaudio Acoustics
- Brand: Dynaudio Acoustics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynaudio Acoustics Studio Monitors
 |
User manual for the Dynaudio Acoustics LYD 48 - 3-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynaudio Acoustics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynaudio Acoustics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynaudio Acoustics product will considerably shorten its lifespan!
|

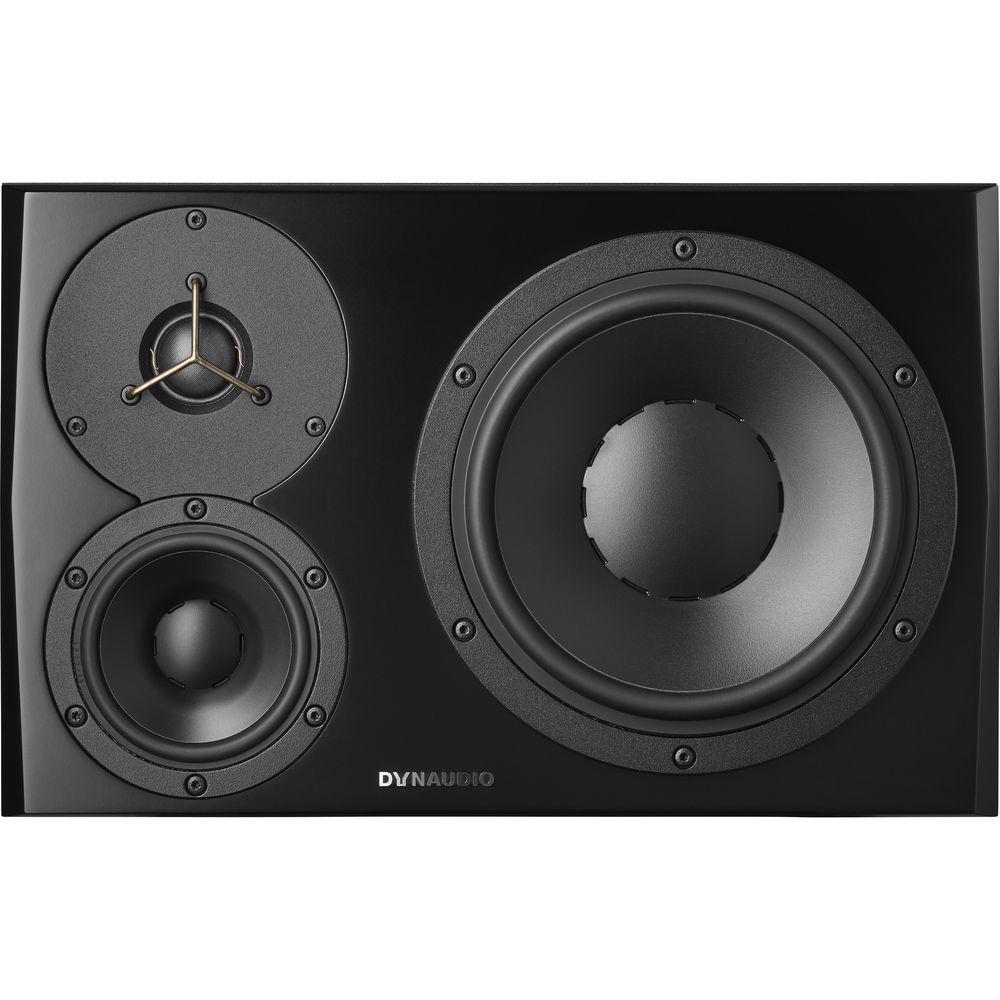

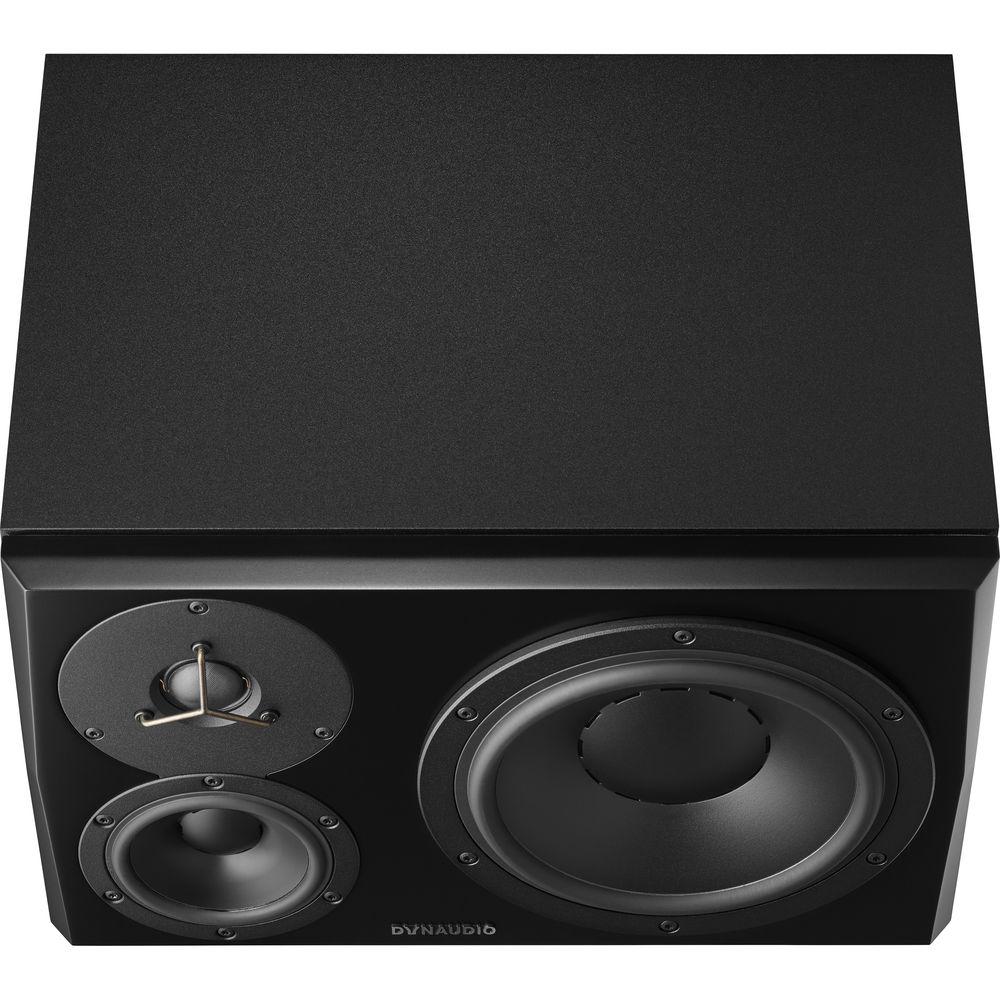

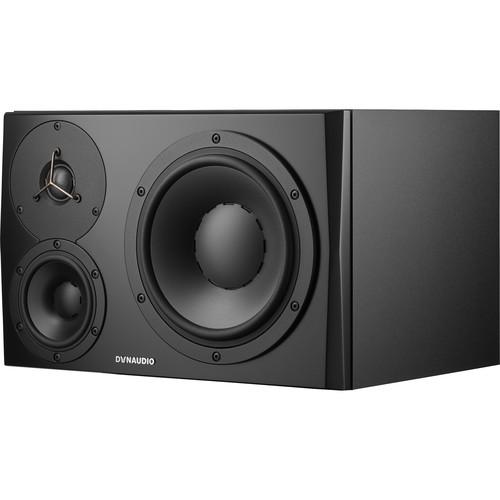

Product description Styled in black, left LYD 48 from Dynaudio Acoustics is a 3-way studio monitor well suited for near-field and midfield applications. The 8" woofer and 4" midrange woofer are made from a magnesium silicate polymer, which provides stiff, yet light weight performance, while the soft dome tweeter offers smooth, balanced highs. Each driver is powered by a separate Class-D amplifier and when combined, offers a frequency response of 32 Hz to 21 kHz with a maximum SPL of 112 dB (pair at 1m).

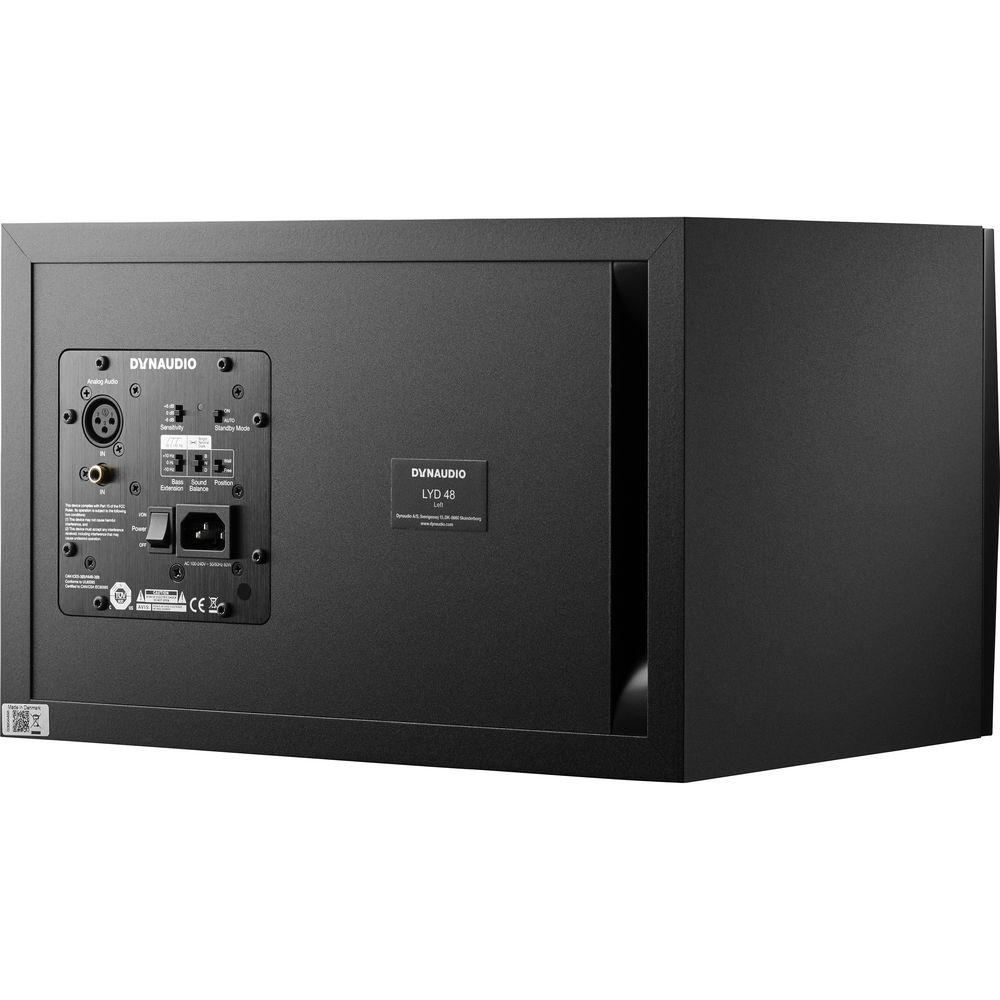

The rear panel offers balanced XLR and unbalanced RCA inputs. Additional controls for bass extension, placement, and balance allow you to contour the speakers' output to your room without changing the phase, thereby ensuring power, precision, and accuracy at any volume. - Key Features at a Glance
-
- Near-field / midfield monitor with 8" woofer, 4" mid-woofer, and 1.0" soft dome tweeter
- Tri-amped speaker design with 80W LF / 50W MF / 50W HF Class-D amplification
- Bass Extension: Extend or curtail the low-end frequency response (-10, 0, +10 Hz)
- Position Switch: One for free-standing and one designed for speakers within 19.7" of wall
- Sound balance to influence the overall response of the speaker without adjusting the phase
- Max. SPL (1m, pair): 112 dB
- Crossover Frequencies: 490 Hz / 5600 Hz
- Frequency Response: 32 Hz to 21 kHz
In the Box Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor (Left, Black) Power Cord Limited 2-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynaudio Acoustics LYD 48 Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25.4 mm Tweeter
MF Driver: 1 x 4" / 101.6 mm Cone
LF Driver: 1 x 8" / 203.2 mm Woofer | | Amplification | HF Amplifier: Class-D Rated at 50 W
MF Amplifier: Class-D Rated at 50 W
LF Amplifier: Class-D Rated at 80 W | | | | Frequency Range | 40 Hz to 21 kHz | | Frequency Response | 50 Hz to 19 kHz | | Maximum Sound Pressure Level (SPL) | 112 dB | | Analog Input Sensitivity/Gain | +6 to -6 dB (Incrementally Variable) | | | | Crossover Frequency | Low-Pass Frequency: 460 Hz
High-Pass Frequency: 5.5 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x RCA Unbalanced Analog Input | | | | AC Input Power | 90 to 264 VAC at 50/60 Hz | | Power Consumption | 0.5 W (Standby)
100 W (Maximum) | | | | Dimensions (W x H x D) | 14.5 x 9.2 x 12.9" / 369.0 x 234.0 x 328.0 mm | | Weight | 26.5 lb / 12.0 kg | | | | Package Weight | 28.65 lb | | Box Dimensions (LxWxH) | 19.75 x 16.5 x 16.5" |
