Dynaudio Acoustics LYD 48 - 3-Way

Search your instruction manual in PDF to download

User Manual for Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor

Click to enlarge the picture
Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor Contents of the user manual for the Dynaudio Acoustics LYD 48 - 3-Way
  • Product category: Studio Monitors Dynaudio Acoustics
  • Brand: Dynaudio Acoustics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Dynaudio Acoustics Studio Monitors

Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor
User manual for the Dynaudio Acoustics LYD 48 - 3-Way contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Dynaudio Acoustics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Dynaudio Acoustics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Dynaudio Acoustics product will considerably shorten its lifespan!



Product description

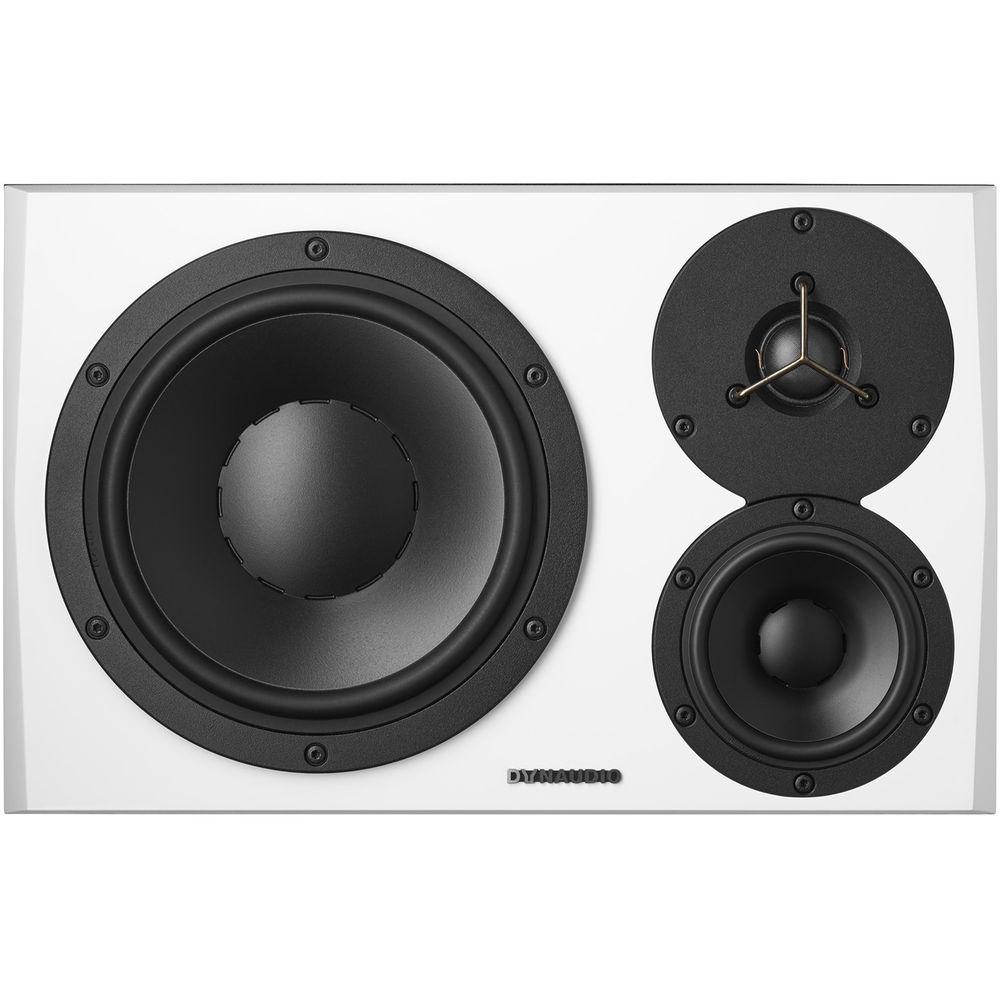

Styled in white, right LYD 48 from Dynaudio Acoustics is a 3-way studio monitor well suited for near-field and midfield applications. The 8" woofer and 4" midrange woofer are made from a magnesium silicate polymer, which provides stiff, yet light weight performance, while the soft dome tweeter offers smooth, balanced highs. Each driver is powered by a separate Class-D amplifier and when combined, offers a frequency response of 32 Hz to 21 kHz with a maximum SPL of 112 dB (pair at 1m).

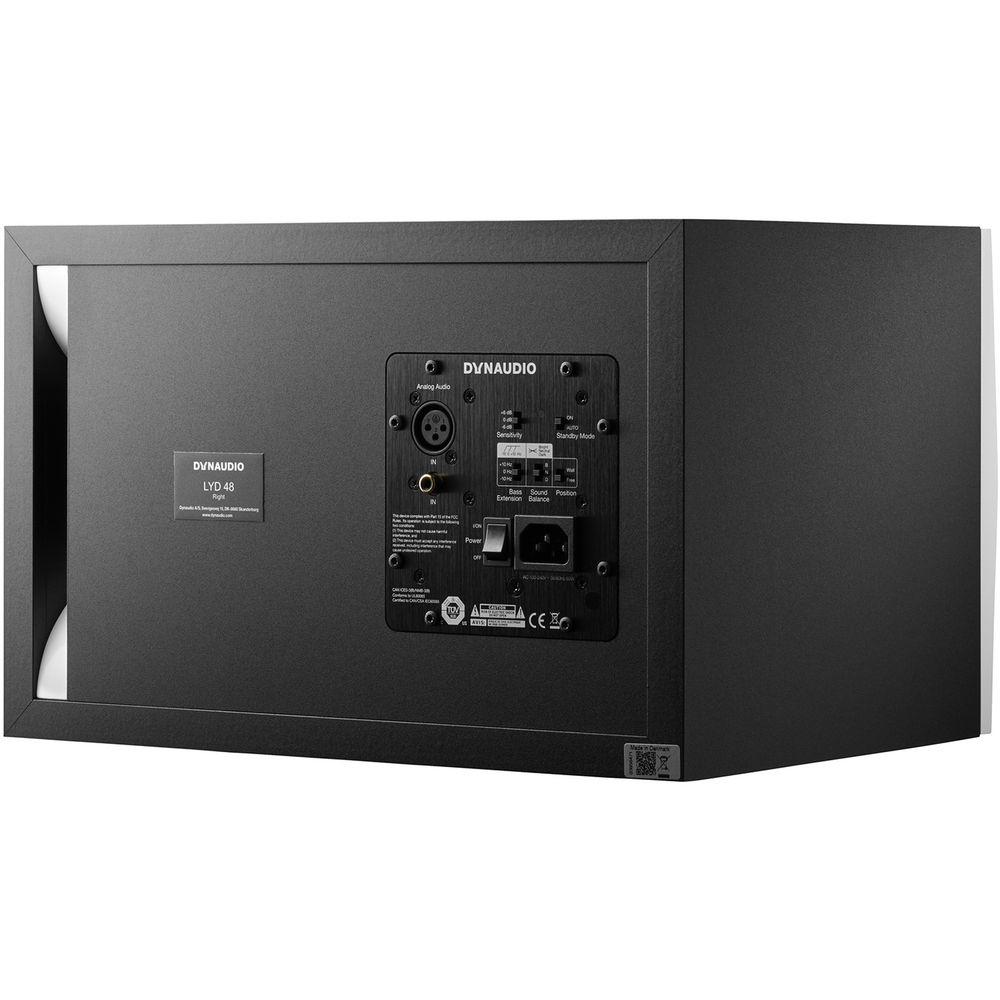

The rear panel offers balanced XLR and unbalanced RCA inputs. Additional controls for bass extension, placement, and balance allow you to contour the speakers' output to your room without changing the phase, thereby ensuring power, precision, and accuracy at any volume.
    Key Features at a Glance
    • Near-field / midfield monitor with 8" woofer, 4" mid-woofer, and 1.0" soft dome tweeter
    • Tri-amped speaker design with 80W LF / 50W MF / 50W HF Class-D amplification
    • Bass Extension: Extend or curtail the low-end frequency response (-10, 0, +10 Hz)
    • Position Switch: One for free-standing and one designed for speakers within 19.7" of wall
    • Sound balance to influence the overall response of the speaker without adjusting the phase
    • Max. SPL (1m, pair): 112 dB
    • Crossover Frequencies: 490 Hz / 5600 Hz
    • Frequency Response: 32 Hz to 21 kHz
In the Box Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor (Right, White)
  • Power Cord
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Dynaudio Acoustics LYD 48 Specs

    Monitor Type Active 3-Way
    Enclosure Bass-Reflex, Shielded
    Drivers HF Driver: 1 x 1" / 25.4 mm Tweeter
    MF Driver: 1 x 4" / 101.6 mm Cone
    LF Driver: 1 x 8" / 203.2 mm Woofer
    Amplification HF Amplifier: Class-D Rated at 50 W
    MF Amplifier: Class-D Rated at 50 W
    LF Amplifier: Class-D Rated at 80 W
    Frequency Range 40 Hz to 21 kHz
    Frequency Response 50 Hz to 19 kHz
    Maximum Sound Pressure Level (SPL) 112 dB
    Analog Input Sensitivity/Gain +6 to -6 dB (Incrementally Variable)
    Crossover Frequency Low-Pass Frequency: 460 Hz
    High-Pass Frequency: 5.5 kHz
    I/O 1 x 3-Pin XLR Balanced Analog Input
    1 x RCA Unbalanced Analog Input
    AC Input Power 90 to 264 VAC at 50/60 Hz
    Power Consumption 0.5 W (Standby)
    100 W (Maximum)
    Dimensions (W x H x D) 14.5 x 9.2 x 12.9" / 369.0 x 234.0 x 328.0 mm
    Weight 26.5 lb / 12.0 kg
    Package Weight 28.75 lb
    Box Dimensions (LxWxH) 20.0 x 16.0 x 13.0"
