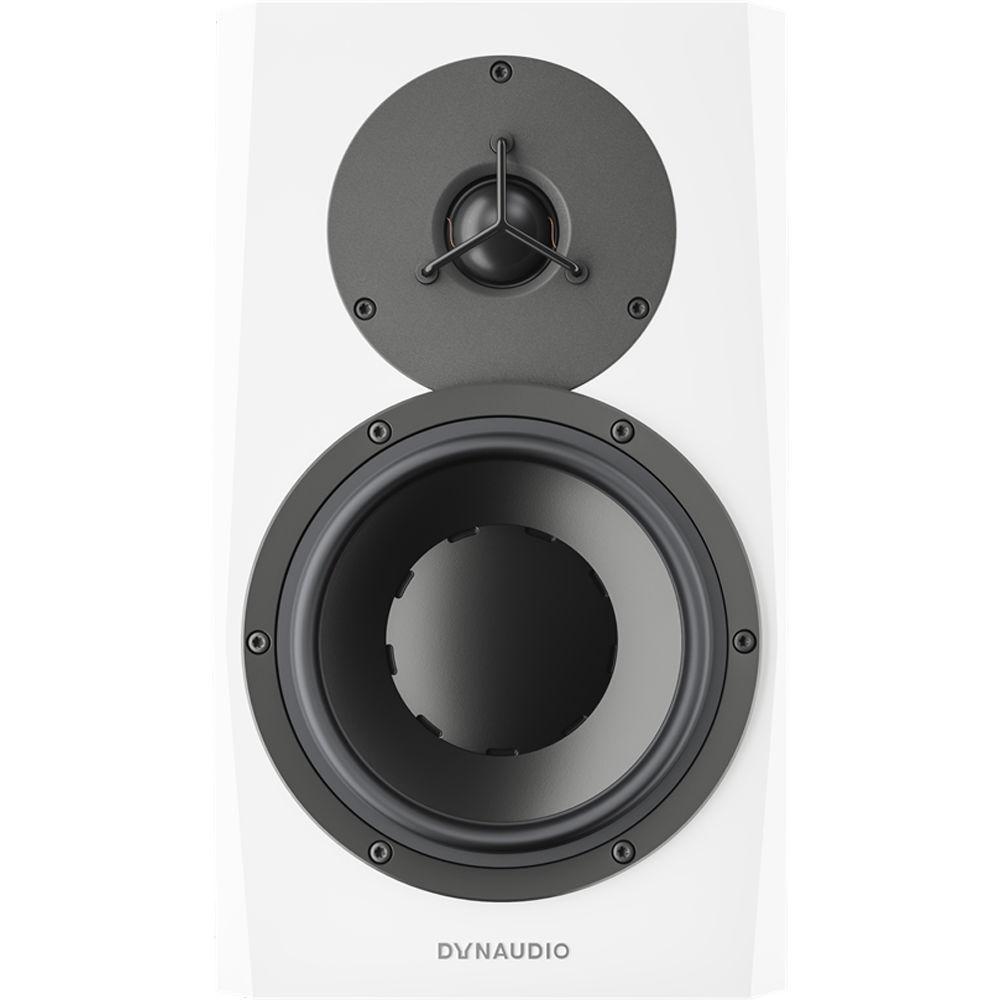

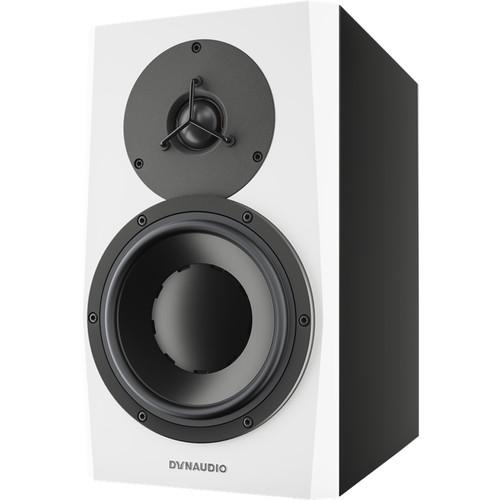

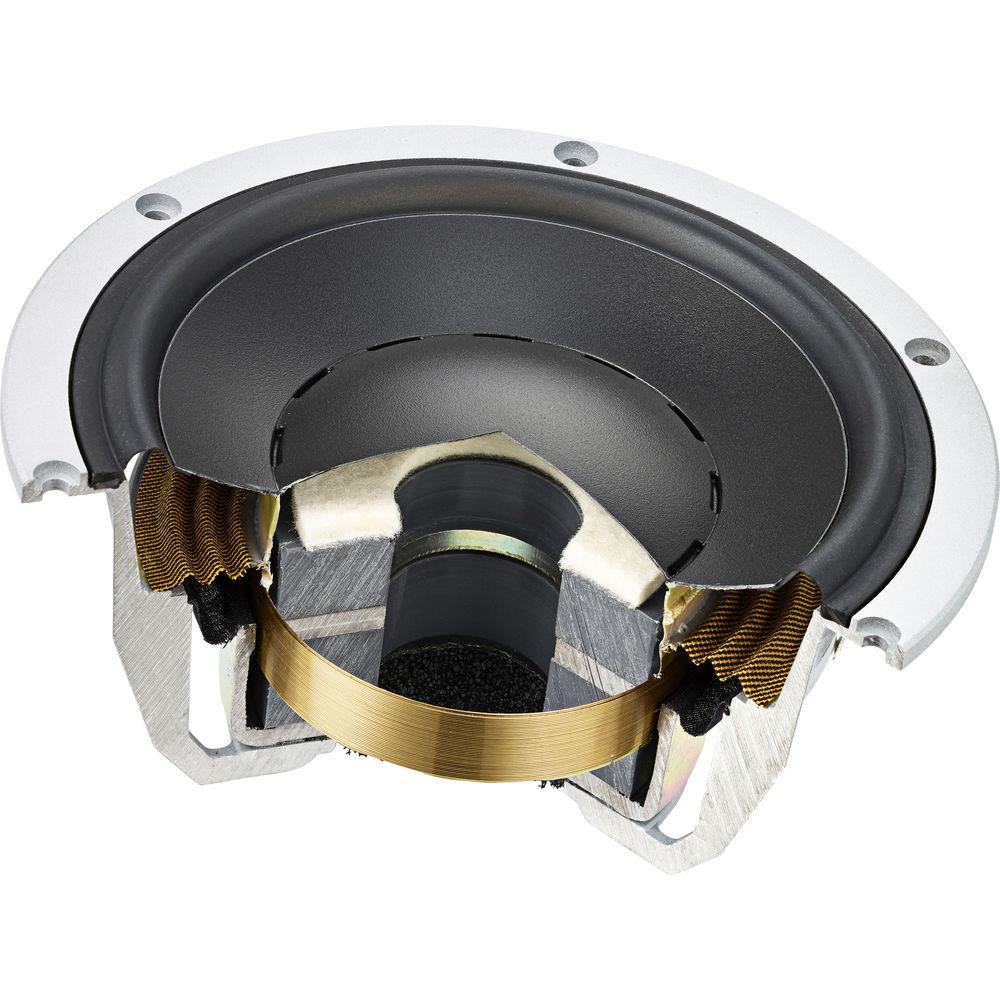

Product description Dynaudio LYD Series: Personal Reference Monitors Read More Styled in white, the Dynaudio Acoustics LYD 7 is a personal reference monitor designed to work for home or project studios or anywhere in need of a powerfully accurate monitor. Its handmade design implements aluminum wire voice coils, along with a Class-D amplifier and a 96 kHz / 24-bit signal path with onboard DSP to bolster audio performance.

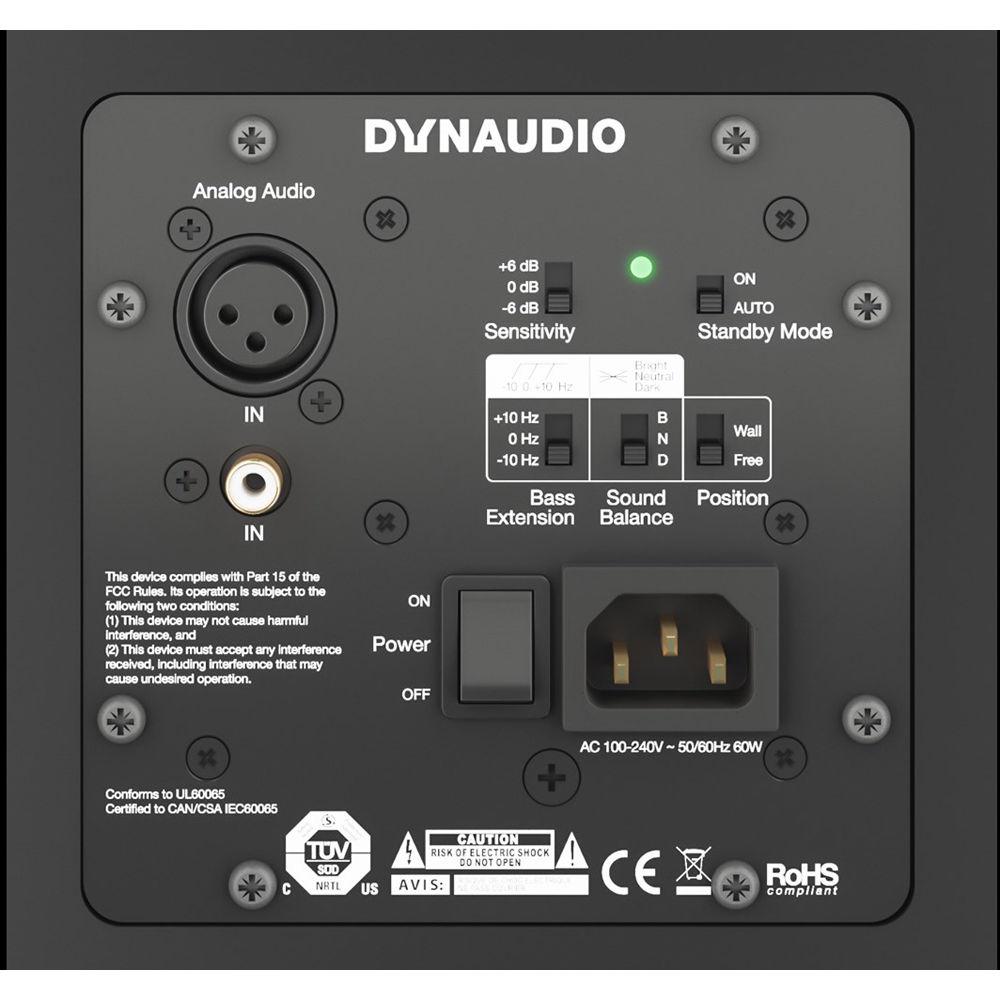

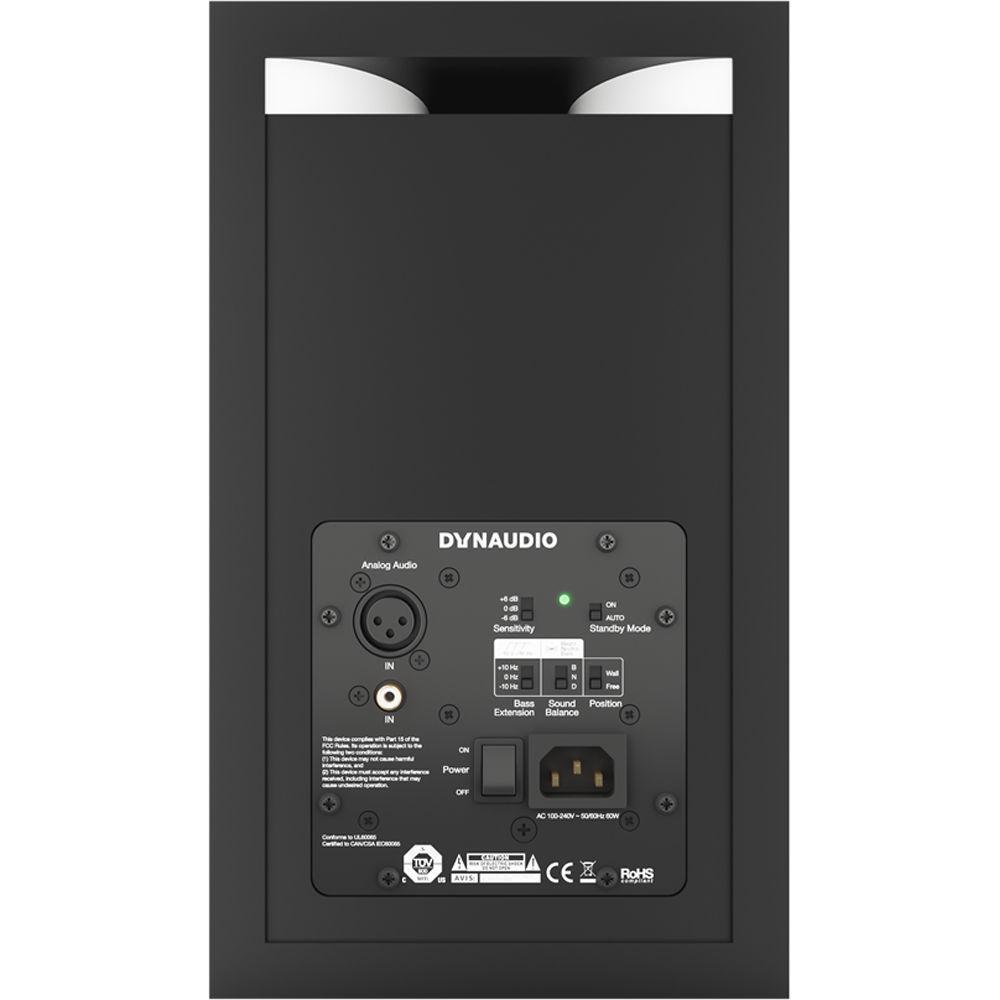

With a relatively lightweight woofer, the monitor secures a quick and accurate transient response, which is essential for critical listening and mixing decisions. Extending from 45 Hz to 21 kHz, the LYD 7 has a 7" woofer and a 1" soft dome tweeter.The monitor offers several options for tweaking the sound for your environment. Switches are provided for tonal boosting or cutting, to better suit your particular room placement. These switches are all detented, so you can easily match one speaker to another. An XLR input is provided for pro setups, while RCA is on hand for the hi-fi enthusiast. -
- Nearfield monitor with 7" woofer
- Bi-amped speaker design with 2 x 50W and Class-D amplification
- Bass Extension: Extend or curtail the low-end frequency response (-10, 0, +10 dB)
- Position Switch: One for free-standing orientation and one designed for speakers positioned within 19.7" of a wall
- Sound balance to influence the overall response of the speaker
- Max. SPL (1m, pair): 109 dB
- Crossover Frequency: 4.3 kHz
- Frequency Response: 45 Hz to 21 kHz
In the Box Dynaudio Acoustics LYD 7 Nearfield 7" Speaker Monitor (Single, White) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynaudio Acoustics LYD 7 Nearfield 7" Speaker Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynaudio Acoustics LYD 7 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25.4 mm Tweeter
LF Driver: 1 x 7" / 177.8 mm Woofer | | Amplification | HF Amplifier: Class-D Rated at 50 W
LF Amplifier: Class-D Rated at 50 W | | | | Frequency Range | 45 Hz to 21 kHz | | Frequency Response | 55 Hz to 19 kHz | | Maximum Sound Pressure Level (SPL) | 109 dB | | Analog Input Sensitivity/Gain | +6 to -6 dB (Incrementally Variable) | | | | Crossover Frequency | 4.3 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x RCA Unbalanced Analog Input | | | | AC Input Power | 90 to 264 VAC at 50/60 Hz | | Power Consumption | 0.5 W (Standby)
100 W (Maximum) | | | | Dimensions (W x H x D) | 7.3 x 12.6 x 11.7" / 186.0 x 320.0 x 296.0 mm | | Weight | 17.6 lb / 8.0 kg | | | | Package Weight | 20.75 lb | | Box Dimensions (LxWxH) | 16.9 x 15.9 x 11.3" |
