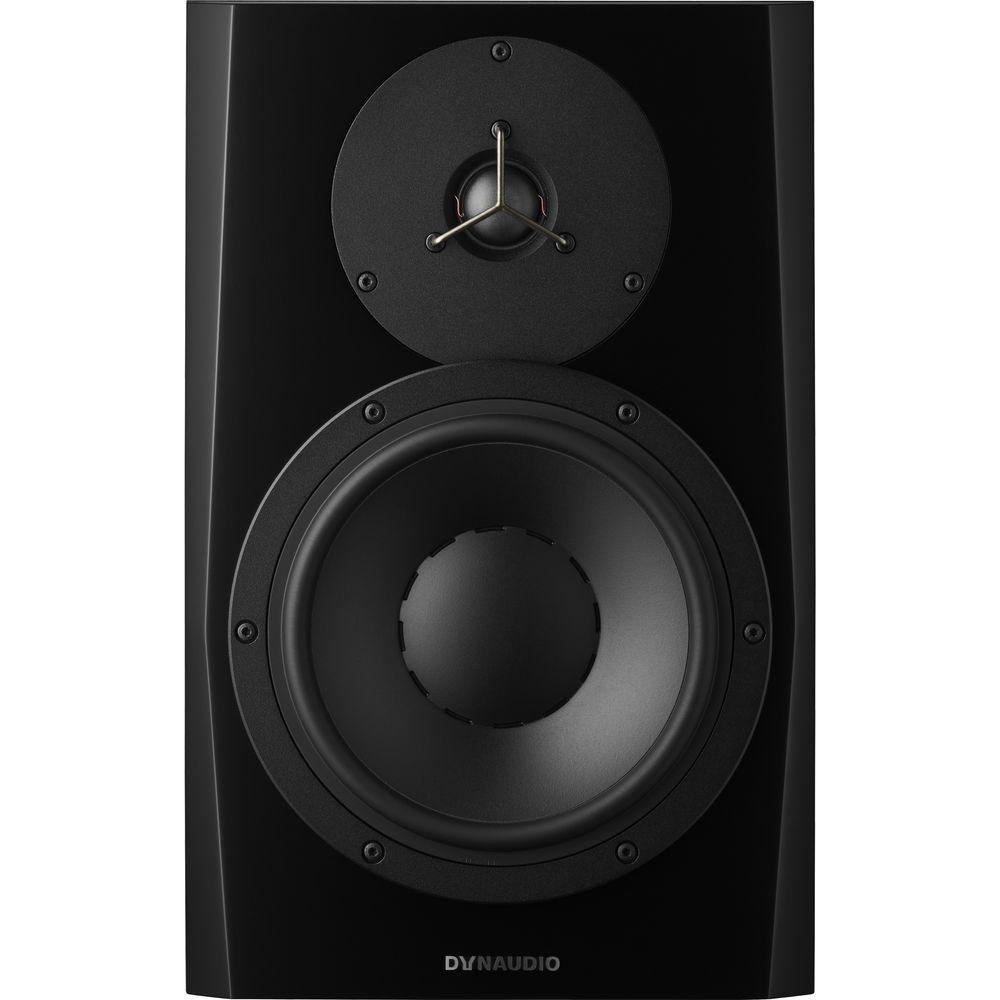

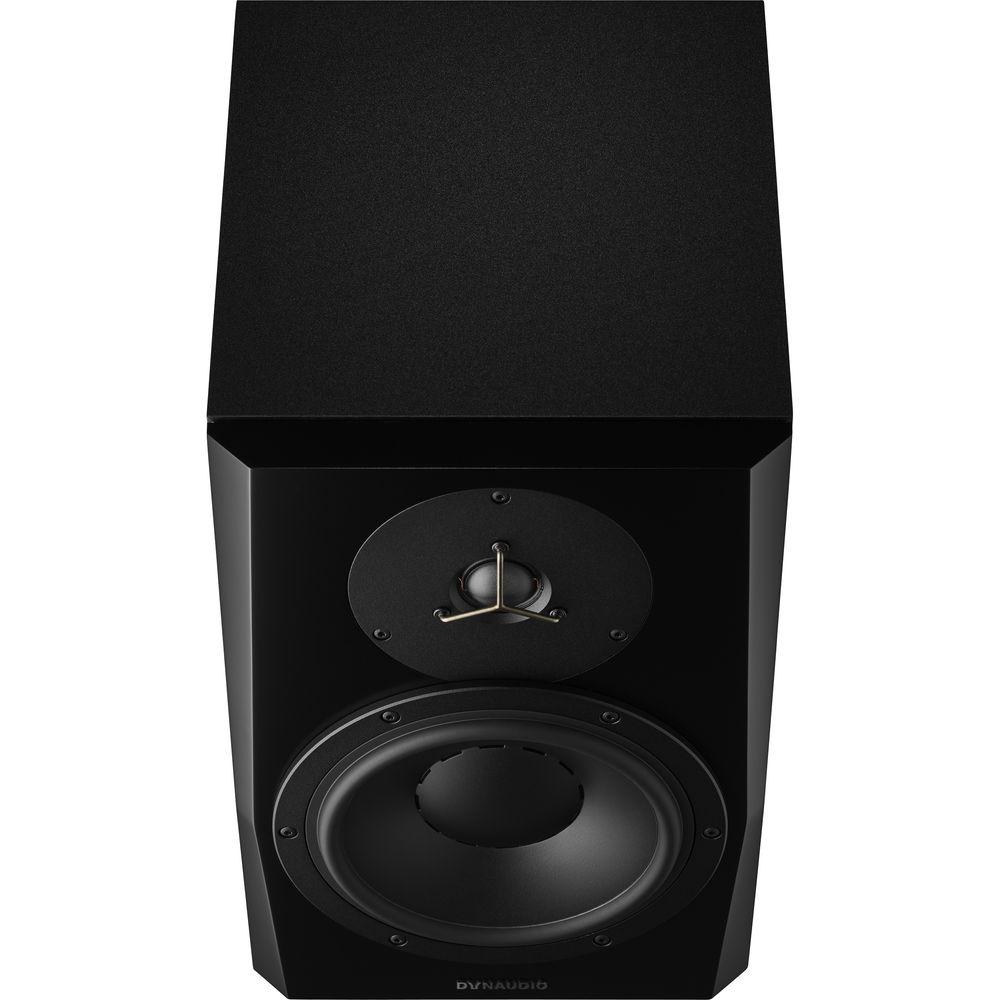

Product description Styled in black, the Dynaudio Acoustics LYD 8 is a personal reference monitor designed to work for home studios, project studio, or anywhere in need of a powerful and accurate monitor. Its handmade design implements aluminum wire voice coils, along with a Class-D amplifier and a 96 kHz / 24-bit signal path that sports onboard DSP to bolster audio performance.

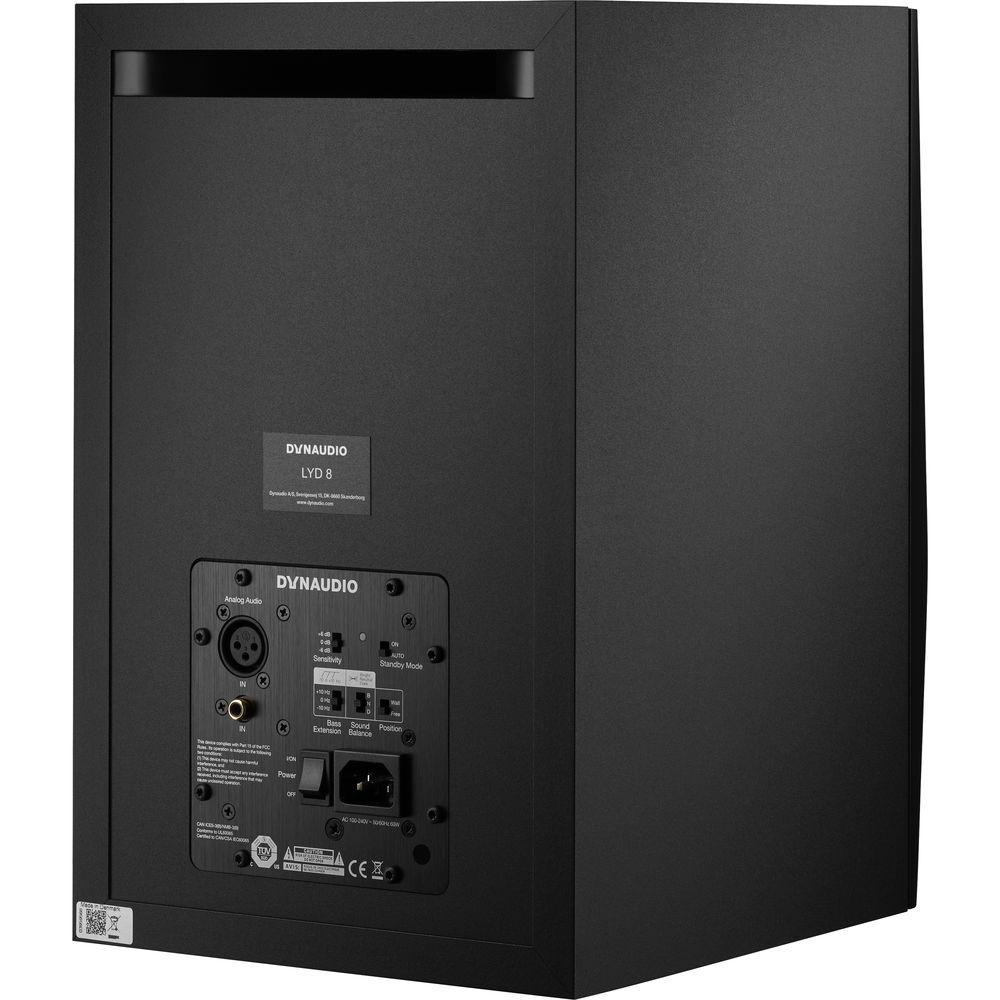

With a relatively lightweight woofer, the monitor secures a quick and accurate transient response, which is essential for critical listening and mixing descisions. Extending from 45 Hz to 21 kHz, the LYD 8 has a 8" woofer and a 1" soft dome tweeter. The woofer is powered at 80W, while the tweeter boasts 50W of power, The monitor offers several options for tweaking the sound for your environment. Switches are provided for tonal boosting or cutting, to better suit your particular room placement. These switches are all detented, so you can easily match one speaker to another. An XLR input is provided for pro setups, while RCA is on hand for the hi-fi enthusiast. -
- Nearfield Monitor with 8" woofer
- Bi-amped speaker design with Class-D amplification
- 80W LF driver, 50W HF driver
- Bass Extension: Extend or curtail the low-end frequency response (-10, 0, +10 dB)
- Position Switch: One for freestanding orientation and one designed for speakers positioned within 19.7" of a wall
- Sound balance to influence the overall response of the speaker
- Max. SPL (1m, Pair): 112 dB
- Crossover Frequency: 3.9 kHz
- Frequency Response: 45 Hz to 21 kHz
In the Box Dynaudio Acoustics LYD 8 Nearfield 8" Speaker Monitor (Single, Black) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynaudio Acoustics LYD 8 Nearfield 8" Speaker Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynaudio Acoustics LYD 8 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25.4 mm Tweeter
LF Driver: 1 x 8" / 203.2 mm Woofer | | Amplification | HF Amplifier: Class-D Rated at 50 W
LF Amplifier: Class-D Rated at 80 W | | | | Frequency Range | 45 Hz to 21 kHz | | Frequency Response | 55 Hz to 19 kHz | | Maximum Sound Pressure Level (SPL) | 112 dB | | Analog Input Sensitivity/Gain | +6 to -6 dB (Incrementally Variable) | | | | Crossover Frequency | 3.9 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x RCA Unbalanced Analog Input | | | | AC Input Power | 90 to 264 VAC at 50/60 Hz | | Power Consumption | 0.5 W (Standby)
100 W (Maximum) | | | | Dimensions (W x H x D) | 9.2 x 14.5 x 12.9" / 234.0 x 369.0 x 328.0 mm | | Weight | 22.5 lb / 10.2 kg |
