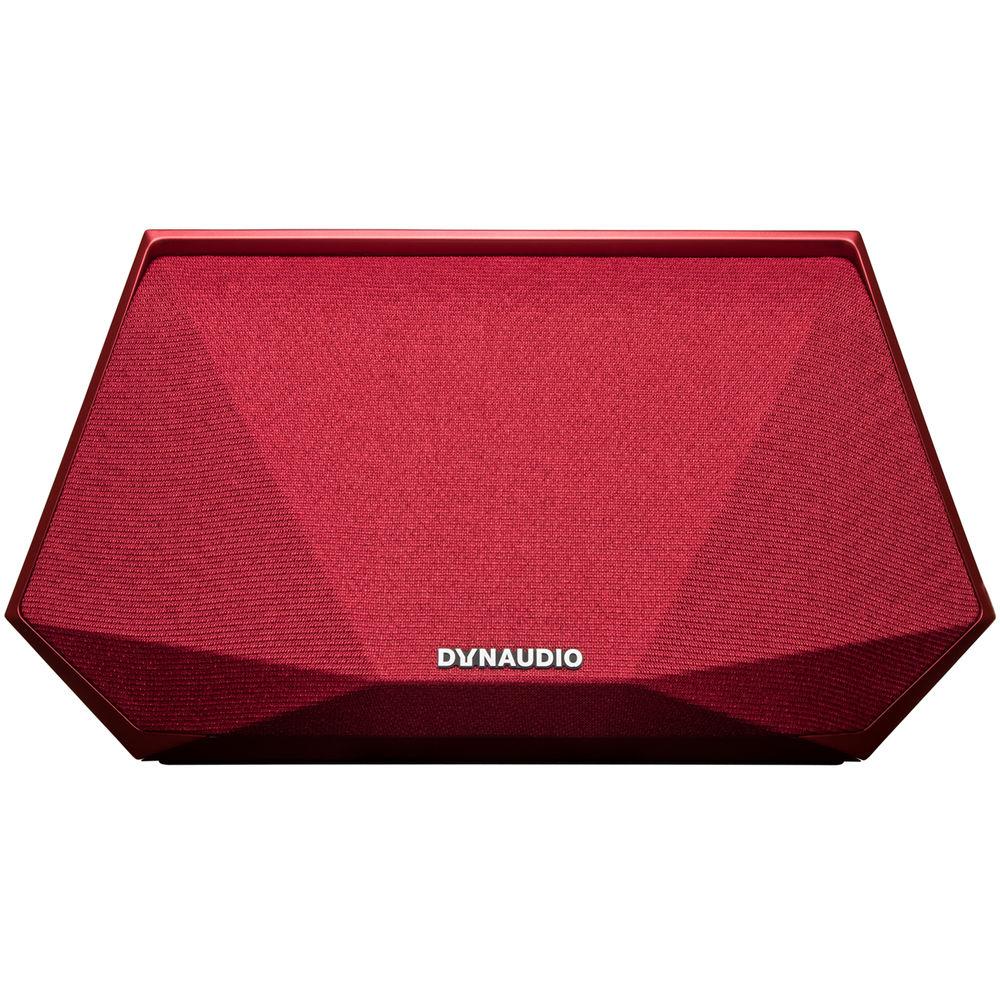

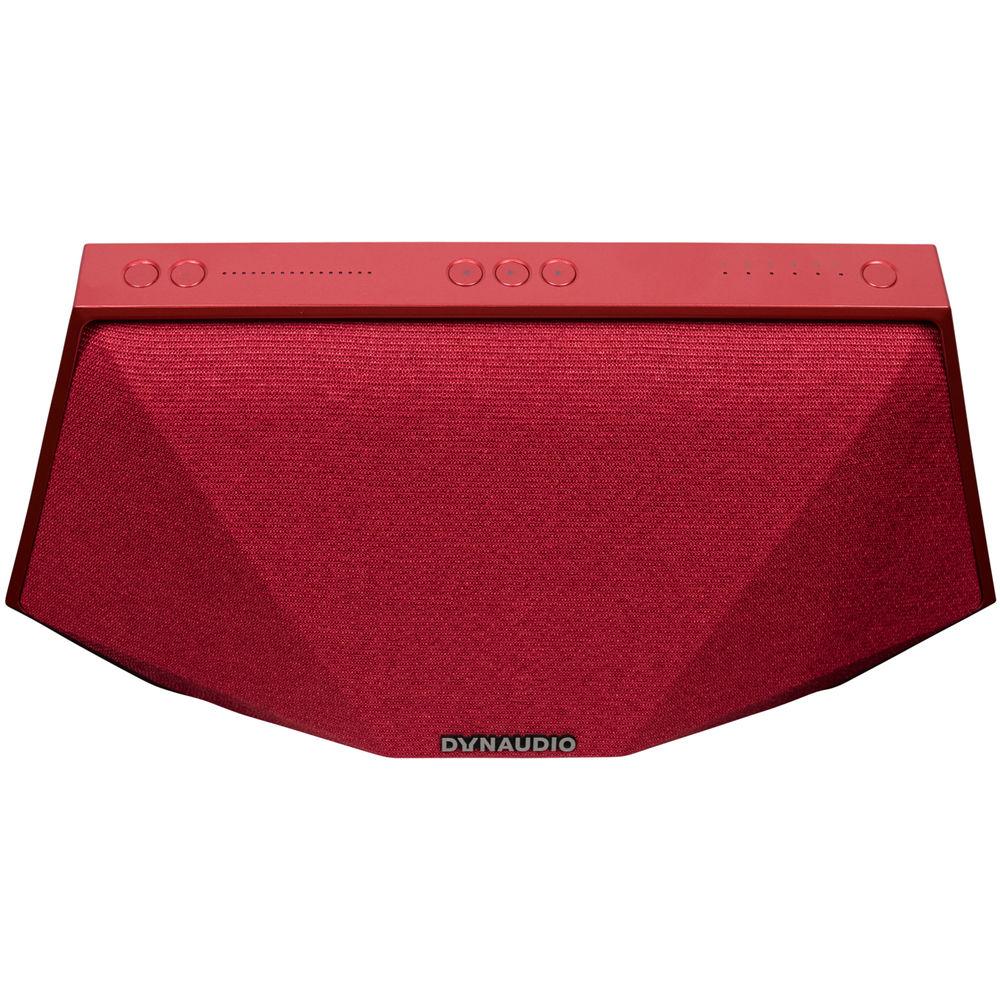

User Manual for Dynaudio Music 3 Wireless Speaker Click to enlarge the picture
Contents of the user manual for the Dynaudio Music 3 Wireless Speaker
- Product category: Wireless Home Speakers Dynaudio
- Brand: Dynaudio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynaudio Wireless Home Speakers
|
User manual for the Dynaudio Music 3 Wireless Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynaudio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynaudio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynaudio product will considerably shorten its lifespan!
|
Product description Enjoy wireless audio streaming with the red Dynaudio Music 3 Wireless Speaker. It outputs up to 120W of total power using its 5" woofer and two 1" tweeters. Bluetooth with aptX technology allows you to pair and wirelessly stream music from your compatible devices, such as smartphones or tablets, while onboard Wi-Fi connectivity enables wireless streaming from a variety of sources, including Internet radio, AirPlay, and your DLNA devices. The Music 3 also features an 1/8" input for wired devices and a USB port for charging of and playback from compatible iOS devices.
RoomAdapt technology automatically adjusts the tone to the speaker's placement in your room, and NoiseAdapt technology tweaks the sound to help keep it audible among ambient noise. The built-in battery enables up to 8 hours of wireless playback. The Music 3 can be controlled by the Dynaudio Music app, which is free for iOS and Android, or the included remote control. - Your Music, Your Way
- The free Dynaudio Music app for iOS and Android connects to a variety of music-streaming services. The speaker has five presets that can be filled with anything accessible from the app, such as Music Now playlists, Internet radio stations, individual songs, dedicated presets for different family members, and more. Just press the button of the desired selection and listen.
- RoomAdapt and NoiseAdapt Technologies
- It doesn't matter if you place the speaker in a corner, up against a wall, or standing in free space; built-in RoomAdapt technology is designed to sense where it's placed and continually optimize the speaker's tonal characteristics for clean, accurate bass and midrange. NoiseAdapt technology helps keep essential musical details clear, even when the room is noisy and the speaker volume is low. You won't need to crank the volume to hear your music properly when the conversation gets louder, or lower it when it gets quieter, and you also won't need to adjust the tone; it's automatic.
- Enhanced Connectivity
- The Music speaker can stream via Wi-Fi, aptX Bluetooth, and Apple AirPlay, and access your DLNA-compatible devices on your home network. It has a USB input for iOS audio and charging your iOS devices, and also accepts an 1/8" analog input for near-universal wired support. Up to six speakers can be connected at once, and arranged into multiroom groups or controlled individually from the Dynaudio app.
- Tone and EQ Controls
- EQ presets include Music, Movie, and Voice, while tone control is available for bass and treble.
In the Box Dynaudio Music 3 Wireless Speaker (Red) Remote Control with Battery Pack 1/8" Audio Cable AC Power Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynaudio Music 3 Wireless Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynaudio 78000107 Specs | Power Output | Woofer: 40 W Each Tweeter: 40 W | Amplifier Type | Not Specified by Manufacturer | Speaker Design | 2-Way | Woofer | 1x 5" / 127 mm MSP Woofer | Tweeter | 2x 1" / 25.4 mm Soft-Dome Tweeters | Frequency Response | 47 Hz to 20 kHz | THD | <0.3% | Enclosure Type | Sealed | | Bluetooth | Version 4.0 | Bluetooth Range | Not Specified by Manufacturer | Wi-Fi | Dual-Band (2.4/5 GHz) Wi-Fi 4 (802.11a/b/g/n) | DLNA | Yes | UPnP | Yes | AirPlay | Yes | Input | 1 x 1/8" / 3.5 mm 1 x USB Type-A (iOS Device Playback and Charging) | Sample Rates | 32 to 96 kHz | Audio Bitrates | 16- to 24-Bit | Audio Format | MPEG, WAV, AAC, FLAC, WMA, ALAC, Vorbis, PCM, SBC | | Rechargeable Battery Type | 14.8 V 2400 mAh Li-Ion | Rechargeable Battery Life | Up to 8 Hours | Power Requirements | 100 to 240 VAC | Operating Power Consumption | 60 W | Standby Power Consumption | <0.5 W | Dimensions (W x H x D) | 15.95 x 8.66 x 6.85" / 405 x 220 x 174 mm | Weight | 8.16 lb / 3.7 kg | | Package Weight | 13.575 lb | Box Dimensions (LxWxH) | 18.8 x 13.2 x 10.0" |
