User Manual for E-Image 2 Stage Aluminum Tripod Legs with 75mm Bowl Click to enlarge the picture
Contents of the user manual for the E-Image 2 Stage Aluminum Tripod Legs
- Product category: Tripod Legs E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Legs
 |
User manual for the E-Image 2 Stage Aluminum Tripod Legs contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|

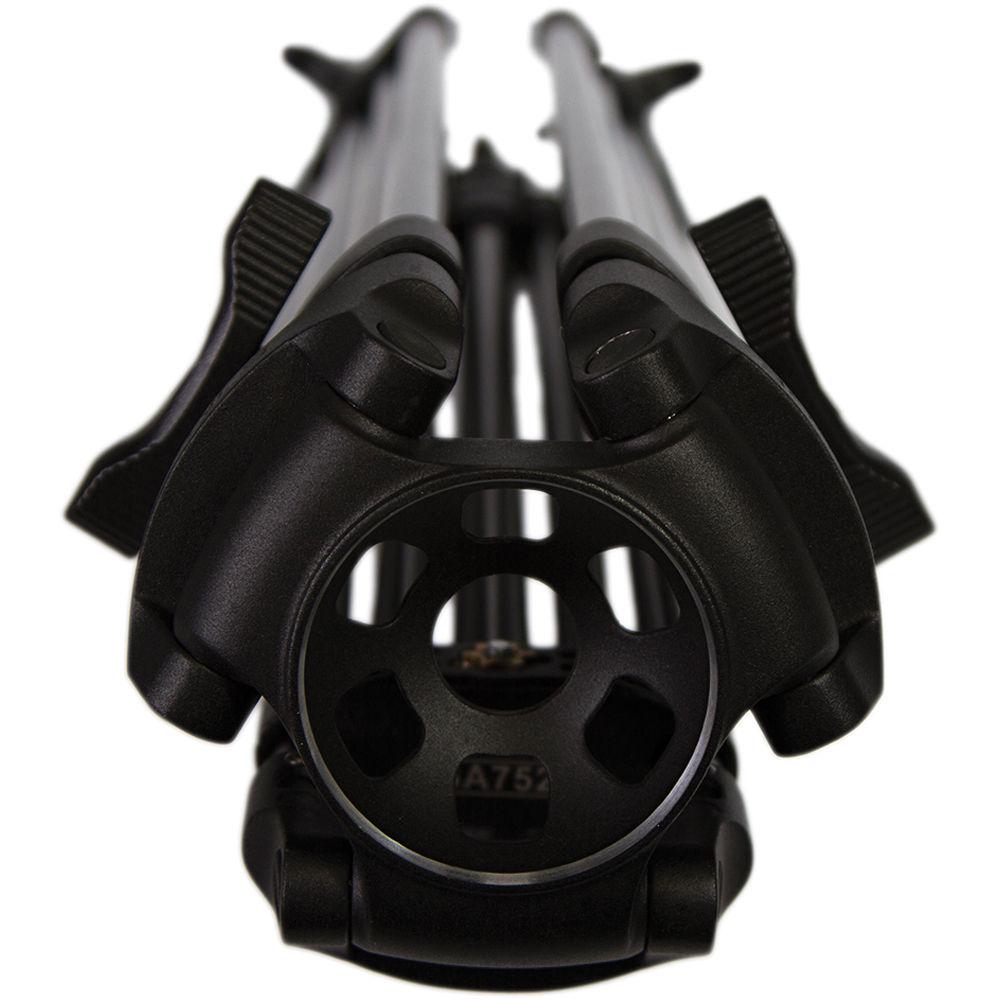

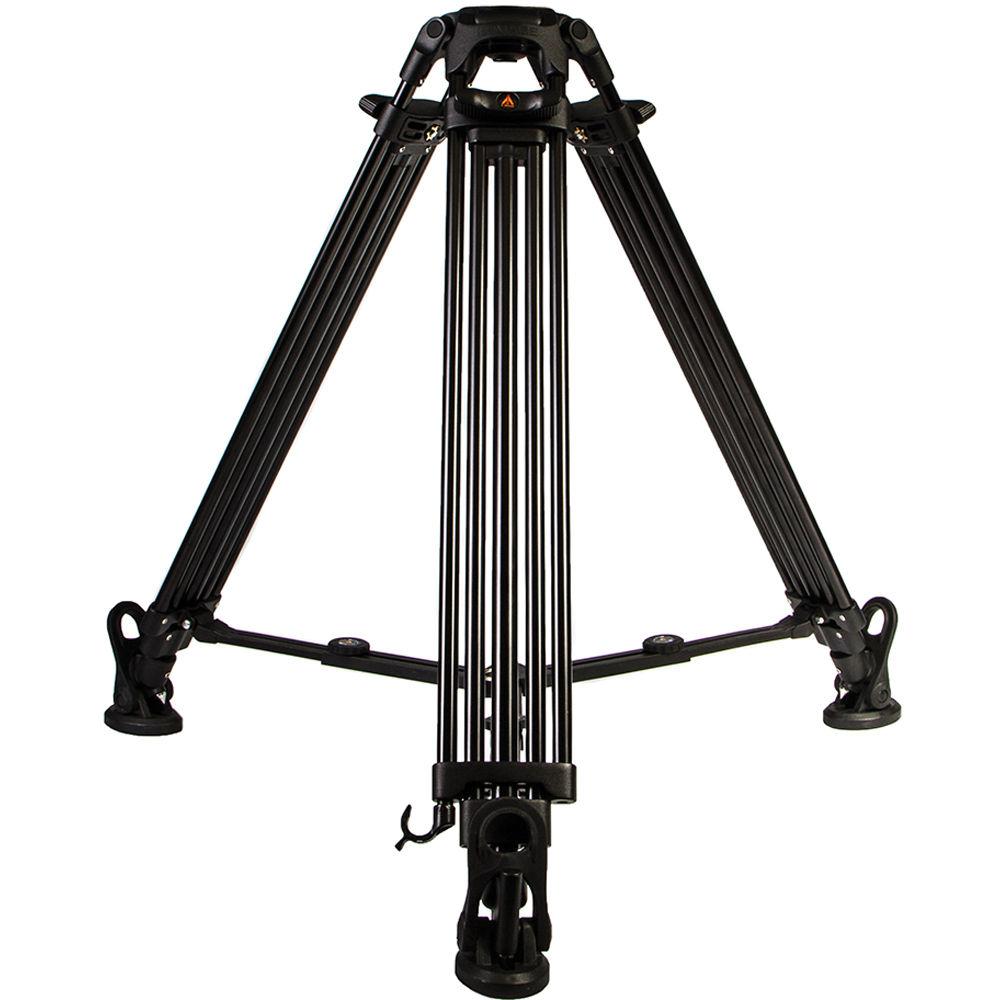

Product description With a maximum height of over five feet and a minimum height of just over two feet, this set of 2-Stage Aluminum Tripod Legs with 75mm Bowl from E-Image provides a stable platform for your 75mm fluid head and features a two-stage / three-section design. The aluminum legs incorporate E-Image's Mono-Lock design that allows you to adjust the leg height using the one locking lever at the top of the each legs.

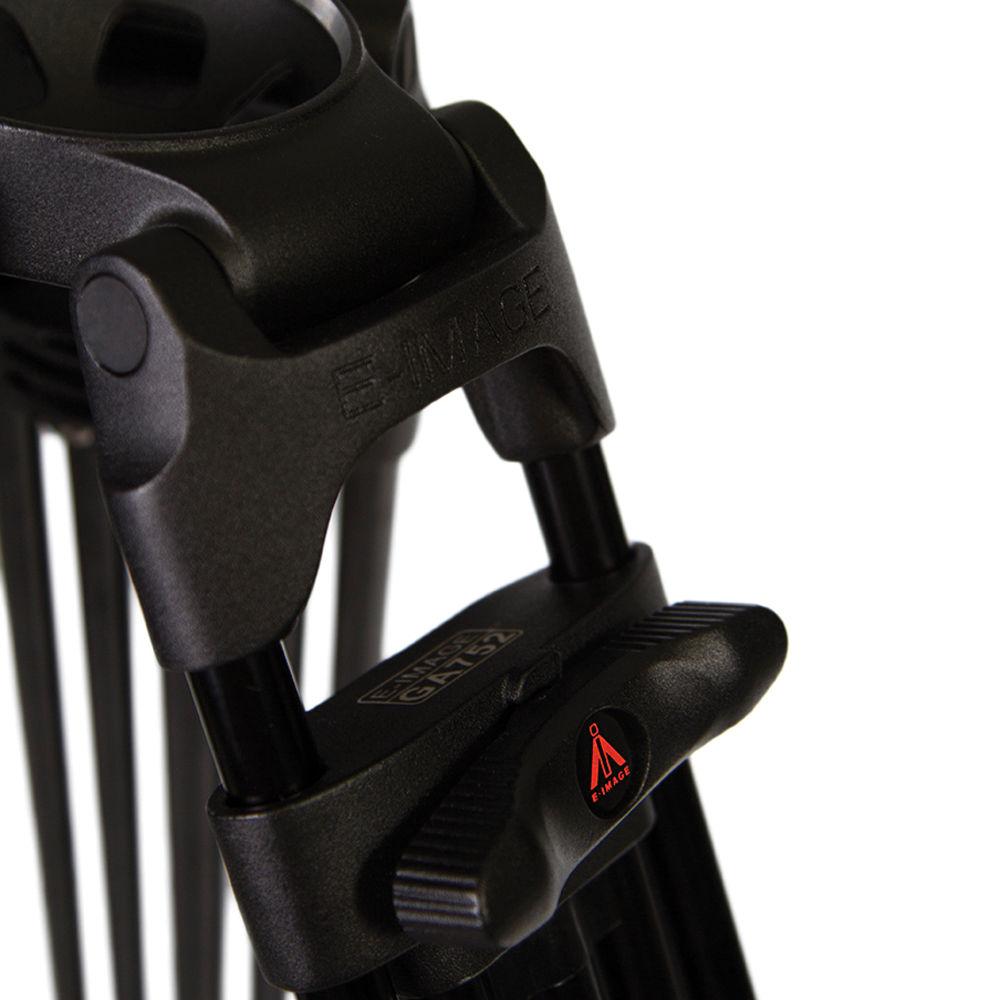

The legs support up to 88 pounds of head, camera, and accessories, while extending to over five feet in height, with a minimum height of just over two feet. The aluminum alloy construction provides you with a balance of strength and durability and is a lower cost option to carbon fiber legs. The legs feature a removable, adjustable, mid-level spreader that allows you to set up the legs on uneven surfaces. The legs also incorporate spiked feet for increased grip on soft surfaces, and the included spike covers allow you to use the legs on hard/slippery surfaces. An integrated leg wrap/safety extends from the bottom of one leg and wraps around the legs when closed, keeping the legs together during transport or storage. - Mono-Lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing you from having to bend down to open a bottom leg lock to raise the legs.

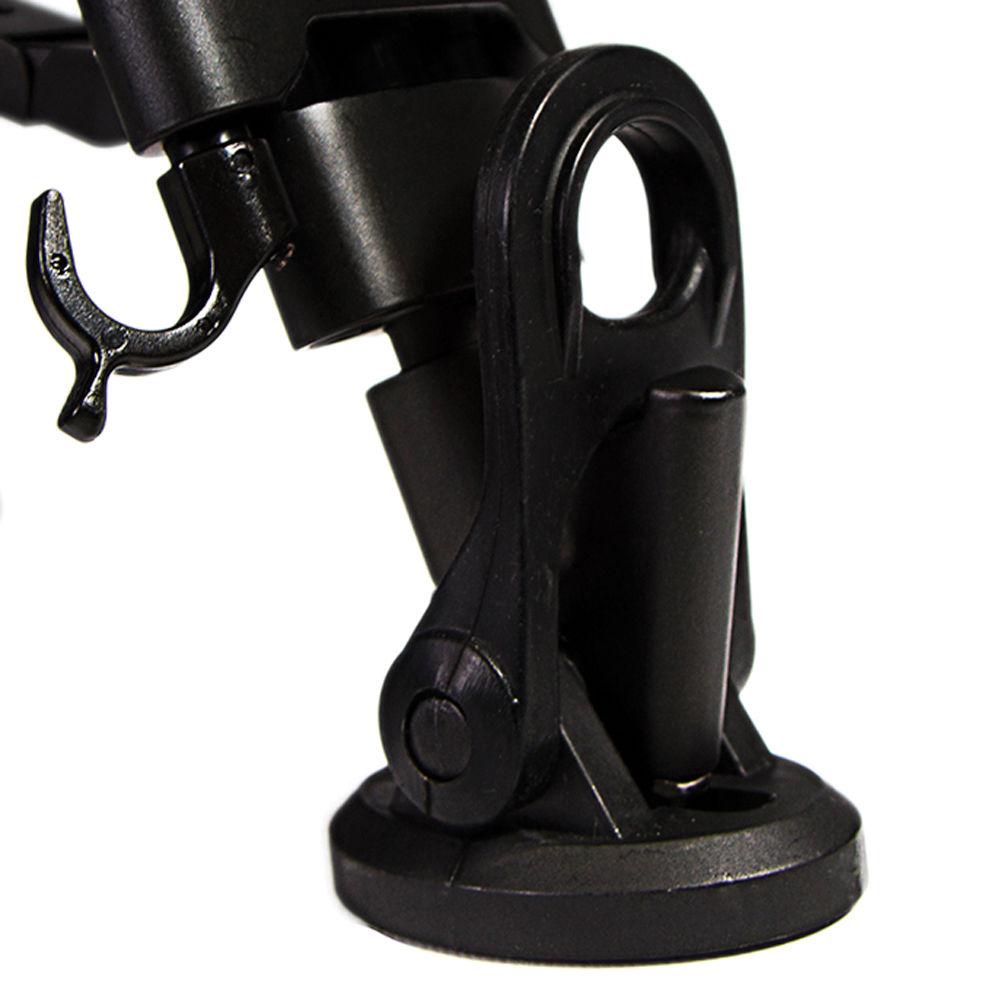

- The legs feature spiked feet that provide solid purchase in soft surfaces, the included mid-level spreader allows you to use the legs on uneven surfaces, and the rubber feet allow you to shoot on hard/delicate surfaces.
UPC: 847983010271 In the Box E-Image 2 Stage Aluminum Tripod Legs with 75mm Bowl GS01 Mid-Level Spreader ssysuxbzcf 3 x Spike Covers/Anti-Slip Feet Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image 2 Stage Aluminum Tripod Legs with 75mm Bowl in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image GA752 Specs | | | Head Mount Type | 75 mm Bowl | | Load Capacity | 88 lb / 40 kg | | Maximum Working Height | 64" / 156 cm | | Minimum Working Height | 24.75" / 65 cm | | Folded Length | 28" / 71.1 cm | | Materials | Aluminum | | Weight | 7 lb / 3.5 kg | | | | Leg Lock Type | Rotating Locking Lever | | Leg Sections | 3 | | Feet Features | Rubber, Removable, Spiked | | | | Package Weight | 10.7 lb | | Box Dimensions (LxWxH) | 30.5 x 8.1 x 8.0" |
