User Manual for E-Image 2-Stage Aluminum Tripod with GH03 Head Click to enlarge the picture
Contents of the user manual for the E-Image 2-Stage Aluminum Tripod with GH03
- Product category: Tripod Systems E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Systems
 |
User manual for the E-Image 2-Stage Aluminum Tripod with GH03 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|
Product description - Comparing the EG03TT and EG03A2 E-Image Tripods | Ikan Tech Corner
- Product Demo

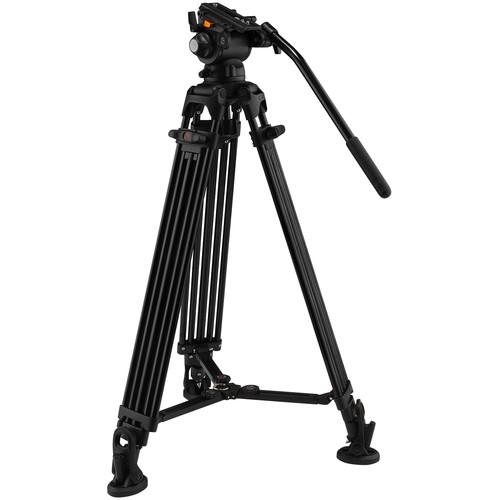

The E-Image 2-Stage Aluminum Tripod with GH03 Head supports cameras and accessories weighing up to 11 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide platform. The legs are made from aluminum and feature three sections with mono-lock leg locks. The mono-lock design allows you to lock and unlock each leg section using only one rotating locking lever. The tripod legs are height-adjustable from 26 to 61".

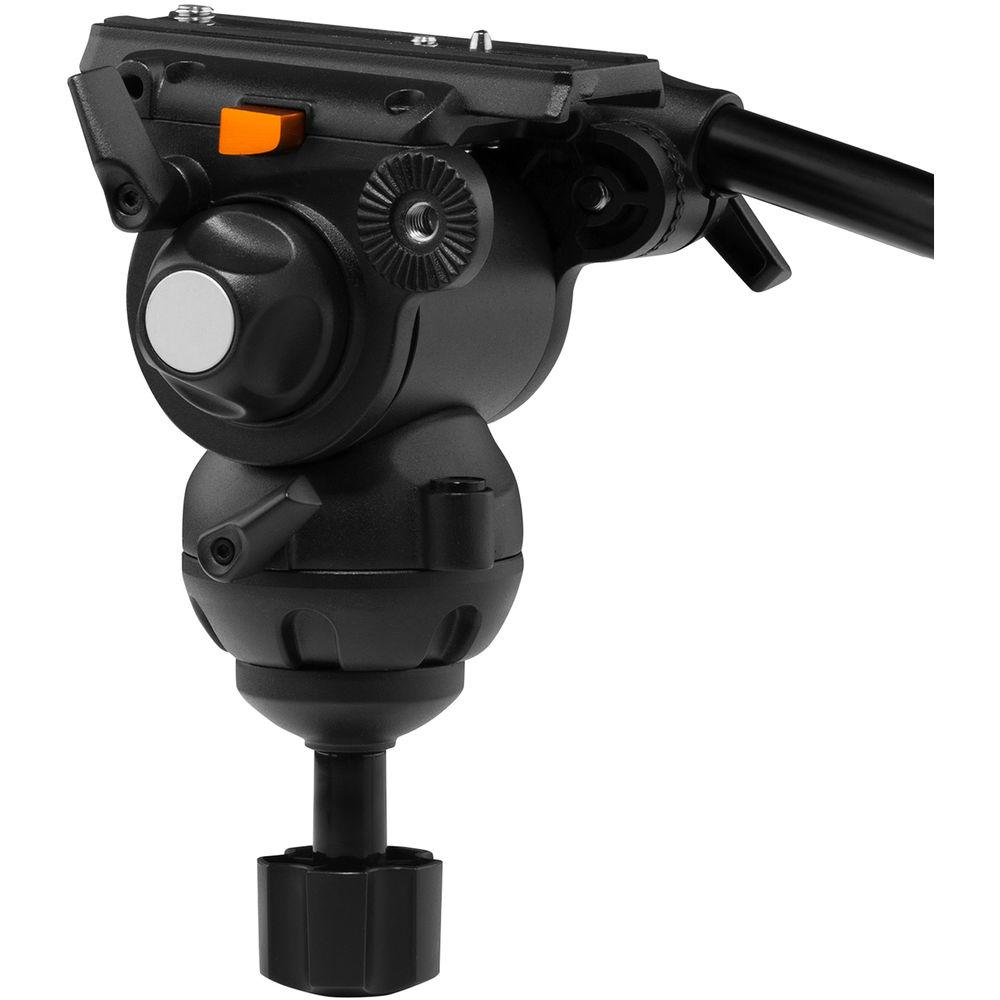

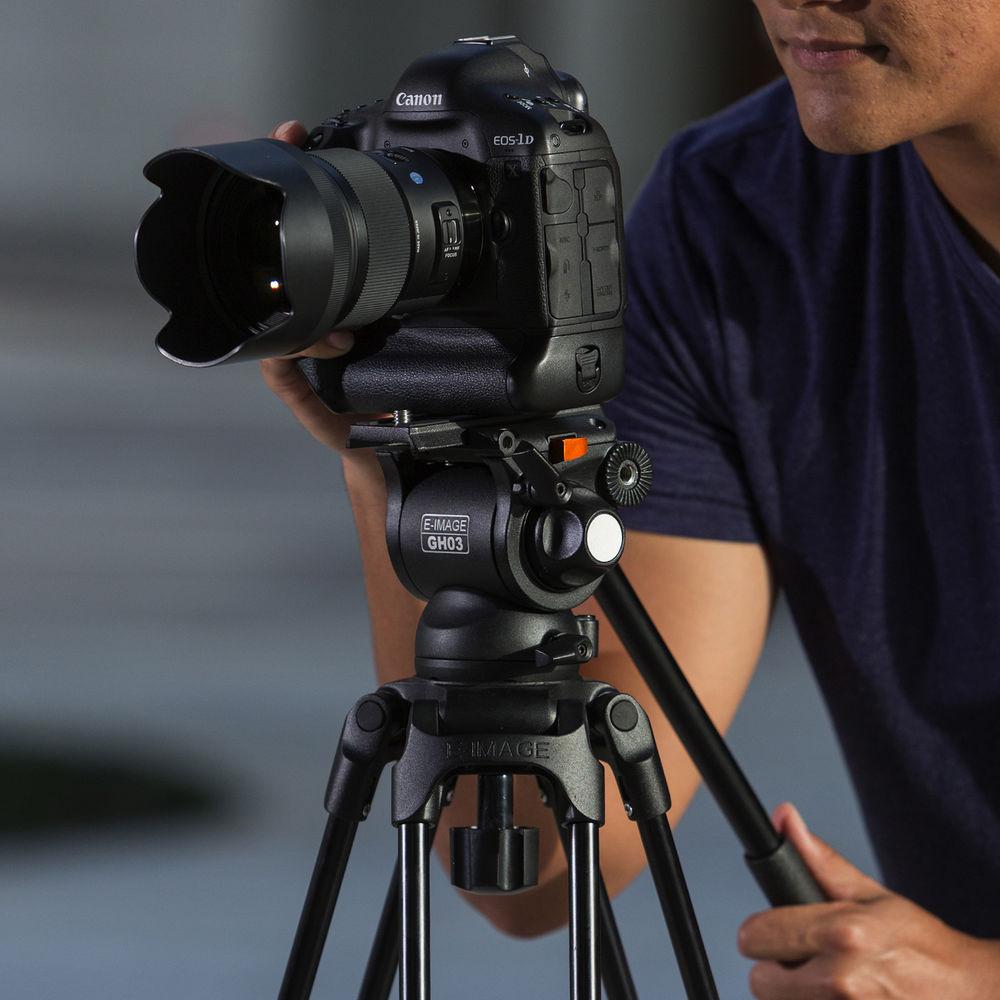

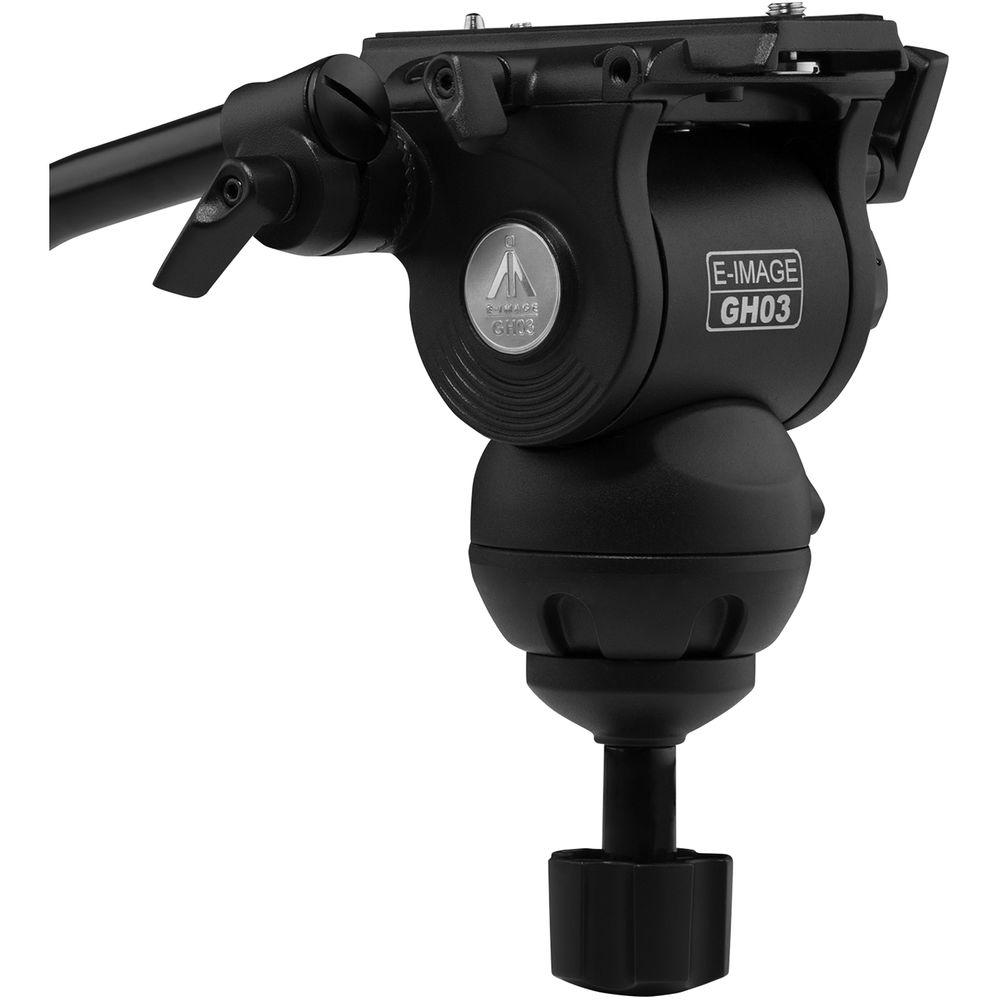

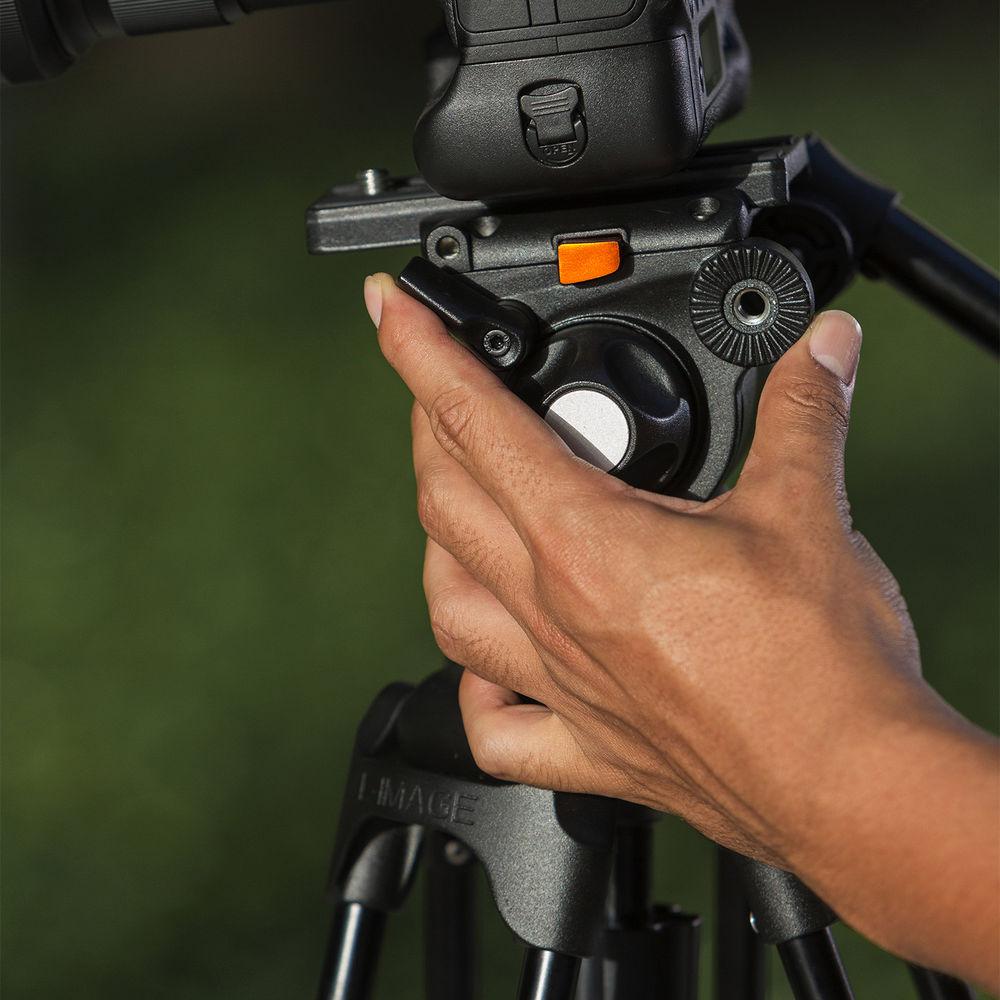

The GH03 head features an Easy Lock baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. Pan drag and counterbalance are both fixed, while tilt drag is adjustable via a dial on the side of the head. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. A padded carry bag with a shoulder strap is included. - The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate while combining the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
- The mono-lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing you from bending down to open a bottom leg lock.

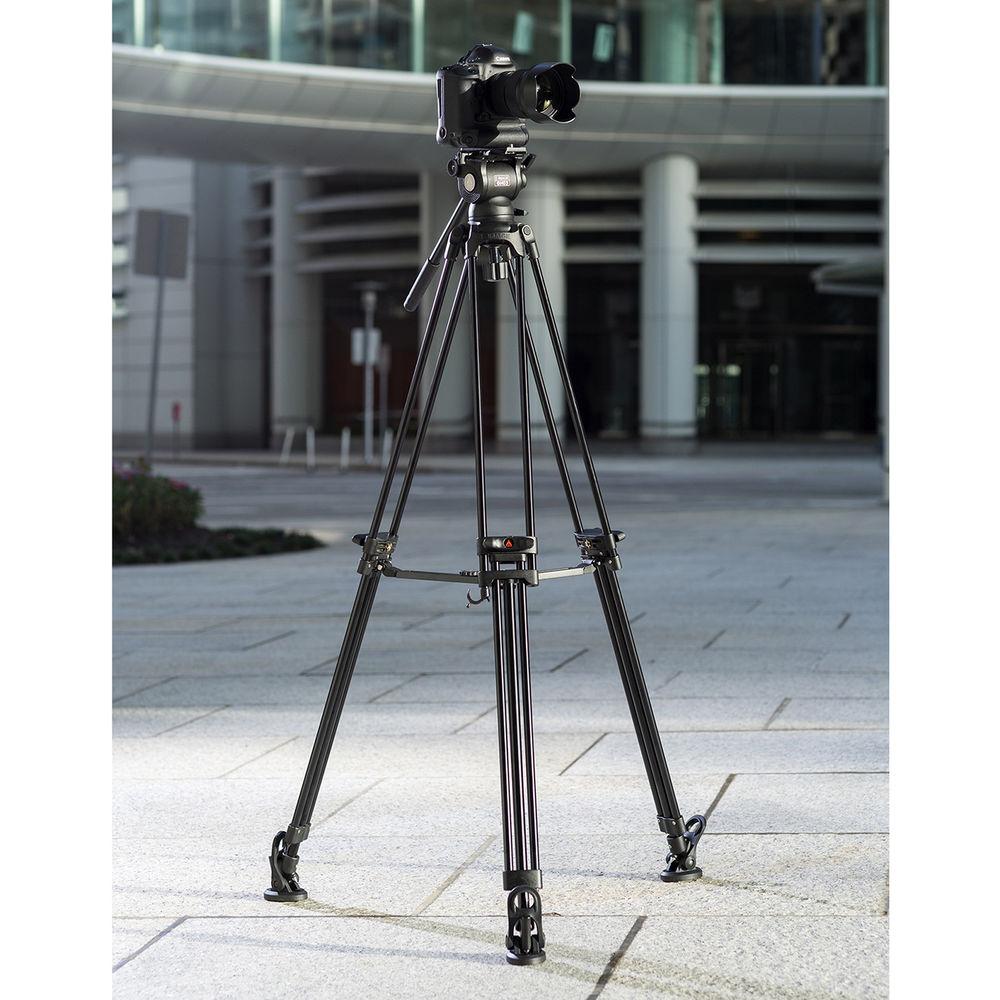

- The legs feature dual-spiked feet that provide solid purchase in soft surfaces when the legs are spread wide or extended to full height.
- The rubber feet attach to the spiked feet for working on delicate or hard surfaces.
- The Easy Lock camera plate features a guided sled with a locating pin, and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).

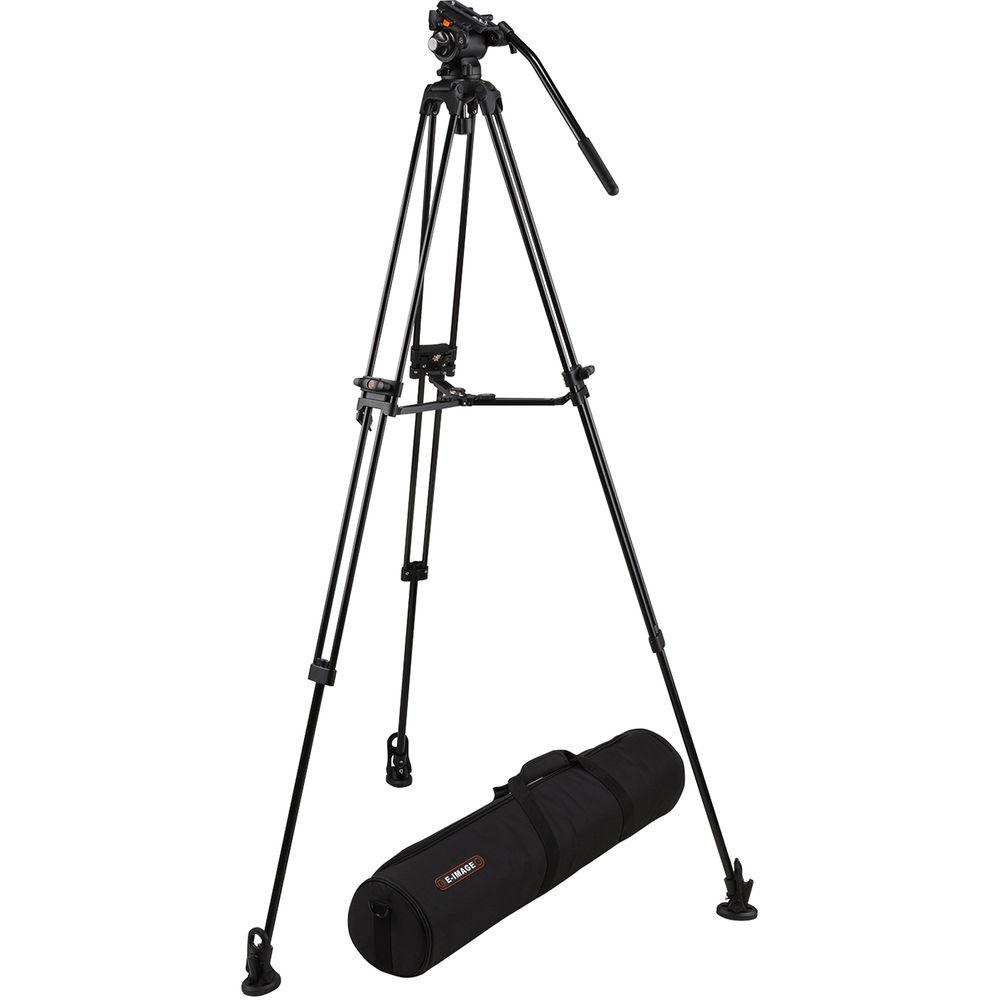

UPC: 847983009701 In the Box E-Image 2-Stage Aluminum Tripod with GH03 Head 2 Stage Aluminum Tripod Legs with 75mm Bowl GH03 Fluid Head with Flat Base Tripod Bag Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image 2-Stage Aluminum Tripod with GH03 Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image EG03A2 Specs | | | Leveling Bubble/Illuminated | Yes/no | | Weight | 16 lb (7.3 kg) | | | | Load Capacity | 11 lb / 5 kg | | Counter Balance System | Fixed | | Quick Release/Wedge Plate | Easy Lock System | | Balance Plate | Easy Lock | | Tilt Drag | Variable | | Tilt Range | -60 to 90° | | Tilt Lock | Yes | | Pan Lock | Yes | | | | Load Capacity | 88 lb / 40 kg | | Material | Aluminum | | Head Attachment Fitting | 75 mm bowl | | Minimum Height | 26" (66.0 cm) | | Maximum Height | 61" (155 cm) | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Mono-lock, rotating lever | | Spiked/Retractable Feet | Spiked feet | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 39.0 x 9.0 x 8.0" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
