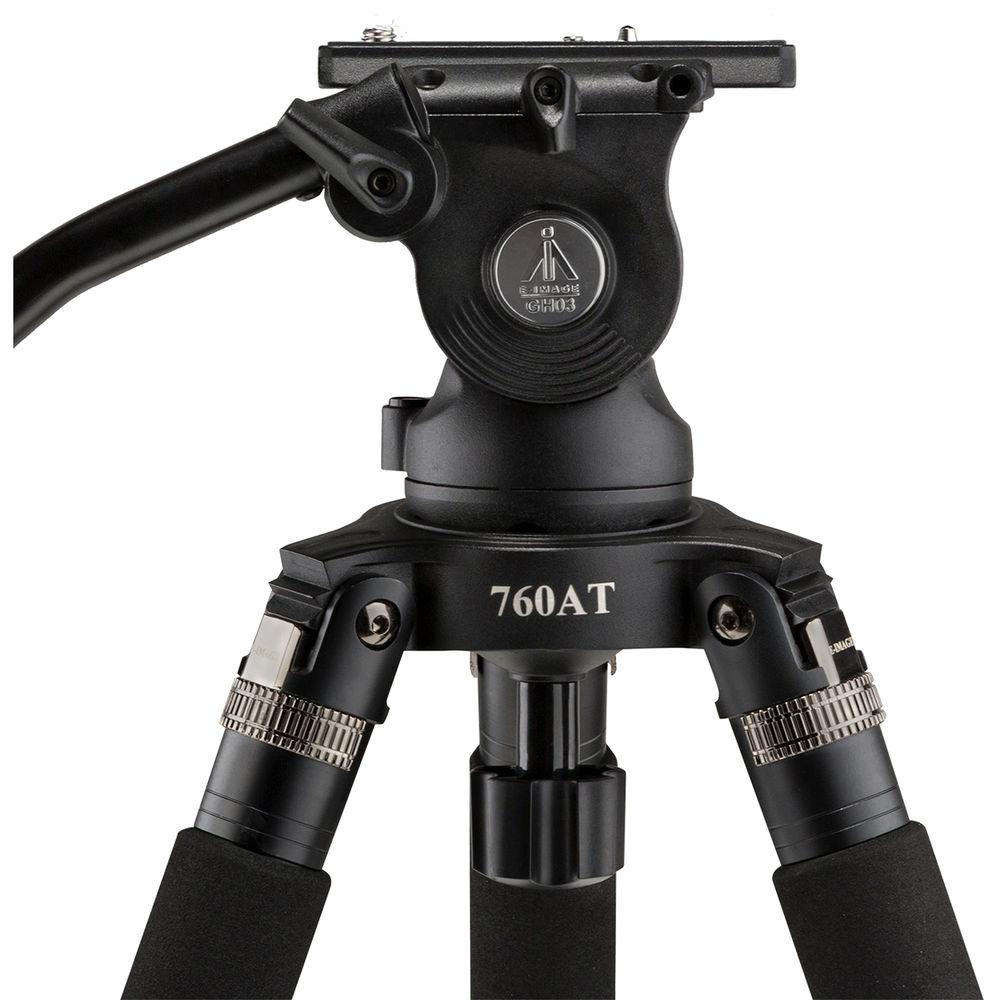

User Manual for E-Image 760AT Aluminum Tripod with GH03 Head Click to enlarge the picture
Contents of the user manual for the E-Image 760AT Aluminum Tripod with GH03
- Product category: Tripod Systems E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Systems
 |
User manual for the E-Image 760AT Aluminum Tripod with GH03 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|
Product description - Comparing the EG03TT and EG03A2 E-Image Tripods | Ikan Tech Corner

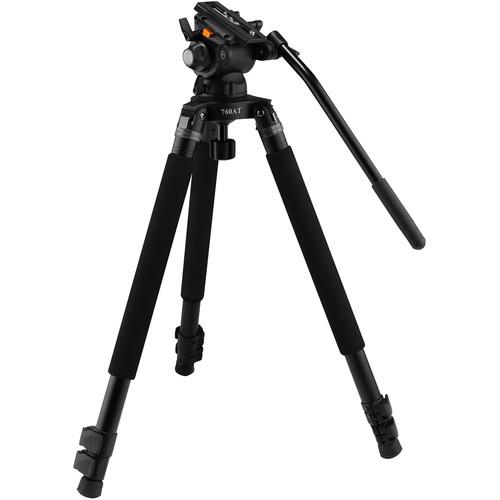

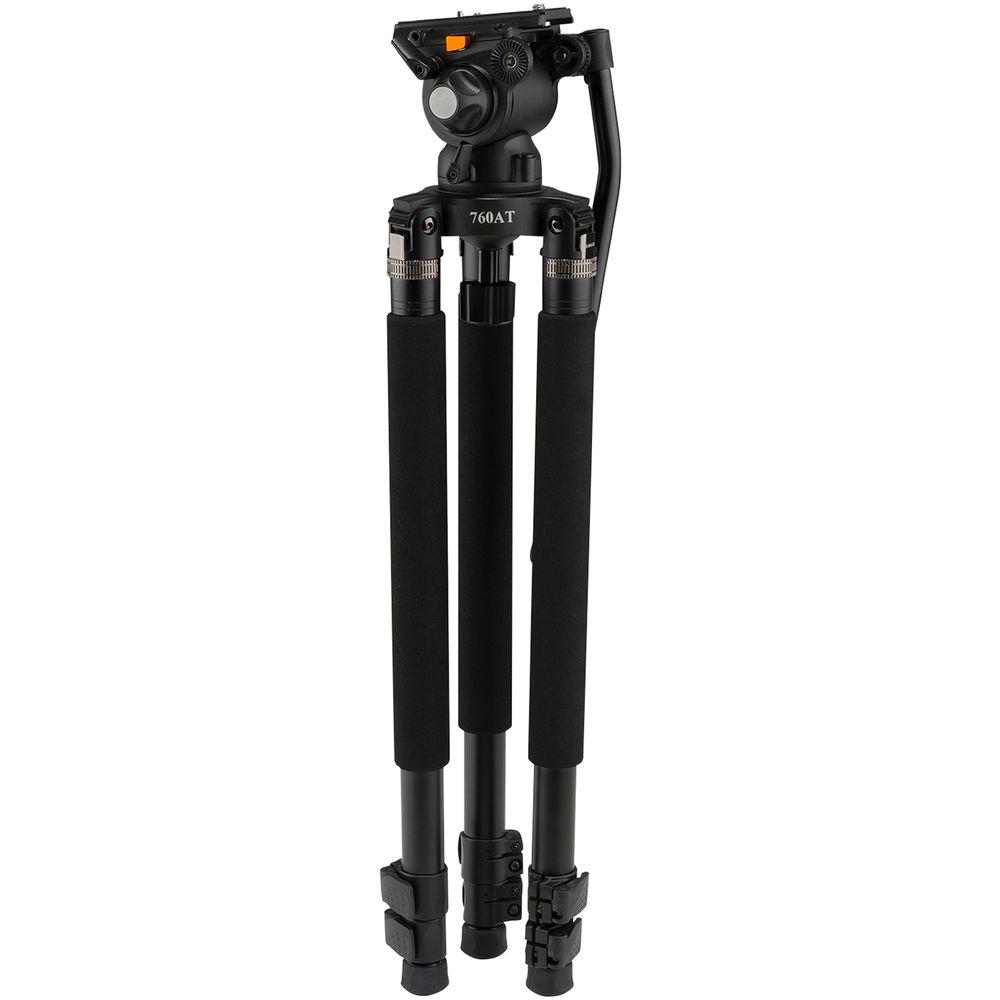

The E-Image 760AT Aluminum Tripod with GH03 Head supports cameras and accessories weighing up to 11 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide platform. The legs are made from aluminum and feature three sections, with individual locks for each leg section. The tripod with the head mounted is height-adjustable from 12.5 to 55.5".

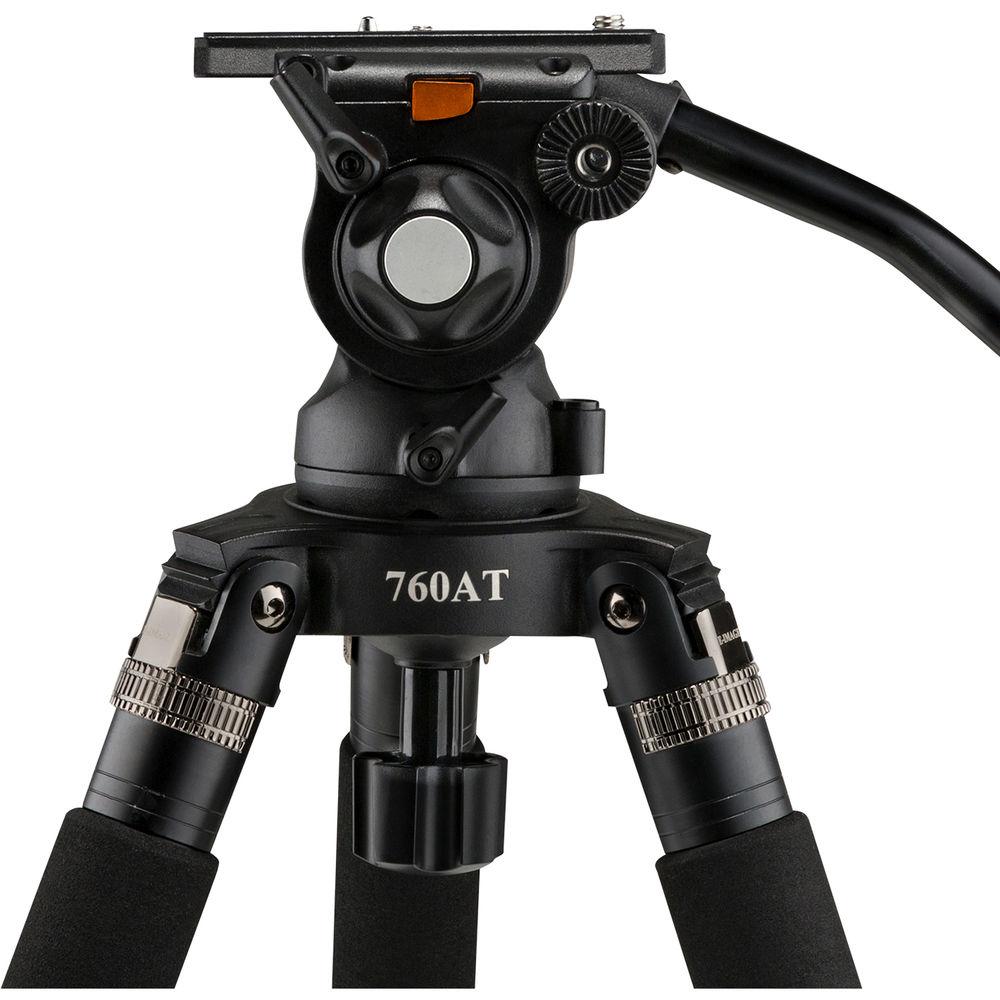

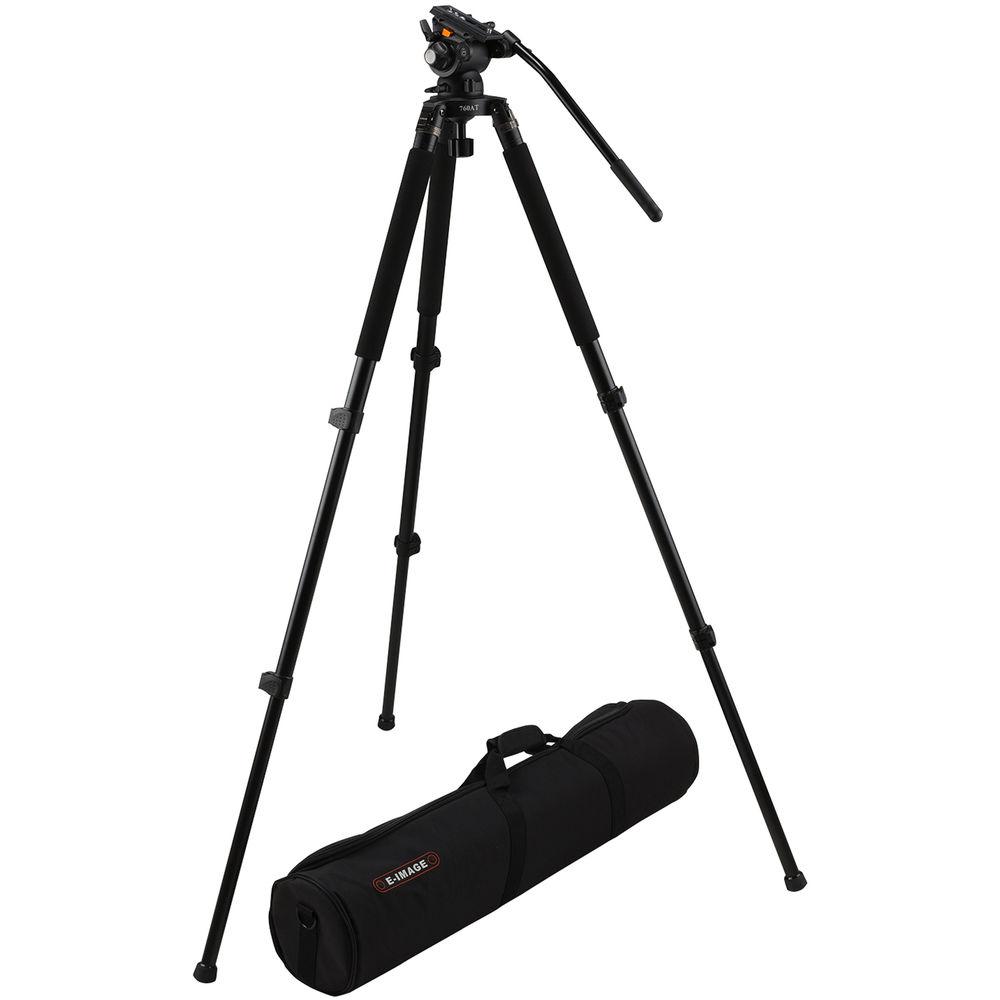

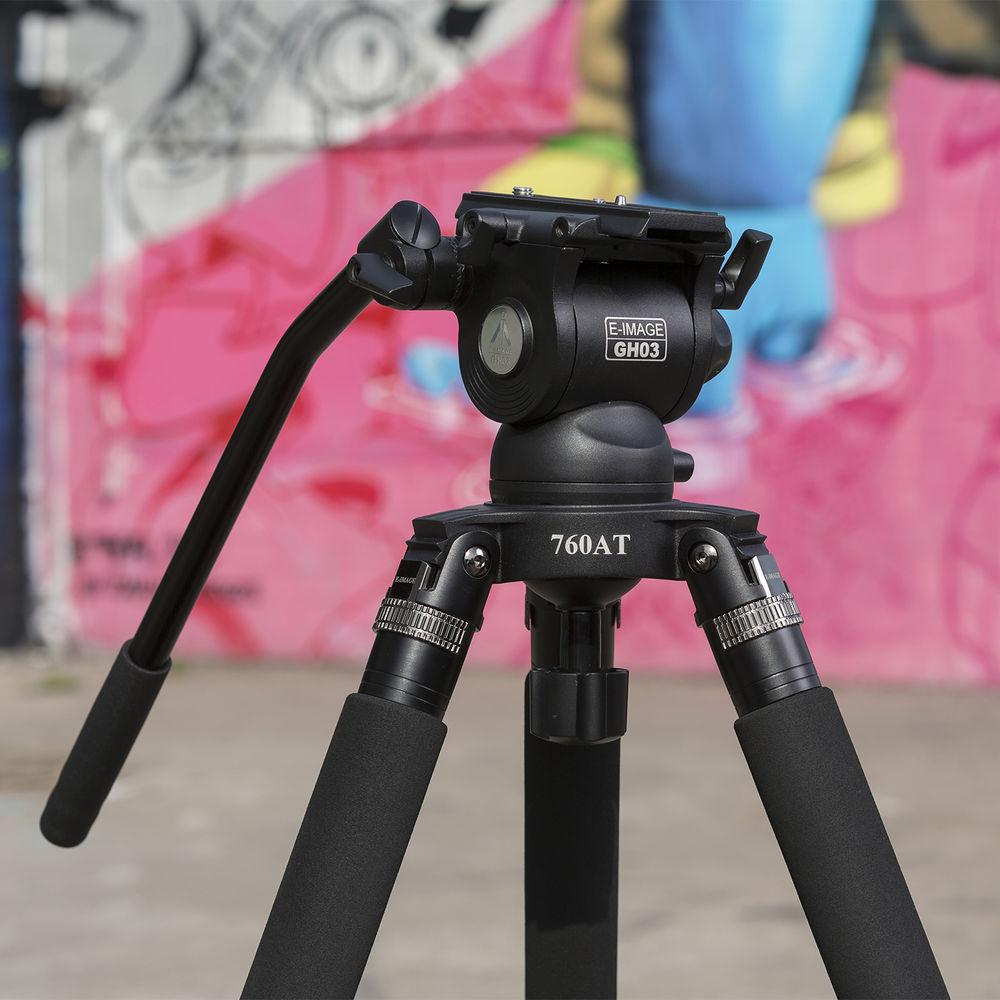

The GH03 head features an Easy Lock baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. It provides fixed counterbalance that helps the fluid head support loads up to 11 pounds. With variable fluid drag on the tilt axis, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built-in 1/4"-20 accessory socket for available monitor support arms or other accessory items. It includes a padded carry bag with a shoulder strap. System - The fluid head and legs support cameras and accessories up to 11 pounds.
- The 75mm bowl/ball enables rapid leveling without having to adjust the legs.
Fluid Head - The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate while combining the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera, while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
- The Easy Lock camera plate features a guided sled with a locating pin, and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
- The fluid head incorporates two 1/4"-20 threaded accessory mounting holes.
Legs - Individual leg angle adjustment.
- The legs feature locks on each section. This allows you to individually adjust the height of each leg.
- Each leg features a foot with a retractable spike.
UPC: 847983019489 In the Box E-Image 760AT Aluminum Tripod with GH03 Head GH03 Fluid Head with 75mm Ball reqauwsyzcsreestvwvcdcft SC-1 Padded Tripod Bag (Black) 760AT Tripod Legs Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image 760AT Aluminum Tripod with GH03 Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image EG03TT Specs | | | Payload | 11 lb / 5 kg | | Leveling Bubble/Illuminated | Yes / No | | Weight | 8.5 lb / 3.8 kg | | | | Load Capacity | 11 lb / 5 kg | | Counter Balance System | Fixed | | Quick Release/Wedge Plate | Easy Lock system | | Balance Plate | Easy Lock | | Tilt Drag | Variable | | Tilt Range | -60 to 90° | | Tilt Lock | Yes | | Pan Lock | Yes | | | | Material | Aluminum | | Head Attachment Fitting | 75 mm bowl | | Minimum Height | 12.5" / 31.8 cm | | Maximum Height | 55.5" / 141.0 cm | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Flip-locks | | Spiked/Retractable Feet | Retractable spiked feet | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 37.0 x 8.0 x 8.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
