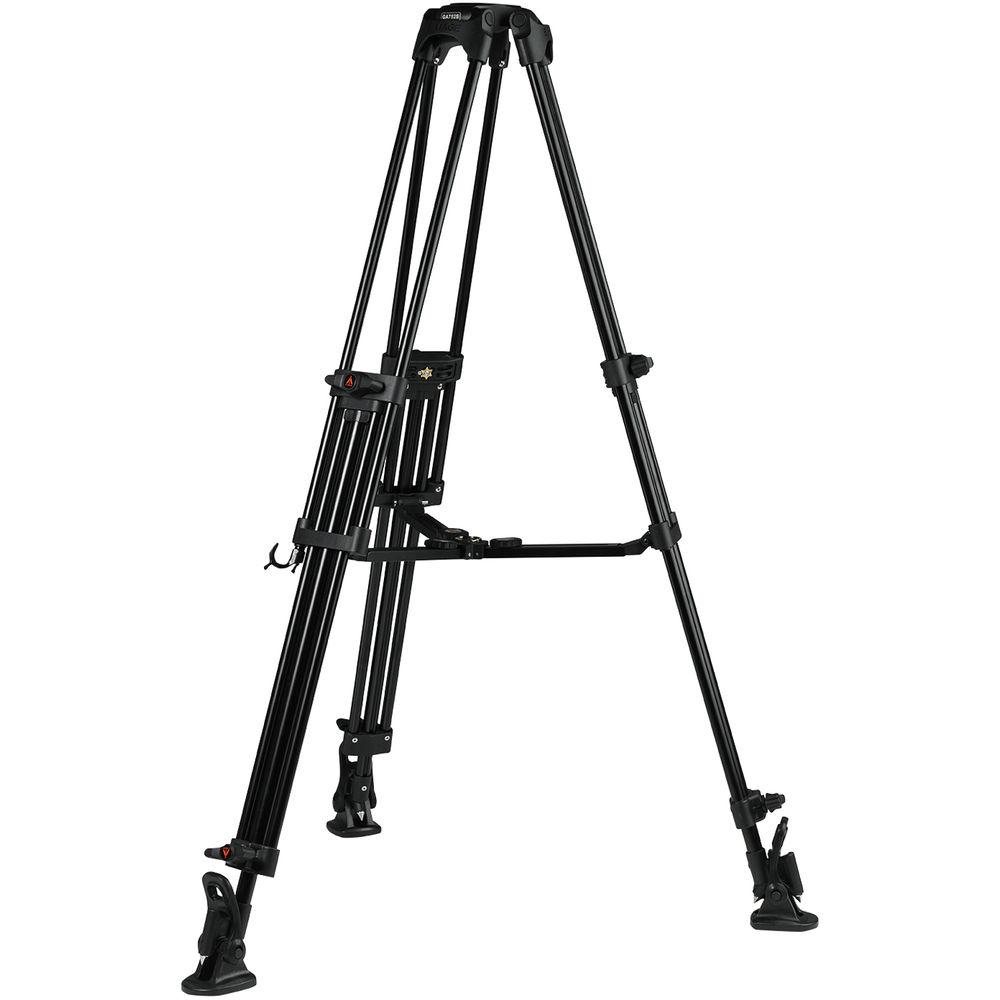

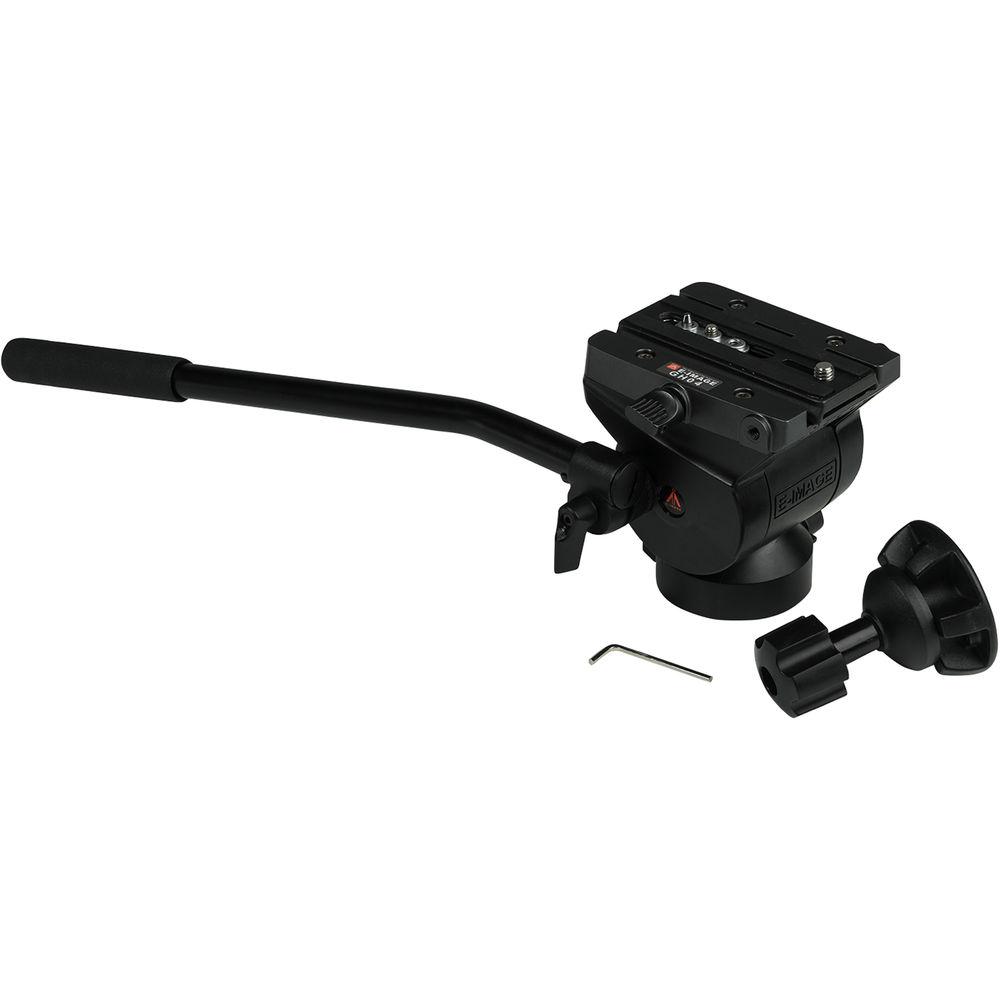

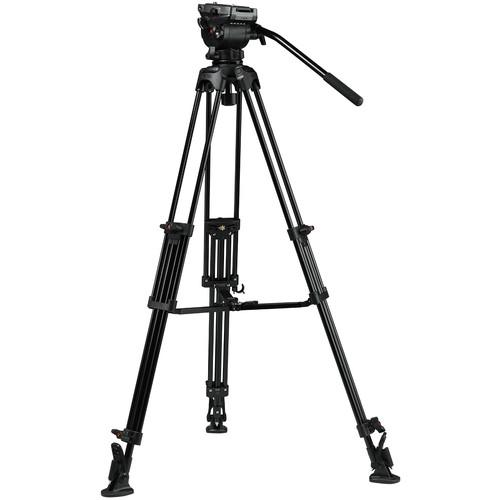

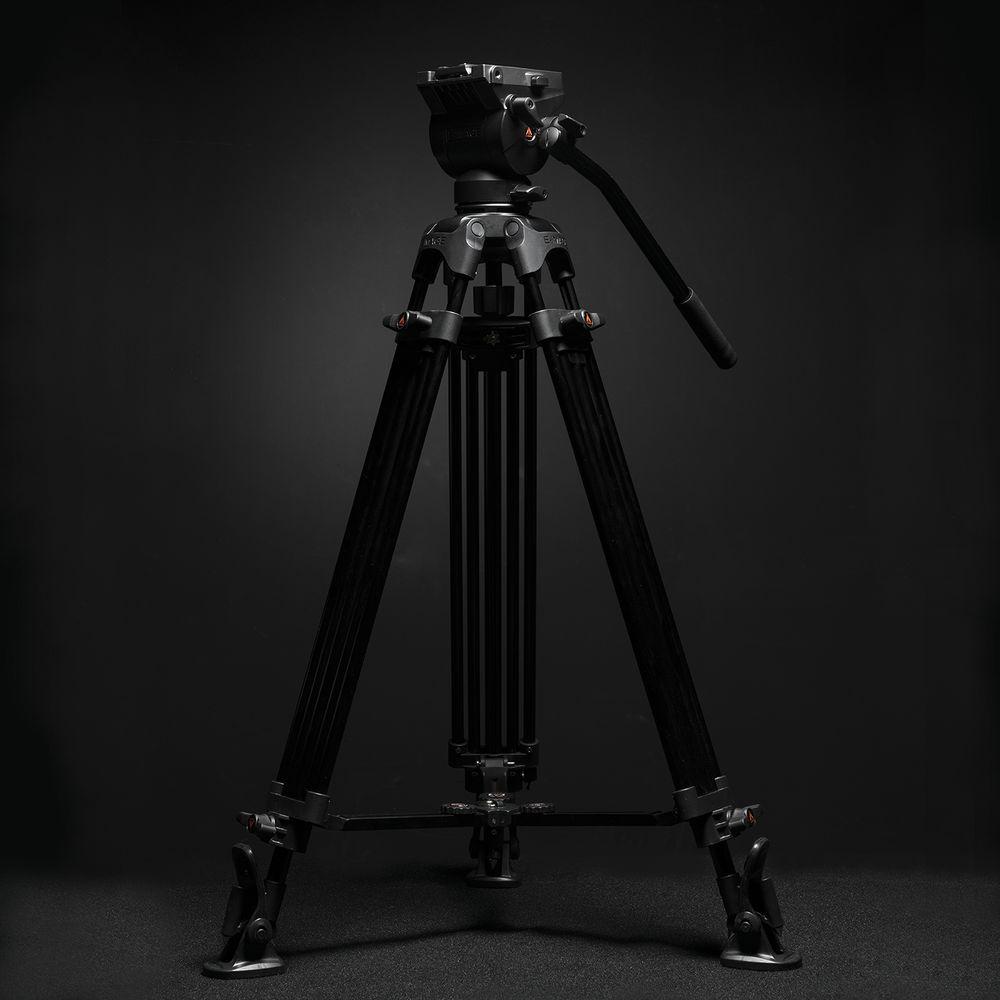

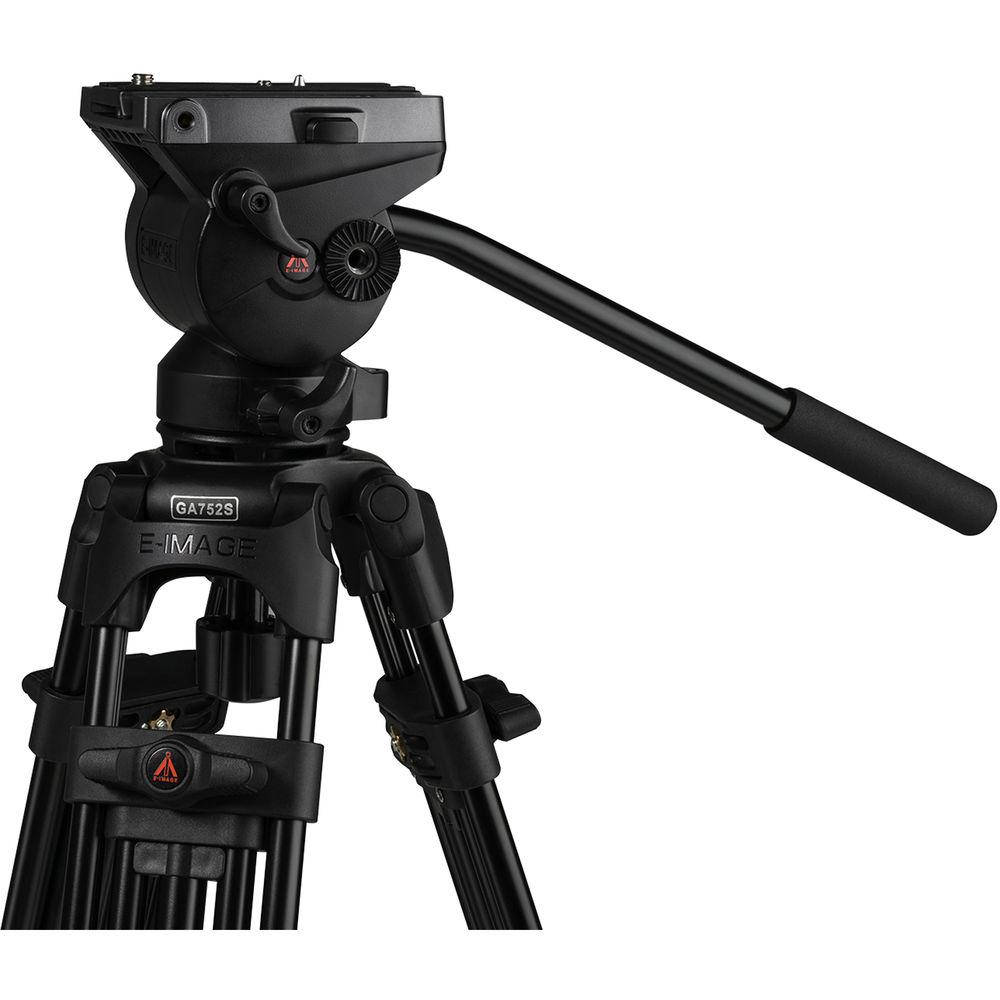

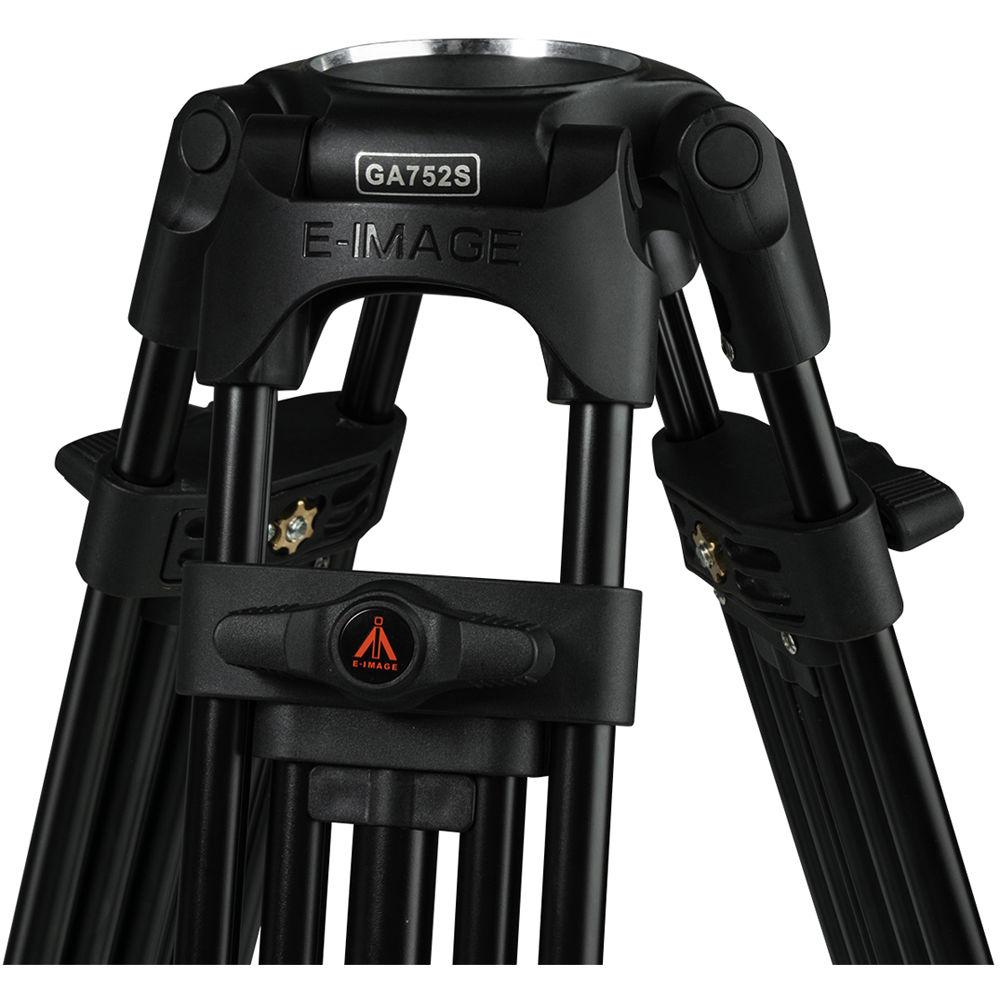

Product description The E-Image EG04AS Aluminum Tripod System supports cameras and accessories weighing up to 13.2 lb. It includes the GH04 dual-base fluid head with a pan bar, GA752 two-stage aluminum tripod legs, and GS01 mid-level spreader. The tripod legs feature three sections with mono-lock leg locks. The tripod system extends to a height of 5.6' and collapses down as low as 2.5'. The dual-base head comes with a removable 75mm ball base as well as a flat base, suitable for tripods or sliders. It features 1/4"-20 or 3/8"-16 threads for attaching an articulating arm or other accessory item. UPC: 847983025022 In the Box E-Image EG04AS 2-Stage Aluminum Tripod System with GH04 Dual-Base Fluid Head GA752S Tripod Legs GH04 Fluid Head GS01 Mid-Level Spreader Pan Handle for GH03 Fluid Head Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image EG04AS 2-Stage Aluminum Tripod System with GH04 Dual-Base Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

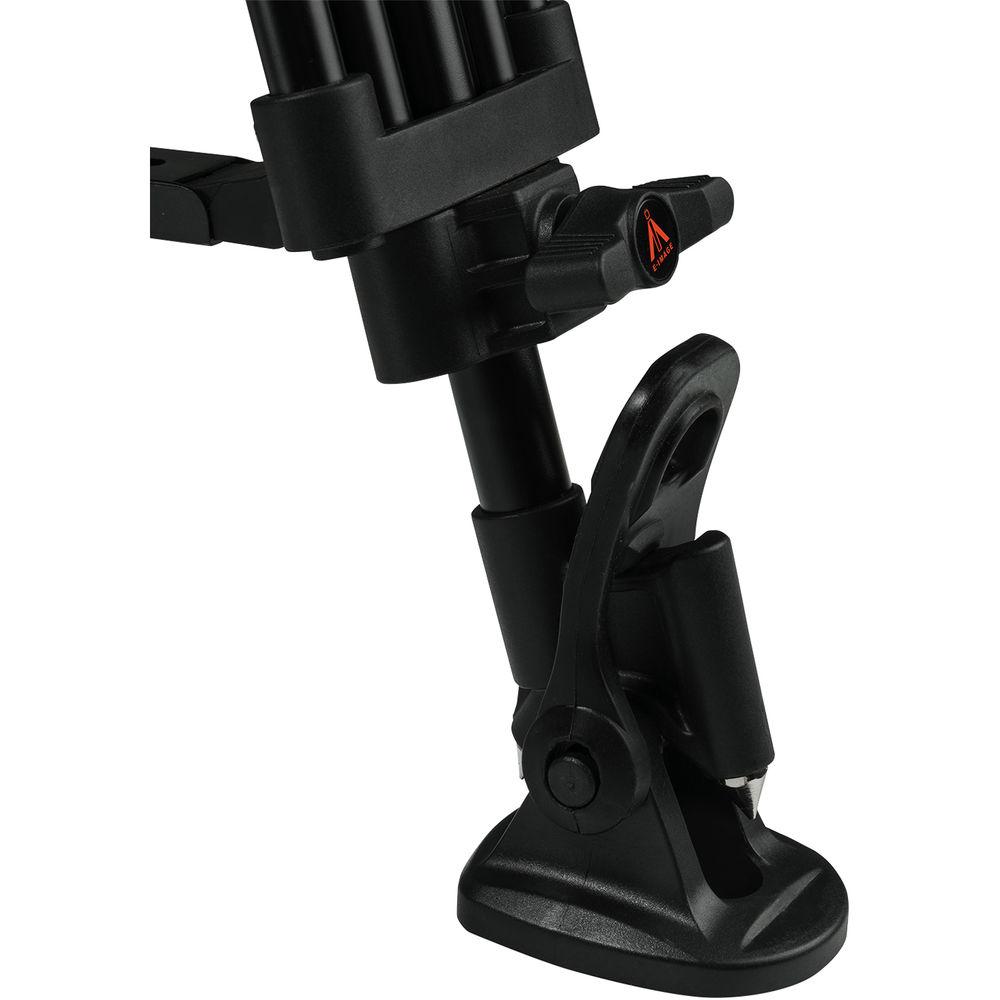

Technical parametersE-Image EG04AS Specs | | | Load Capacity | 13.2 lb (6.0 kg) | | Maximum Height | 5.6' (169.5 cm) | | Minimum Height | 2.5' (77.5 cm) | | Folded Length | 34.4" (87.5 cm) | | Leveling Bubble/Illuminated | Yes / No | | Weight | 9.0 lb (4.1 kg) | | | | Counterbalance System | Yes | | Ball Base | 75 mm ball, detachable | | Quick Release/Wedge Plate | Sliding plate | | Slide Length | 3.3" (83.0 mm) | | Balance Plate | Yes | | Tilt Drag | Fixed | | Tilt Range | -70 to 90° | | Tilt Lock | Yes | | Pan Range | Not specified by the manufacturer | | Pan Drag | Fixed | | Pan Lock | Yes | | | | Material | Aluminum | | Head Attachment Fitting | 75 mm bowl | | Leg Stages/Sections | 2 / 3 | | Leg Lock Type | Mono-lock | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Spiked feet with removable rubber covers | | | | Package Weight | 13.25 lb | | Box Dimensions (LxWxH) | 36.5 x 8.25 x 8.25" |
