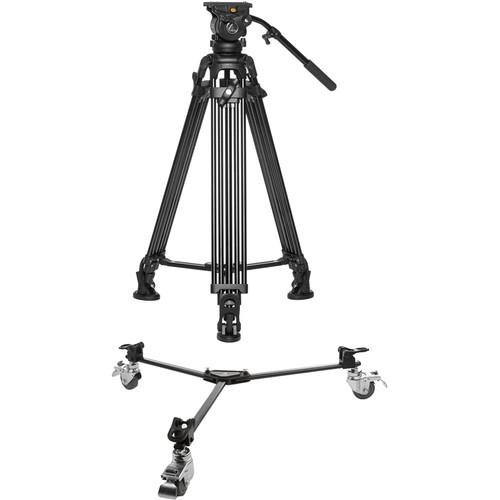

User Manual for E-Image EG05A2 Two-Stage Aluminum Tripod System with Lightweight Dolly Kit Click to enlarge the picture
Contents of the user manual for the E-Image EG05A2 Two-Stage Aluminum Tripod System
- Product category: Tripod Systems E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Systems
|
User manual for the E-Image EG05A2 Two-Stage Aluminum Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|
Product description This B&H Kit combines a complete E-Image Two-Stage Tripod & Fluid Head System from Ikan with a Lightweight Dolly that will allow you to easily move the tripod from one camera position to another.
The tripod system supports 6.6 to 17 lb payloads with three steps of counterbalance. It includes an aluminum tripod, fluid head, mid-level spreader, quick release plate, pan bar, and soft carry case. The dolly features non-marring 3" rubber wheels with individual wheel brakes. - E-Image EG05A2 Two-Stage Aluminum Tripod with GH05 Head (75mm)
- EG05A2 2-Stage E-Image Aluminum Tripod w/ GH05 Head | Ikan Tech Corner
This E-Image Two-Stage Tripod Kit from Ikan is a 75mm bowl base system offering a 6.6 to 17 lb payload range with three steps of counterbalance. The kit includes the GH05 fluid head, GA752 aluminum tripod legs, mid-level spreader, a quick release plate, pan bar, and soft carry case.
The tripod legs are height-adjustable from 32 - 67" (with the head attached), and feature a mono-lock system on each leg that allows you to lock both leg stages with just one twist of a knob. The fluid head offers a 90°/45° tilt range. - Key Features
-
- 6.6 to 17 lb payload range with three steps of counterbalance
- Includes a fluid head, tripod legs, mid-level spreader, quick release plate, pan bar, and soft carry case
- Height-adjustable from 32 - 67" (with the head attached)
- Mono-lock twist knob leg lock system
- 90°/45° tilt range
UPC: 847983015450 - E-Image Lightweight Tripod Dolly
- EG05A2 2-Stage E-Image Aluminum Tripod w/ GH05 Head | Ikan Tech Corner
The E-Image Lightweight Tripod Dolly from ikan is designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 88 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots. It is not recommended for use as a dolly for dolly shots. Instead, it is designed to help you move heavy tripods from one camera position to the next.
This tripod dolly features 3"-diameter, non-marring rubber wheels with individual brakes, and a 35" working base diameter. Once removed from your tripod legs, it folds for storage or transport. - Supports up to 88 pounds of tripod, camera, and accessories.
- The 3" rubber wheels are non-marring during normal use, protecting the floor surface.
- Each wheel incorporates its own foot-activated brake.
UPC: 847983014439 In the Box - EG05A2 Two-Stage Aluminum Tripod with GH05 Head (75mm) zrddvwqsvutcsuzwuayvryraqux
- 2 Stage Aluminum Tripod Legs with 75mm Bowl
- GH05 Fluid Head
- GP1 Quick Release Plate
- Handle for GH06, GH08, GH10 Fluid Heads
- SC-1 Padded Tripod Bag (Black)
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image EG05A2 Two-Stage Aluminum Tripod System with Lightweight Dolly Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - E-Image EG05A2 Two-Stage Aluminum Tripod with GH05 Head (75mm)
| | | Ball Diameter | 75 mm | | Payload | 6.6 to 17 lb / 3 to 7.7 kg | | Counterbalance | 0-2 | | Tilt Range | +90°/45° | | Temperature Range | -22 to 140°F / -30 to 60° | | Weight | 3.7 lb / 1.7 kg | | | | Maximum Height | 61.5" / 156 cm
With Head: 67" / 170 cm | | Minimum Height | 25.5" / 65 cm
With Head: 32" / 81 cm | | Folded Length | 28" / 71 cm
With Head: 33.5" / 85 cm | | Payload | 88 lb / 40 kg | | Spiked/Retractable Feet | Spiked with F3 rubber foot covers | | Material | Aluminum | | Weight | 7.8 lb / 3.5 kg
With Head: 12.5 lb / 5.6 kg | | | | Box Dimensions (LxWxH) | 37.2 x 8.25 x 8.25" | - E-Image Lightweight Tripod Dolly
| Construction | Aluminum alloy | | Load Capacity | 88 lb / 39.9 kg | | Working Diameter | 35" / 88.9 cm | | Wheel Diameter | 3" / 7.6 cm | | Wheel Lock | Yes | | Dimensions | 24 x 7" / 61.0 x 17.8 cm (collapsed) | | Weight | 8 lb / 3.6 kg | | | | Box Dimensions (LxWxH) | 23.1 x 8.6 x 8.5" |
