User Manual for E-Image EG08A2 2-Stage Aluminum Tripod System with GH08 Fluid Head Click to enlarge the picture
Contents of the user manual for the E-Image EG08A2 2-Stage Aluminum Tripod System
- Product category: Tripod Systems E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Systems
 |
User manual for the E-Image EG08A2 2-Stage Aluminum Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|

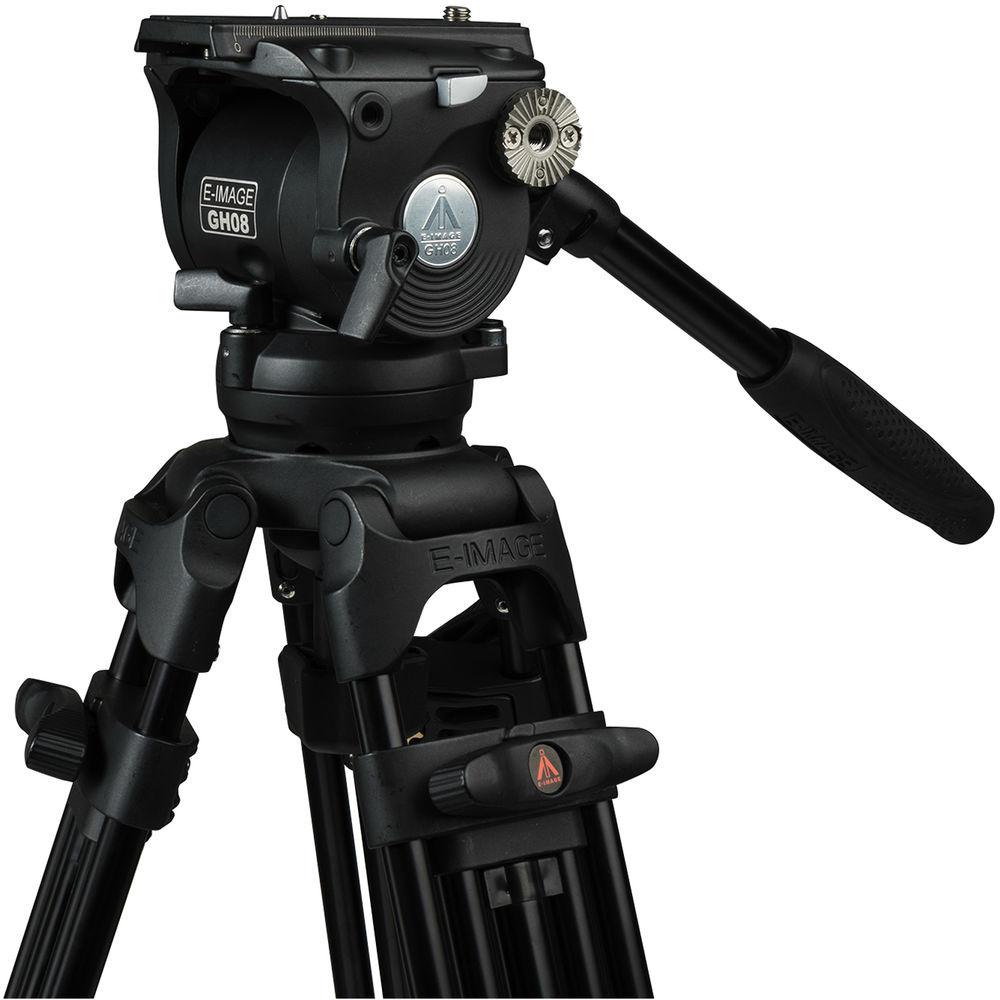

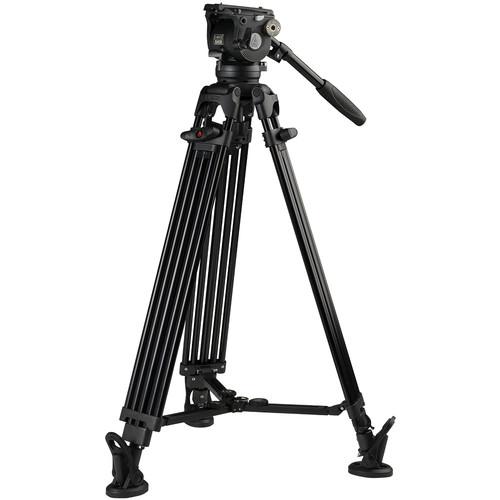

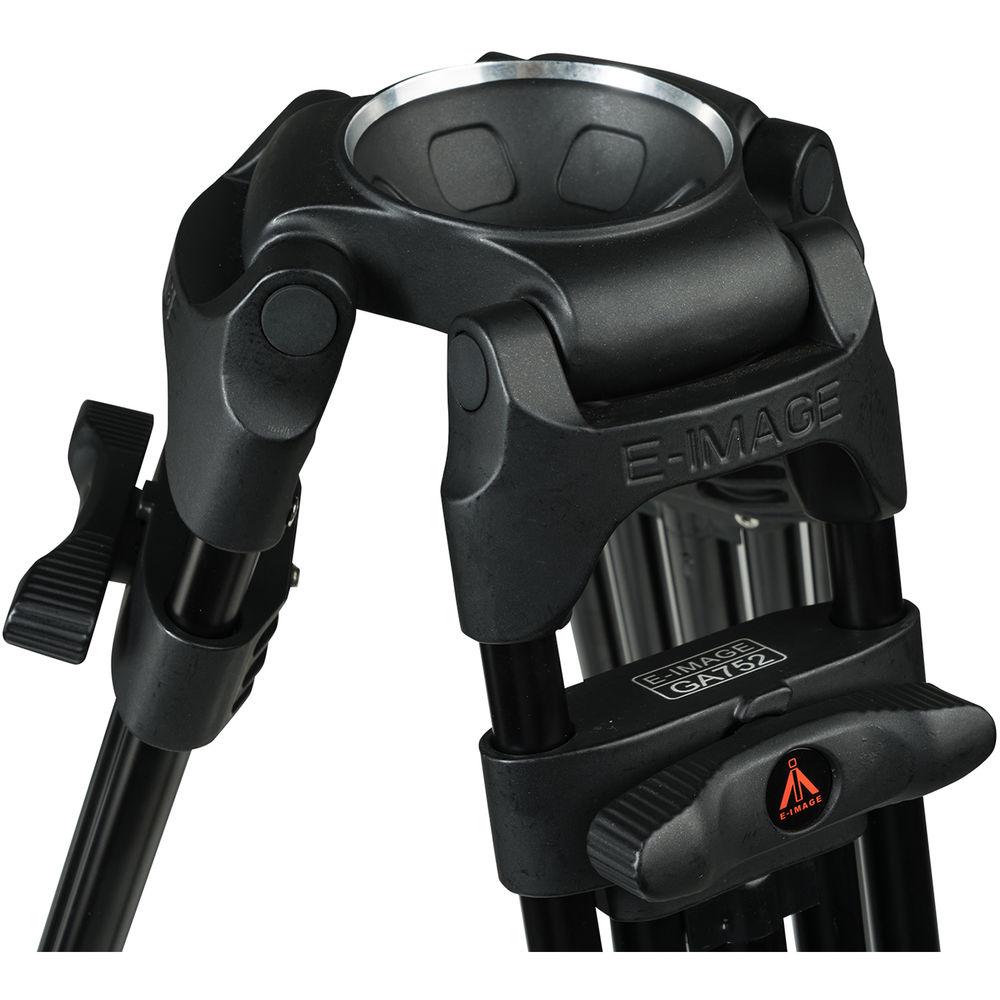

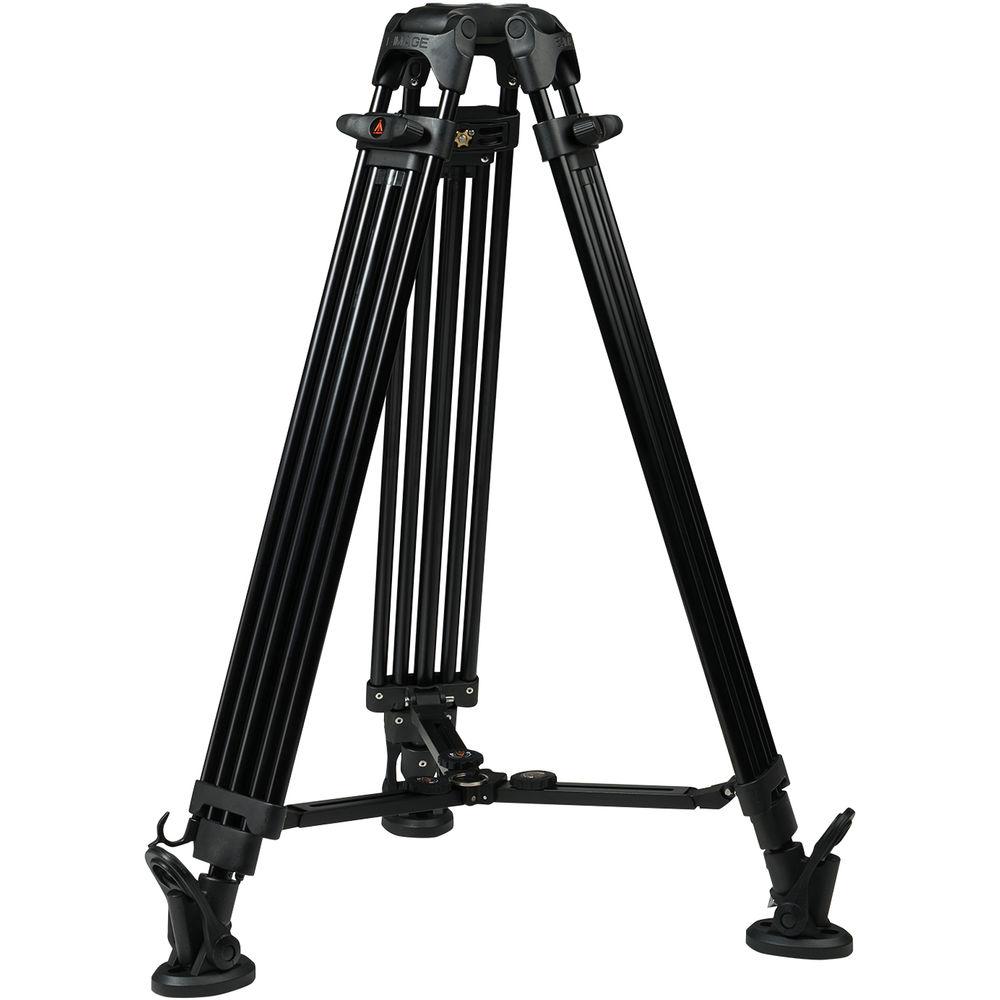

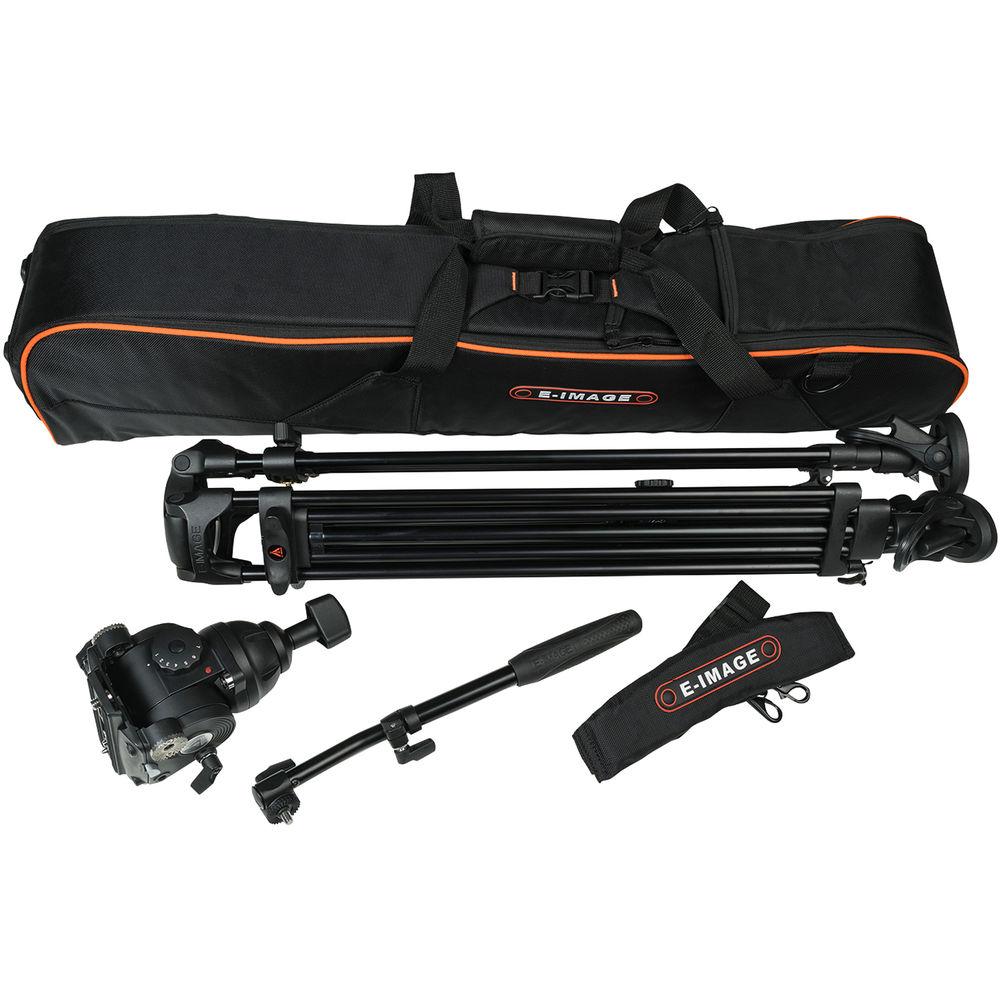

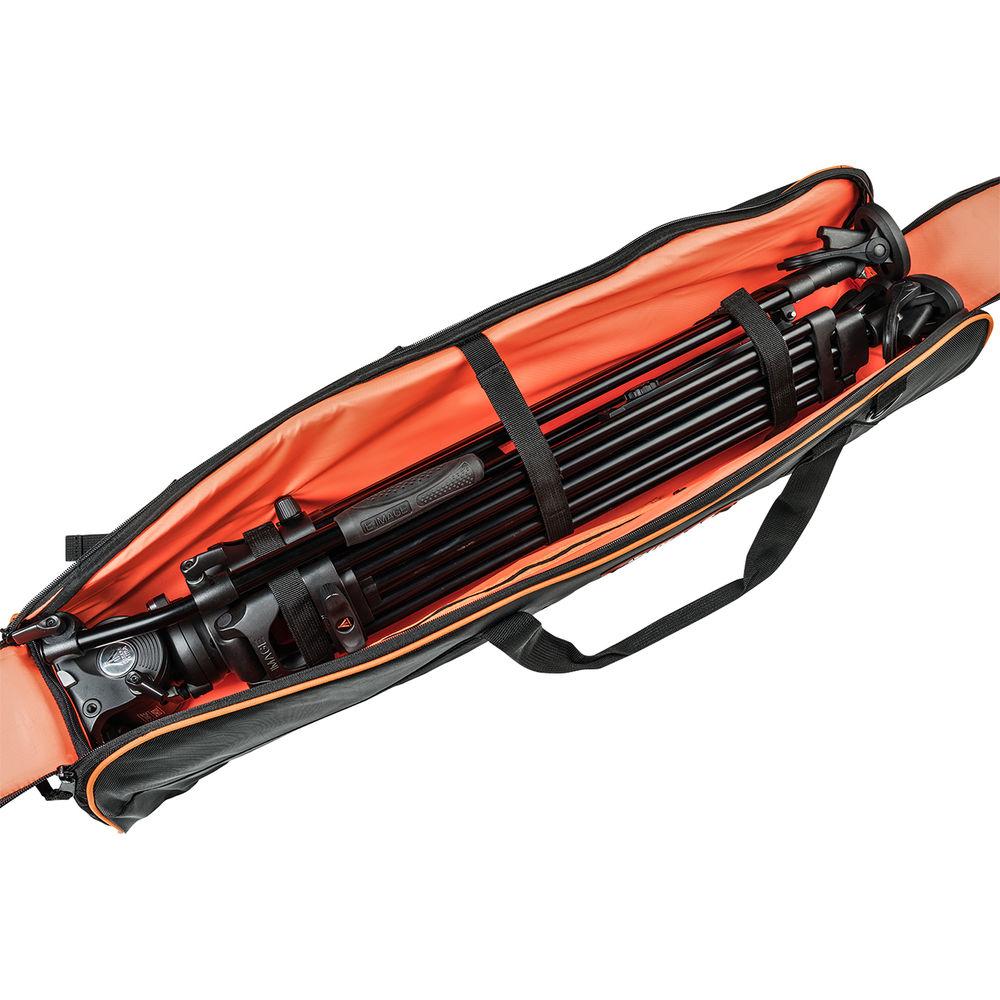

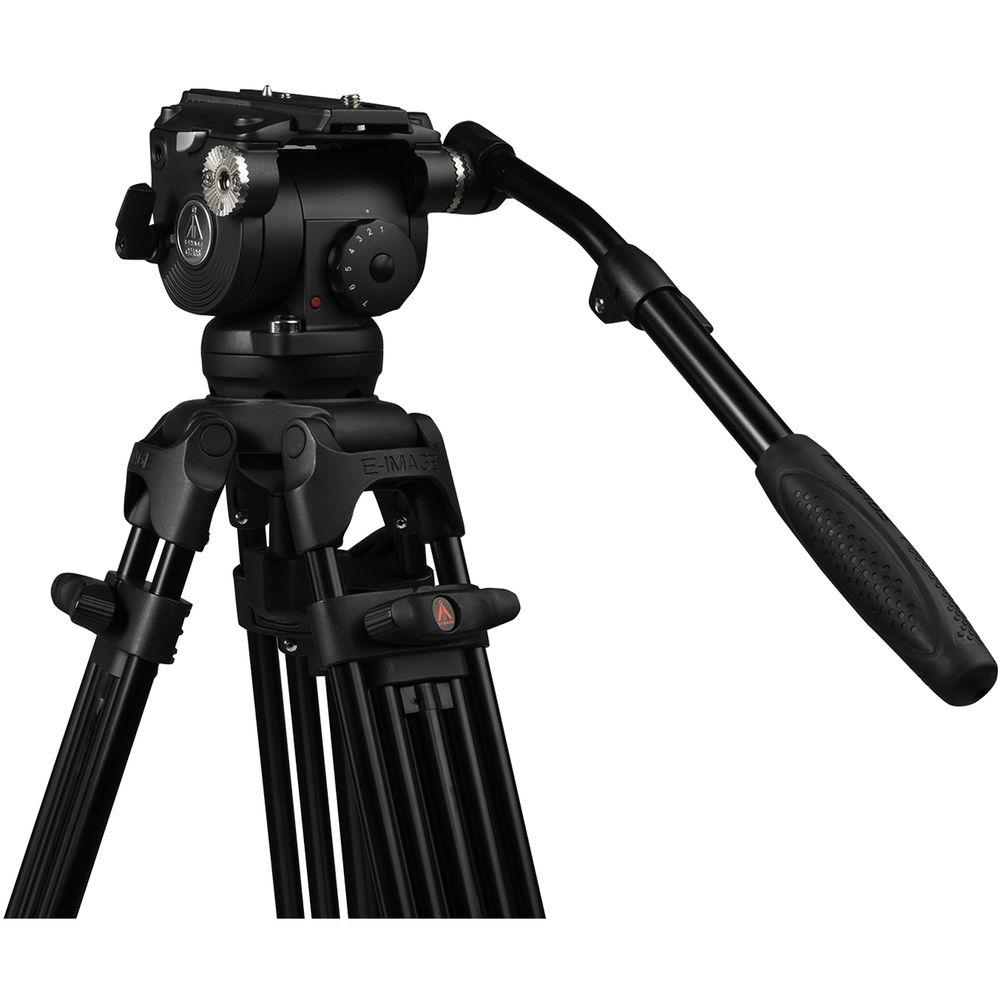

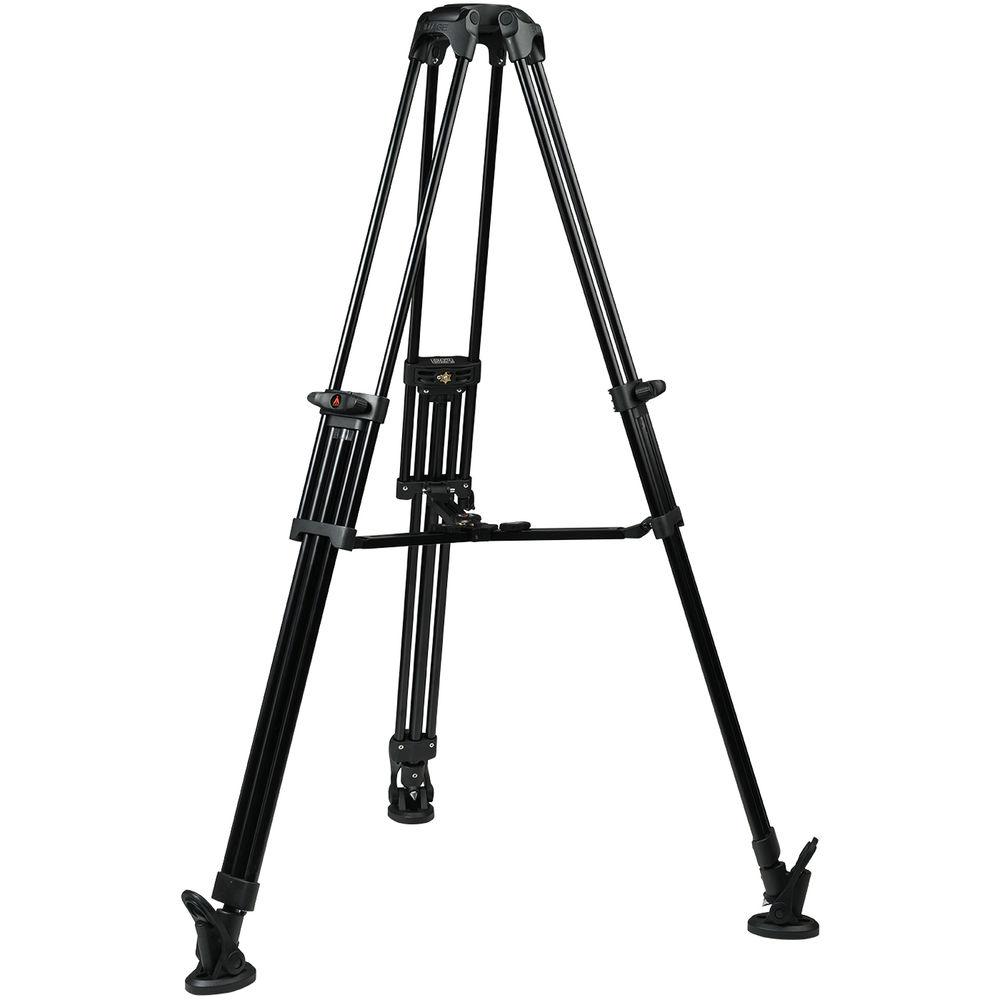

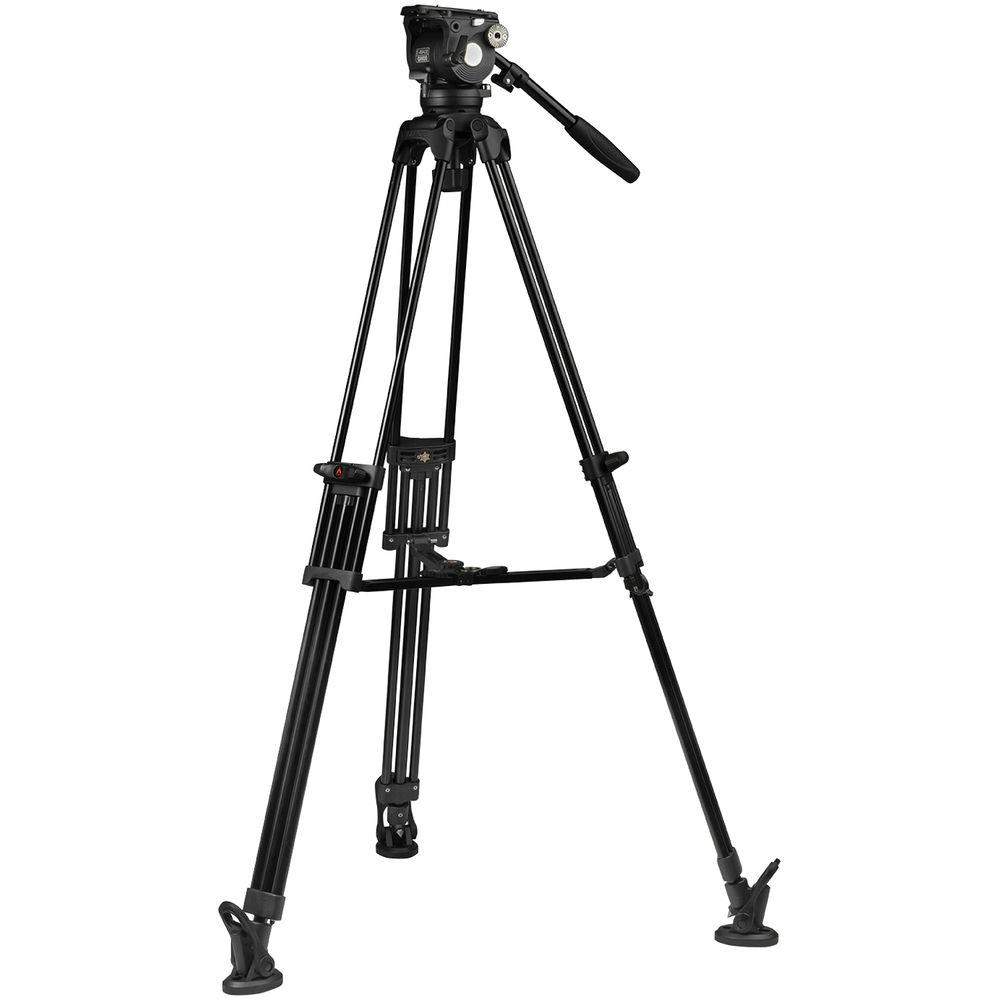

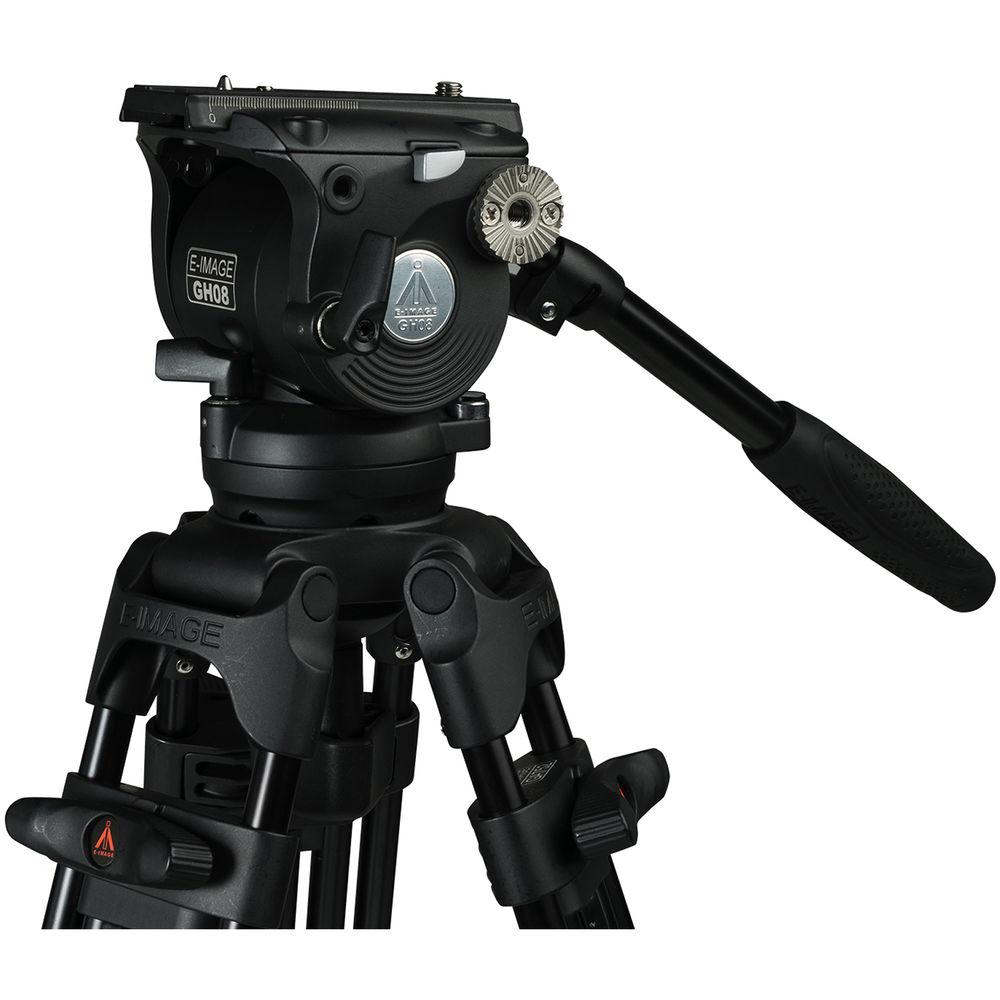

Product description The E-Image EG08A2 Aluminum Tripod System supports cameras and accessories weighing up to 17.6 lb. It includes the GH08 fluid head with GB2 pan bar, GA752 two-stage aluminum tripod legs, and GS01 mid-level spreader. The tripod legs feature three sections with mono-lock leg locks. The system offers height adjustment from 2.5 to 5.6 ft, and collapses down to 33.3".The GH08 head is specially designed for supporting handheld camcorders, and features a quick release sliding balance plate system. It provides six counterbalance settings plus zero, and features fixed drag on both pan and tilt. The head also features an illuminated spirit level and 1/4"-20 and 3/8"-16 threads for attaching an articulating support arm or other accessories. The included carry bag allows for easy storage and transportation. UPC: 847983025039 In the Box E-Image EG08A2 2-Stage Aluminum Tripod System with GH08 Fluid Head GA752 Tripod Legs GH08 Fluid Head GS01 Mid-Level Spreader Handle for GH06, GH08, GH10 Fluid Heads Carry Bag Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image EG08A2 2-Stage Aluminum Tripod System with GH08 Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image EG08A2 Specs | | | Load Capacity | 17.6 lb (8 kg) | | Maximum Height | 5.6' (169.5 cm) | | Minimum Height | 2.5' (76.0 cm) | | Folded Length | 33.3" (84.5 cm) | | Leveling Bubble/Illuminated | Yes / Yes | | Weight | 12.1 lb (5.5 kg) | | | | Counterbalance System | Yes, 1 to 7 grades | | Ball Base | 75 mm ball | | Quick Release/Wedge Plate | Sliding plate | | Slide Length | 3.3" (83.0 mm) | | Balance Plate | Yes | | Tilt Drag | Installed | | Tilt Range | -60 to 90° | | Tilt Lock | Yes | | Pan Range | Not specified by the manufacturer | | Pan Drag | Installed | | Pan Lock | Yes | | | | Material | Aluminum | | Head Attachment Fitting | 75 mm bowl | | Leg Stages/Sections | 2 / 3 | | Leg Lock Type | Mono-lock | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Spiked feet with removable rubber covers | | | | Package Weight | 18.55 lb | | Box Dimensions (LxWxH) | 36.5 x 8.25 x 8.25" |
