Product description - E-Image Aluminum and Carbon Fiber Tripods w/ GH10 Head | Ikan Tech Corner

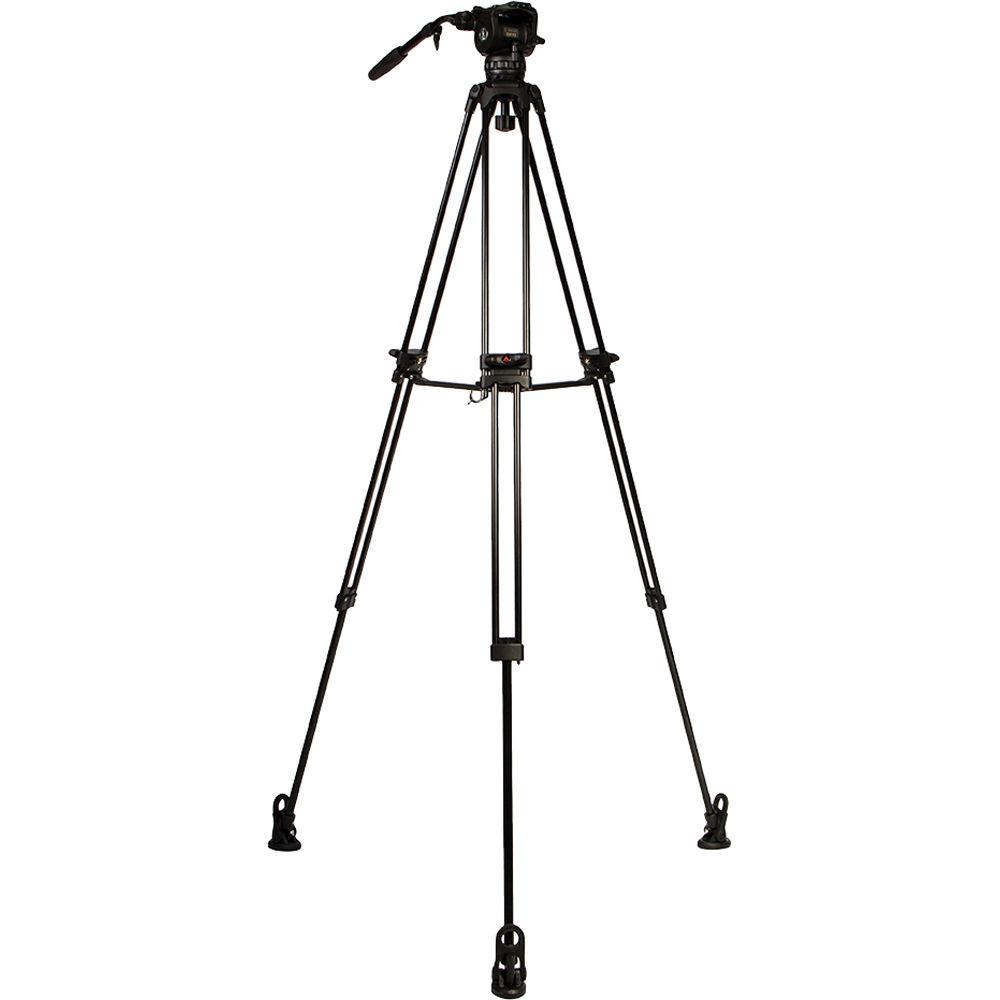

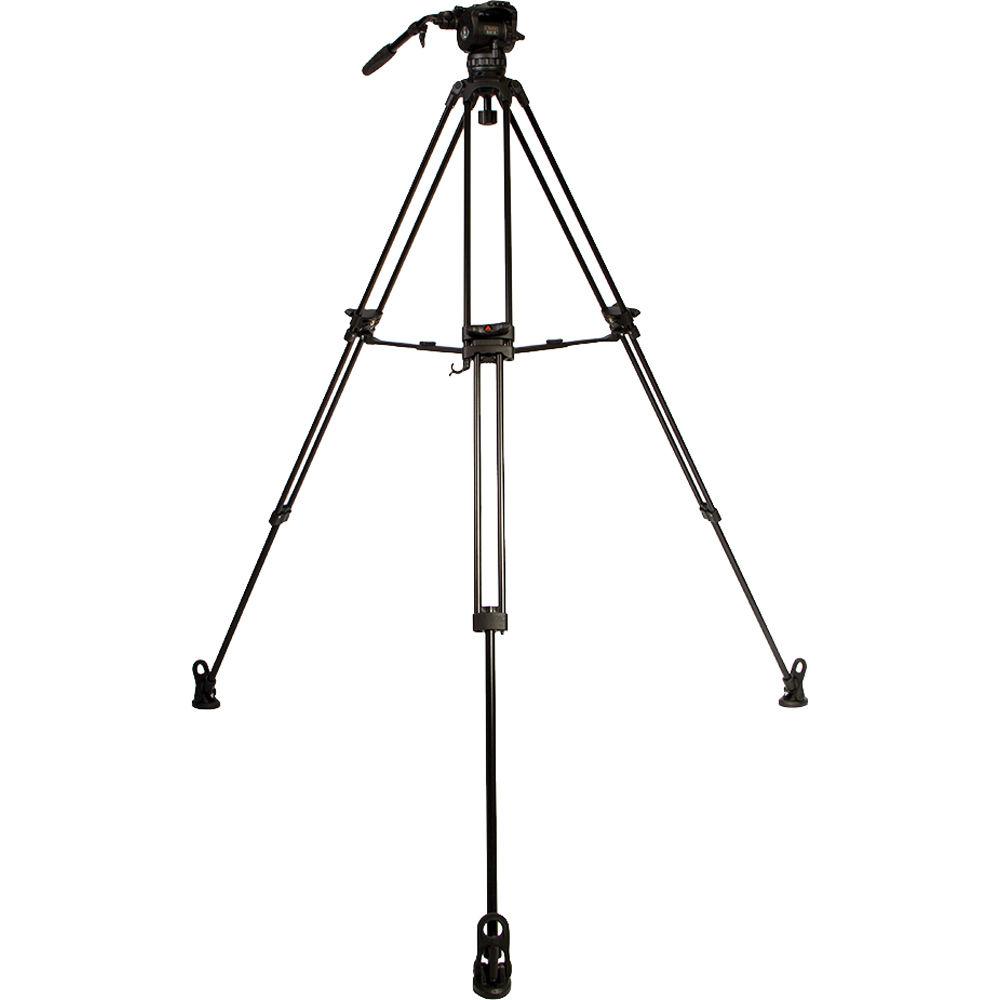

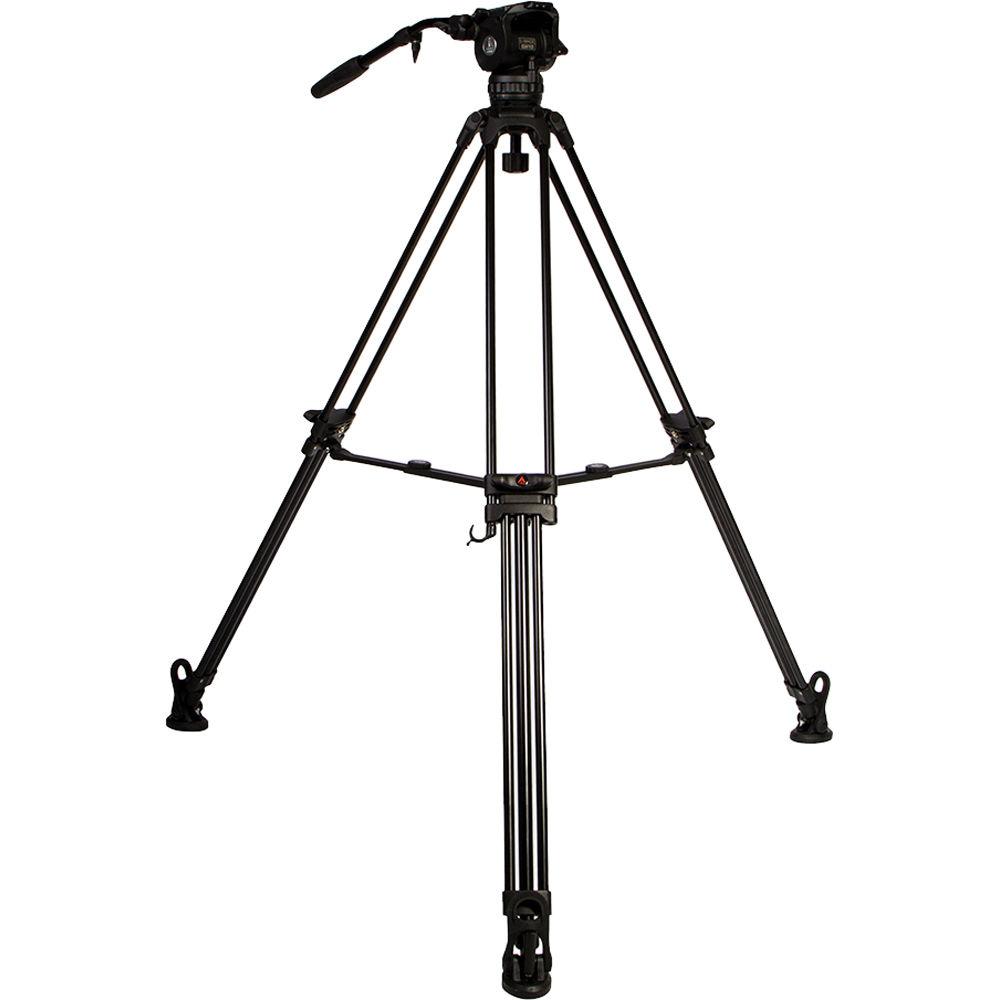

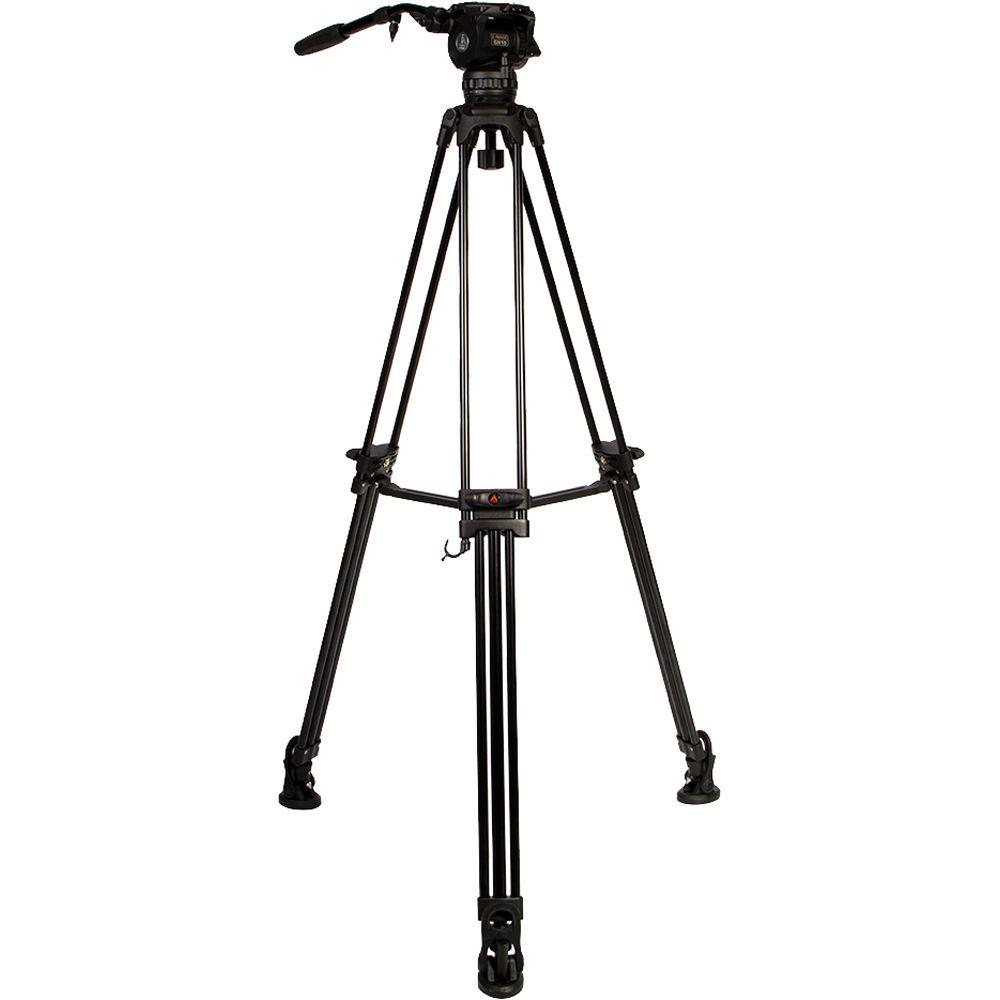

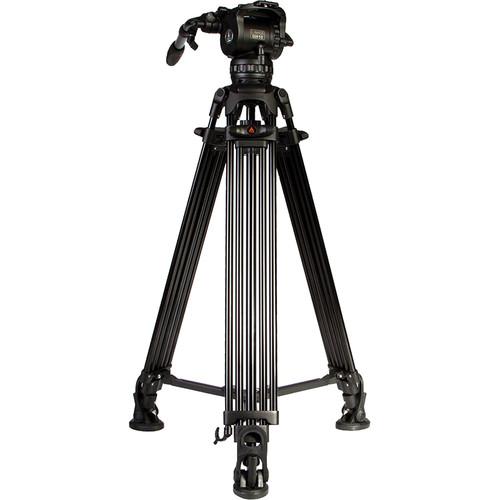

The E-Image EG10A2 2-Stage Aluminum Tripod with GH10 Head supports cameras and accessories weighing up to 22 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide support platform. The legs are made from aluminum to be durable and lightweight, and they feature three leg sections with mono-lock leg locks. The mono-lock design allows you to lock and unlock all the sections of each leg using only one rotating locking lever. The tripod legs are height-adjustable from 32.5 to 68". The legs include a mid-level spreader and rubber feet that attach to the spiked feet.The GH10 head features a sliding balance plate system for attaching the camera to the head. It provides seven counter balance settings (one to seven) that help the fluid head support loads up to 22 pounds. With three fluid drag grades plus a zero setting on both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. It includes a padded carry bag with shoulder strap - Mono-lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing you from having to bend down to open a bottom leg lock to raise the legs.
- The legs feature spiked feet that provide solid purchase on soft surfaces. The included mid-level spreader allows you to use the legs on uneven surfaces, and the rubber feet allow you to shoot on hard/delicate surfaces.
- The head incorporates a push button that illuminates the built-in bubble level. An LR41 push-button battery is included and is easily replaceable.
UPC: 847983009770 In the Box E-Image EG10A2 2-Stage Aluminum Tripod with GH10 Head 2 Stage Aluminum Tripod Legs with 75mm Bowl GH10 Fluid Head Pan Handle Set of 3 Rubber Feet Tripod Bag LR41 Push-Button Battery Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image EG10A2 2-Stage Aluminum Tripod with GH10 Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image EG10A2 Specs | | | Maximum Height | 68" (172.5 cm) (with head attached) | | Minimum Height | 32.5" (82.5 cm) (with head attached) | | Leveling Bubble/Illuminated | Yes/yes (LR41 button battery included) | | Weight | 12.8 lb (5.8 kg) (head, legs, spreader, handle) | | | | Load Capacity | 22 lb (10 kg) | | Counter Balance System | 7 counter balance settings | | Quick Release/Wedge Plate | Easy Lock system | | Balance Plate | Easy Lock | | Tilt Range | -60 to 90° | | Tilt Drag | 3-steps plus 0 | | Tilt Lock | Yes | | Pan Drag | 3-steps plus 0 | | Pan Lock | Yes | | | | Material | Aluminum | | Head Attachment Fitting | 75 mm bowl | | Load Capacity | 88 lb (40 kg) | | Leg Stages/Sections | 2/3 | | Minimum Height | 26" (66 cm) | | Maximum Height | 61" (155 cm) | | Leg Lock Type | Mono-lock - rotating lever | | Spiked/Retractable Feet | Spiked with F3 foot pads | | | | Package Weight | 20.35 lb | | Box Dimensions (LxWxH) | 40.25 x 9.5 x 9.4" |
