User Manual for E-Image EI-7004C Universal Middleweight Tripod Dolly with Locking Wheels Click to enlarge the picture
Contents of the user manual for the E-Image EI-7004C Universal Middleweight Tripod Dolly
- Product category: Tripod Dollies E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Dollies
 |
User manual for the E-Image EI-7004C Universal Middleweight Tripod Dolly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|

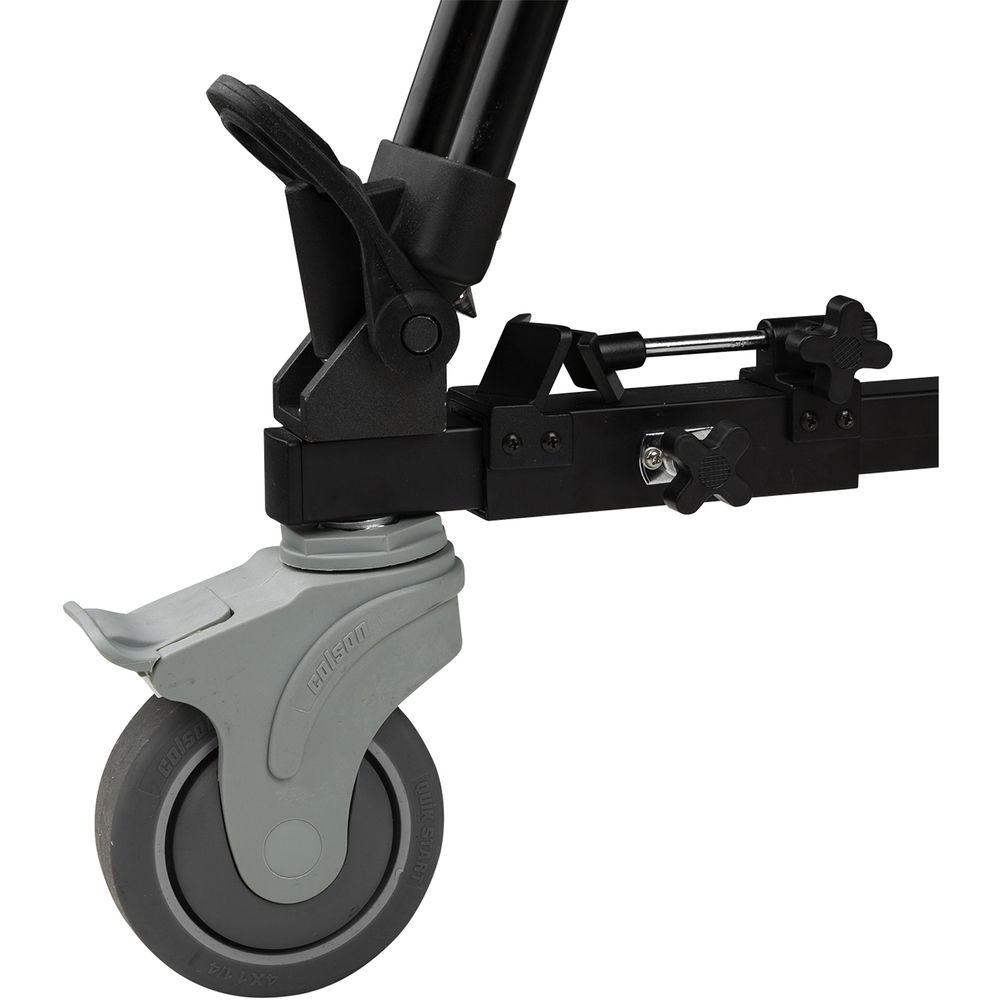

Product description The EI-7004C Universal Middleweight Tripod Dolly from E-Image opens and locks into place with a retaining screw, and supports payloads up to 132 lb. It can hold tripods with dual-spiked feet in place with rubber tabs near each wheel. The dolly also features a sliding bracket on each of the arms for holding flat-footed tripods. These brackets can be positioned almost anywhere along the arms of the dolly and locked into place, and can be adjusted in size to accommodate any style of rubber tripod foot. - Fits both dual-spiked and flat-footed tripods, including all E-Image tripods

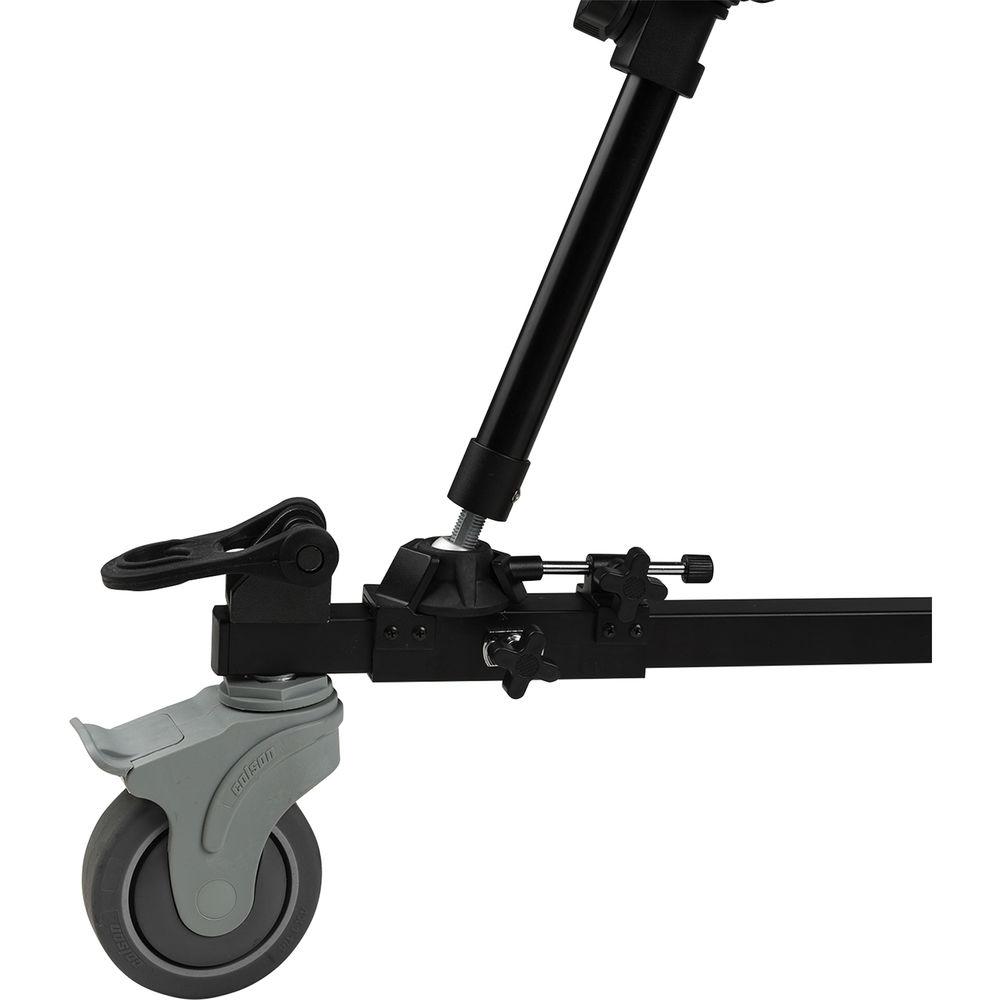

- Universal foot anchor slides along arm and locks in place for best positioning

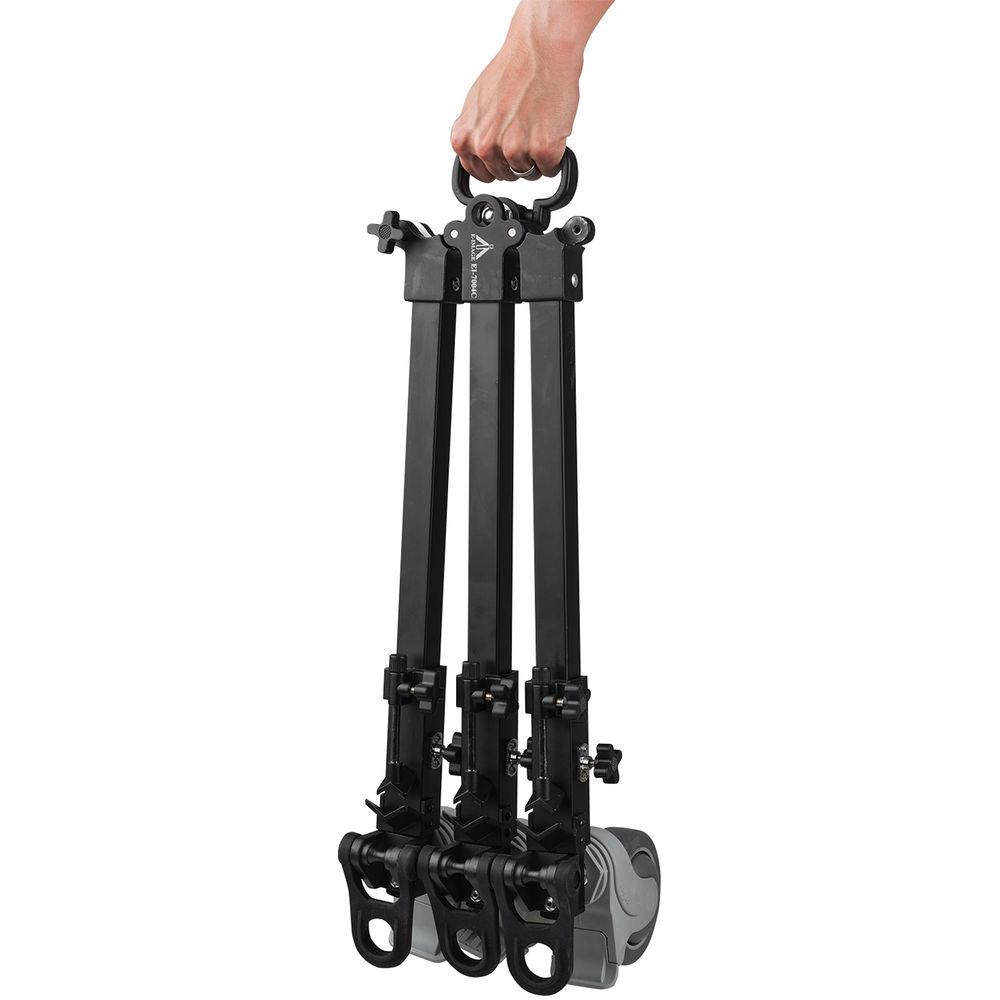

- Integrated handle for easy transport

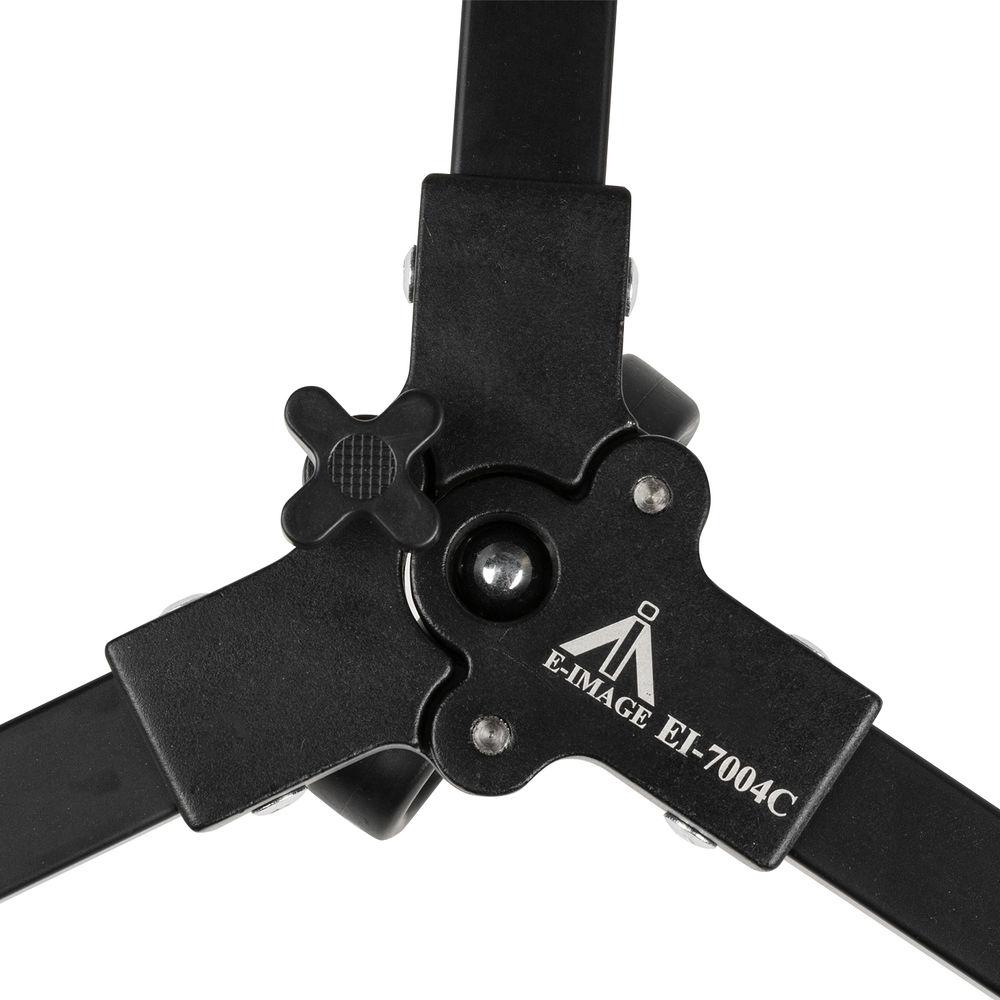

- Single-twist knob for locking arm position
- Individually-locking 4" wheels
UPC: 847983022472 In the Box E-Image EI-7004C Universal Middleweight Tripod Dolly with Locking Wheels Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image EI-7004C Universal Middleweight Tripod Dolly with Locking Wheels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image EI-7004C Specs | Load Capacity | 132.3 lb (60 kg) | | Construction | Not specified by manufacturer | | Doorway Width | Not specified by manufacturer | | Folded Length | 22.3" (56.5 cm) | | Diameter | Rotating: 39.4" (100 cm)
Total: 44.3" (112.4 cm) | | Wheel Diameter | 4" (10.16 cm), each | | Wheel Lock | Yes, individual | | Brackets | Universal Mount Slide Range: 6.5 to 16.8" (16.5 to 42.5 cm) from center to outer bracket
Universal Mount Foot Opening: 0.88 to 2.5" (2.2 to 6.4 cm) | | Dimensions | Folded: 22.3 x 6.9 x 8" (56.5 x 17.5 x 20.3 cm) | | Weight | 7.4 lb (3.4 kg) | | | | Package Weight | 10.25 lb | | Box Dimensions (LxWxH) | 22.9 x 9.8 x 9.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
