Product description - E-Image EI-GH25-KIT Aluminum Pedestal System | Ikan Tech Corner

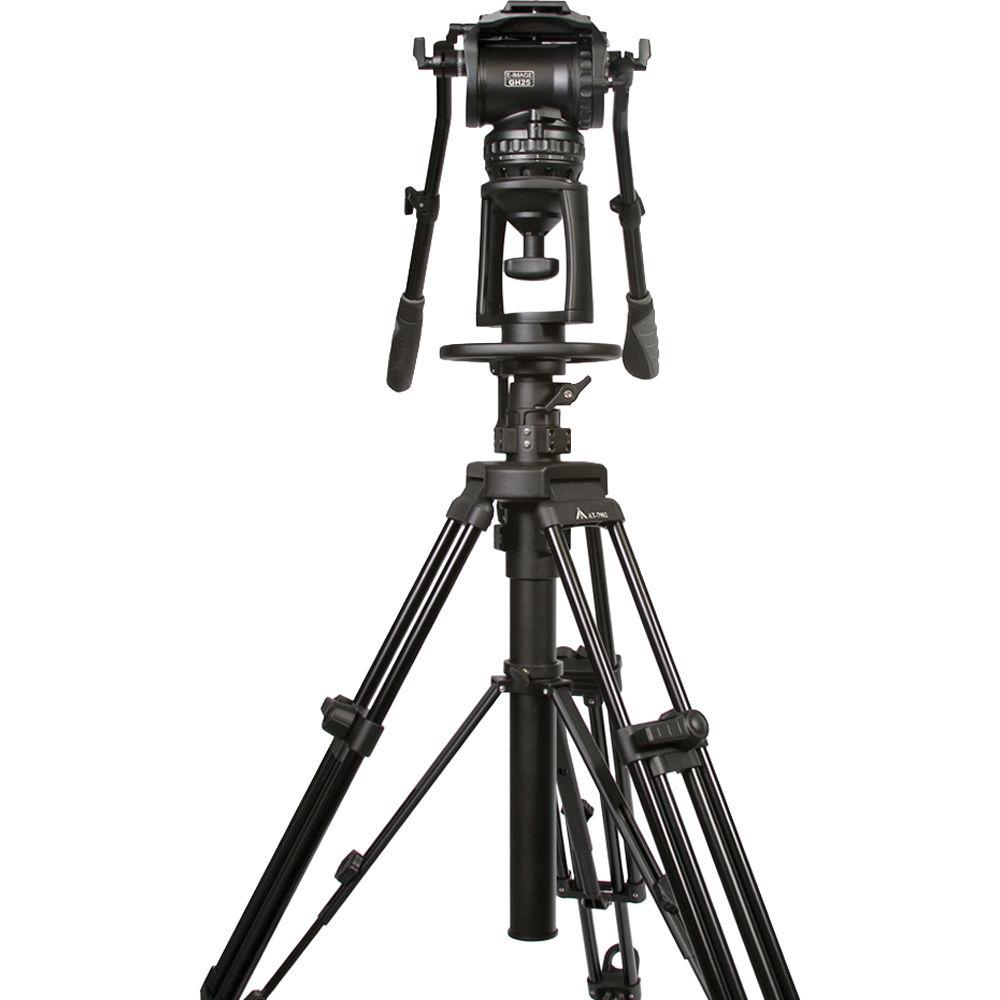

Rolling to your next camera position is a lot easier than picking up your tripod and carrying it, especially with a heavy camera in studio configuration, but with the E-Image EI-GH25-Pedestal Kit you can do just that. This pedestal kit provides you with a tripod system and rolling spreader suitable for using an ENG/EFP/compact camcorder in a studio configuration. The legs feature a pneumatic center column with 13" of travel and the control wheel familiar to pedestal users. The center column pneumatically assists with raising/lowering the height of cameras and accessories weighing up to 55 pounds.

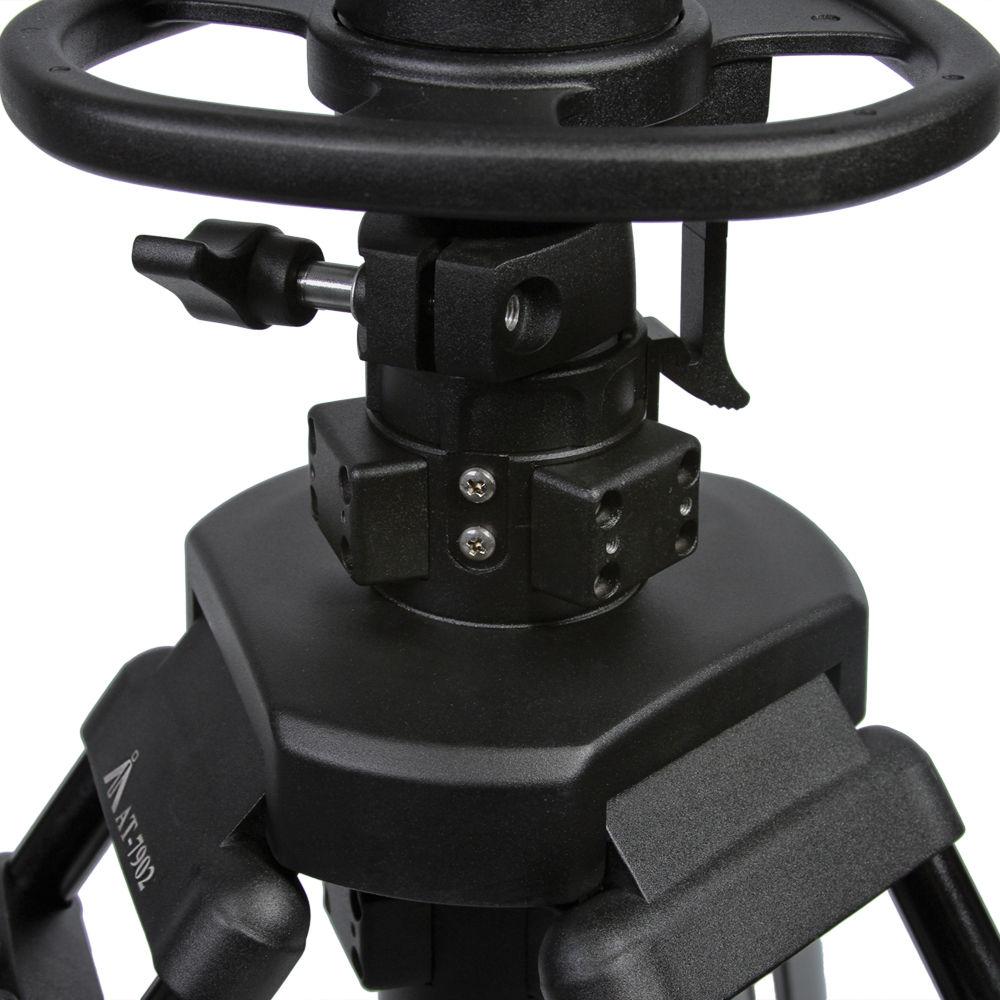

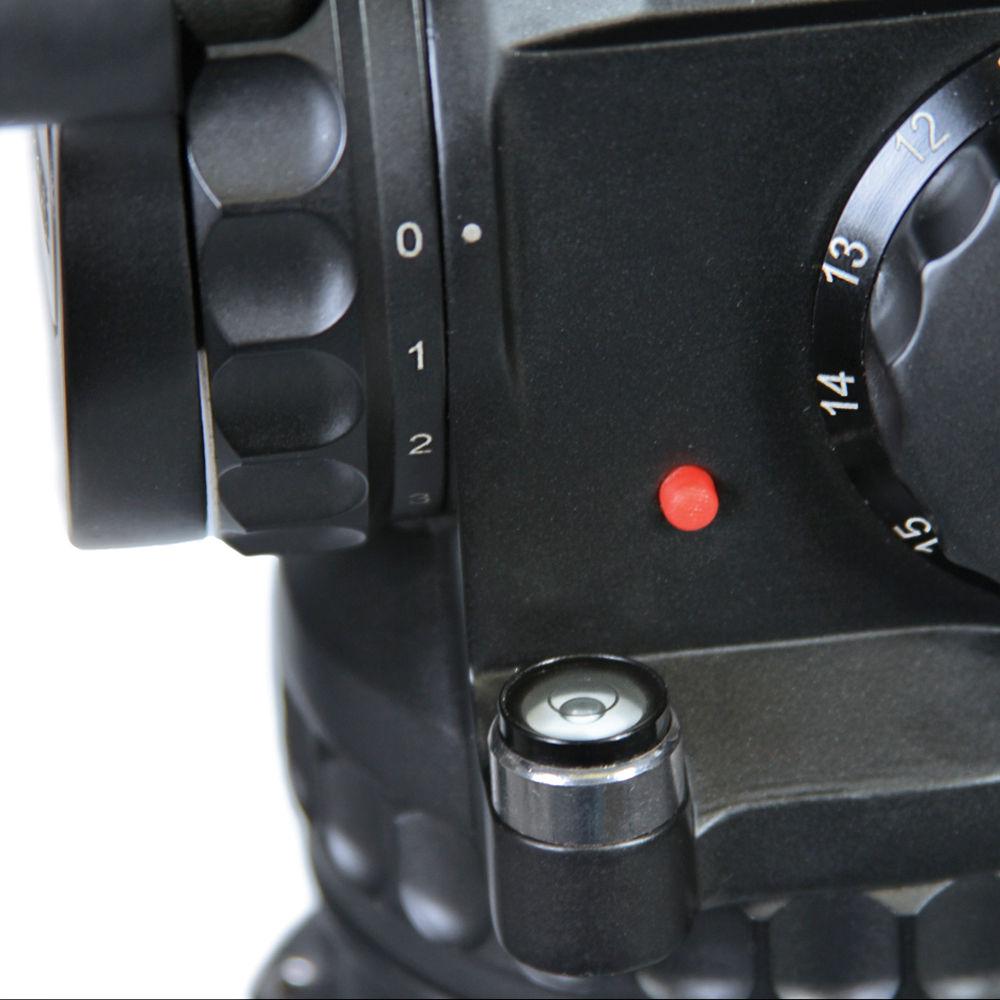

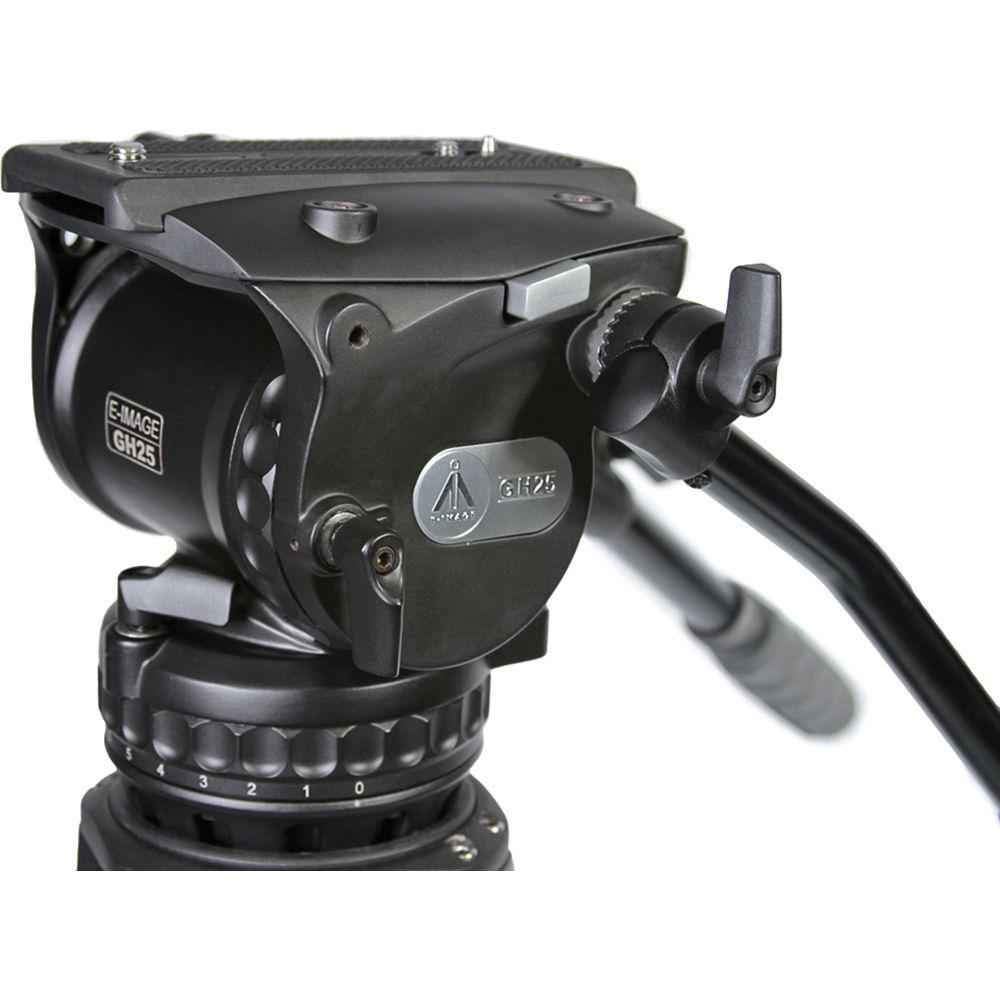

The included fluid head features a 100mm half ball for quick leveling on the legs' center column, and it features 15 steps of counterbalance for cameras. The head features 7 grades of drag adjustment for both pan and tilt, and a 0 setting for free movement. The head's included sliding balance plate features almost 3" of balance adjustment and is indexed so you can quickly reset the balance as you change configurations. The two included panhandles feature telescoping length adjustment. Rounding out the pedestal kit is the rolling spreader, which supports the legs, head and your camera, and features non-marring wheels with individual foot activated wheel locks. The kit packs away into the included soft-sided travel case so you can pack everything up and take it with you. - The center column is pneumatic, using a cushion of air to help support the head as you raise and lower it. The column features a ring at the top, which can be used as a hand hold to adjust the position of the camera, and also for a handhold for raising and lowering the pedestal.

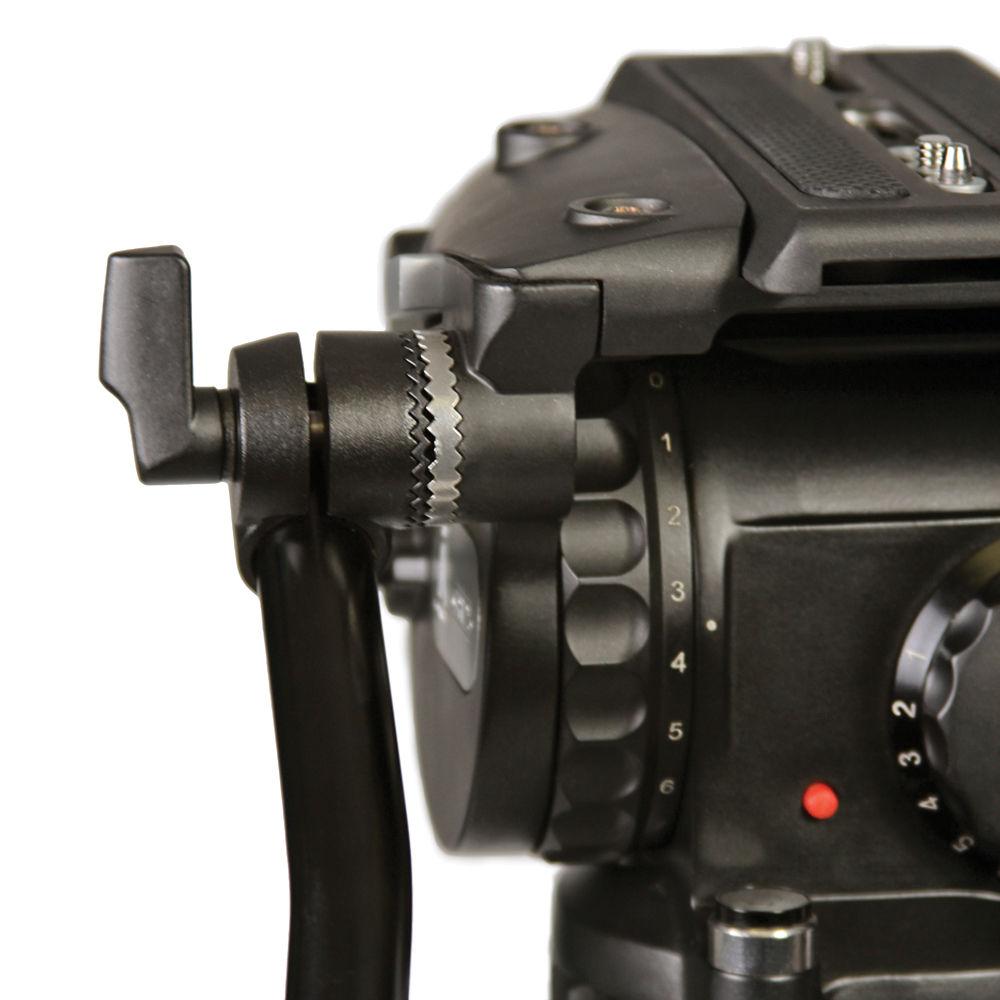

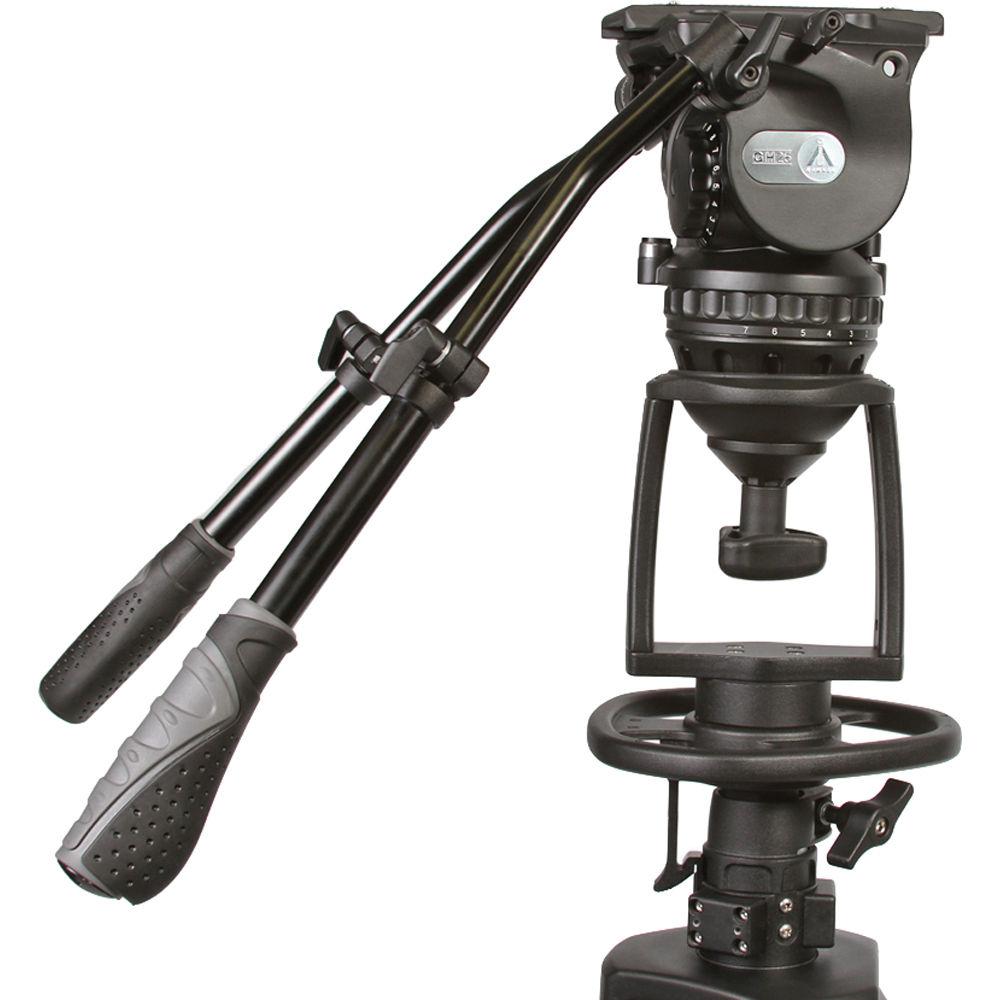

- The head features fluid drag for pan and tilt, and eight steps of counterbalance settings. The included sliding balance plate allows you to adjust and balance the camera on the head, and it is indexed so you can quickly reset the position on the head for different configurations. The dual panhandle rosettes support the two included telescoping panhandles, which will support optional studio style follow focus and zoom units.

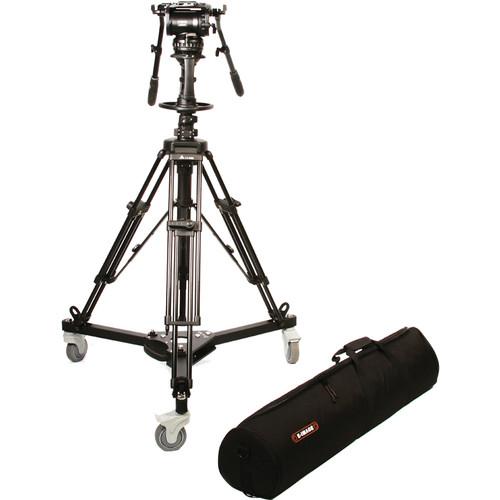

- The Pedestal including wheeled spreader, tripod legs with center column, and fluid heads weighs in at only 40 pounds total, and packs up for transport into the included soft travel case.
UPC: 847983009473 In the Box E-Image EI-GH25-Pedestal Kit with Head & Dolly Pedestal Dolly Pedestal Tripod Heavy Duty Fluid Video Head ecbduxewczvttedvbvcbay Oscar T30 Tripod Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image EI-GH25-Pedestal Kit with Head & Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image EI-GH25-KIT Specs | | | Load Capacity | 18 to 33 lb / 8.2 to 14.7 kg | | Bowl Diameter/Thread | 100 mm | | Folded/Transport Length | 41" / 104.1 cm | | Height Range | 47 to 87" / 119.4 cm to 221 cm | | Weight | System: 40 lb / 18.1 kg | | | | Load Capacity | 55 lbs / 24.9 kg | | Head Fitting | 100 mm bowl | | Counterbalance Steps | 15 Steps | | Tilt Range | -75 to 90° | | Tilt Drag | 7 grades plus 0 | | Pan Drag | 7 grades plus 0 | | Sliding Balance Plate Travel | 2.3" / 60 mm | | Rosettes | 2 x (L/R) | | | | Center Column | Type: Pneumatic Air Assist
Travel: 13" / 33 cm | | | | Working Diameter | 39" / 99 cm | | Wheel Lock | Individual | | | | Package Weight | 61.0 lb | | Box Dimensions (LxWxH) | 48.0 x 13.0 x 12.0" |
