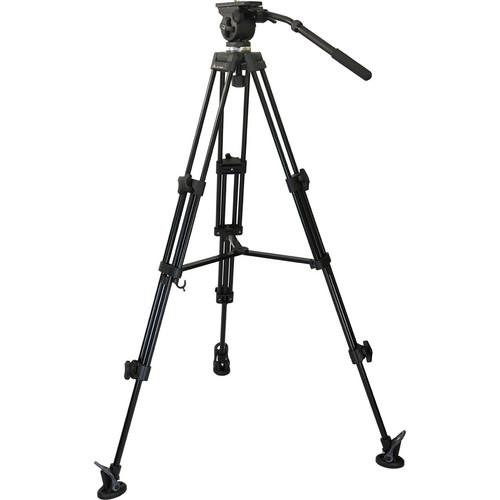

User Manual for E-Image EK50AAM Fluid Drag Video Head and Tripod Click to enlarge the picture
Contents of the user manual for the E-Image EK50AAM Fluid Drag Video Head
- Product category: Tripod Systems E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Systems
|
User manual for the E-Image EK50AAM Fluid Drag Video Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|
Product description The E-Image EK50AAM Fluid Drag Video Head and Tripod is a video head and dual stage tripod leg system designed for video cameras weighing up to 13.2 pounds. The head has fixed pan and adjustable tilt fluid drag for smooth camera movements. The included quick release (QR) plate attaches to your camera with either of the included 1/4"-20 or 3/8"-16 camera tie-down screws. With the camera attached, the QR plate snaps into the cradle, which quickly and securely attaches your camera to the tripod head. The QR plate release system features a safety mechanism to help prevent accidentally releasing of the plate. The head also features an integrated forward/backward sliding plate which allows you to balance the camera on the head for optimal operation on a shot-by-shot need.
The tripod legs are made of an anodized aluminum alloy, with a fixed mid-level spreader and rotary clamping leg locks. The foot spikes are covered by removable anti-slip pads, and an integrated elastic leg wrap helps keep the legs closed for transport. Fluid Head -
- Load Capacity: 13.2 lb
- Fluid Drag
- Tilt: Adjustable
- Pan: Fixed
- 65mm Half ball for fast leveling
- Bubble level
- 90° Tilt down—camera can point straight down
- 75° Tilt up
- 360° Panning
- Mounting rosettes on left and right sides
Legs -
- Load Capacity: 13.2 lb
- Built-in fixed spreader
- Working Height Range: 31 to 64"
- Rotary clamp leg locks
- Foot spikes
- Removable anti-slip pads/foot spike protectors
- Integrated leg wrap bungee and clip
- Folded Size: 32"
UPC: 610708234494 In the Box E-Image EK50AAM Fluid Drag Video Head and Tripod Quick Release Plate 1/4"-20 Camera Screw 3/8"-16 Camera Screw Pan Handle (14.5", Non-Extendable) Soft Travel Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image EK50AAM Fluid Drag Video Head and Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image EK50AAM Specs | | | Counter Balance System | Spring-loaded | | Quick Release Plate | Non-sliding type
2.7 x 1.7 x 0.3" (69 x 42 x 7 mm) | | Quick Release Safety | Yes | | Camera Mounting Screw | 1/4"-20
3/8"-16 | | Built-in Balance Plate | Yes | | Tilt Drag | Adjustable fluid | | Tilt Range | +90 to -75° | | Tilt Lock | Yes | | Pan Drag | Fixed fluid | | Pan Range | 360° | | Pan Lock | Yes | | Pan Handle Rosettes | 2 x Rosettes (one each L/R) | | Leveling Bubble/Illuminated | Yes, non-illuminated | | | | Material | Anodized aluminum alloy | | Head Attachment Fitting | 65 mm Half ball | | Leg Stages/Sections | Two-stage | | Leg Lock Type | Rotary clamp | | Independent Leg Spread | No | | Spreader | Mid-level (non-removable / non-adjustable) | | Spiked/Retractable Feet | Non-retractable spikes with removable spike protectors | | | | Load Capacity | 13.2 lb (6 kg) | | Height Range | Maximum: 64" (160 cm)
Minimum: 31" (79 cm) | | Folded Length | 32" (83 cm) | | Weight | 9.5 lb (4.3 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 37.0 x 9.0 x 9.0" |
