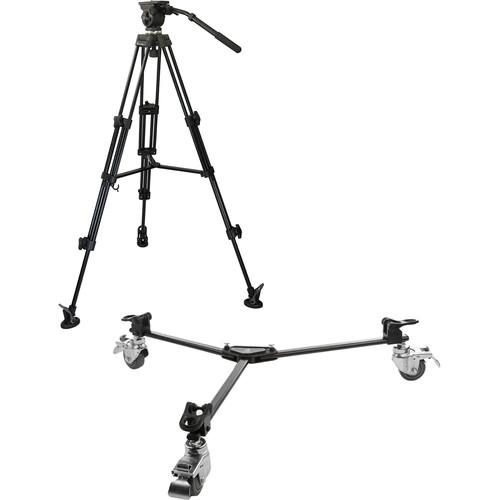

User Manual for E-Image EK50AAM Fluid Drag Video Head and Tripod Kit with Dolly Click to enlarge the picture
Contents of the user manual for the E-Image EK50AAM Fluid Drag Video Head
- Product category: Tripod Systems E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Systems
|
User manual for the E-Image EK50AAM Fluid Drag Video Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|
Product description The E-Image EK50AAM Fluid Drag Video Head and Tripod Kit with Dolly from B&H is a video tripod system designed for cameras weighing up to 13.2 lb. The head features fixed pan drag and adjustable tilt drag for smooth camera movements, with a 65mm half ball design enabling quick and easy leveling. The aluminum alloy legs offer a working height range of 31 to 64" and utilize a built-in, fixed mid-level spreader for increased leg rigidity. The legs have spiked feet and include removable anti-slip pads that allow you to safely use the tripod on a variety of exterior and interior surfaces. As part of this kit, a lightweight dolly is included, which is ideal for moving the tripod around a studio or other environment with smooth, flat surfaces. The dolly folds for compact storage.
Please see the links below for more information on the components of this kit. - E-Image EK50AAM Fluid Drag Video Head and Tripod The E-Image EK50AAM Fluid Drag Video Head and Tripod is a video head and dual stage tripod leg system designed for video cameras weighing up to 13.2 pounds. The head has fixed pan and adjustable tilt fluid drag for smooth camera movements. The included quick release (QR) plate attaches to your camera with either of the included 1/4"-20 or 3/8"-16 camera tie-down screws. With the camera attached, the QR plate snaps into the cradle, which quickly and securely attaches your camera to the tripod head. The QR plate release system features a safety mechanism to help prevent accidentally releasing of the plate. The head also features an integrated forward/backward sliding plate which allows you to balance the camera on the head for optimal operation on a shot-by-shot need.
The tripod legs are made of an anodized aluminum alloy, with a fixed mid-level spreader and rotary clamping leg locks. The foot spikes are covered by removable anti-slip pads, and an integrated elastic leg wrap helps keep the legs closed for transport. Fluid Head -
- Load Capacity: 13.2 lb
- Fluid Drag
- Tilt: Adjustable
- Pan: Fixed
- 65mm Half ball for fast leveling
- Bubble level
- 90° Tilt down—camera can point straight down
- 75° Tilt up
- 360° Panning
- Mounting rosettes on left and right sides
Legs -
- Load Capacity: 13.2 lb
- Built-in fixed spreader
- Working Height Range: 31 to 64"
- Rotary clamp leg locks
- Foot spikes
- Removable anti-slip pads/foot spike protectors
- Integrated leg wrap bungee and clip
- Folded Size: 32"
UPC: 610708234494 - E-Image Lightweight Tripod Dolly The E-Image Lightweight Tripod Dolly from ikan is designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 88 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots. It is not recommended for use as a dolly for dolly shots. Instead, it is designed to help you move heavy tripods from one camera position to the next.
This tripod dolly features 3"-diameter, non-marring rubber wheels with individual brakes, and a 35" working base diameter. Once removed from your tripod legs, it folds for storage or transport. - Supports up to 88 pounds of tripod, camera, and accessories.
- The 3" rubber wheels are non-marring during normal use, protecting the floor surface.
- Each wheel incorporates its own foot-activated brake.
UPC: 847983014439 In the Box - EK50AAM Fluid Drag Video Head and Tripod
- Quick Release Plate
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- Pan Handle (14.5", Non-Extendable)
- Soft Travel Case
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image EK50AAM Fluid Drag Video Head and Tripod Kit with Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - E-Image EK50AAM Fluid Drag Video Head and Tripod
| | | Counter Balance System | Spring-loaded | | Quick Release Plate | Non-sliding type
2.7 x 1.7 x 0.3" (69 x 42 x 7 mm) | | Quick Release Safety | Yes | | Camera Mounting Screw | 1/4"-20
3/8"-16 | | Built-in Balance Plate | Yes | | Tilt Drag | Adjustable fluid | | Tilt Range | +90 to -75° | | Tilt Lock | Yes | | Pan Drag | Fixed fluid | | Pan Range | 360° | | Pan Lock | Yes | | Pan Handle Rosettes | 2 x Rosettes (one each L/R) | | Leveling Bubble/Illuminated | Yes, non-illuminated | | | | Material | Anodized aluminum alloy | | Head Attachment Fitting | 65 mm Half ball | | Leg Stages/Sections | Two-stage | | Leg Lock Type | Rotary clamp | | Independent Leg Spread | No | | Spreader | Mid-level (non-removable / non-adjustable) | | Spiked/Retractable Feet | Non-retractable spikes with removable spike protectors | | | | Load Capacity | 13.2 lb (6 kg) | | Height Range | Maximum: 64" (160 cm)
Minimum: 31" (79 cm) | | Folded Length | 32" (83 cm) | | Weight | 9.5 lb (4.3 kg) | | | | Box Dimensions (LxWxH) | 37.0 x 9.0 x 9.0" | - E-Image Lightweight Tripod Dolly
| Construction | Aluminum alloy | | Load Capacity | 88 lb / 39.9 kg | | Working Diameter | 35" / 88.9 cm | | Wheel Diameter | 3" / 7.6 cm | | Wheel Lock | Yes | | Dimensions | 24 x 7" / 61.0 x 17.8 cm (collapsed) | | Weight | 8 lb / 3.6 kg | | | | Box Dimensions (LxWxH) | 23.1 x 8.6 x 8.5" |
