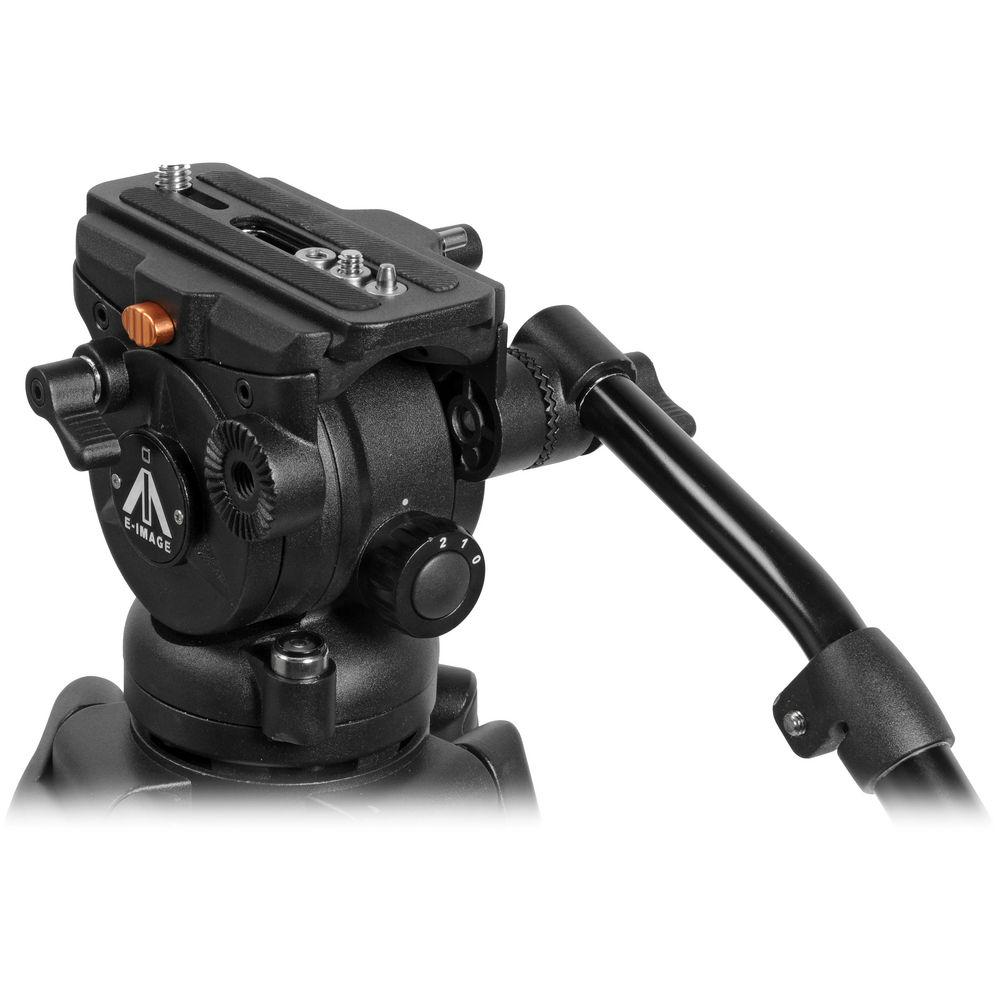

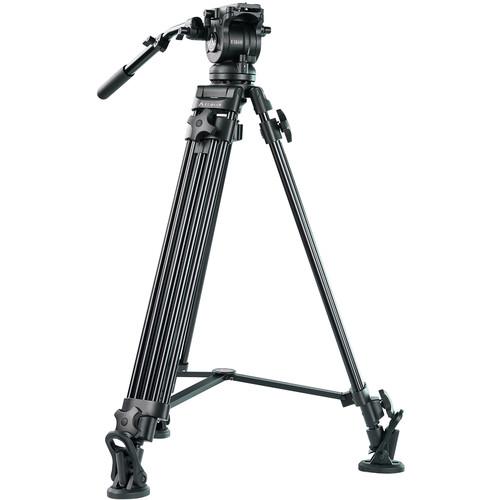

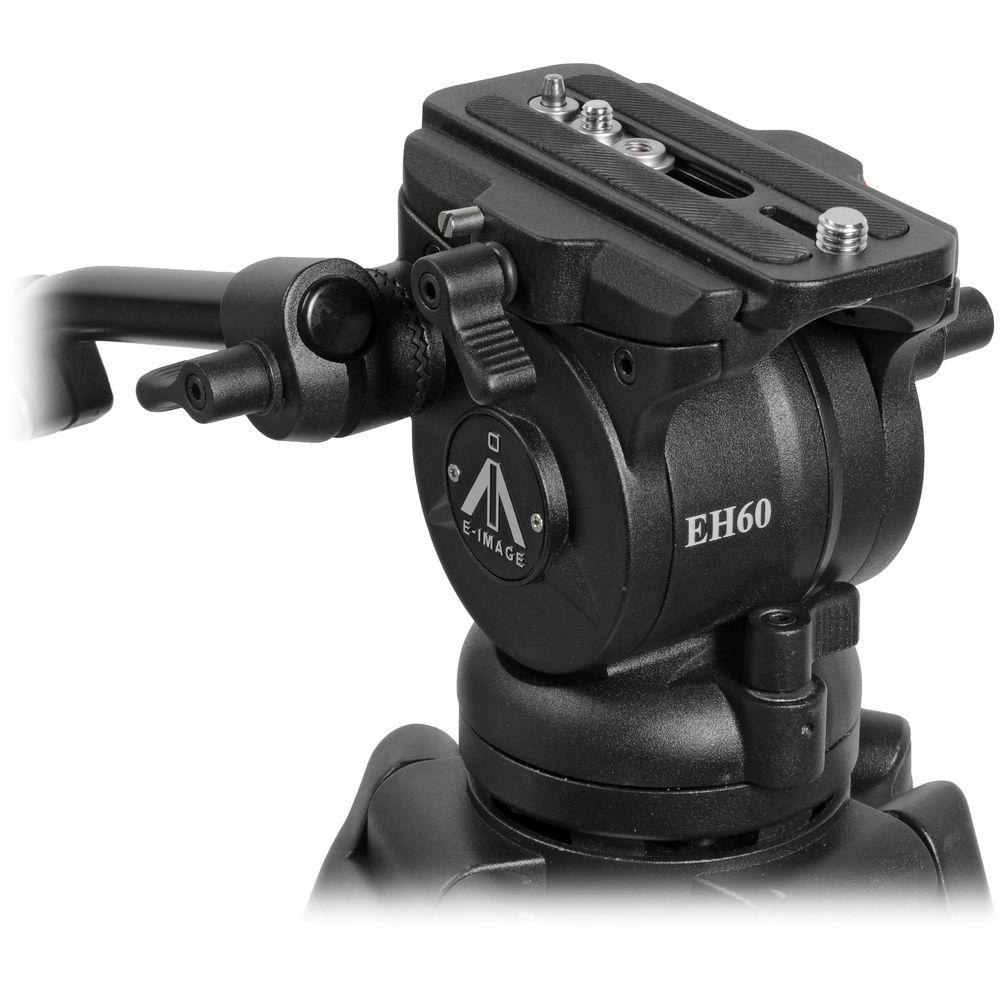

Product description Recommended Video Tripods Read More The E-Image EK60AAM Fluid Drag Video Head and Tripod is a video head and dual stage tripod leg system designed for video cameras and rigs weighing up to 17.6 pounds. The system consists of the EH60 fluid drag head, the AT7402A aluminum tripod legs with fixed mid-level spreader, one HD7060 adjustable pan handle, and a soft bag for carrying the system. The head has fixed pan and tilt fluid drag for smooth camera moves, and a spring-loaded counterbalance system adjustable in three steps
The included sliding balance plate attaches to your camera with either of the included 1/4"-20 or 3/8"-16 camera tie-down screws. It then slides into the head's top plate, quickly and securely attaching your camera to the tripod. You can adjust the balance of the camera on the tripod head by sliding the baseplate forward or backward. The sliding balance plate system features a safety release to help prevent the sliding baseplate from accidentally sliding out of the tripod head. Fluid Head -
- Fluid Drag

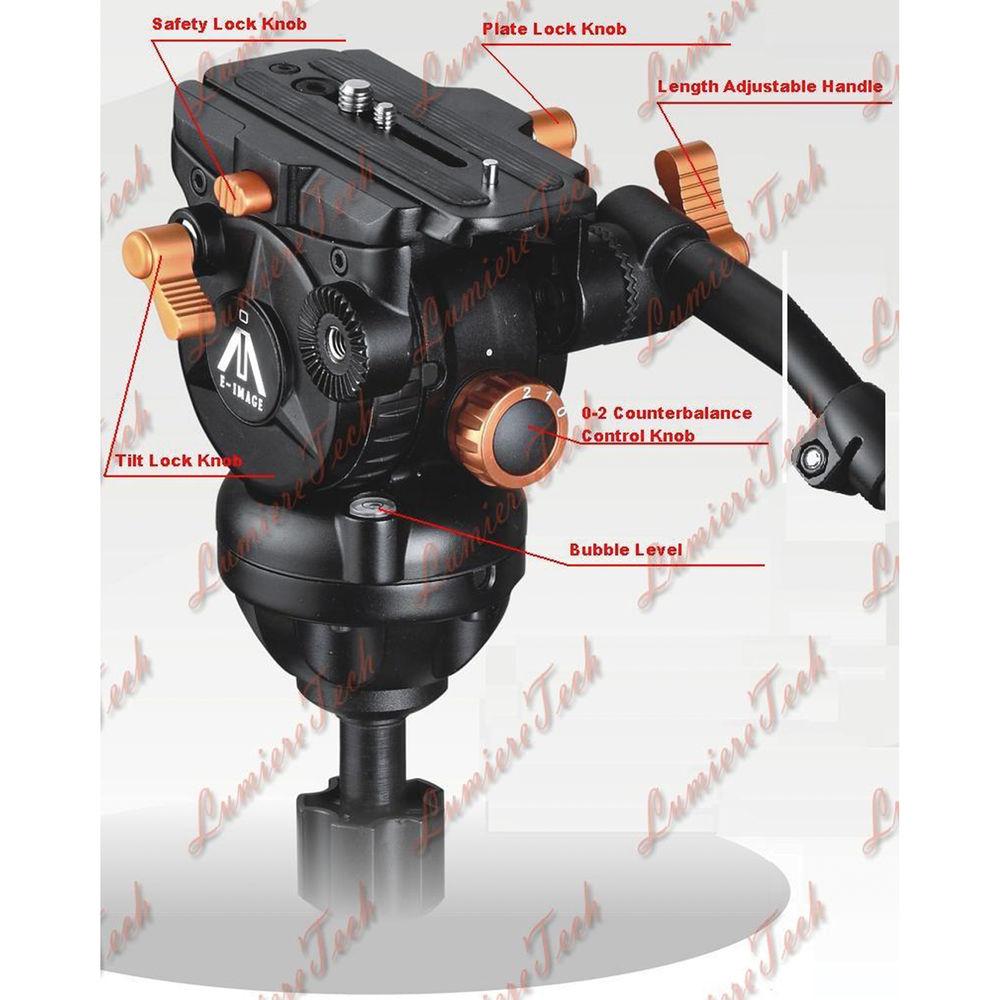

- Spring-Loaded/Three-Stepped Counterbalance
- 0: 0 lb / 0kg
- 1: 6.6 lb / 3kg
- 2: 13.2 lb / 6kg
- 75mm Claw ball for fast leveling
- Bubble level
- 90° Tilt down—camera can point straight down
- 45° Tilt up
- 360° Panning
- Mounting rosettes on left and right sides
Legs -
- Built-in fixed spreader

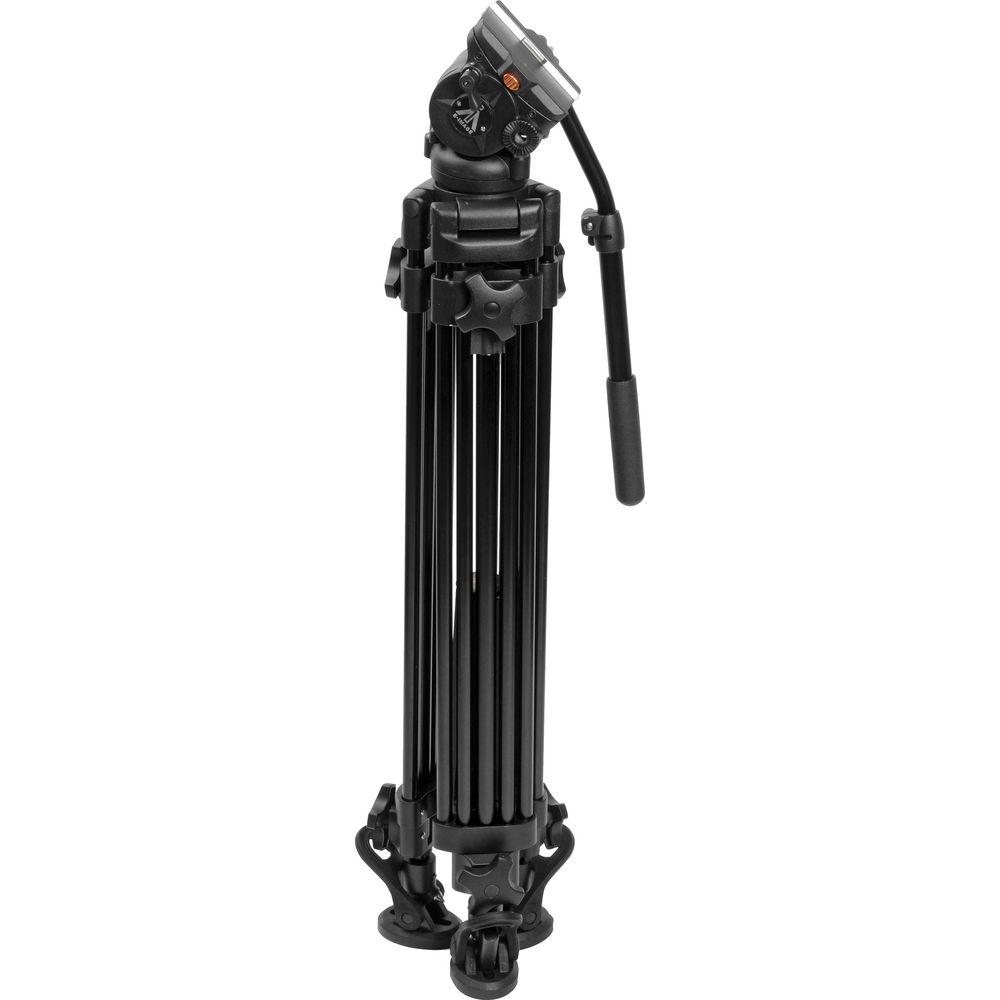

- Working height range of 31 to 63"

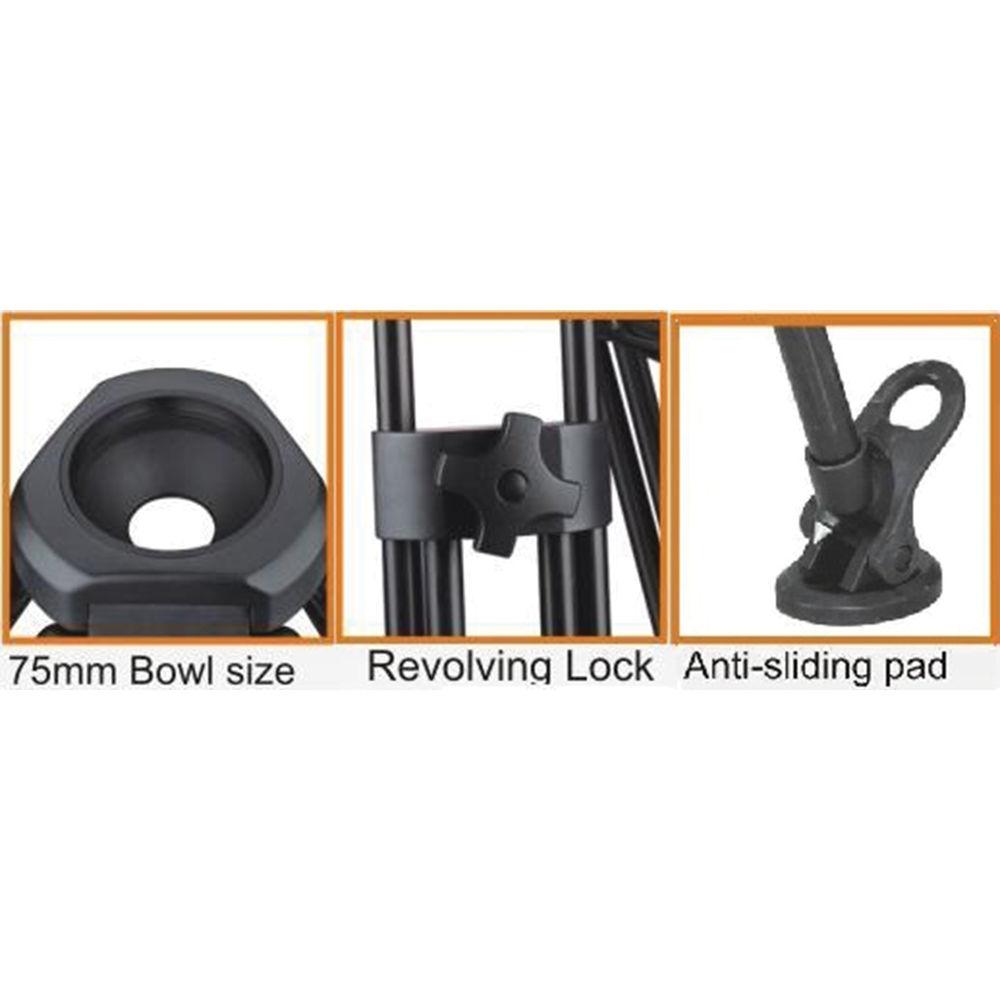

- Rotary clamp leg locks
- Foot spikes
- Removable anti-slip pads/foot spike protectors
- Integrated leg wrap bungee and clip
UPC: 610708234456 In the Box E-Image EK60AAM Fluid Drag Video Head and Tripod Quick Release Plate 1/4"-20 Camera Screw 3/8"-16 Camera Screw Pan Handle Travel Soft Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image EK60AAM Fluid Drag Video Head and Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image EK60AAM Specs | | | Counter Balance System | Spring-loaded | | Counter Balance Range | Range: 6.6 - 17.6 lb / 3 - 8 kg
Three steps (0, 1, 2) | | Quick Release Plate | Sliding type
4.7 x 1.9 x 0.4" / 120 x 49 x 10.5 mm | | Quick Release Safety | Yes | | Camera Mounting Screw | 1/4"-20
3/8"-16 | | Built-in Balance Plate | No | | Tilt Drag | Fixed fluid | | Tilt Range | +90 to -45° | | Tilt Lock | Yes | | Pan Drag | Fixed fluid | | Pan Range | 360° | | Pan Lock | Yes | | Pan Handle Rosettes | 2 x Rosettes (one each L/R) | | Leveling Bubble/Illuminated | Yes, non-illuminated | | | | Material | Anodized aluminum alloy | | Head Attachment Fitting | 75 mm Ball base | | Leg Stages/Sections | Two-stage | | Leg Lock Type | Rotary clamp | | Independent Leg Spread | No | | Spreader | Mid-Level (non-removable / non-adjustable) | | Spiked/Retractable Feet | Non-retractable spikes with removable spike protectors/anti-slip pads | | | | Load Capacity | 17.6 lb / 8 kg | | Height Range | Maximum: 63" / 160 cm
Minimum: 31" / 79 cm | | Folded Length | Including Head: 32.5" / 82.6 cm | | Weight | 11 lb / 4.9 kg | | | | Package Weight | 16.4 lb | | Box Dimensions (LxWxH) | 37.0 x 9.0 x 9.0" |
