User Manual for E-Image ES-120 48" Carbon Fiber Slider Click to enlarge the picture
Contents of the user manual for the E-Image ES-120 48" Carbon Fiber Slider
- Product category: Camera Sliders E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Camera Sliders
 |
User manual for the E-Image ES-120 48" Carbon Fiber Slider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|
Product description - E-Image ES-120 & ES-70 Sliders Demo

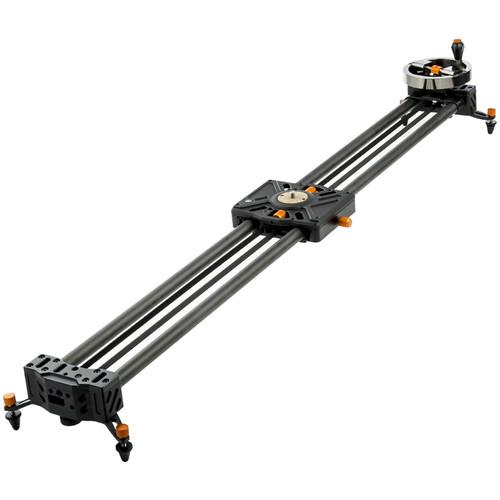

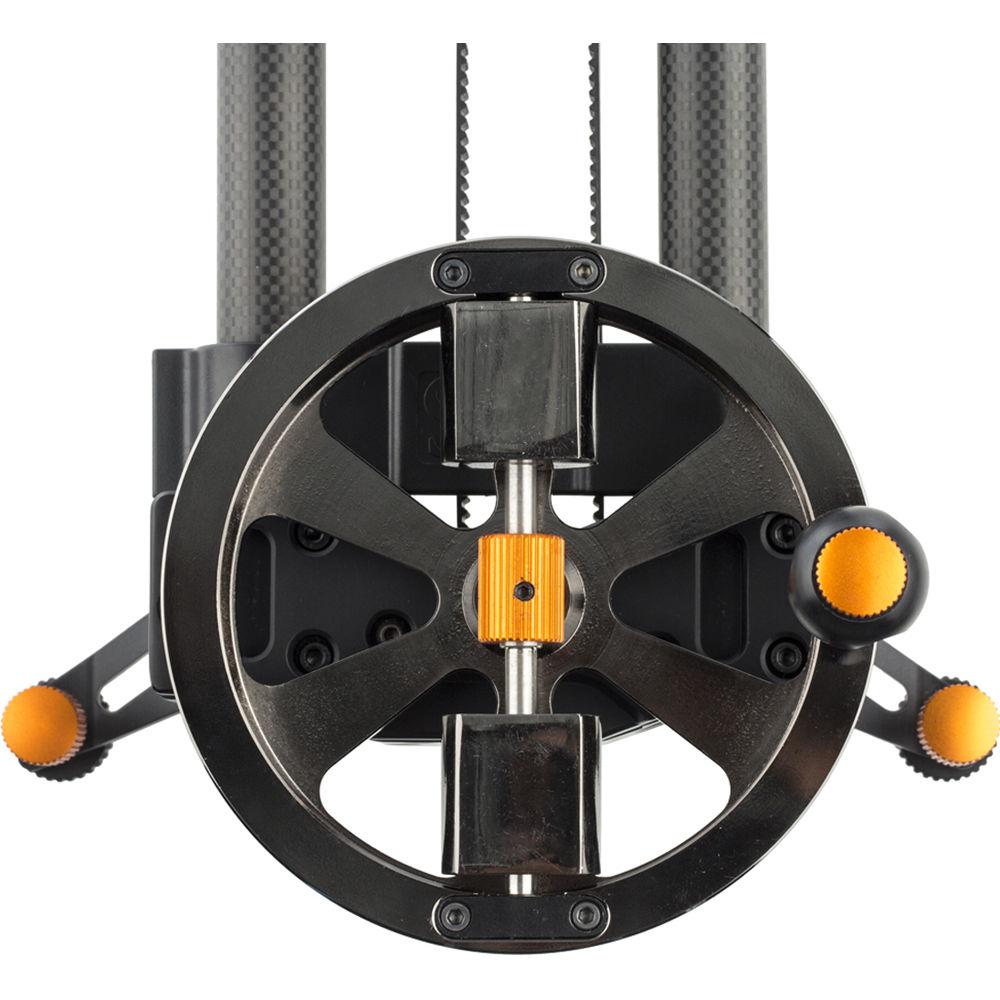

Create cinematic camera movements with the ES-120 48" Carbon Fiber Slider from E-Image. The slider may be used in multiple modes of operation and can support up to 15 pounds. It features a flywheel belt-drive system, offering adjustable resistance via a squeeze mechanism at the top of the flywheel. There's an included crank that can be used the traditional way upon removal of the flywheel. For tripod and stand usage, there are standard 1/4"-20 and 3/8"-16 threads on the bottom as well as a 5/8" stand mount receiver on each end.

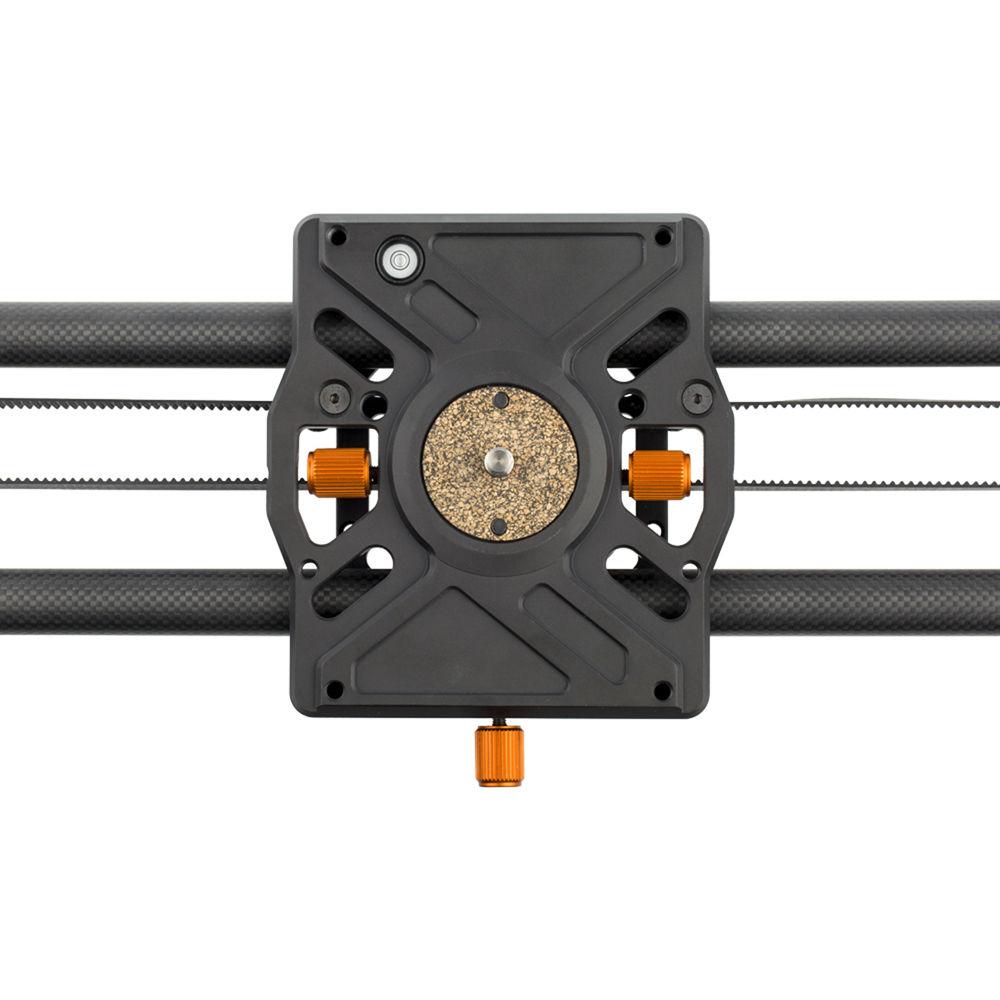

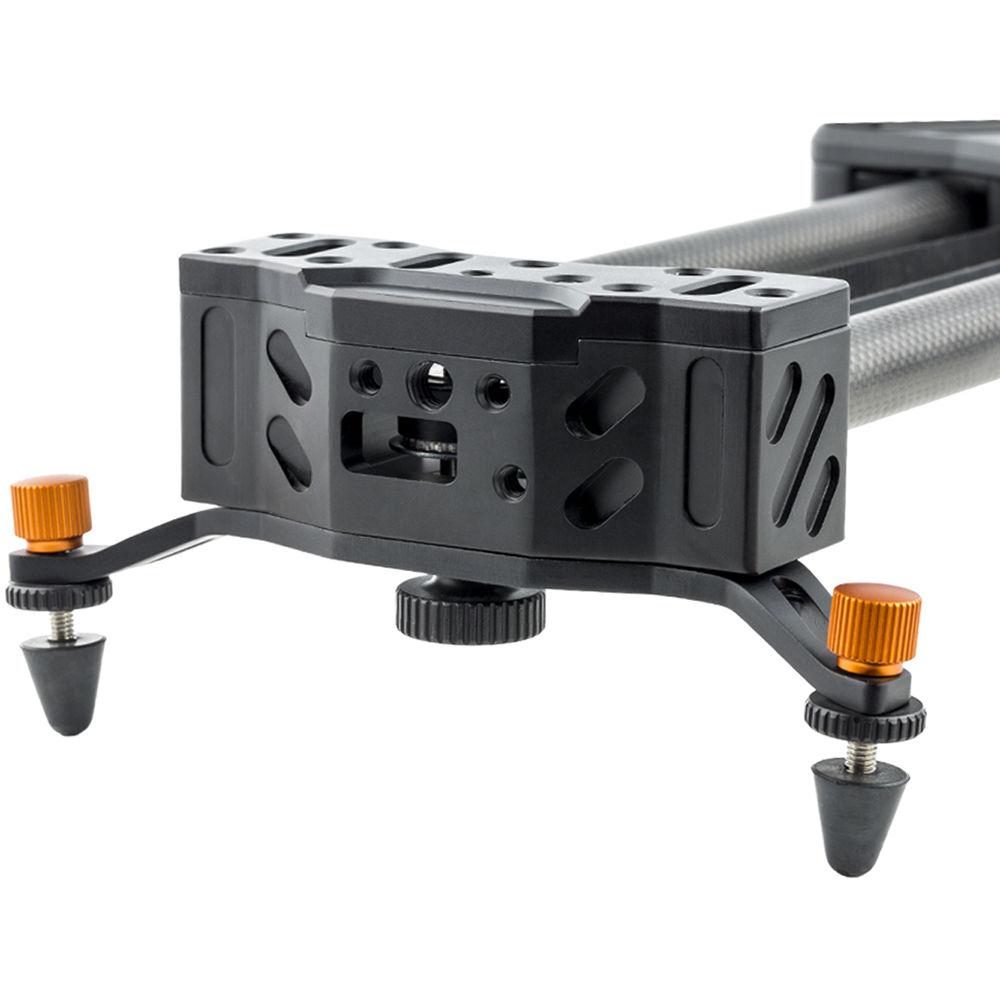

The included outrigger feet are individually adjustable for leveling the slider evenly on different surfaces. The camera mounting platform is a large 5 x 5" and has a bubble level, and the tripod mount plate (underneath the rails) is 5 x 6", for sturdier tripod mounting. The slider also supports an optional motion-control accessory that will let you take advantage of the smooth belt drive for time-lapse shooting. - Key Features
-
- 48" slider supporting up to 15 lb payloads
- Flywheel belt-drive system
- Adjustable resistance
- 1/4"-20 and 3/8"-16 tripod threads
- 5/8" stand mount receivers for C-stands and baby stands
- Individually adjustable outrigger feet
- 5 x 5" mounting surface with a bubble level
- Supports optional motion control accessory

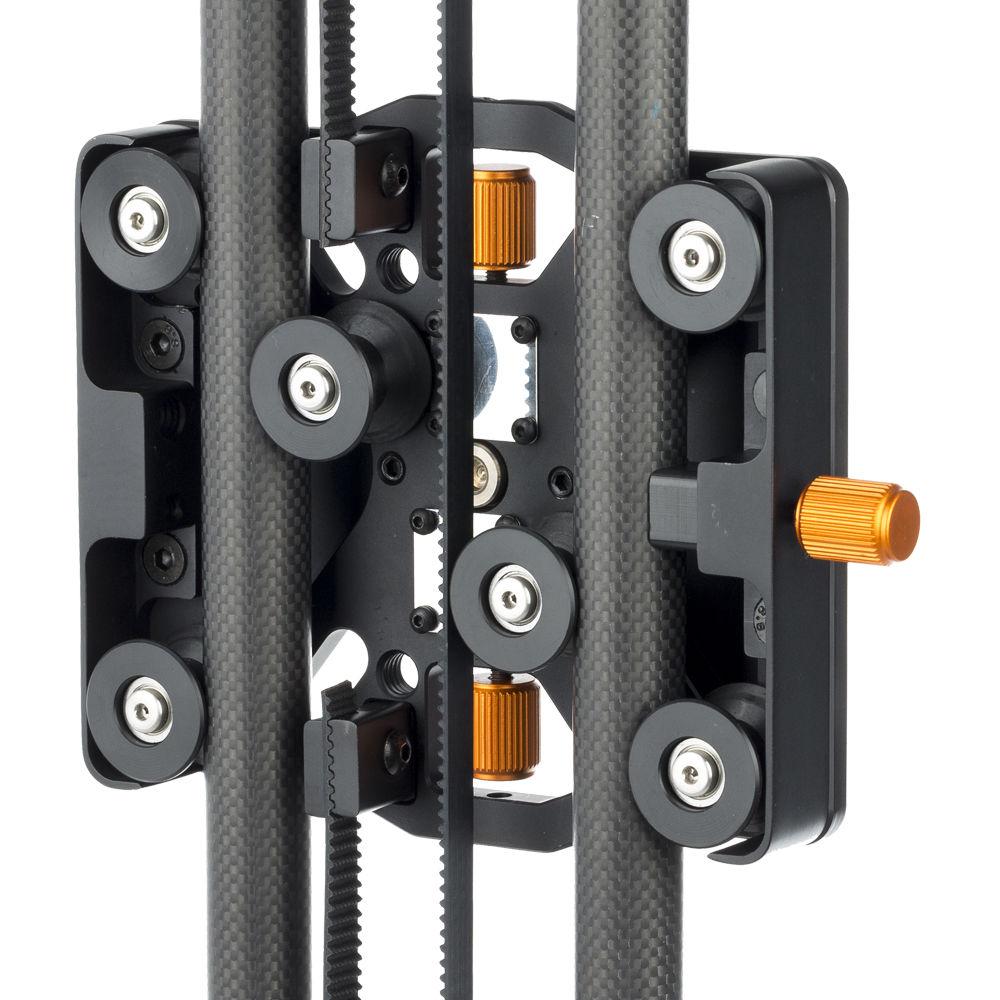

- Sealed-bearing wheel design
- 12 sealed bearings help smoothly distribute weight and minimize movement tolerances
- Adjustable rollers help minimize lateral movement for heavier rigs

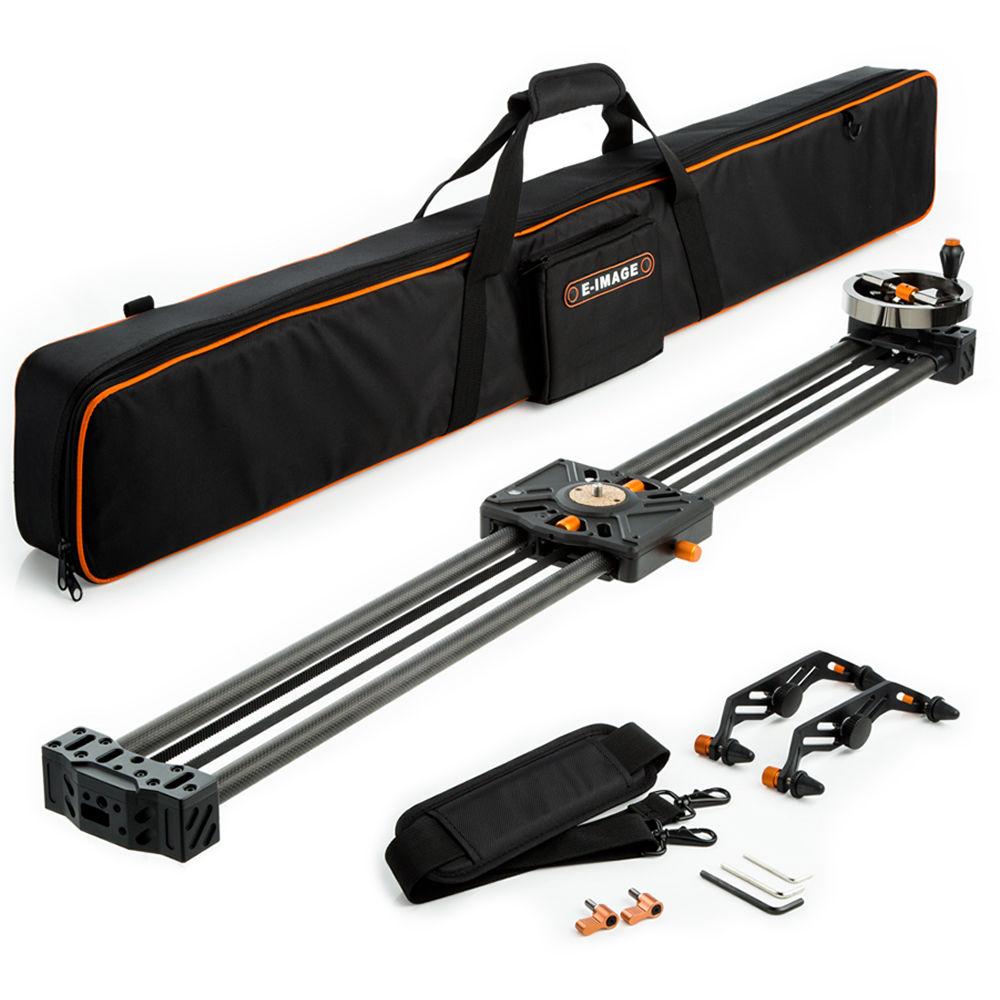

UPC: 847983014194 In the Box E-Image ES-120 48" Carbon Fiber Slider Set of 2 Outrigger Feet Flywheel Crank Padded Transport Case Shoulder Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image ES-120 48" Carbon Fiber Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image ES-120 Specs | | | Load Capacity | 15 lb / 6.8 kg | | | | Camera Mounting Screw | 1/4"-20 Male | | Tripod Mounting | 1/4"-20 Female Thread
3/8"-16 Female Thread | | Stand Receiver | 2 x 5/8" | | | | Dimensions | 5 x 6" / 12.7 x 15 cm | | | | Body Material | Aluminum | | Track Length | 48" / 122 cm | | Weight | 5.6 lb / 2.54 kg | | | | Package Weight | 13.55 lb | | Box Dimensions (LxWxH) | 48.0 x 8.0 x 5.06" |
