User Manual for E-Image GC102 2-Stage Carbon Fiber Tripod with GH15 Head Click to enlarge the picture
Contents of the user manual for the E-Image GC102 2-Stage Carbon Fiber Tripod
- Product category: Tripod Systems E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Systems
 |
User manual for the E-Image GC102 2-Stage Carbon Fiber Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|
Product description - 0:14 / 14:14 E-Image Aluminum and Carbon Fiber Tripods w/ GH15 Head | Ikan Tech Corner

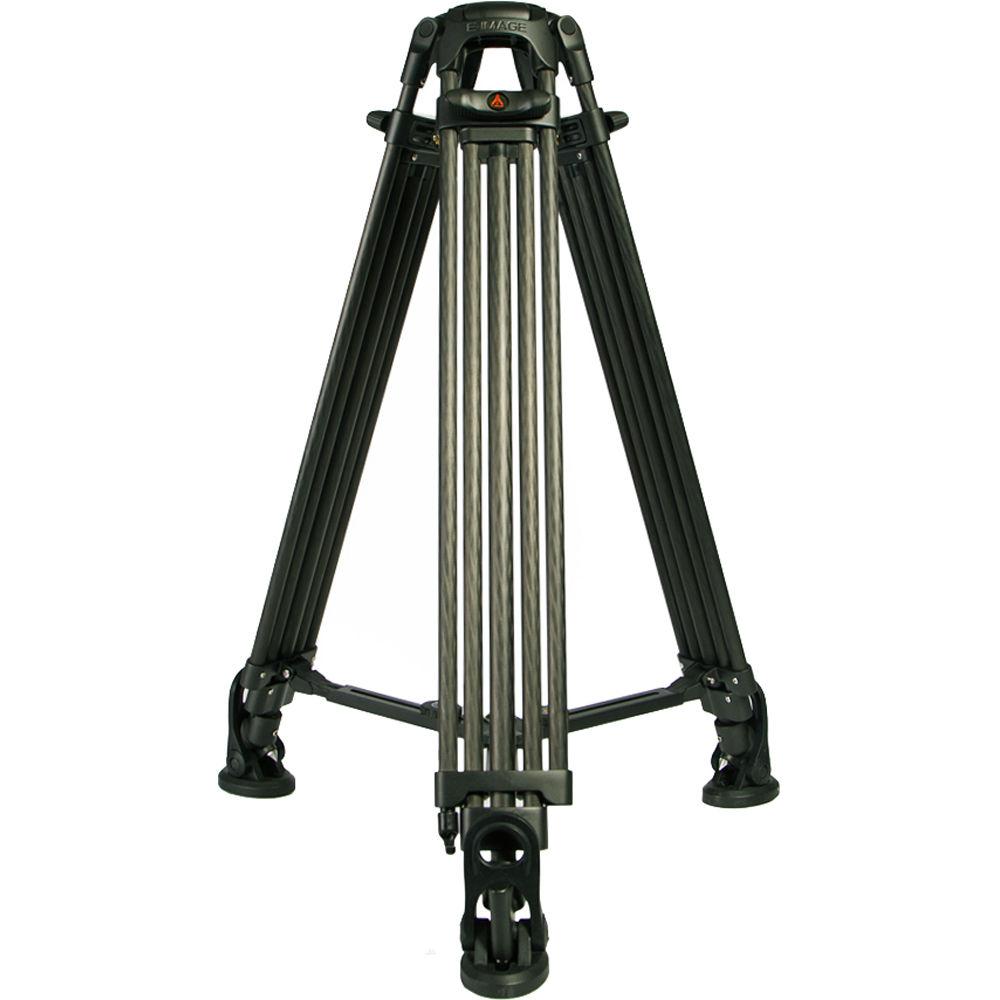

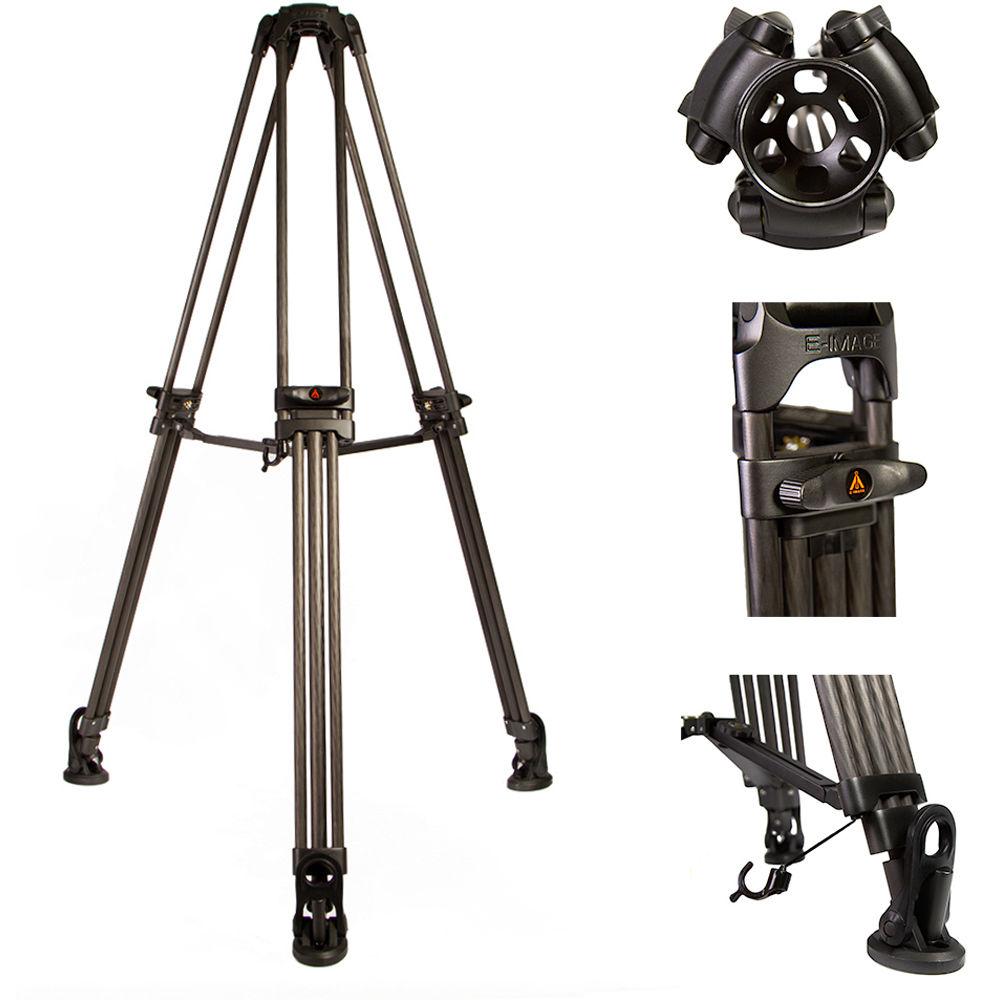

The E-Image GC102 2-Stage Carbon Fiber Tripod with GH15 Head supports cameras and accessories weighing up to 33 pounds. The head and legs feature a 100mm ball/bowl, which provides a wide support platform. The legs are made from carbon fiber so they are lightweight and corrosion resistant, and they feature three leg sections with mono-lock leg locks. The mono-lock design allows you to lock and unlock all the sections of each leg using only one rotating locking lever. The tripod legs support up to 133 lb of load and are adjustable from 32.5 to 68.5". The legs feature spiked feet and come with a ground level and a mid-level spreader, as well as rubber feet to cover the spiked feet.

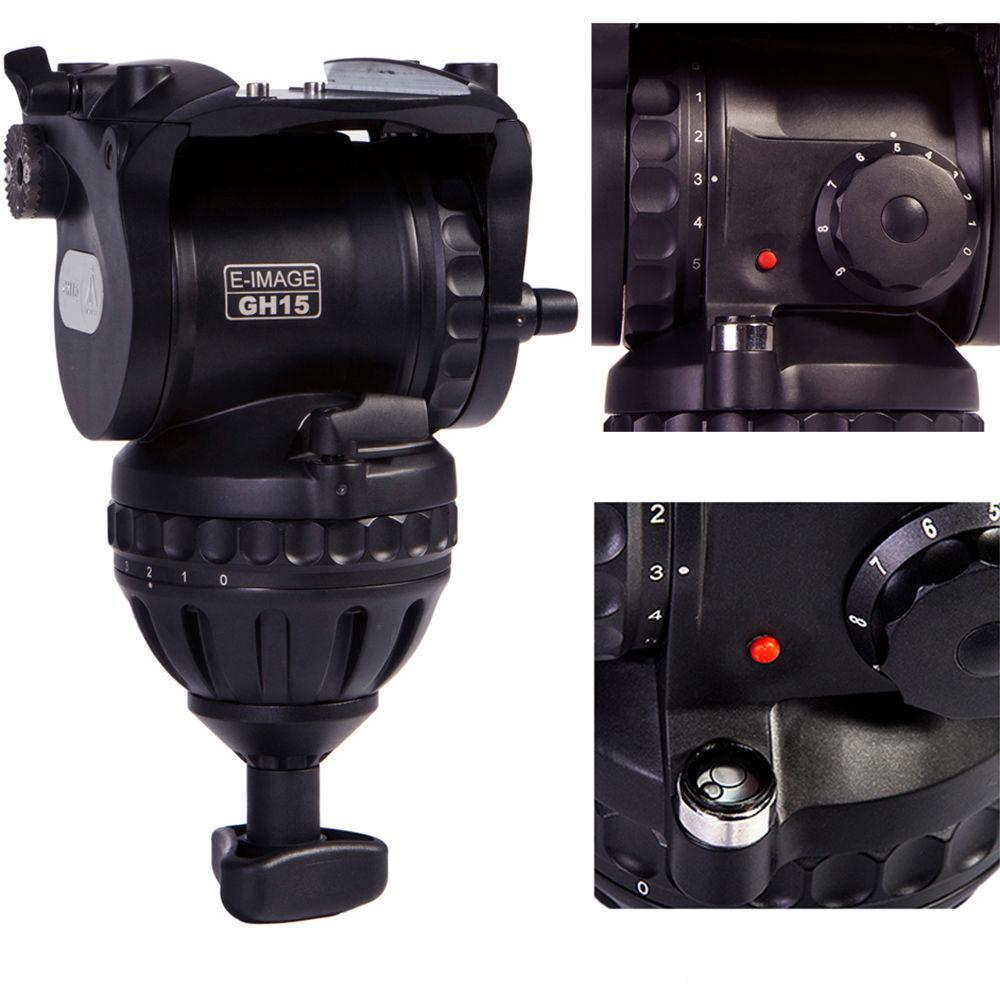

The GH15 head features a sliding balance plate system for attaching the camera to the head. It provides 10 counter balance settings (zero to seven) that help the fluid head support loads up to 33 pounds. With five fluid drag grades plus a zero setting on both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built-in, 1/4"-20 accessory socket for available monitor support arms or other accessory items. It includes a padded carry bag with shoulder strap - Mono-lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing you from having to bend down to open the bottom leg lock to raise the legs fully.
- The legs feature spiked feet that provide solid purchase on soft surfaces when not using the included ground level spreader.
- The ground level spreader attaches to the spiked feet for working on delicate or hard surfaces.
- The included mid-level spreader allows you to work on uneven terrain such as stairs or rocks while preventing the legs from flying apart. When using the mid-level spreader, you can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes.
- The head features a tilt range of - 60 to 90°, which allows you to tilt the camera so it points from almost straight down to straight up.
- The 100mm bowl/base provides a wide platform for balancing and working with cameras and accessories up to 33 pounds.
- The bubble level illuminates at the touch of a button.
UPC: 847983010677 In the Box E-Image GC102 2-Stage Carbon Fiber Tripod with GH15 Head GC102 Carbon Fiber Tripod Legs fewxsrztrrzveveqytebxtuuytce Heavy-Duty Fluid Video Head Mid-Level Spreader Set of 3 Tripod Rubber Feet Tripod Bag 2 x AAA Batteries Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image GC102 2-Stage Carbon Fiber Tripod with GH15 Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image EG15C2 Specs | | | Maximum Height | 68.5" (174 cm) (with head attached) | | Minimum Height | 32.5" (82.5 cm) (with head attached) | | Folded Length | 35.5" (90 cm) (with head attached) | | Leveling Bubble/Illuminated | Yes/yes (requires 2 x AAA batteries, included) | | Weight | 17.9 lb (8.1 kg) | | | | Load Capacity | 33 lb (15 kg) | | Counter Balance System | 10 counter balance settings (0 to 9) | | Quick Release/Wedge Plate | Sliding balance plate | | Tilt Range | -60 to 90° | | Tilt Drag | 5-steps plus 0 | | Tilt Lock | Yes | | Pan Drag | 5-steps plus 0 | | Pan Lock | Yes | | | | Material | Carbon fiber | | Head Attachment Fitting | 100 mm bowl | | Maximum Height | 61.5" (156 cm) | | Minimum Height | 26.5" (67 cm) | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Mono-lock - rotating lever | | Spiked/Retractable Feet | Spiked with F3 rubber foot pads | | | | Package Weight | 26.9 lb | | Box Dimensions (LxWxH) | 39.1 x 9.5 x 9.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
