User Manual for E-Image GH03 Fluid Head with Flat Base Click to enlarge the picture
Contents of the user manual for the E-Image GH03 Fluid Head with Flat
- Product category: Video Tripod Heads E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Video Tripod Heads
 |
User manual for the E-Image GH03 Fluid Head with Flat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|

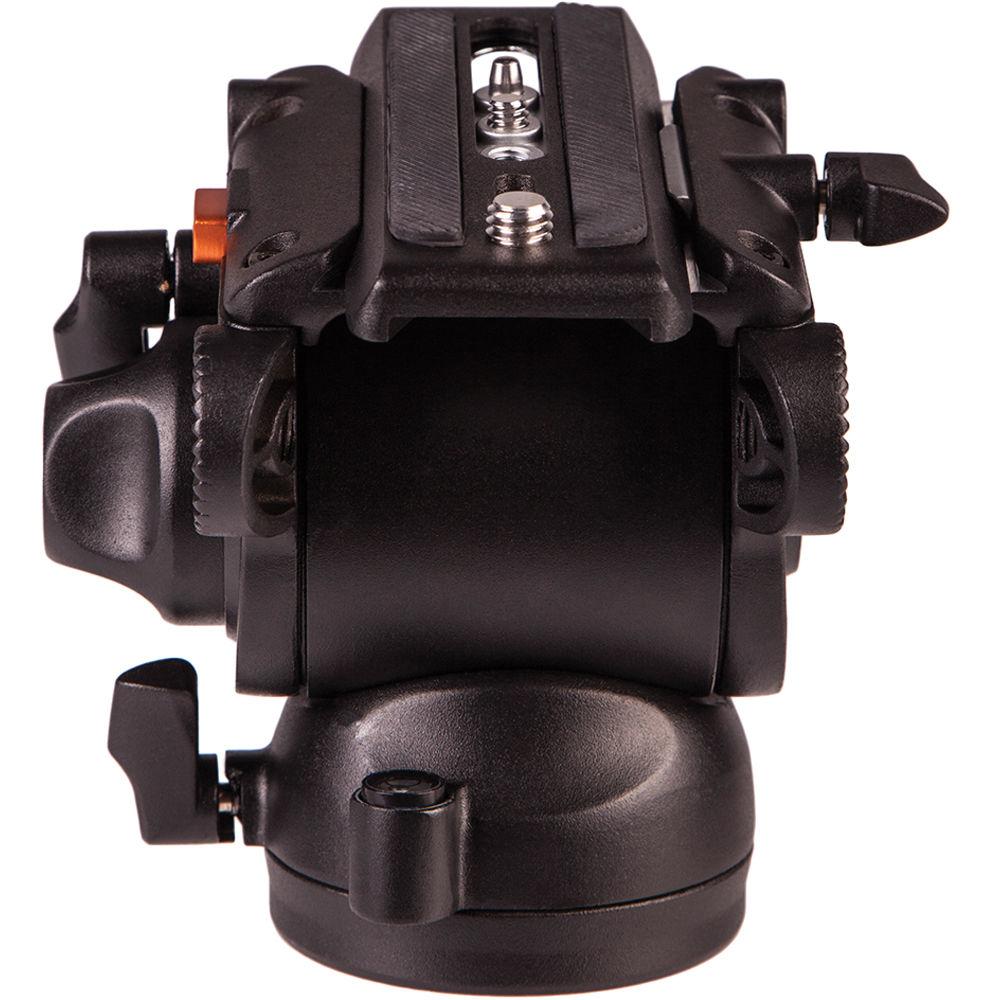

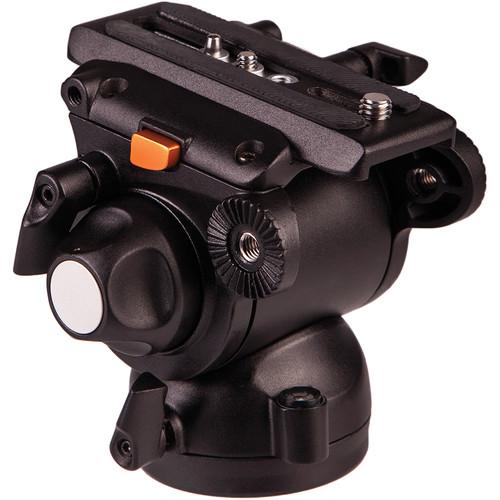

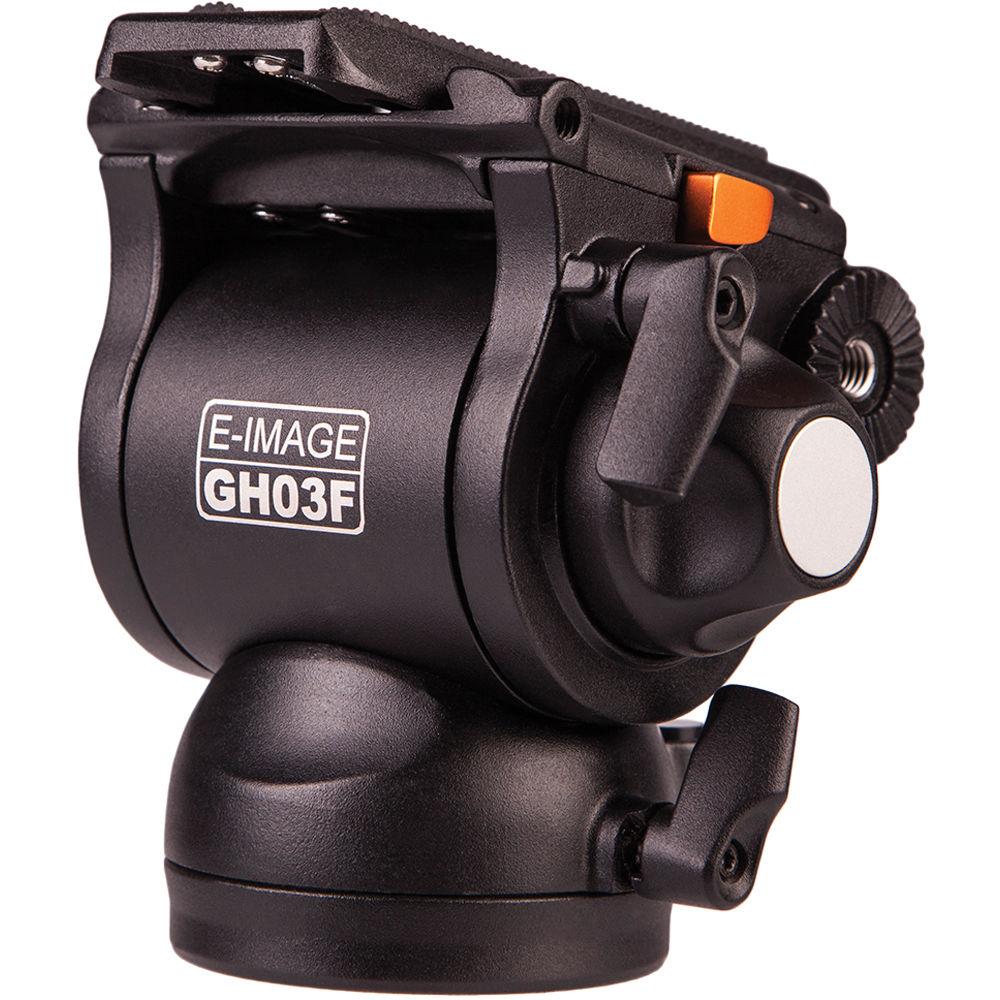

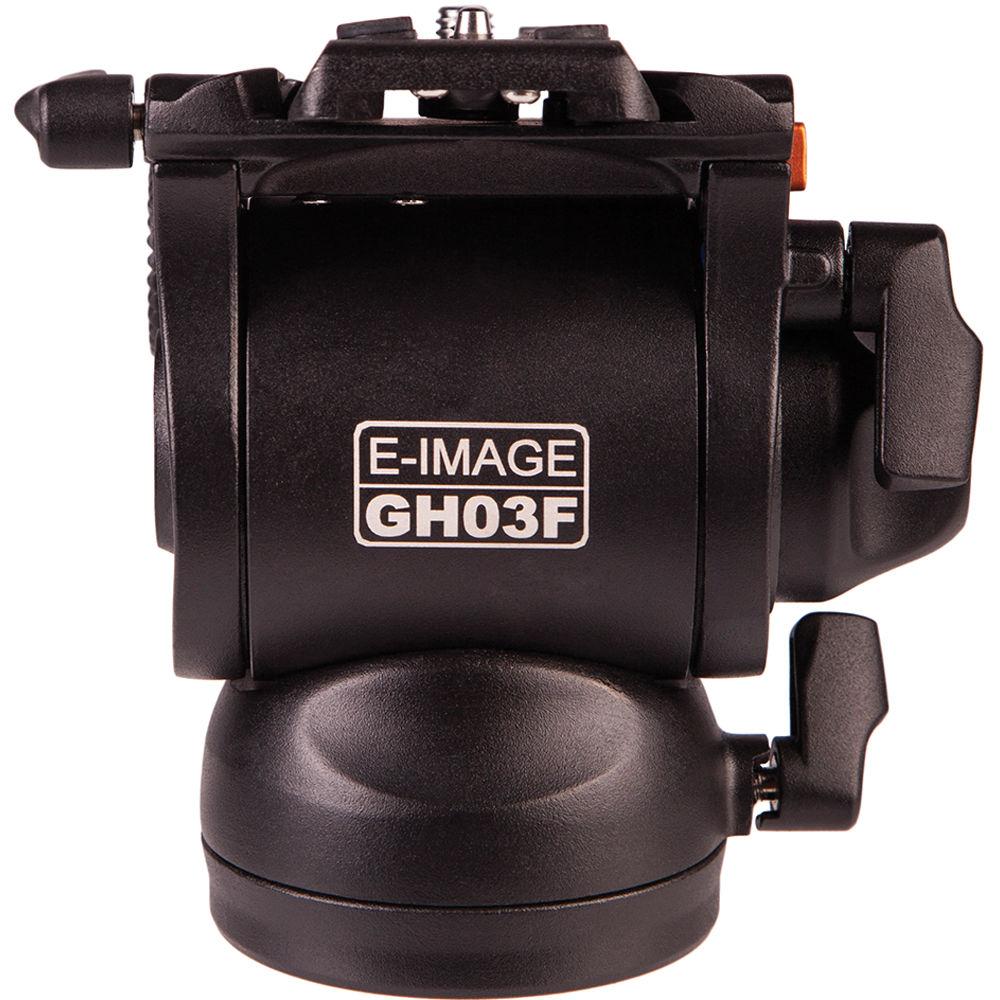

Product description The E-Image GH03 Fluid Head with Flat Base supports cameras and accessories weighing up to 11 pounds. The GH03 head features an Easy Lock Baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. It provides a fixed counterbalance setting that helps the fluid head support loads up to 11 pounds and won't force you to fight the head when working with lightweight camera systems.

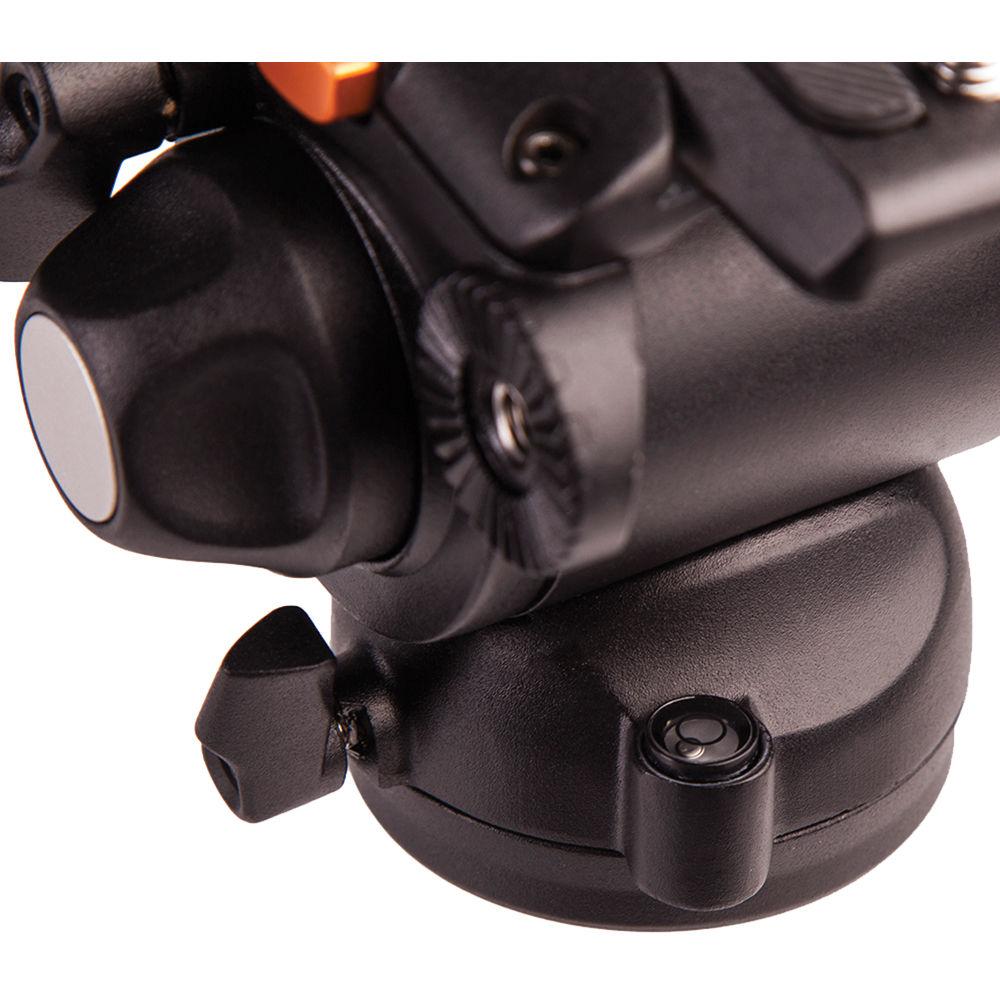

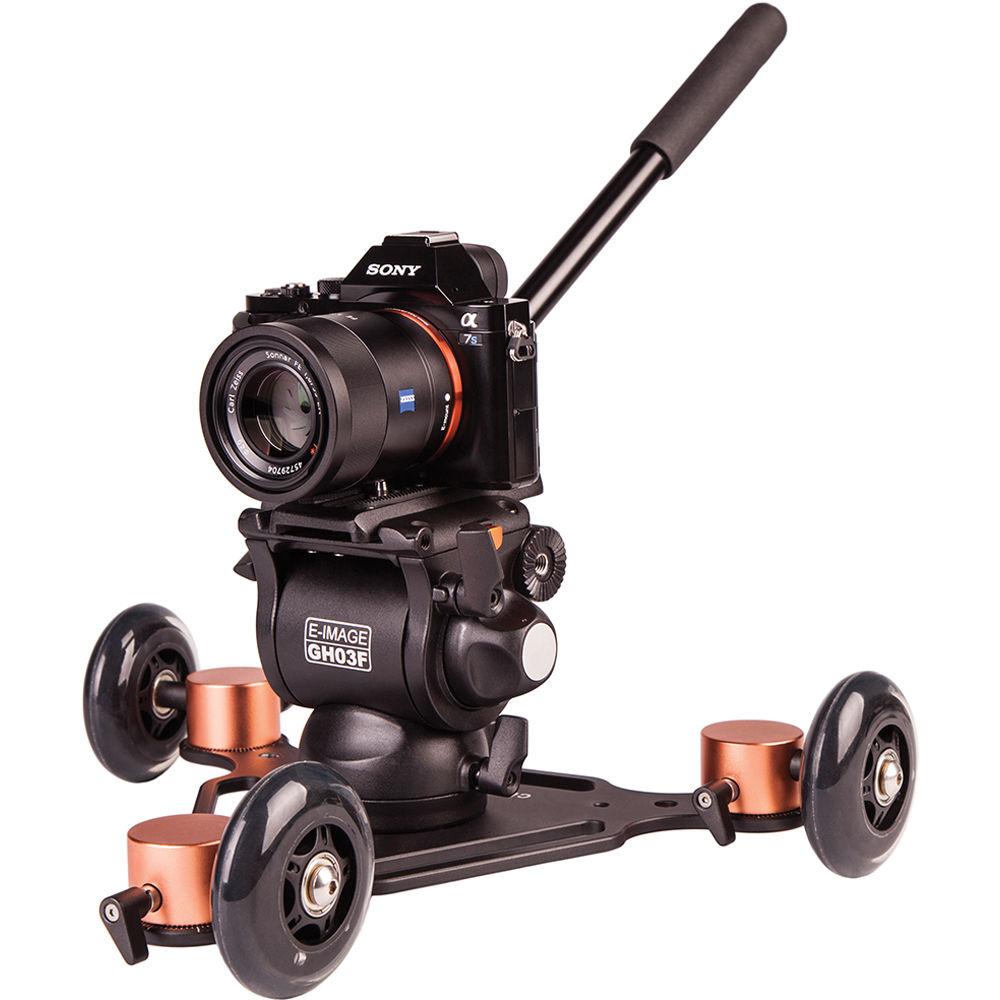

The variable tilt drag allows you to adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items and independent pan and tilt locks. The head incorporates a bubble level, panhandle rosettes on the left and right side of the head (one panhandle is included), and a 1/4"-20 threaded accessory socket for use with optional accessories. - The fluid head features a flat base with a 3/8"-16 threaded mounting hole. This allows you to mount it in tripod legs with a 3/8"-16 threaded mounting screw, or 1/4"-20 screw with optional adapter. You can also mount optional jib arms or camera sliders that support flat base heads.
- You can mount this head to optional half-ball system to gain ball-leveling capabilities, and then quickly switch back to the flat base for situations requiring that mount.
- The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate but combines the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
- The Easy Lock camera plate features a guided sled with a retractable locating pin and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
UPC: 847983012091 In the Box E-Image GH03 Fluid Head with Flat Base Pan Handle for GH03 Fluid Head GP1 Quick Release Plate Tie-Down Knuckle Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image GH03 Fluid Head with Flat Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image GH03 Specs | | | Camera Plate Features | Sliding Balance Plate | | Camera Plate Type | Easy Lock | | | | Base Mount | 3/8"-16 Thread | | | | Drag Control | Pan: Fixed | | Vertical Tilt | +90
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
