User Manual for E-Image GH10L 100mm Pro Fluid Video Head Click to enlarge the picture
Contents of the user manual for the E-Image GH10L 100mm Pro Fluid Video
- Product category: Video Tripod Heads E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Video Tripod Heads
 |
User manual for the E-Image GH10L 100mm Pro Fluid Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|

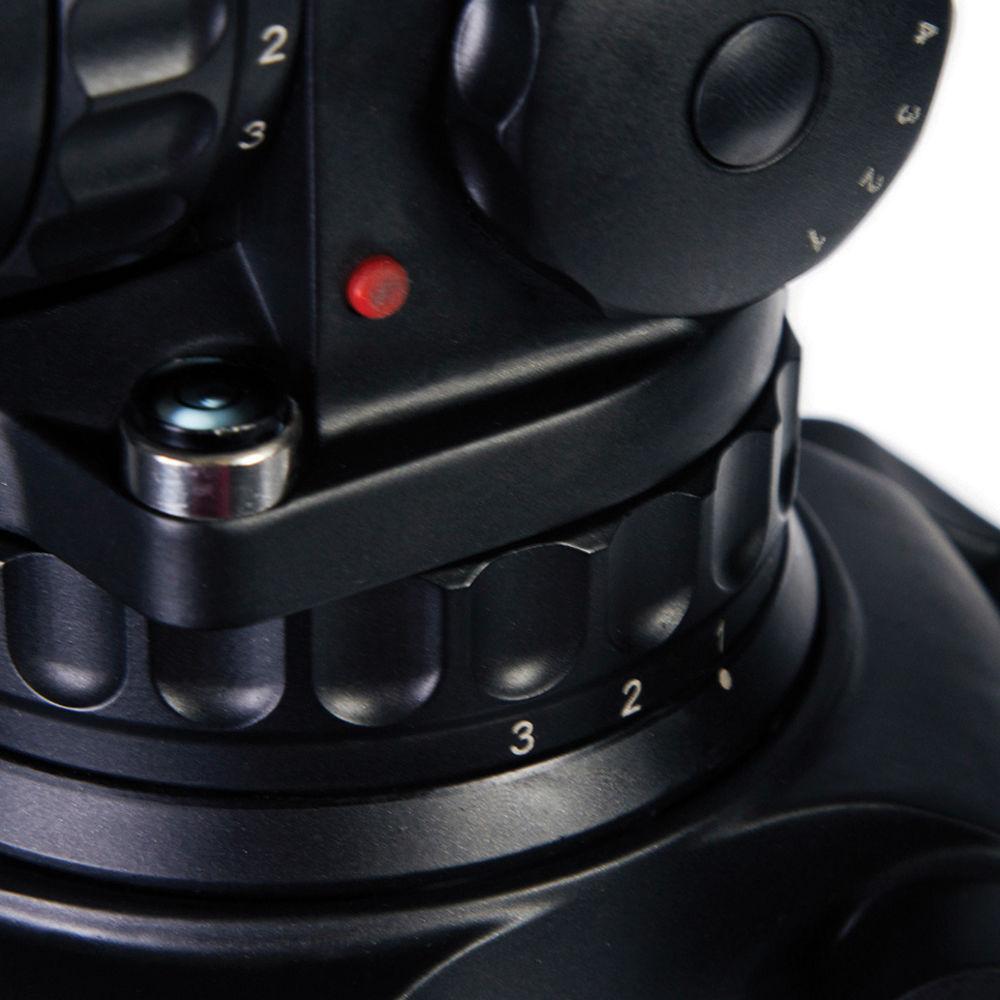

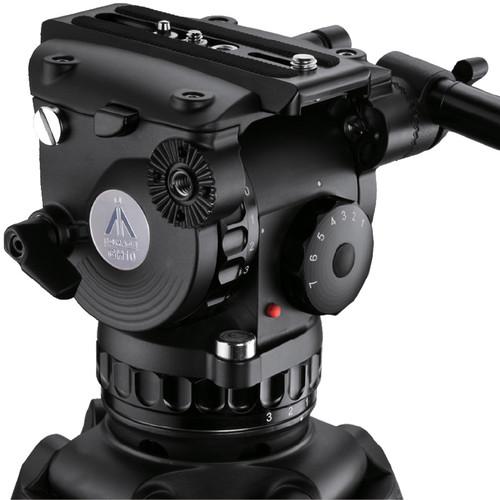

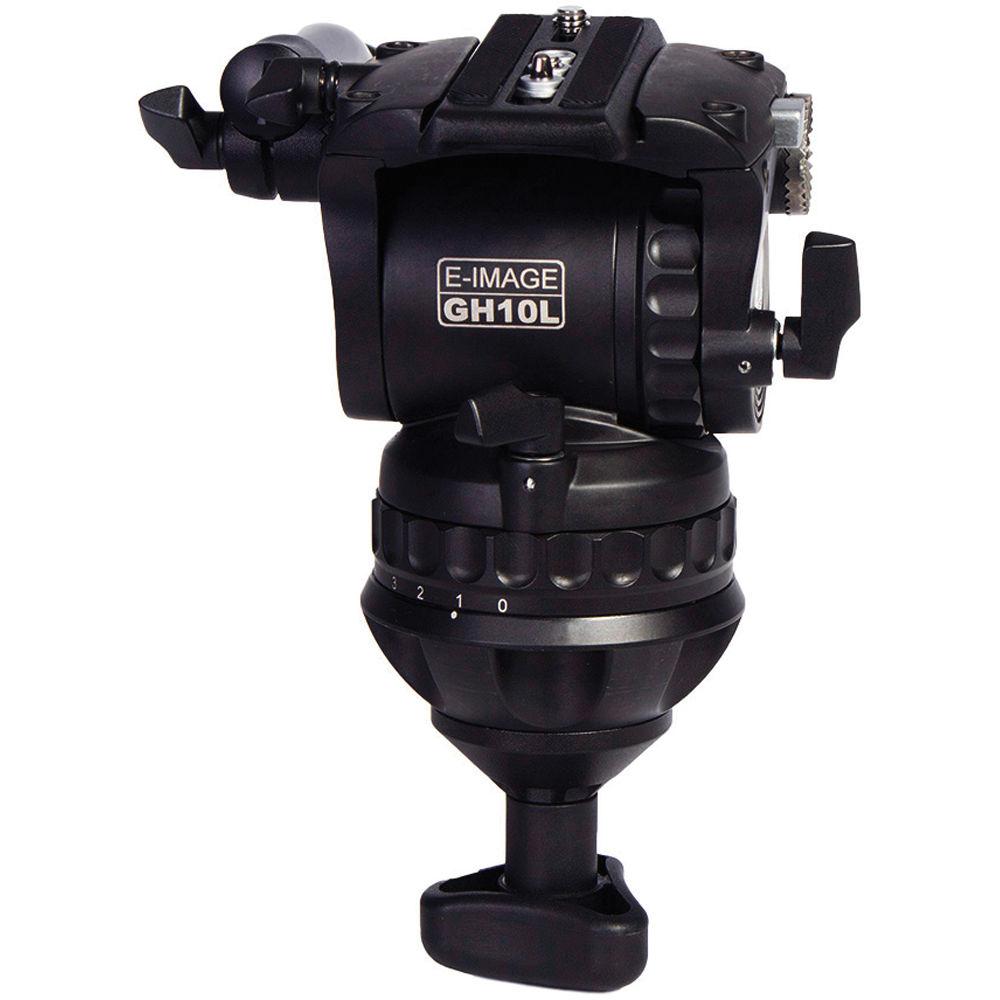

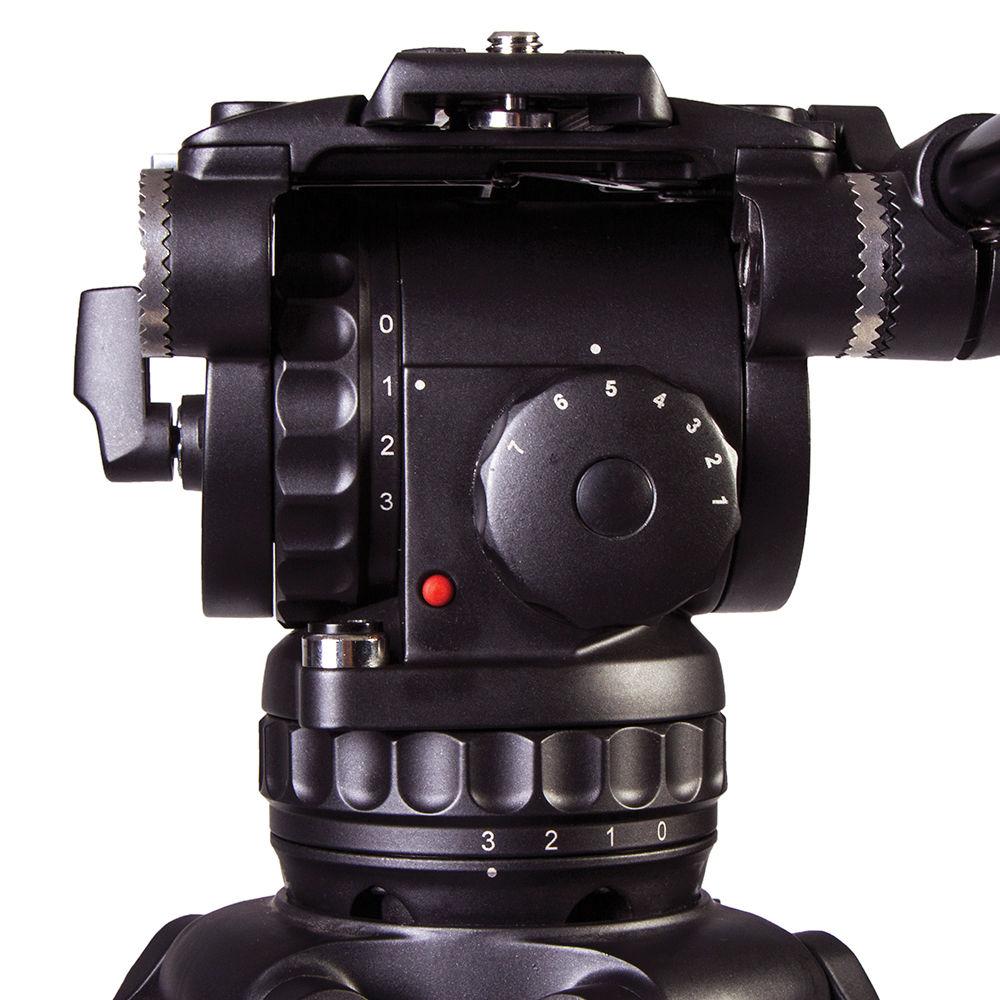

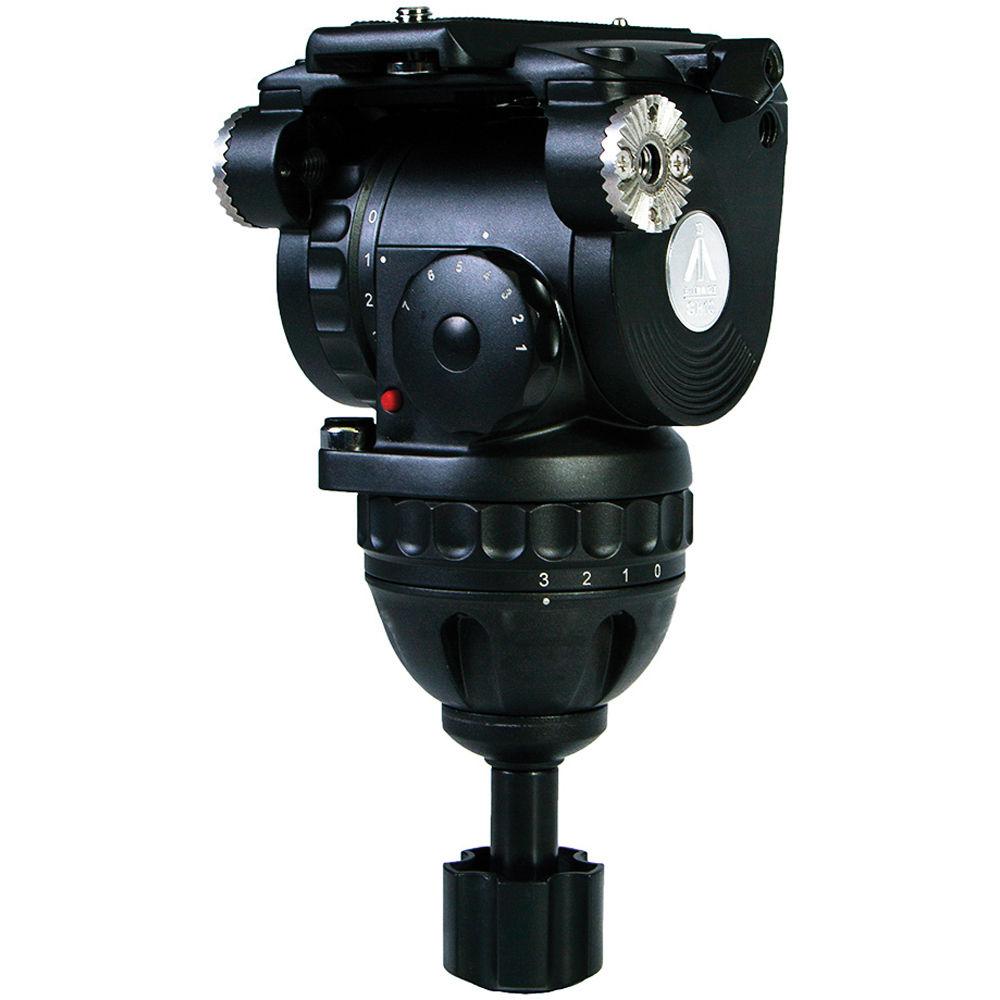

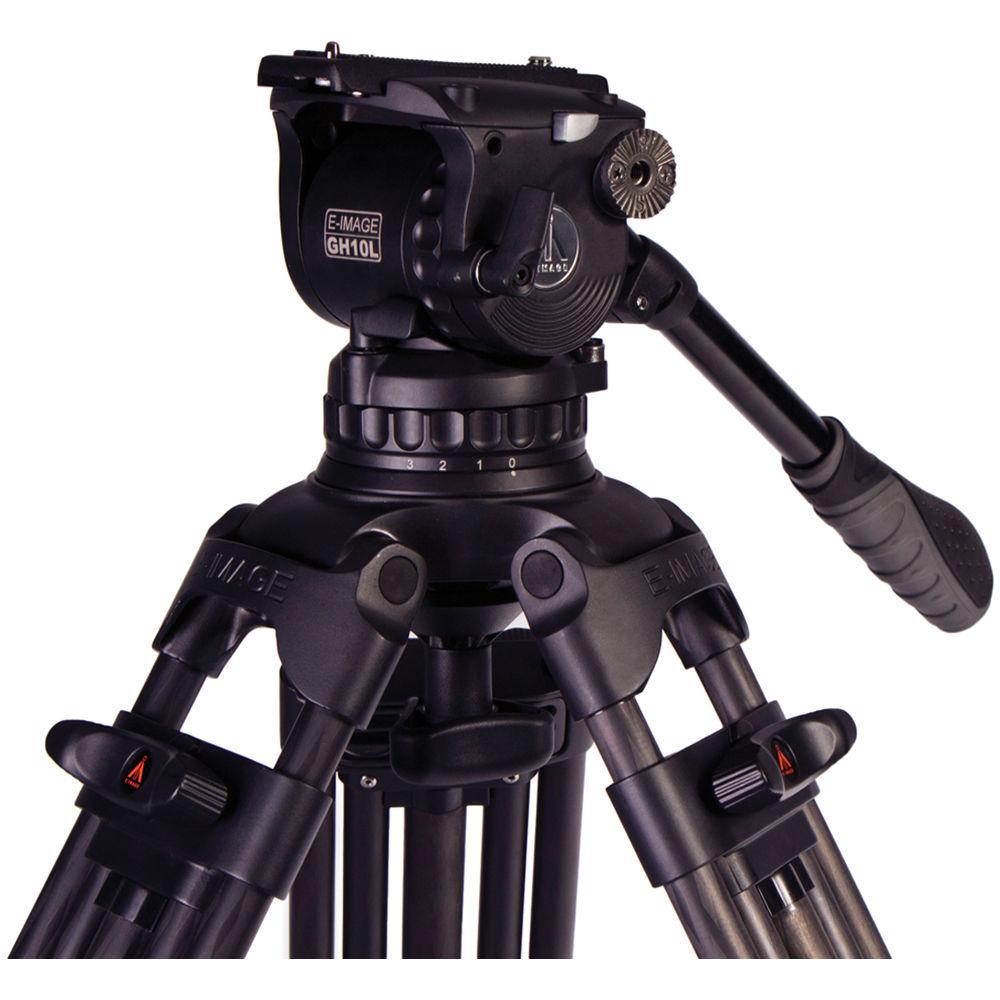

Product description The GH10L Fluid Head from E-Image offers 1-7 steps of counterbalance and 0-3 grades of pan and tilt drag, allowing the flexibility to fine-tune different payload configurations up to 22 lb. It includes a sliding camera plate and telescoping pan arm that can be mounted on rosette adapters on either the left or right side.
The pan range is a full 360°, tilt range is -60° to 90°, and separate thumb locks are available for pan and tilt. An illuminated bubble level will help you set up your shots, and a 1/4"-20 mounting thread is available for attaching an articulating arm with a monitor or other device. - Key Features
-
- 1-7 steps of counterbalance
- 0-3 grades of pan and tilt drag
- 22 lb payload
- Sliding camera plate and telescoping pan arm included
- Two pan arms supported via rosette adapters
- 360° pan range
- -60° to 90° tilt range
- Separate pan and tilt thumb locks
- Illuminated bubble
- 1/4"-20 mounting thread for accessories
UPC: 847983010790 In the Box E-Image GH10L 100mm Pro Fluid Video Head GP1 Quick Release Plate rtvdfcrqrxzyztuxuebwy Handle for GH06, GH08, GH10 Fluid Heads Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image GH10L 100mm Pro Fluid Video Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image GH10 Specs | | | Camera Plate Features | Sliding Balance Plate | | Safety Lock | Yes | | | | Base Mount | 100 mm Half Ball | | | | Drag Control | Pan: 3-Step Plus 0
Tilt: 3-Step Plus 0 | | Vertical Tilt | +90
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
