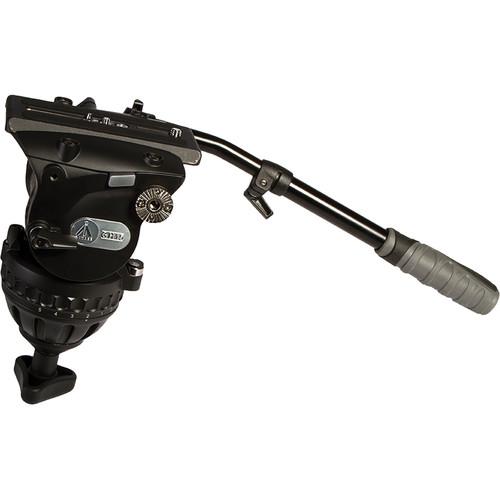

User Manual for E-Image Heavy-Duty Fluid Video Head Click to enlarge the picture
Contents of the user manual for the E-Image Heavy-Duty Fluid Video Head
- Product category: Video Tripod Heads E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Video Tripod Heads
|
User manual for the E-Image Heavy-Duty Fluid Video Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|
Product description The E-Image Heavy Duty Fluid Video Head from ikan supports cameras and accessories up to 55 pounds, while incorporating a 100mm half ball for quick leveling adjustments. The head features 10 steps of counterbalance, allowing you to adjust the head for operation with lighter cameras. Pan and Tilt drag are individually adjustable and feature levels of 1 to 5, as well as a 0 setting for no drag.
The camera platform accepts a sliding balance plate so you can balance the camera on the head and features a lock and safety release. The head is equipped with two panhandle rosettes, one on each side. It comes with one panhandle, and the head is also equipped with a 1/4"-20 threaded accessory socket for attaching accessories such as support arms. An illuminated bubble level is built into the head so that you can check that your shot is level. - Five grades of pan and tilt drag, plus a zero setting, allows you to adjust the head to match the needs of the shot and your operating style. The zero setting removes the drag entirely, allowing the head to move freely.
- Ten steps of counterbalance, 0 through 9, allows you to fine-tune the head to match the weight of your camera.
- 100mm half ball tripod fitting provides a wide support platform, making it suitable for use with cameras up to thirty-three pounds. The ball leveling system allows you to level the head independently of the tripod that you choose to mount the head to.
- It includes a removable panhandle that you can attach to either side of the head. A plastic insert rides between the rosettes on the panhandle and the head, protecting the metal rosettes from contact damage. The rosettes on the head are removable, so if they become damaged they can be replaced.
- The illuminated bubble level is activated by pressing a small red button on the head, so you can level the head in dim lighting conditions.
UPC: 847983010455 In the Box E-Image Heavy-Duty Fluid Video Head Handle for GH15/25 Heavy Duty Fluid Video Heads GP2 Camera Plate for GH15 / 25 Fluid Video Heads Tie-Down Knuckle Plastic Rosette Insert Limited 1-Year Warranty User Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image Heavy-Duty Fluid Video Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image GH15 Specs | | | Camera Plate Features | Sliding Balance Plate | | Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin
1 x 3/8"-16 Male with Locating Pin | | | | Base Mount | 100 mm Half Ball | | | | Drag Control | Tilt: 5-Step Plus 0
Pan: 5-Step Plus 0 | | Vertical Tilt | +90
