User Manual for E-Image SM-202 Heavy-Duty Mount with Wide Plate Click to enlarge the picture
Contents of the user manual for the E-Image SM-202 Heavy-Duty Mount with Wide
- Product category: Shoe Mount Adapters E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Shoe Mount Adapters
 |
User manual for the E-Image SM-202 Heavy-Duty Mount with Wide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|

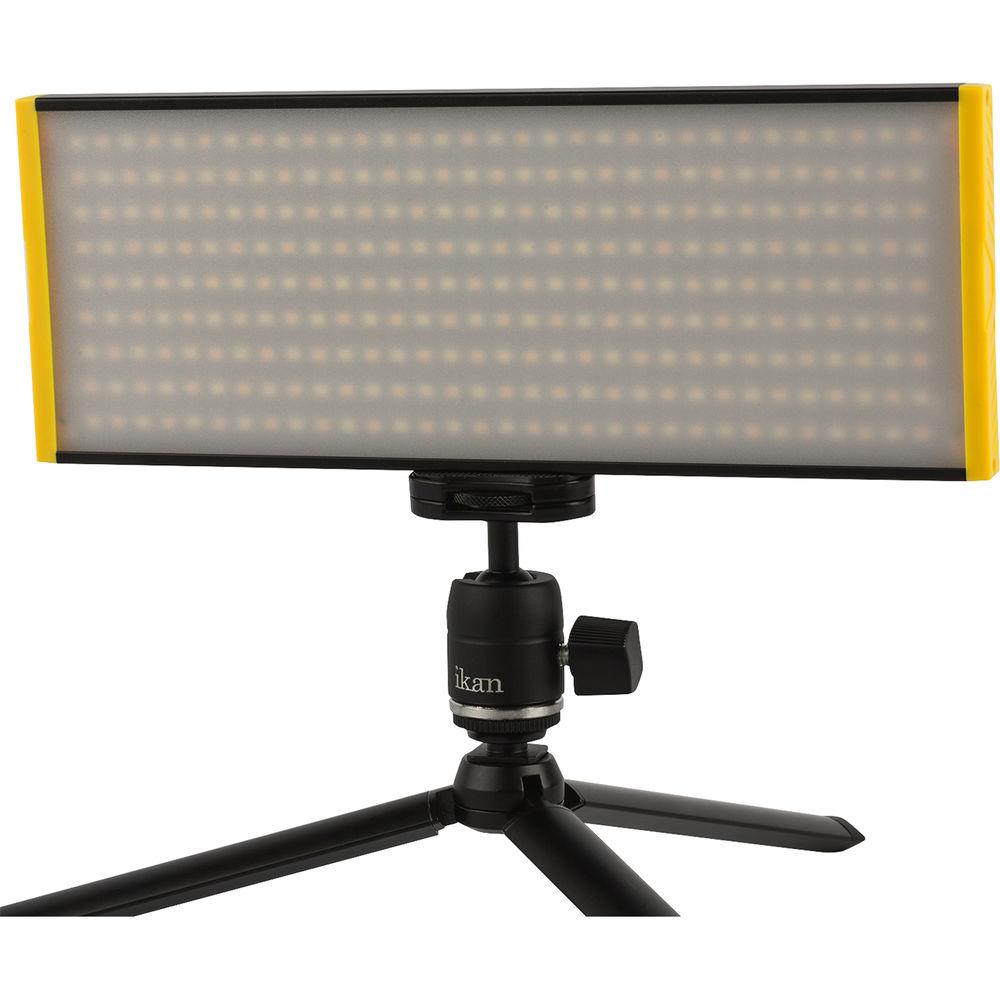

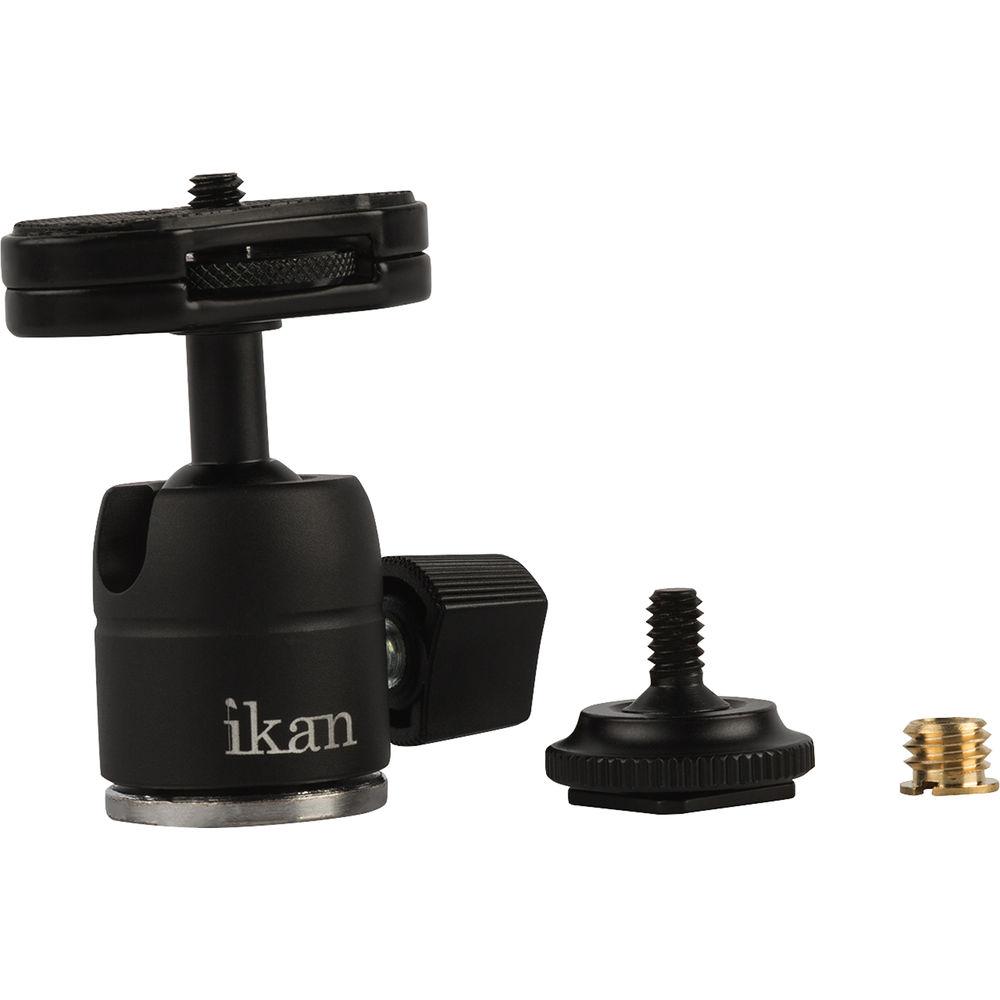

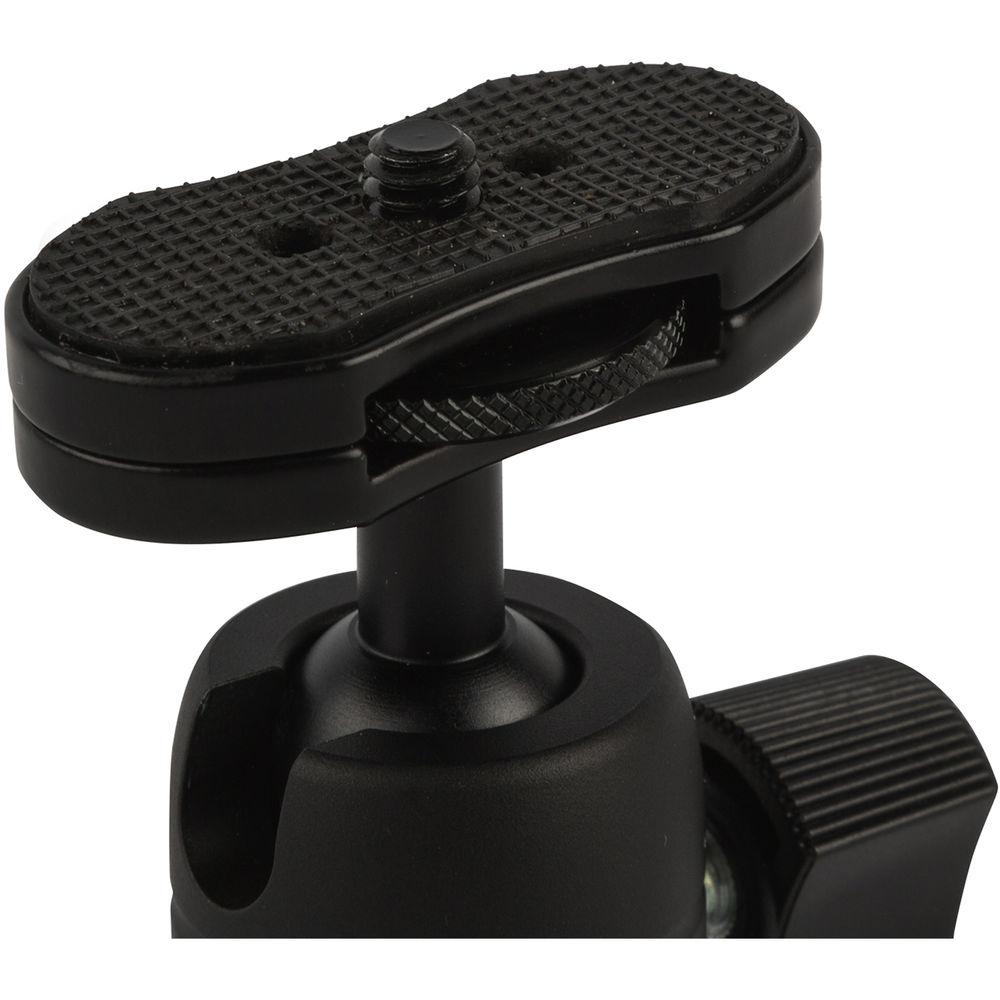

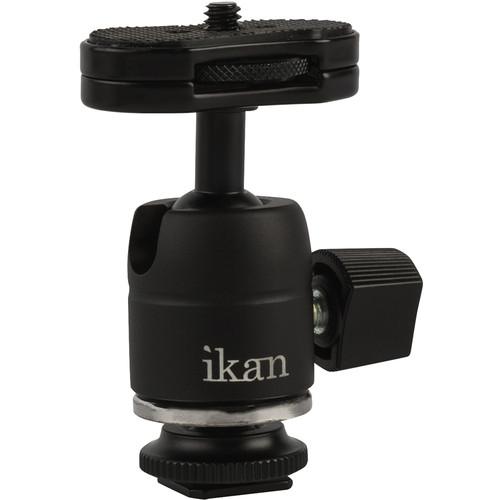

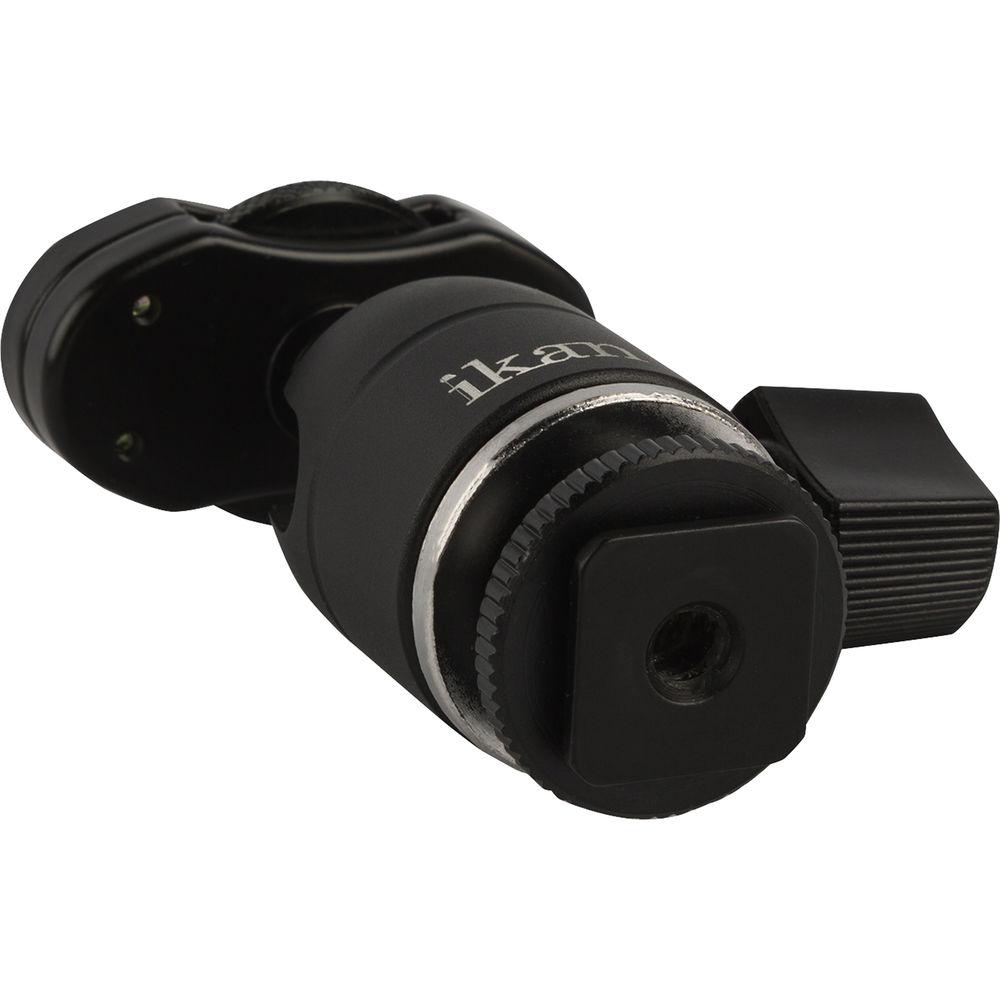

Product description The Heavy-Duty Mount with Wide Plate from ikan is designed for simple operation and versatility in attachment. It is equipped with a 1/4"-20 screw at the top compatible with several types of photography gear. The bottom features a cold shoe mount, which has a 1/4"-20 recess, and can be unscrewed to reveal a 3/8"-16 thread for a wide variety of attachment options. There is also a 3/8"-16 to 1/4"-20 step down where the shoe mount attaches, for even more versatility. The product comes with a wide mounting surface at the top, which has an anti-slip pattern to help keep your gear safe. A large thumb wheel can be found directly below it, enabling you to fasten your equipment without having to dangerously spin it around. A height of 2.9" helps keep this product compact and easy to use, while a load capacity of 4.5 lb allows for several kinds of products to be used. UPC: 847983022564 In the Box E-Image SM-202 Heavy-Duty Mount with Wide Plate 3/8-16" to 1/4-20" Adapter Shoe Mount Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image SM-202 Heavy-Duty Mount with Wide Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersE-Image SM-202 Specs | Mounting | Top: 1/4"-20
Bottom: Shoe, 1/4"-20, and 3/8"-16 | | Load Capacity | Horizontally: 4.5 lb (2 kg) Vertically: 7 lb (3.2 kg) | | Height | 2.9" (7.3 cm) | | Weight | 4.8 oz (136 g) | | | | Package Weight | 0.33 lb | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 2.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
