Product description

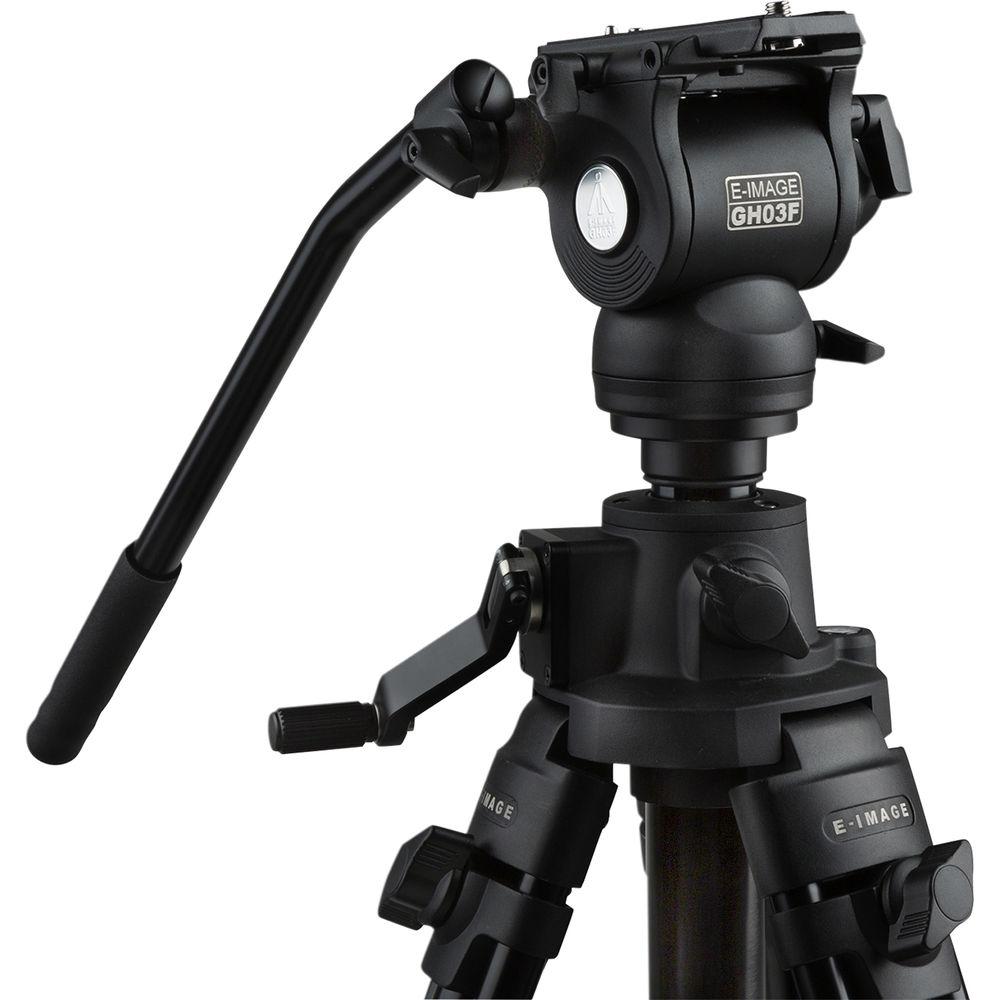

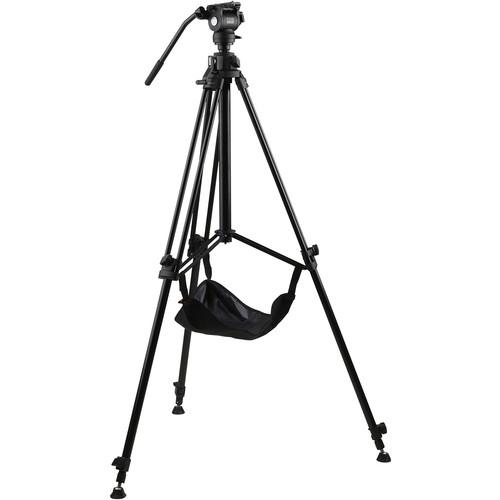

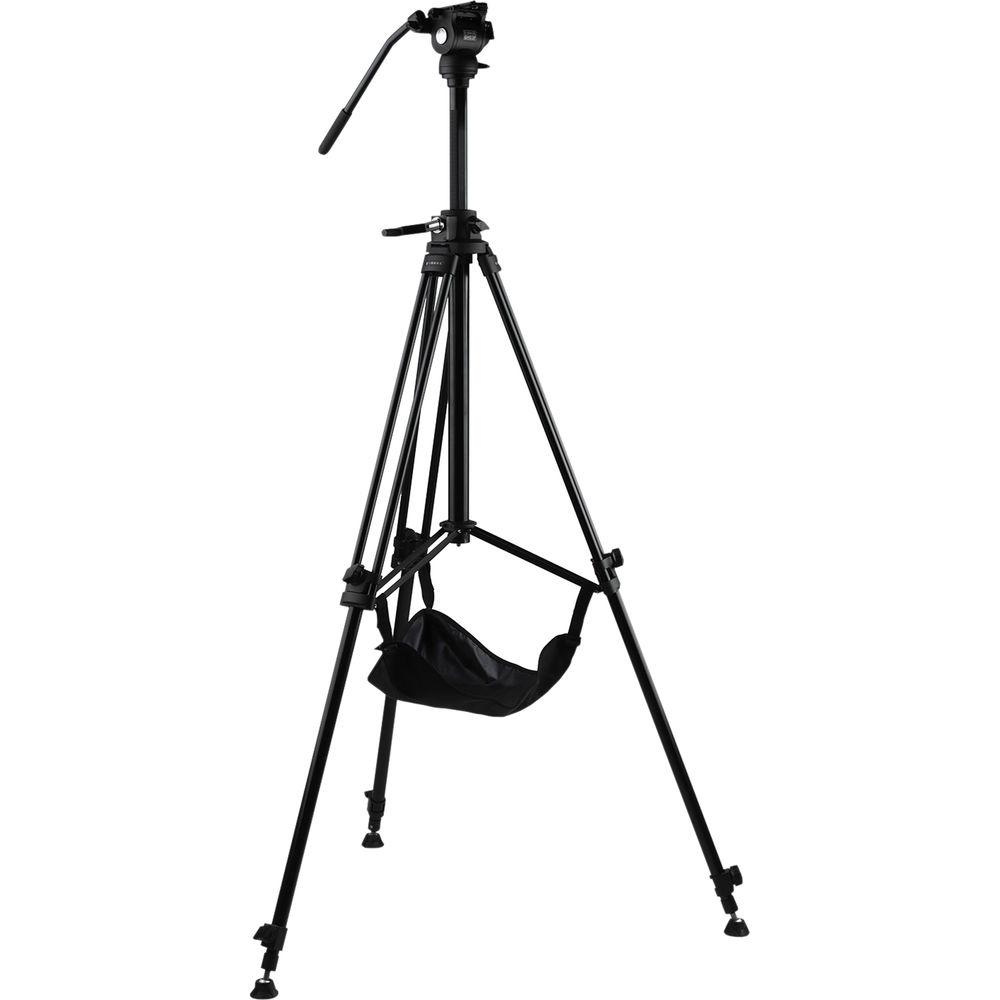

• Studio Tripod with Geared Center Column Shoot steady with the aluminum Studio Tripod from E-Images, supporting camera systems up to 35.3 lb. Featuring a geared center column with a crank lever, this tripod lets you get your camera to a height of up to 90.6", which is particularly useful when filming sports or events. The telescoping three-section leg design gives the tripod stability while allowing it to fold down to 35" for easy travelling.

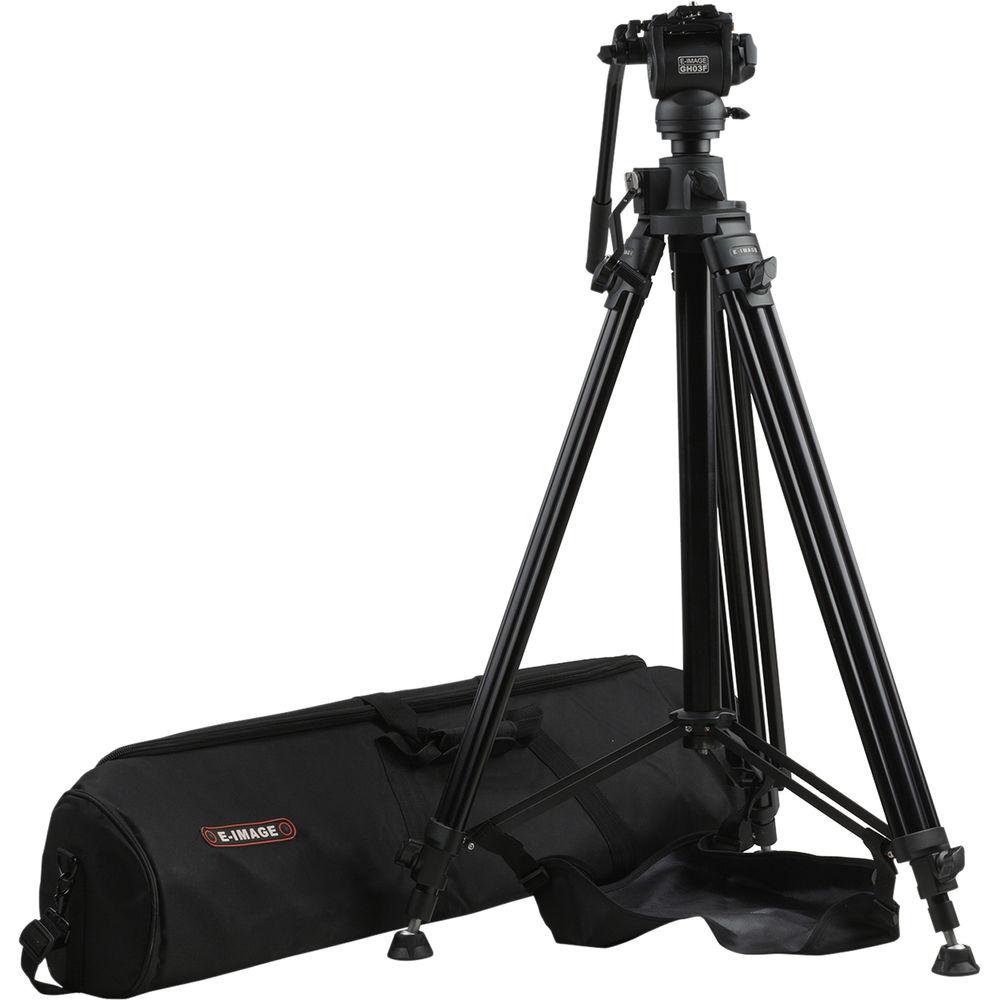

  The tripod has rubber feet with retractable spikes that help ensure a firm stance when setting up your gear on uneven ground. A bubble level is built into the tripod. A mid-level spreader and a padded carrying case are included.
  • Geared center column
  • Rubber feet with retractable spikes
  • Designed for use with flat-base video heads
  • Mounting threads for accessories such as monitors and LED lights
  • Compatible with EI-7004C tripod dolly
  UPC: 847983022601

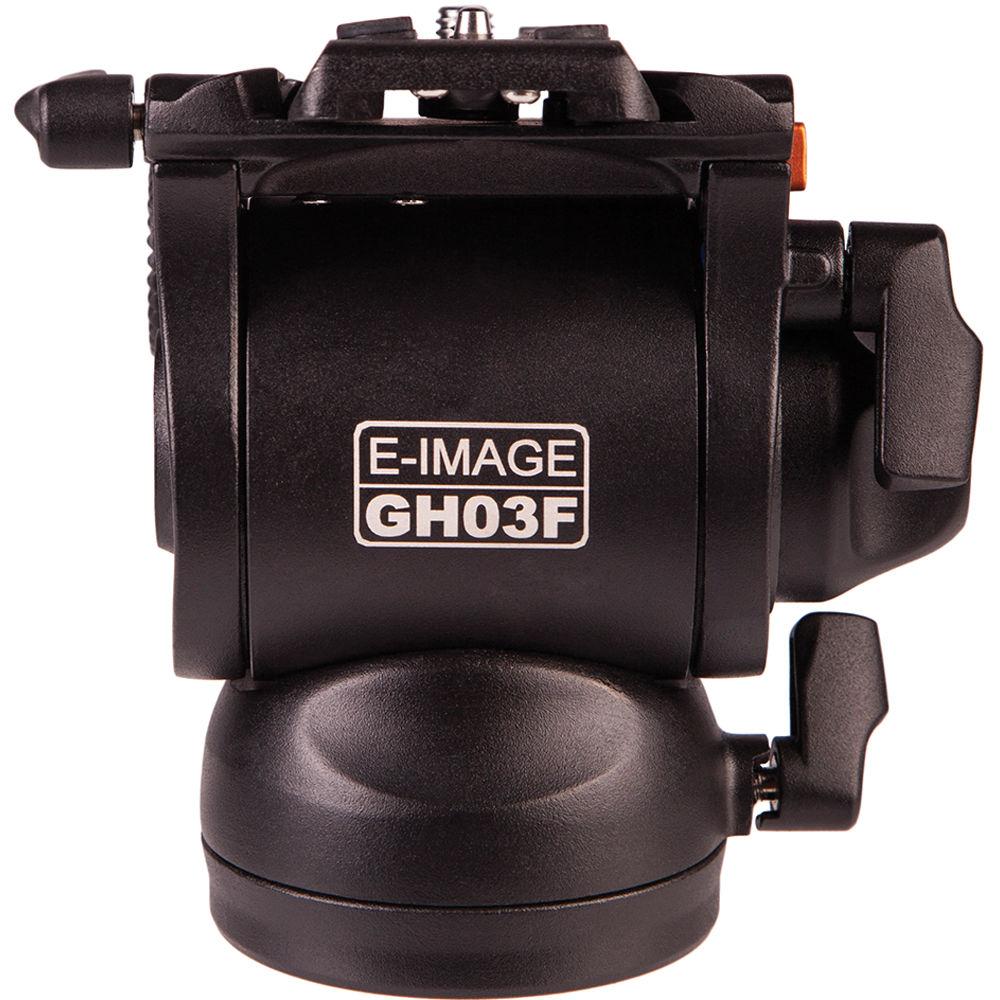

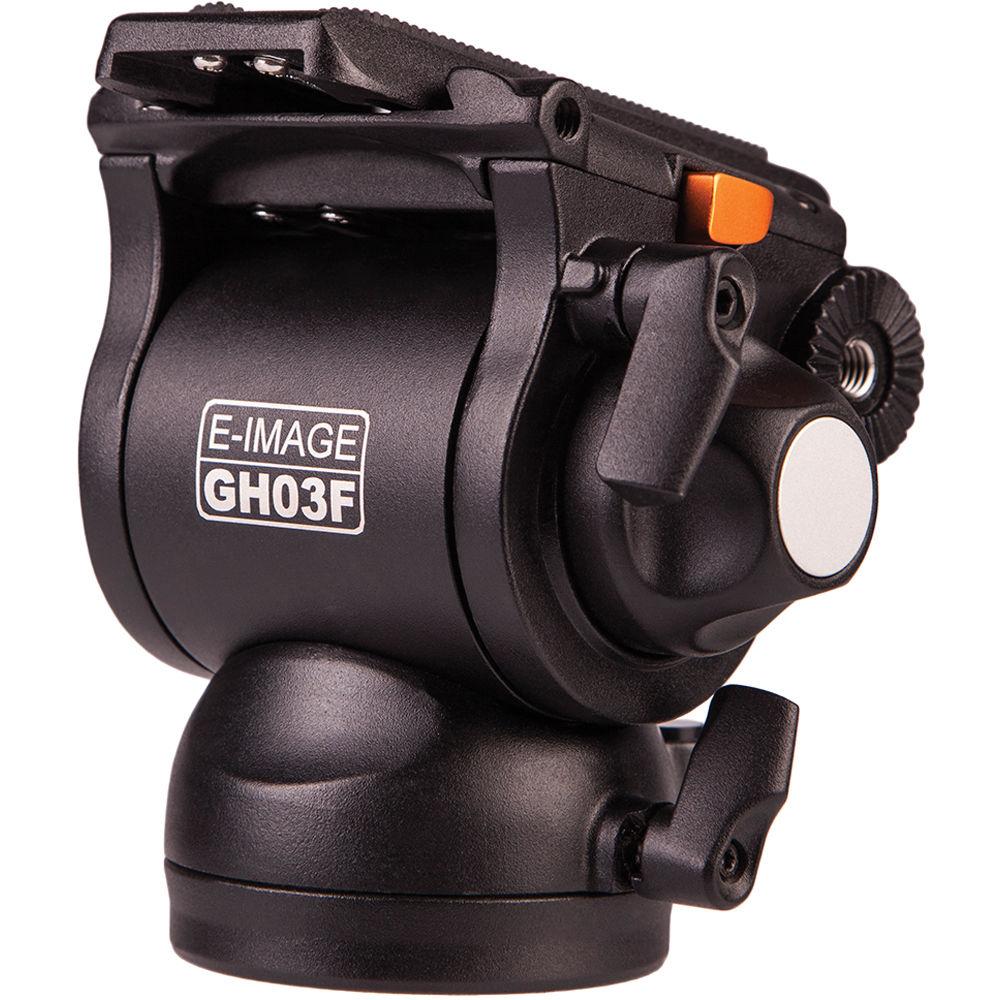

• GH03 Fluid Head with Flat Base The E-Image GH03 Fluid Head with Flat Base supports cameras and accessories weighing up to 11 pounds. The GH03 head features an Easy Lock Baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. It provides a fixed counterbalance setting that helps the fluid head support loads up to 11 pounds and won't force you to fight the head when working with lightweight camera systems.

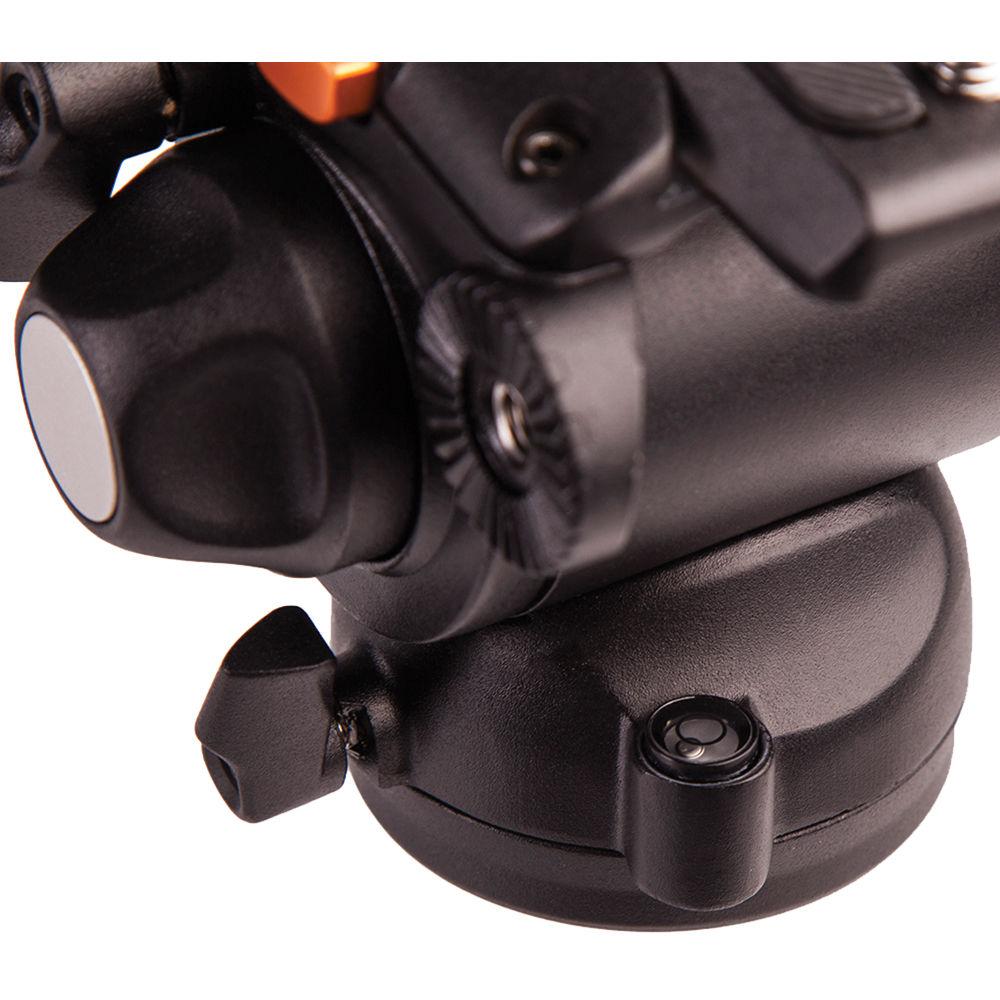

  The variable tilt drag allows you to adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items and independent pan and tilt locks. The head incorporates a bubble level, panhandle rosettes on the left and right side of the head (one panhandle is included), and a 1/4"-20 threaded accessory socket for use with optional accessories.
  • The fluid head features a flat base with a 3/8"-16 threaded mounting hole. This allows you to mount it in tripod legs with a 3/8"-16 threaded mounting screw, or 1/4"-20 screw with optional adapter. You can also mount optional jib arms or camera sliders that support flat base heads.
  • You can mount this head to optional half-ball system to gain ball-leveling capabilities, and then quickly switch back to the flat base for situations requiring that mount.
  • The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate but combines the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.

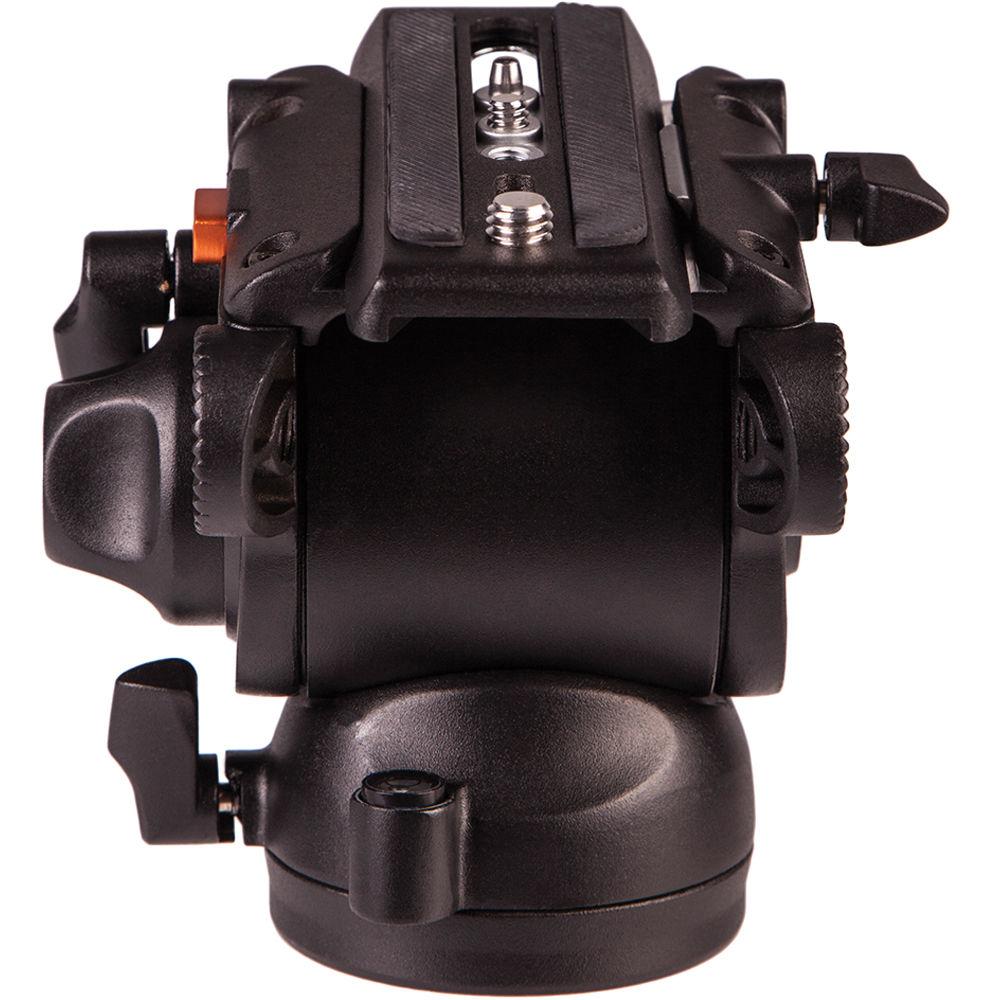

  • The Easy Lock camera plate features a guided sled with a retractable locating pin and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
  UPC: 847983012091

• Mid-Level Spreader

• Padded Carry Case

• Limited 1-Year Warranty

• Pan Handle for GH03 Fluid Head

• GP1 Quick Release Plate

• Tie-Down Knuckle

• Limited 1-Year Warranty

Also Includes

• SC-3 Bag
• Stone Bag
• Shoulder Strap

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Studio Tripod with Geared Center Column

  Head Mount Type	3/8"-16 Male
  Load Capacity	35.3 lb / 16 kg
  Maximum Working Height	90.6" / 230 cm
  Max Height without Center Column	73.7" / 146 cm
  Minimum Working Height	33.1" / 84 cm
  Folded Length	35" / 89 cm
  Materials	Aluminum
  Weight	10.6 lb / 4.8 kg

  Leg Sections	3

  Box Dimensions (LxWxH)	39.2 x 9.5 x 9.4"

• GH03 Fluid Head with Flat Base

  Camera Plate Features	Sliding Balance Plate
  Camera Plate Type	Easy Lock

  Base Mount	3/8"-16 Thread

  Drag Control	Pan: Fixed
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 57 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
