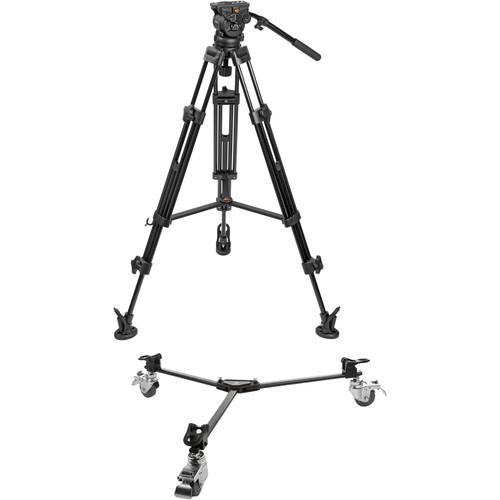

User Manual for E-Image Two-Stage Aluminum Tripod with EH60 Head & Tripod Dolly Kit Click to enlarge the picture
Contents of the user manual for the E-Image Two-Stage Aluminum Tripod with EH60
- Product category: Tripod Systems E-Image
- Brand: E-Image
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for E-Image Tripod Systems
|
User manual for the E-Image Two-Stage Aluminum Tripod with EH60 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any E-Image product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official E-Image user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a E-Image product will considerably shorten its lifespan!
|
Product description Recommended Video Tripods Read More zrddvwqsvutcsuzwuayvryraqux Packaging the E-Image Two-Stage Aluminum Tripod and EH60 Head with a Lightweight Tripod Dolly, this B&H Kit provides the tripod legs, a fluid head, pan handle, padded soft carry case, and the dolly. The tripod legs feature a twin-tube leg design with rotary clamp leg locks, and have a built-in mid-level spreader. They're height-adjustable from 31 to 63".
The fluid head supports up to 17.5 lb and offers fixed pan/tilt drag and a three-step (0-2) fixed counterbalance. Pan and tilt locks are separate. The tripod dolly has an individual brake for each wheel and is collapsible for easier transport and storage. - E-Image EK60AAM Fluid Drag Video Head and Tripod The E-Image EK60AAM Fluid Drag Video Head and Tripod is a video head and dual stage tripod leg system designed for video cameras and rigs weighing up to 17.6 pounds. The system consists of the EH60 fluid drag head, the AT7402A aluminum tripod legs with fixed mid-level spreader, one HD7060 adjustable pan handle, and a soft bag for carrying the system. The head has fixed pan and tilt fluid drag for smooth camera moves, and a spring-loaded counterbalance system adjustable in three steps
The included sliding balance plate attaches to your camera with either of the included 1/4"-20 or 3/8"-16 camera tie-down screws. It then slides into the head's top plate, quickly and securely attaching your camera to the tripod. You can adjust the balance of the camera on the tripod head by sliding the baseplate forward or backward. The sliding balance plate system features a safety release to help prevent the sliding baseplate from accidentally sliding out of the tripod head. Fluid Head -
- Fluid Drag
- Spring-Loaded/Three-Stepped Counterbalance
- 0: 0 lb / 0kg
- 1: 6.6 lb / 3kg
- 2: 13.2 lb / 6kg
- 75mm Claw ball for fast leveling
- Bubble level
- 90° Tilt down—camera can point straight down
- 45° Tilt up
- 360° Panning
- Mounting rosettes on left and right sides
Legs -
- Built-in fixed spreader
- Working height range of 31 to 63"
- Rotary clamp leg locks
- Foot spikes
- Removable anti-slip pads/foot spike protectors
- Integrated leg wrap bungee and clip
UPC: 610708234456 - E-Image Lightweight Tripod Dolly The E-Image Lightweight Tripod Dolly from ikan is designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 88 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots. It is not recommended for use as a dolly for dolly shots. Instead, it is designed to help you move heavy tripods from one camera position to the next.
This tripod dolly features 3"-diameter, non-marring rubber wheels with individual brakes, and a 35" working base diameter. Once removed from your tripod legs, it folds for storage or transport. - Supports up to 88 pounds of tripod, camera, and accessories.
- The 3" rubber wheels are non-marring during normal use, protecting the floor surface.
- Each wheel incorporates its own foot-activated brake.
UPC: 847983014439 In the Box - EK60AAM Fluid Drag Video Head and Tripod zrddvwqsvutcsuzwuayvryraqux
- Quick Release Plate
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- Pan Handle
- Travel Soft Case
- Limited 2-Year Warranty
- Lightweight Tripod Dolly zrddvwqsvutcsuzwuayvryraqux
Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image Two-Stage Aluminum Tripod with EH60 Head & Tripod Dolly Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - E-Image EK60AAM Fluid Drag Video Head and Tripod
| | | Counter Balance System | Spring-loaded | | Counter Balance Range | Range: 6.6 - 17.6 lb / 3 - 8 kg
Three steps (0, 1, 2) | | Quick Release Plate | Sliding type
4.7 x 1.9 x 0.4" / 120 x 49 x 10.5 mm | | Quick Release Safety | Yes | | Camera Mounting Screw | 1/4"-20
3/8"-16 | | Built-in Balance Plate | No | | Tilt Drag | Fixed fluid | | Tilt Range | +90 to -45° | | Tilt Lock | Yes | | Pan Drag | Fixed fluid | | Pan Range | 360° | | Pan Lock | Yes | | Pan Handle Rosettes | 2 x Rosettes (one each L/R) | | Leveling Bubble/Illuminated | Yes, non-illuminated | | | | Material | Anodized aluminum alloy | | Head Attachment Fitting | 75 mm Ball base | | Leg Stages/Sections | Two-stage | | Leg Lock Type | Rotary clamp | | Independent Leg Spread | No | | Spreader | Mid-Level (non-removable / non-adjustable) | | Spiked/Retractable Feet | Non-retractable spikes with removable spike protectors/anti-slip pads | | | | Load Capacity | 17.6 lb / 8 kg | | Height Range | Maximum: 63" / 160 cm
Minimum: 31" / 79 cm | | Folded Length | Including Head: 32.5" / 82.6 cm | | Weight | 11 lb / 4.9 kg | | | | Box Dimensions (LxWxH) | 37.0 x 9.0 x 9.0" | - E-Image Lightweight Tripod Dolly
| Construction | Aluminum alloy | | Load Capacity | 88 lb / 39.9 kg | | Working Diameter | 35" / 88.9 cm | | Wheel Diameter | 3" / 7.6 cm | | Wheel Lock | Yes | | Dimensions | 24 x 7" / 61.0 x 17.8 cm (collapsed) | | Weight | 8 lb / 3.6 kg | | | | Box Dimensions (LxWxH) | 23.1 x 8.6 x 8.5" |
