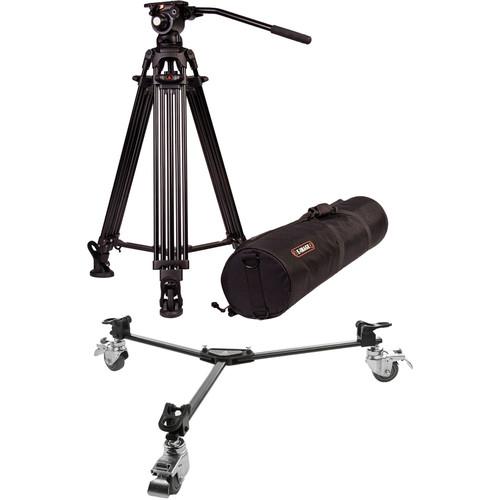

Product description Packaging the E-Image Two-Stage Aluminum Tripod and GH03 Head with a Lightweight Tripod Dolly, this B&H Kit provides the tripod legs, a fluid head, mid-level spreader, pan handle, set of three rubber tripod feet, a padded carry bag with shoulder strap, and the dolly. The tripod legs feature a twin-tube leg design with mono-locks that allow you to lock/unlock all sections using only one rotating locking lever per leg. The tripod legs support up to 88 lb of load and are adjustable from 26 to 61".
The fluid head supports up to 11 lb and offers variable pan and tilt drag and fixed counterbalance. It features an Easy-Lock baseplate system that allows you to attach the included quick release plate in two ways: by snapping it in from the top, or by sliding it in from the rear. Pan and tilt locks are separate. The head also features a spirit level and a 1/4"-20 accessory socket for monitor support arms. The tripod dolly has an individual brake for each wheel. It also has a collapsible design for easier transport. - E-Image 2-Stage Aluminum Tripod with GH03 Head
- Comparing the EG03TT and EG03A2 E-Image Tripods | Ikan Tech Corner
The E-Image 2-Stage Aluminum Tripod with GH03 Head supports cameras and accessories weighing up to 11 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide platform. The legs are made from aluminum and feature three sections with mono-lock leg locks. The mono-lock design allows you to lock and unlock each leg section using only one rotating locking lever. The tripod legs are height-adjustable from 26 to 61".
The GH03 head features an Easy Lock baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. Pan drag and counterbalance are both fixed, while tilt drag is adjustable via a dial on the side of the head. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. A padded carry bag with a shoulder strap is included. - The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate while combining the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
- The mono-lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing you from bending down to open a bottom leg lock.
- The legs feature dual-spiked feet that provide solid purchase in soft surfaces when the legs are spread wide or extended to full height.
- The rubber feet attach to the spiked feet for working on delicate or hard surfaces.
- The Easy Lock camera plate features a guided sled with a locating pin, and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
UPC: 847983009701 - E-Image Lightweight Tripod Dolly
- Comparing the EG03TT and EG03A2 E-Image Tripods | Ikan Tech Corner
The E-Image Lightweight Tripod Dolly from ikan is designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 88 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots. It is not recommended for use as a dolly for dolly shots. Instead, it is designed to help you move heavy tripods from one camera position to the next.
This tripod dolly features 3"-diameter, non-marring rubber wheels with individual brakes, and a 35" working base diameter. Once removed from your tripod legs, it folds for storage or transport. - Supports up to 88 pounds of tripod, camera, and accessories.
- The 3" rubber wheels are non-marring during normal use, protecting the floor surface.
- Each wheel incorporates its own foot-activated brake.
UPC: 847983014439 In the Box - 2-Stage Aluminum Tripod with GH03 Head cfarycdavxxvdyzdrwtetyadyqfctqyvbzuee
- 2 Stage Aluminum Tripod Legs with 75mm Bowl
- GH03 Fluid Head with Flat Base
- Tripod Bag
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the E-Image Two-Stage Aluminum Tripod with GH03 Head & Tripod Dolly Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - E-Image 2-Stage Aluminum Tripod with GH03 Head
| | | Leveling Bubble/Illuminated | Yes/no | | Weight | 16 lb (7.3 kg) | | | | Load Capacity | 11 lb / 5 kg | | Counter Balance System | Fixed | | Quick Release/Wedge Plate | Easy Lock System | | Balance Plate | Easy Lock | | Tilt Drag | Variable | | Tilt Range | -60 to 90° | | Tilt Lock | Yes | | Pan Lock | Yes | | | | Load Capacity | 88 lb / 40 kg | | Material | Aluminum | | Head Attachment Fitting | 75 mm bowl | | Minimum Height | 26" (66.0 cm) | | Maximum Height | 61" (155 cm) | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Mono-lock, rotating lever | | Spiked/Retractable Feet | Spiked feet | | | | Box Dimensions (LxWxH) | 39.0 x 9.0 x 8.0" | - E-Image Lightweight Tripod Dolly
| Construction | Aluminum alloy | | Load Capacity | 88 lb / 39.9 kg | | Working Diameter | 35" / 88.9 cm | | Wheel Diameter | 3" / 7.6 cm | | Wheel Lock | Yes | | Dimensions | 24 x 7" / 61.0 x 17.8 cm (collapsed) | | Weight | 8 lb / 3.6 kg | | | | Box Dimensions (LxWxH) | 23.1 x 8.6 x 8.5" |
