Product description

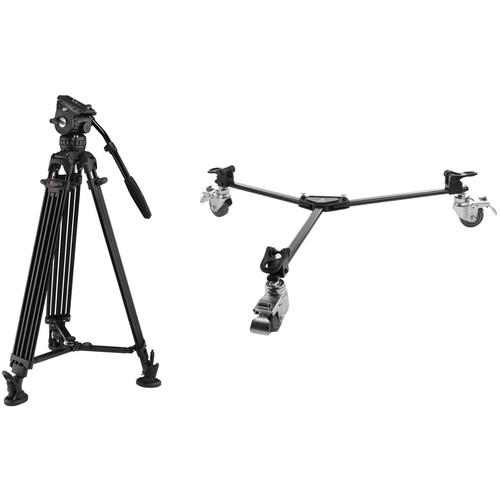

• E-Image 2-Stage Aluminum Tripod with GH06 Head
  • E-Image Aluminum and Carbon Fiber Tripods w/ GH06 Head | Ikan Tech Corner
  The E-Image 2-Stage Aluminum Tripod with GH06 Head supports cameras and accessories weighing up to 13 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide support platform. The legs are made from aluminum and feature three leg sections, with Mono-Lock leg locks. The Mono-Lock design allows you to lock and unlock all the sections of each leg using only one rotating locking lever. The tripod legs are height-adjustable from 32.5 - 72.5" with the head attached.

  The GH06 head features an Easy Lock Baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. It provides five counterbalance settings (plus a zero setting for no counterbalance) that helps the fluid head support loads up to 13 pounds. With three fluid drag grades plus a zero setting on both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. It includes a padded carry bag with a shoulder strap.
  • The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate but combines the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
  • Mono-Lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing your back from having to bend down to open a bottom leg lock to raise the legs.
  • The legs feature dual-spiked feet that provide solid purchase in soft surfaces when the legs are spread wide or extended to full height.
  • The rubber feet attach to the spiked feet for working on delicate or hard surfaces.
  • The Easy Lock camera plate features a guided sled with a locating pin, and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
  UPC: 847983009763
• E-Image Lightweight Tripod Dolly
  • E-Image Aluminum and Carbon Fiber Tripods w/ GH06 Head | Ikan Tech Corner
  The E-Image Lightweight Tripod Dolly from ikan is designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 88 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots. It is not recommended for use as a dolly for dolly shots. Instead, it is designed to help you move heavy tripods from one camera position to the next.

  This tripod dolly features 3"-diameter, non-marring rubber wheels with individual brakes, and a 35" working base diameter. Once removed from your tripod legs, it folds for storage or transport.
  • Supports up to 88 pounds of tripod, camera, and accessories.
  • The 3" rubber wheels are non-marring during normal use, protecting the floor surface.
  • Each wheel incorporates its own foot-activated brake.
  UPC: 847983014439

• 2-Stage Aluminum Tripod with GH06 Head dzvxxvvxvfatdcbqyvet
• E-Image GH06 Fluid Head
• 2 Stage Aluminum Tripod Legs with 75mm Bowl
• SC-1 Padded Tripod Bag (Black)
• Limited 1-Year Warranty

• Lightweight Tripod Dolly

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• E-Image 2-Stage Aluminum Tripod with GH06 Head

  Leveling Bubble/Illuminated	Yes/no
  Kit Weight	Approx. 12.5 lb (5.5 kg)

  Load Capacity	13 lb (5.9 kg)
  Counter Balance System	Fixed
  Quick Release/Wedge Plate	Easy Lock system
  Tilt Range	-60 to 90°
  Tilt Drag	3-steps plus 0
  Tilt Lock	Yes
  Pan Drag	3-steps plus 0
  Pan Lock	Yes

  Material	Aluminum
  Head Attachment Fitting	75 mm bowl
  Minimum Height	With Head: 32.5" (66 cm)
  Maximum Height	With Head: 72.5" (82.5 cm)
  Folded Length	With Head: 35.5" (90 cm)
  Leg Stages/Sections	2/3
  Leg Lock Type	Mono-Lock rotating lever
  Spiked/Retractable Feet	Spiked with rubber foot covers

  Box Dimensions (LxWxH)	40.2 x 9.5 x 9.4"

• E-Image Lightweight Tripod Dolly

  Construction	Aluminum alloy
  Load Capacity	88 lb / 39.9 kg
  Working Diameter	35" / 88.9 cm
  Wheel Diameter	3" / 7.6 cm
  Wheel Lock	Yes
  Dimensions	24 x 7" / 61.0 x 17.8 cm (collapsed)
  Weight	8 lb / 3.6 kg

  Box Dimensions (LxWxH)	23.1 x 8.6 x 8.5"
