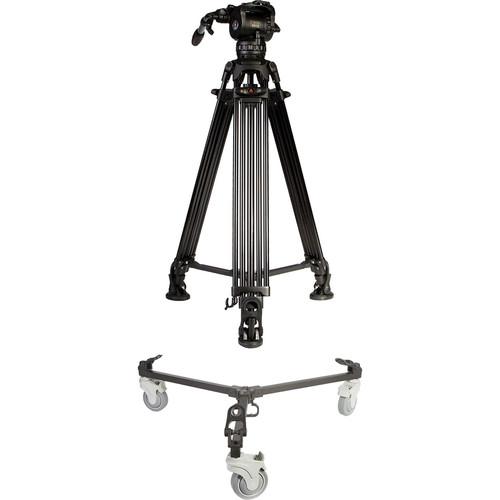

User Manual for E-Image Two-Stage Aluminum Tripod with GH10 Head & Tripod Dolly Kit

• Product category: Tripod Systems E-Image
• Brand: E-Image
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for E-Image Tripod Systems

Product description

• E-Image EG10A2 2-Stage Aluminum Tripod with GH10 Head
  • E-Image Aluminum and Carbon Fiber Tripods w/ GH10 Head | Ikan Tech Corner
  The E-Image EG10A2 2-Stage Aluminum Tripod with GH10 Head supports cameras and accessories weighing up to 22 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide support platform. The legs are made from aluminum to be durable and lightweight, and they feature three leg sections with mono-lock leg locks. The mono-lock design allows you to lock and unlock all the sections of each leg using only one rotating locking lever. The tripod legs are height-adjustable from 32.5 to 68". The legs include a mid-level spreader and rubber feet that attach to the spiked feet.The GH10 head features a sliding balance plate system for attaching the camera to the head. It provides seven counter balance settings (one to seven) that help the fluid head support loads up to 22 pounds. With three fluid drag grades plus a zero setting on both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. It includes a padded carry bag with shoulder strap
  • Mono-lock design allows you to lock and unlock the three sections of each leg using only one locking lever. The rotating lever provides a robust clamp mechanism that secures the legs and prevents them from slipping once locked. The single lever on each leg allows you to quickly lock the leg height without having to use two levers, making for a quicker workflow and sparing you from having to bend down to open a bottom leg lock to raise the legs.
  • The legs feature spiked feet that provide solid purchase on soft surfaces. The included mid-level spreader allows you to use the legs on uneven surfaces, and the rubber feet allow you to shoot on hard/delicate surfaces.
  • The head incorporates a push button that illuminates the built-in bubble level. An LR41 push-button battery is included and is easily replaceable.
  UPC: 847983009770
• E-Image Tripod Dolly
  • E-Image Aluminum and Carbon Fiber Tripods w/ GH10 Head | Ikan Tech Corner
  The E-Image Tripod Dolly from ikan is designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 132 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots. It is not recommended for use as a dolly for dolly shots. Instead, it is designed to help you move heavy tripods from one camera position to the next.

  This tripod dolly features 4"-diameter, non-marring rubber wheels with individual brakes, and a 37" working base diameter. Once removed from your tripod legs, it folds for storage or transport.
  • Supports up to 132 pounds of tripod, camera, and accessories.
  • The 4" rubber wheels are non-marring during normal use, protecting the floor surface.
  • Each wheel incorporates its own foot-activated brake.
  UPC: 847983010738

• EG10A2 2-Stage Aluminum Tripod with GH10 Head wvserbtddtzzbesdryusdrsartq
• 2 Stage Aluminum Tripod Legs with 75mm Bowl
• GH10 Fluid Head
• Pan Handle
• Set of 3 Rubber Feet
• Tripod Bag
• LR41 Push-Button Battery
• Limited 1-Year Warranty

• Tripod Dolly

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• E-Image EG10A2 2-Stage Aluminum Tripod with GH10 Head

  Maximum Height	68" (172.5 cm) (with head attached)
  Minimum Height	32.5" (82.5 cm) (with head attached)
  Leveling Bubble/Illuminated	Yes/yes (LR41 button battery included)
  Weight	12.8 lb (5.8 kg) (head, legs, spreader, handle)

  Load Capacity	22 lb (10 kg)
  Counter Balance System	7 counter balance settings
  Quick Release/Wedge Plate	Easy Lock system
  Balance Plate	Easy Lock
  Tilt Range	-60 to 90°
  Tilt Drag	3-steps plus 0
  Tilt Lock	Yes
  Pan Drag	3-steps plus 0
  Pan Lock	Yes

  Material	Aluminum
  Head Attachment Fitting	75 mm bowl
  Load Capacity	88 lb (40 kg)
  Leg Stages/Sections	2/3
  Minimum Height	26" (66 cm)
  Maximum Height	61" (155 cm)
  Leg Lock Type	Mono-lock - rotating lever
  Spiked/Retractable Feet	Spiked with F3 foot pads

  Box Dimensions (LxWxH)	40.25 x 9.5 x 9.4"

• E-Image Tripod Dolly

  Construction	Aluminum alloy
  Load Capacity	132 lb / 59.9 kg
  Working Diameter	37" / 94.0 cm
  Wheel Diameter	4" / 10.2 cm
  Wheel Lock	Yes
  Dimensions	Not specified by manufacturer
  Weight	8 lb / 3.6 kg

  Box Dimensions (LxWxH)	22.7 x 9.9 x 9.0"
