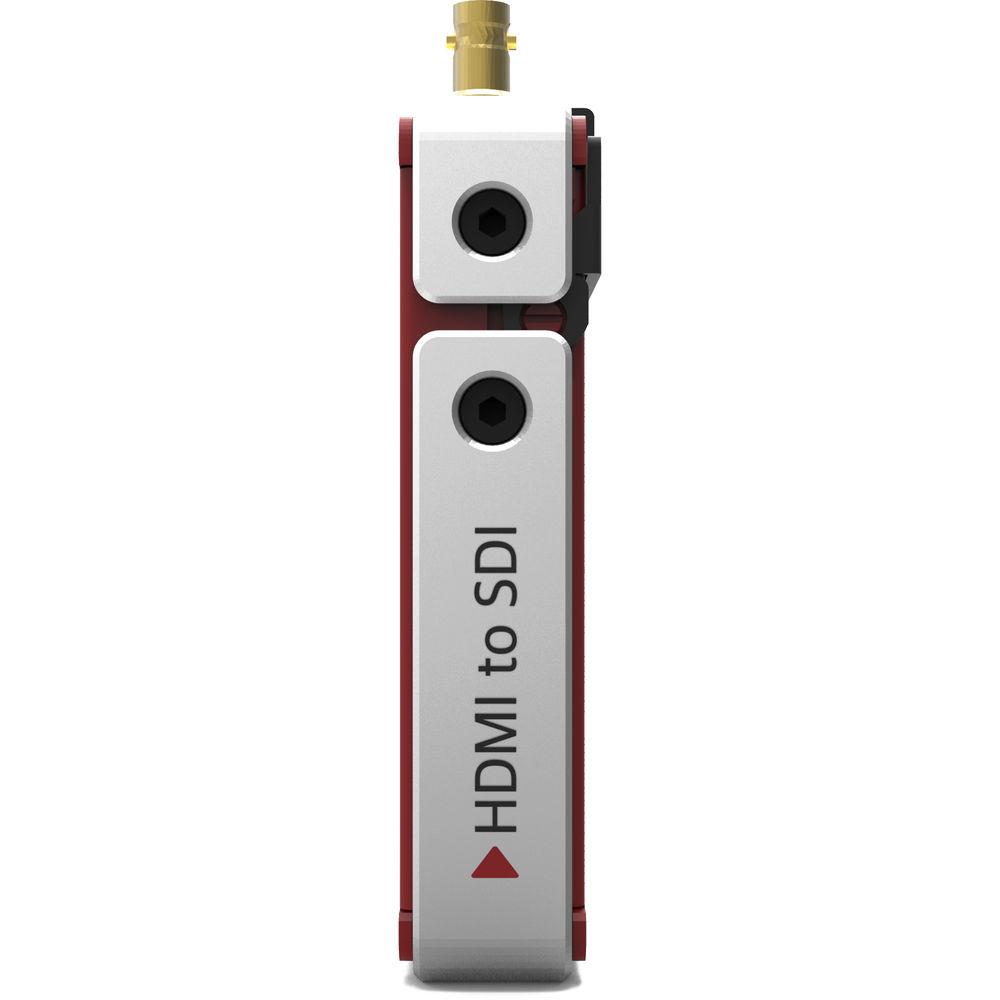

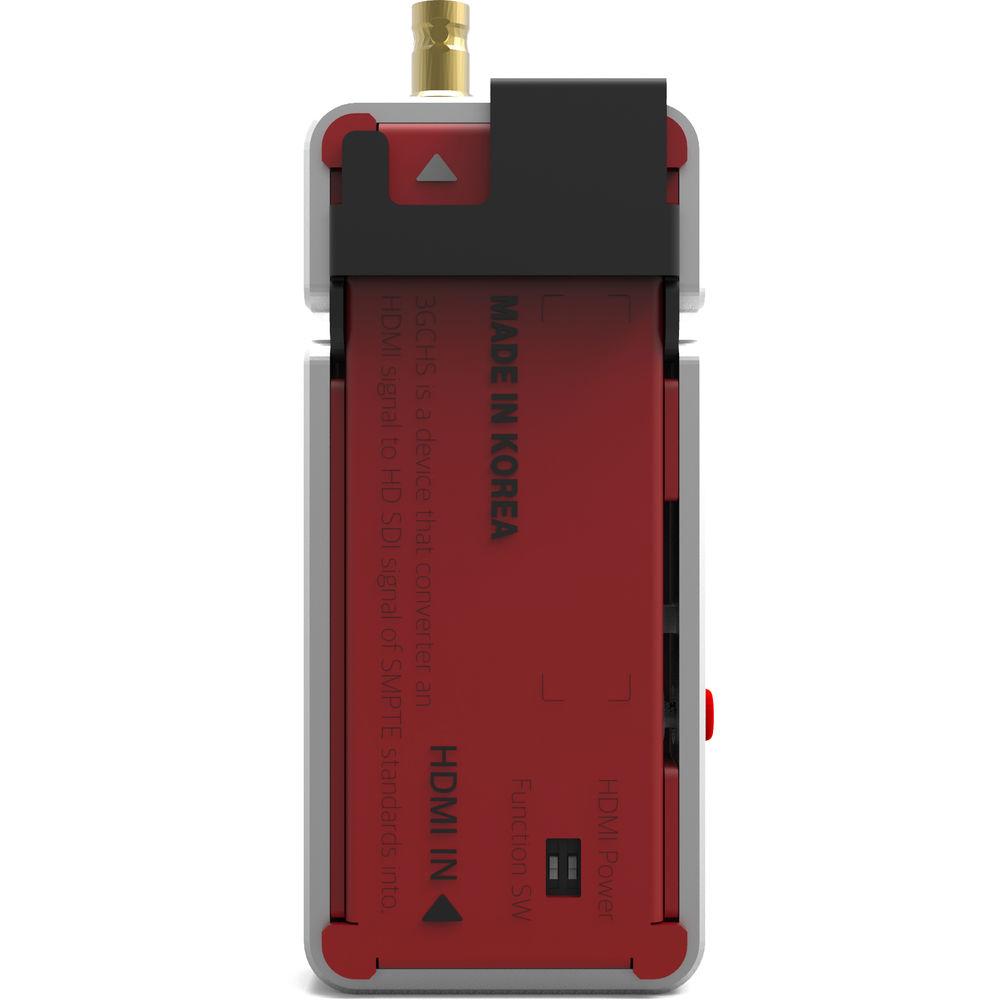

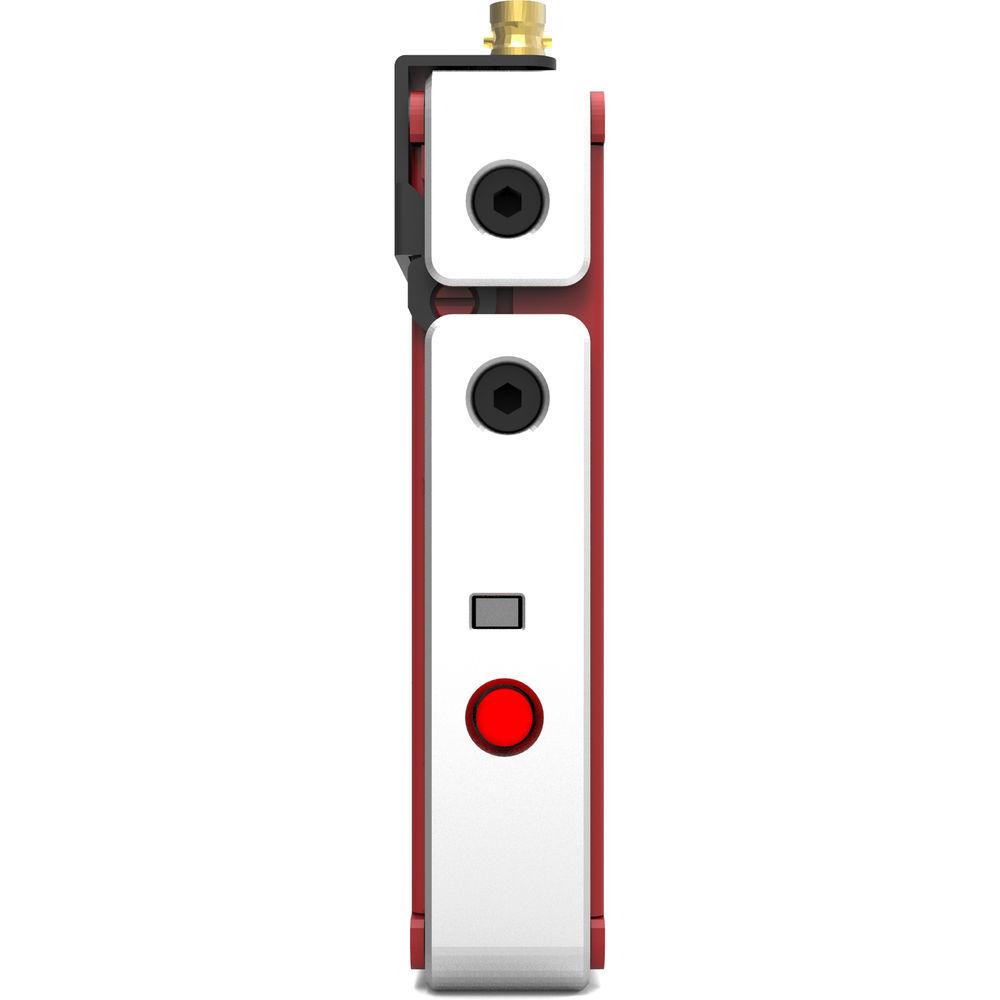

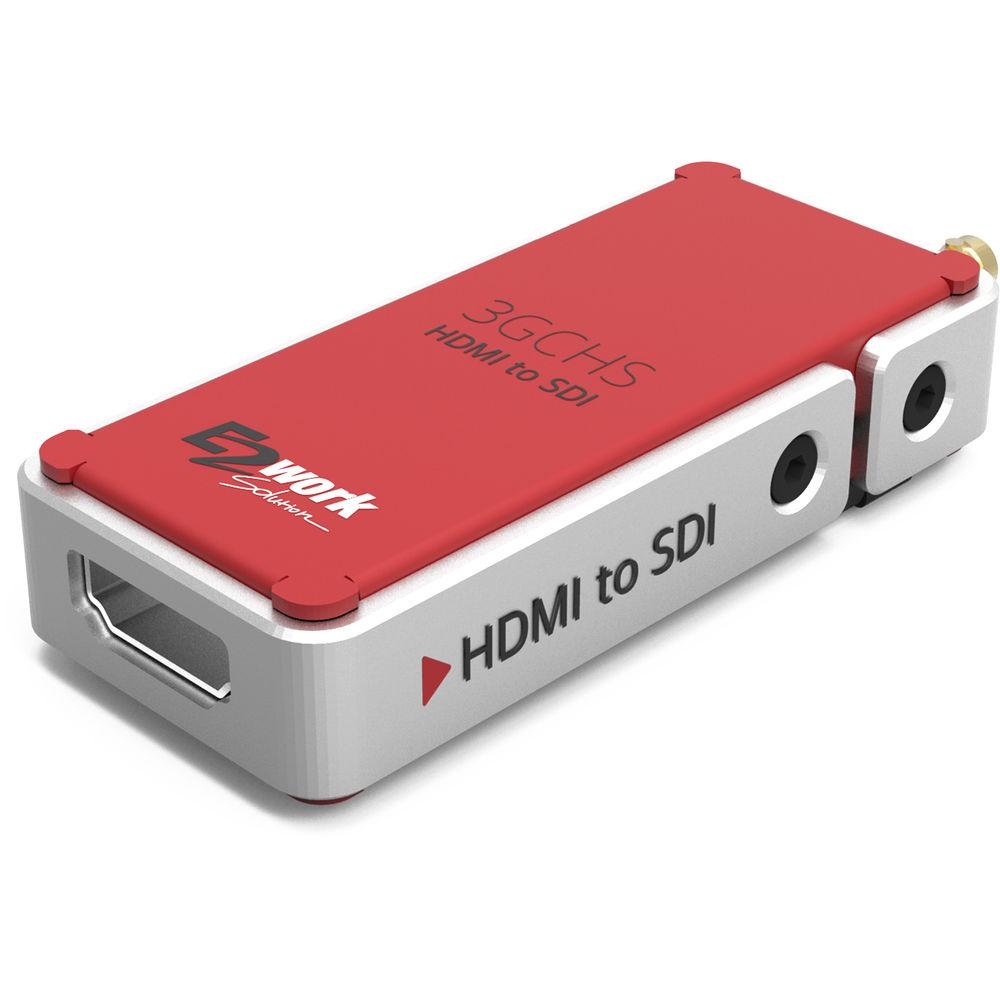

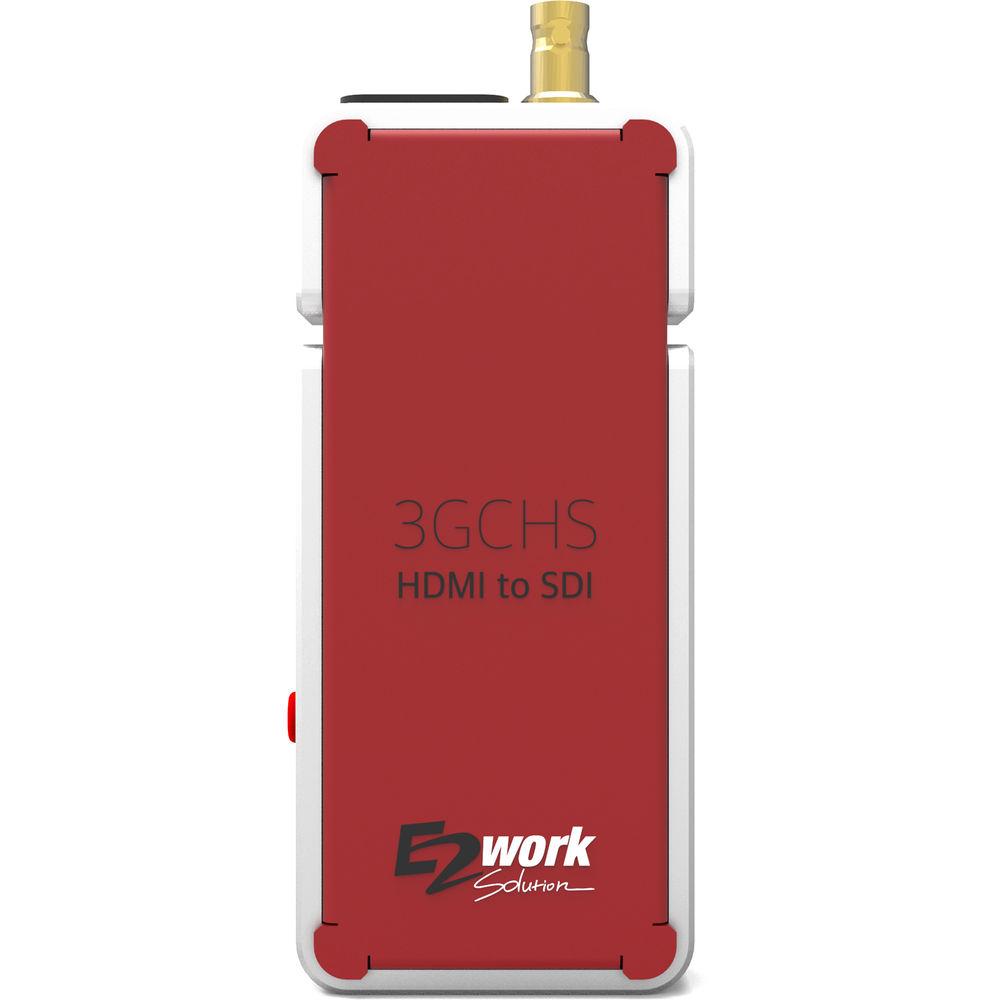

User Manual for e2work 3GCHS HDMI to SDI Converter Click to enlarge the picture
Contents of the user manual for the e2work 3GCHS HDMI to SDI Converter
- Product category: Signal Converters e2work
- Brand: e2work
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for e2work Signal Converters
 |
User manual for the e2work 3GCHS HDMI to SDI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any e2work product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official e2work user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a e2work product will considerably shorten its lifespan!
|
Product description The 3GCHS HDMI to SDI Converter from e2work is up/down scaling converter that accepts an HDMI signal and converts it to an SDI output. It comes with an HDBNC to BNC cable. UPC: 704006297722 In the Box e2work 3GCHS HDMI to SDI Converter USB Cable DC USB Adapter HDBNC to BNC Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the e2work 3GCHS HDMI to SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterse2work 3GCHS Specs | Output | 1-channel
SD-SDI (270 Mbps), HD-SDI (1.485 Mbps), 3G-SDI (2.97 Mbps) | | Signal Formats | Output Signal Formats
SDI
SMPTE 425M A 1080p (60/59.94/50)
SMPTE 274M 1080i (60/59.94/50)/1080p (30/25/24)/1080Psf (30/25/24)
SMPTE 296M 720p (60/59.94/50)
SMPTE-125M 480i (60)
ITU-R.BT.656 576i (50)
Signal Formats
HDMI Input
720 x 480i 60, 720 x 480p 60, 720 x 576i 50, 720 x 576p 50, 1280 x 720p 60, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 640 x 480p 60, 800 x 600p 60, 1024 x 768p 75, 1280 x 1024p 75, 1366 x 768p 60 | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Power | 5 VDC/1 A | | Power Consumption | <2 W (typical) | | Dimensions (H x W x D) | 2.5 x 1.1 x 0.5" (66 x 30 x 14 mm) | | Weight | 1.4 oz (41 g) |
