e2work ADAM 2.8" Multi-Format Portable Monitor

Search your instruction manual in PDF to download

User Manual for e2work ADAM 2.8" Multi-Format Portable Monitor

Click to enlarge the picture
e2work ADAM 2.8" Multi-Format Portable Monitor Contents of the user manual for the e2work ADAM 2.8" Multi-Format Portable Monitor
  • Product category: On Camera Monitors e2work
  • Brand: e2work
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for e2work On Camera Monitors

e2work ADAM 2.8" Multi-Format Portable Monitor e2work ADAM 2.8" Multi-Format Portable Monitor e2work ADAM 2.8" Multi-Format Portable Monitor e2work ADAM 2.8" Multi-Format Portable Monitor e2work ADAM 2.8" Multi-Format Portable Monitor
User manual for the e2work ADAM 2.8" Multi-Format Portable Monitor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any e2work product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official e2work user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a e2work product will considerably shorten its lifespan!



Product description

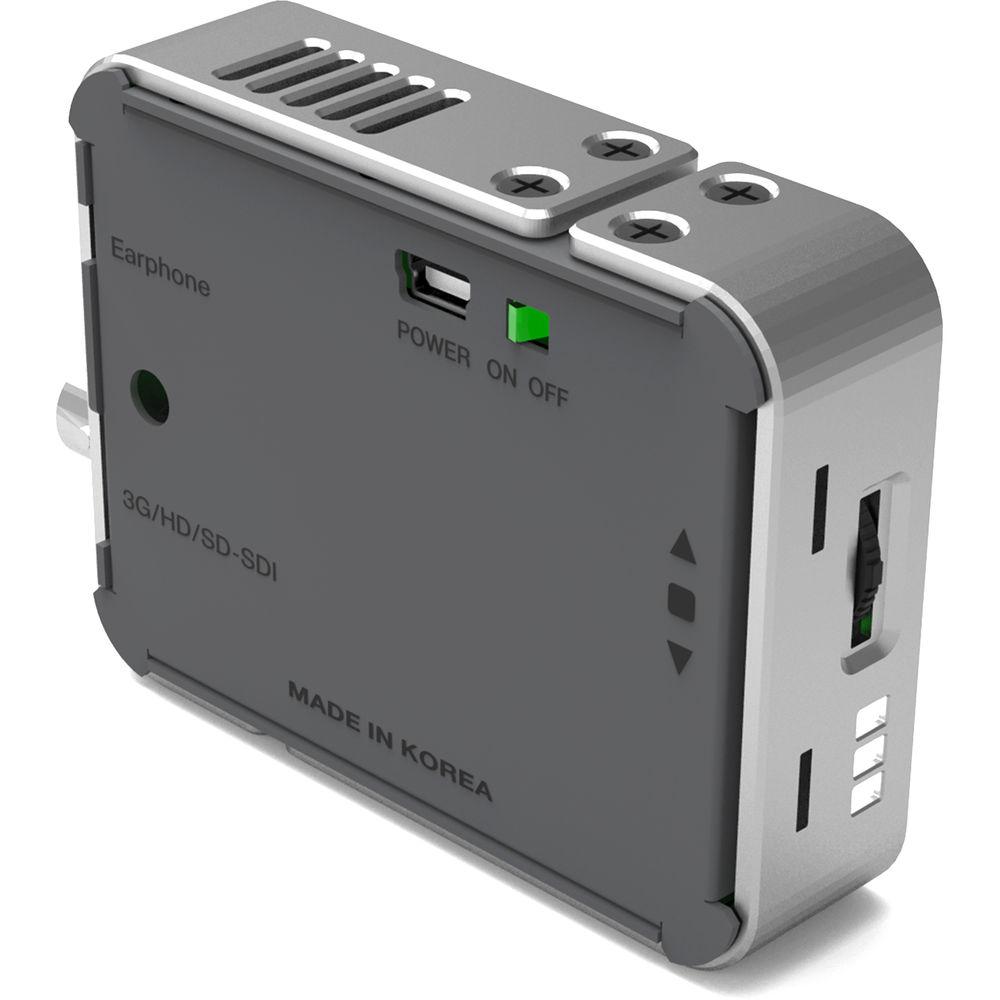

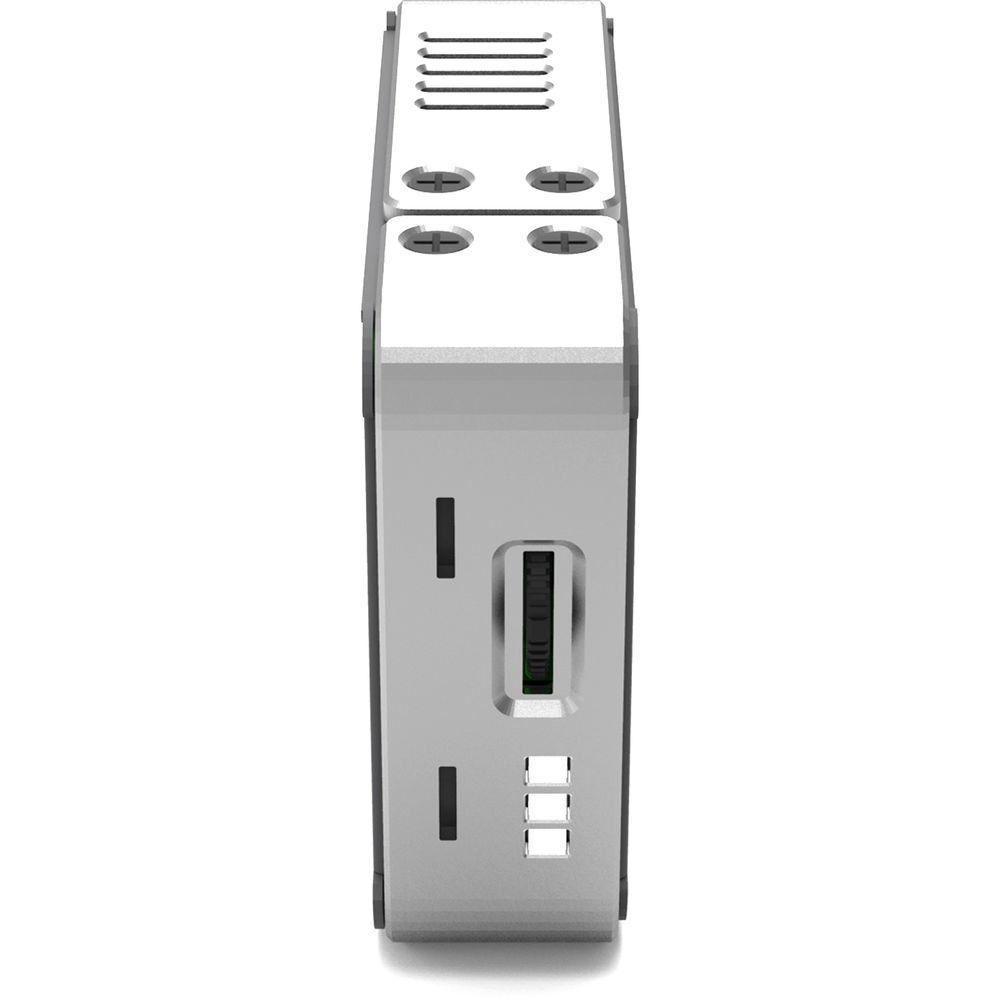

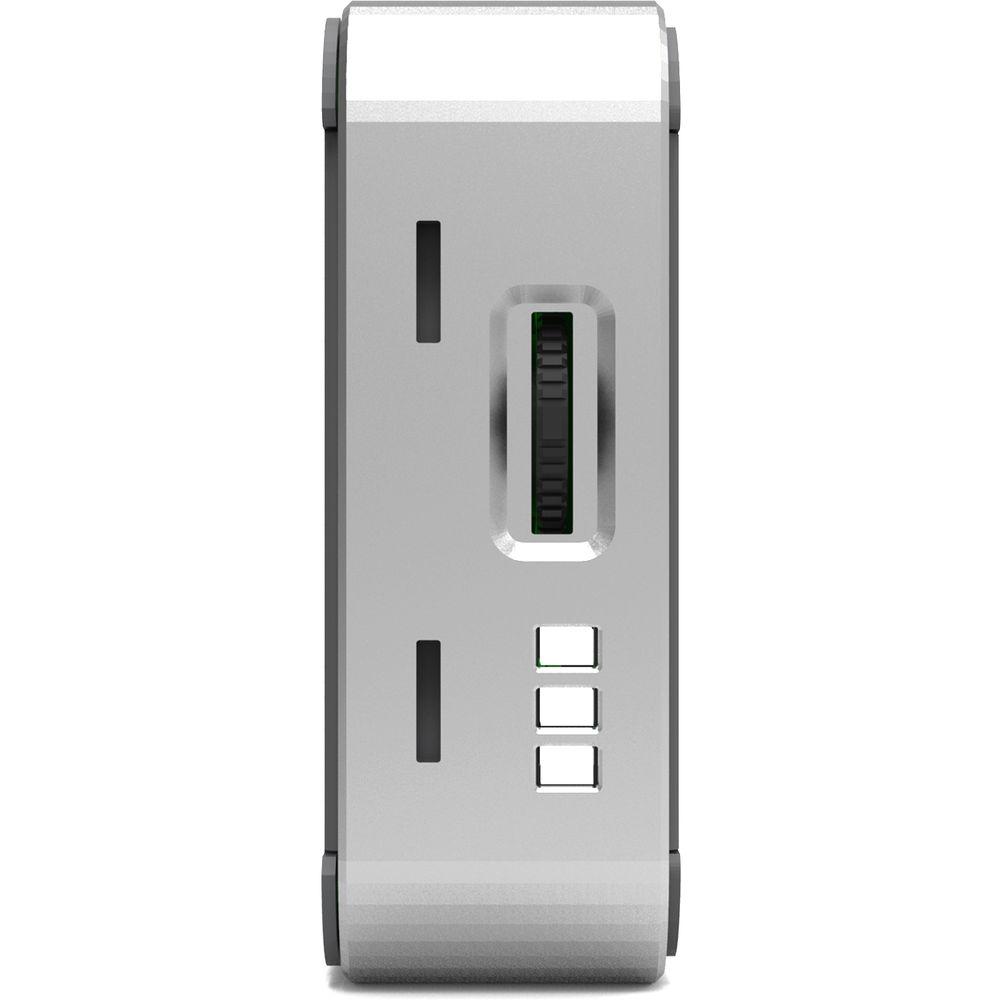

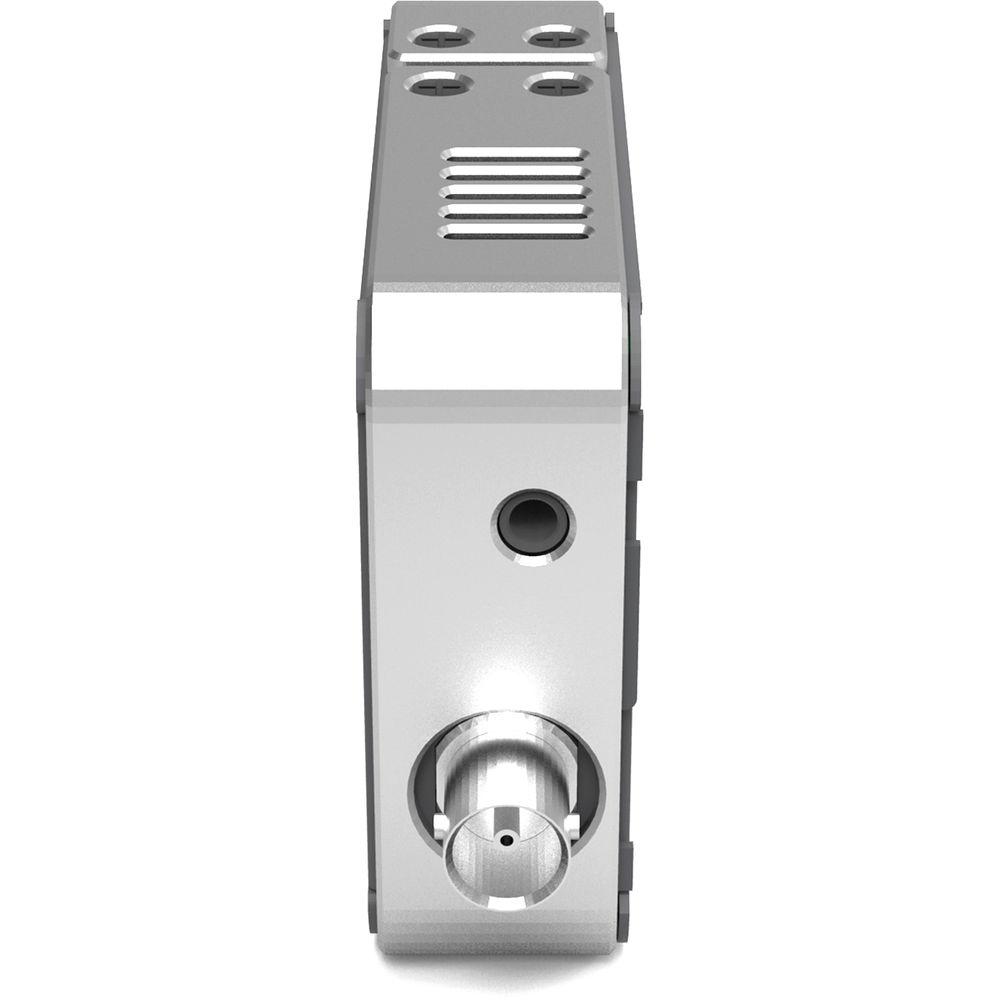

The ADAM 2.8” Multi-Format Portable Monitor from e2work can be used in remote locations, outdoor sets, or at live events. It automatically detects the SDI input and supports SD, HD, and 3G-SDI video formats. Embedded audio can be monitored through an internal speaker or via headphones connected to the monitor's 3.5mm jack. You can also monitor audio via a dual-bar audio level meter display on the screen. In addition, you can also control brightness, contrast, chroma, and volume settings.The built-in battery offers up to two hours of run time with an HD-SDI signal, and can be charged via the included USB power adapter. In the absence of an input signal, the monitor automatically goes into power-saving mode to conserve battery. The LED light on the unit lets you monitor the battery levels. UPC: 704006297739 In the Box e2work ADAM 2.8" Multi-Format Portable Monitor
  • USB Cable
  • DC USB Adapter
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the e2work ADAM 2.8" Multi-Format Portable Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    e2work ADAM Specs

    Screen Size 2.8" (71.12 mm)
    Active Area H x V: 2.4 x 1.35" (61.44 x 34.32 mm)
    Resolution 320 x 240
    Aspect Ratio 16:9
    Display Colors 16.7 million
    Brightness 300 cd/m2
    Pixel Pitch (H x V) 0.192 x 0.143
    Input 1 x 3G/HD/SD-SDI

    3G-SDI (2.97 Gbps)
    HD-SDI (1.485 Gbps)
    SD-SDI (270 Mbps)
    Supported Video Formats SMPTE-425M-A/B:
    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080PsF 30/29.97/25/24/23.98
    1080i 60/59.94/50

    SMPTE-274M:
    1080p 30/29.97/25/24/23.98
    1080PsF 24/23.98
    1080i 60/59.94/50

    SMPTE-296M:
    720p 60/59.94/50

    SMPTE-260M:
    1035i 60/59.94

    SMPTE-125M:
    480i 59.94

    ITU-R.BT.656:
    576i 50

    2K format
    Audio Input Embedded
    Audio Output 1 x 3.5 mm stereo earphone jack
    Internal mono speaker
    Power and Battery DC USB power adapter
    Operating Time Up to 2 hours on HD-SDI
    Power Consumption <3.5 W (typical)
    Dimensions (W × H × D) 3 x 2.3 x 0.8" (7.74 x 5.87 x 2.1 cm)
    Weight 6.34 oz (180 g)
    Package Weight 0.75 lb
    Box Dimensions (LxWxH) 5.1 x 3.5 x 2.4"
