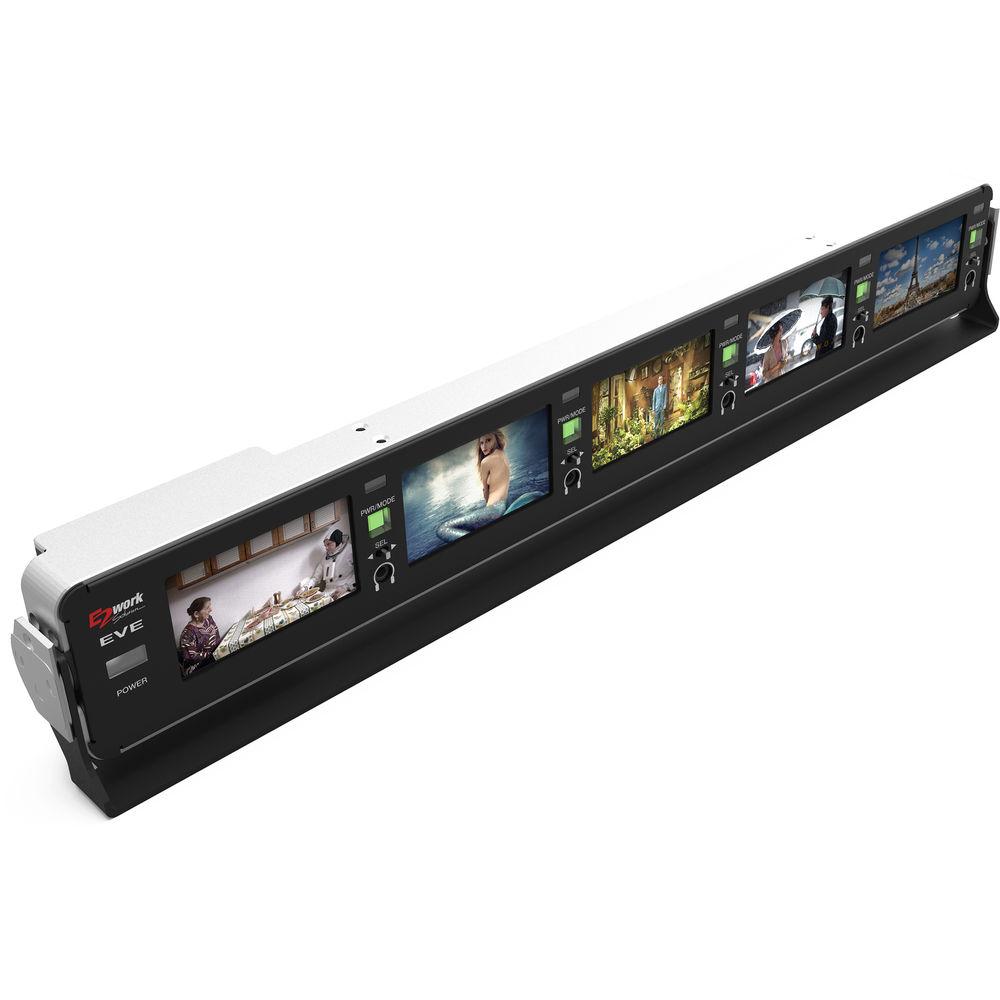

User Manual for e2work EVE 2.8" 5-LCD Multi-Format Desktop Rackmount Monitor Click to enlarge the picture
Contents of the user manual for the e2work EVE 2.8" 5-LCD Multi-Format Desktop
- Product category: Production Monitors e2work
- Brand: e2work
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for e2work Production Monitors
|
User manual for the e2work EVE 2.8" 5-LCD Multi-Format Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any e2work product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official e2work user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a e2work product will considerably shorten its lifespan!
|

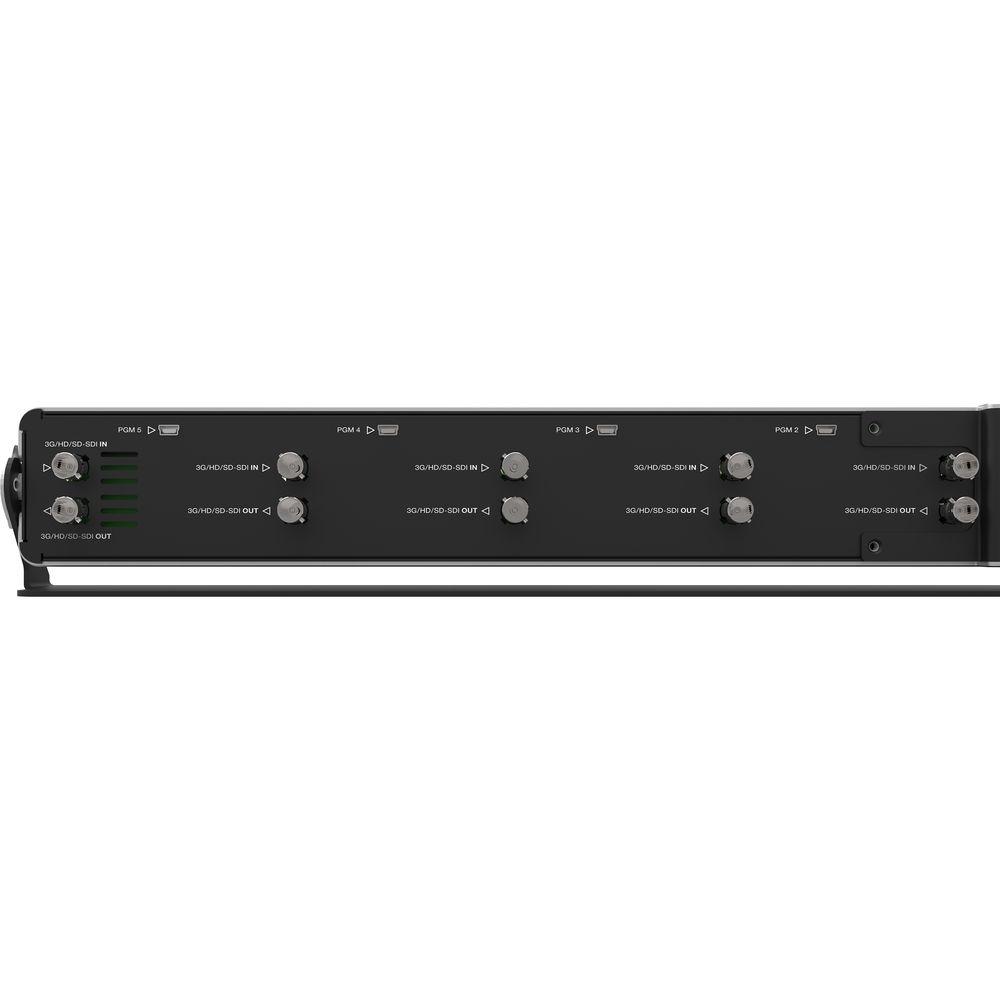

Product description The EVE 2.8” 5-LCD Multi-Format Desktop/Rackmount Monitor from e2work features five 2.8" 320 x 240 resolution LCD screens, each with its own SDI input/output, in the compact rackmount space of just 1.5 RU. It automatically detects SDI input and supports SD, HD, AND 3G-SDI video formats. Each channel features a loop-through output. - Two-color LED tally light
- Brightness, contrast, chroma, volume, and individual adjustments
UPC: 704006297746 In the Box e2work EVE 2.8" 5-LCD Multi-Format Desktop/Rackmount Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the e2work EVE 2.8" 5-LCD Multi-Format Desktop Rackmount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterse2work EVE Specs Screen Size | Each Screen: 2.8" (71.12 mm) | Active Area | H x V: 2.4 x 1.35" (61.44 x 34.32 mm) | Resolution | Each Screen: 320 x 240 | Aspect Ratio | 16:9 | Display Colors | 16.7 million | Brightness | 300 cd/m2 | Pixel Pitch (H x V) | 0.192 x 0.143 | Input | 3G-SDI (2.97 Gbps) HD-SDI (1.485 Gbps) SD-SDI (270 Mbps) | Output | 3G/HD/SD-SDI active loop-through out | Tally Input | Red, green | Supported Video Formats | SMPTE-425M-A/B: 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 30/29.97/25/24/23.98 1080i 60/59.94/50 SMPTE-274M: 1080p 30/29.97/25/24/23.98 1080PsF 24/23.98 1080i 60/59.94/50 SMPTE-296M: 720p 60/59.94/50 SMPTE-260M: 1035i 60/59.94 SMPTE-125M: 480i 59.94 ITU-R.BT.656: 576i 50 2K format | Audio Input | Embedded | Audio Output | 1 x 3.5 mm stereo earphone jack | Power | 5 VDC/10 A | Power Consumption | <20 W (typical) | Rack Unit Space | 1.5 RU | Dimensions (H x W x D) | 17.4 x 2.3 x 1.29" (44.4 x 6.0 x 3.28 cm) | Weight | 40.5 oz (1150 g) | | Package Weight | 4.05 lb | Box Dimensions (LxWxH) | 20.2 x 4.3 x 4.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
