User Manual for Eartec 5-User SC-1000 Two-Way Radio System with Loop Lapel Mic Headsets Click to enlarge the picture
Contents of the user manual for the Eartec 5-User SC-1000 Two-Way Radio System
- Product category: 2-Way Radios Eartec
- Brand: Eartec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eartec 2-Way Radios
 |
User manual for the Eartec 5-User SC-1000 Two-Way Radio System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eartec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eartec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eartec product will considerably shorten its lifespan!
|

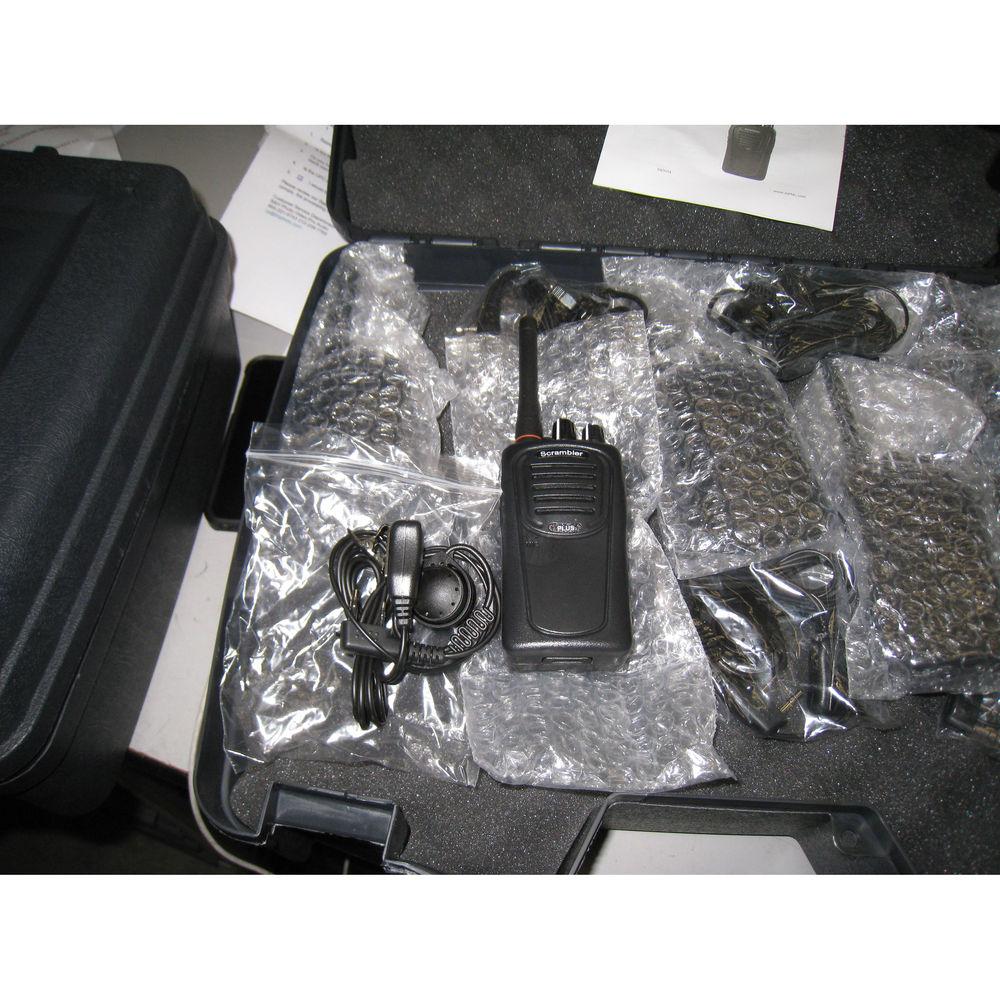

Product description The Eartec 5-User SC-1000 Two-Way Radio System with Loop Lapel Mic Headsets is a complete system that consists of 5 of the Scrambler SC-1000 UHF radio transceivers, each with its own Loop Headset. The Loop headset features a connected lapel mic with push-to-talk activation.
The SC-1000 system allows for crystal clear voice communication to production teams on the move. This wireless transmitter operates in the simplex mode, which means that when one person in a group transmits, the message is received by everyone. An unlimited number of transceivers can operate at the same frequency and the system can also be utilized as a dual-channel intercom with switching.
The transceiver features a full watt of transmission power at a distance up to one mile. It utilizes UHF high-band frequencies that can penetrate concrete or steel surfaces. This makes the SC-1000 a cost-effective sound solution for schools, churches, community theatres, or any on-location venue where users need to communicate between buildings or through walls. This unit operates with a rechargeable NiCad battery. It also comes with a military belt clip for convenient carrying.
The Loop Headset with Lapel Mic Push-to-Talk activation is a versatile headset accessory for the SC-1000 simplex transceiver. To use the Loop headset, simply plug it into the transceiver and clip the radio to your hip. Slip the rubberized ear loop over whichever ear you prefer. Finally, clip the lapel mic to your shirt or jacket. When you need to transmit, simply push the button on the lapel mic and speak; your voice is transmitted immediately. - Outstanding Range
- UHF high-band signals transmit through concrete; range is up to one mile
- Channel Selectivity
- 16 UHF frequency combinations allow multiple groups to operate without interference
- No Interference
- Scrambled transmissions and digital receive tones guarantee complete privacy
- Expandable
- Add stations to an existing Scrambler intercom without system modification
- Channel Enunciation
- System automatically tells the user to which channel the radio is tuned
- Industrial Headset Jack
- Robust dual-pin design
- Excellent Voice Tone
- Fine-tuned receive circuit provides optimum voice reception with any Eartec headset
- No FCC License Required
- Ready to go right out of the box. No licensing paperwork or additional costs necessary

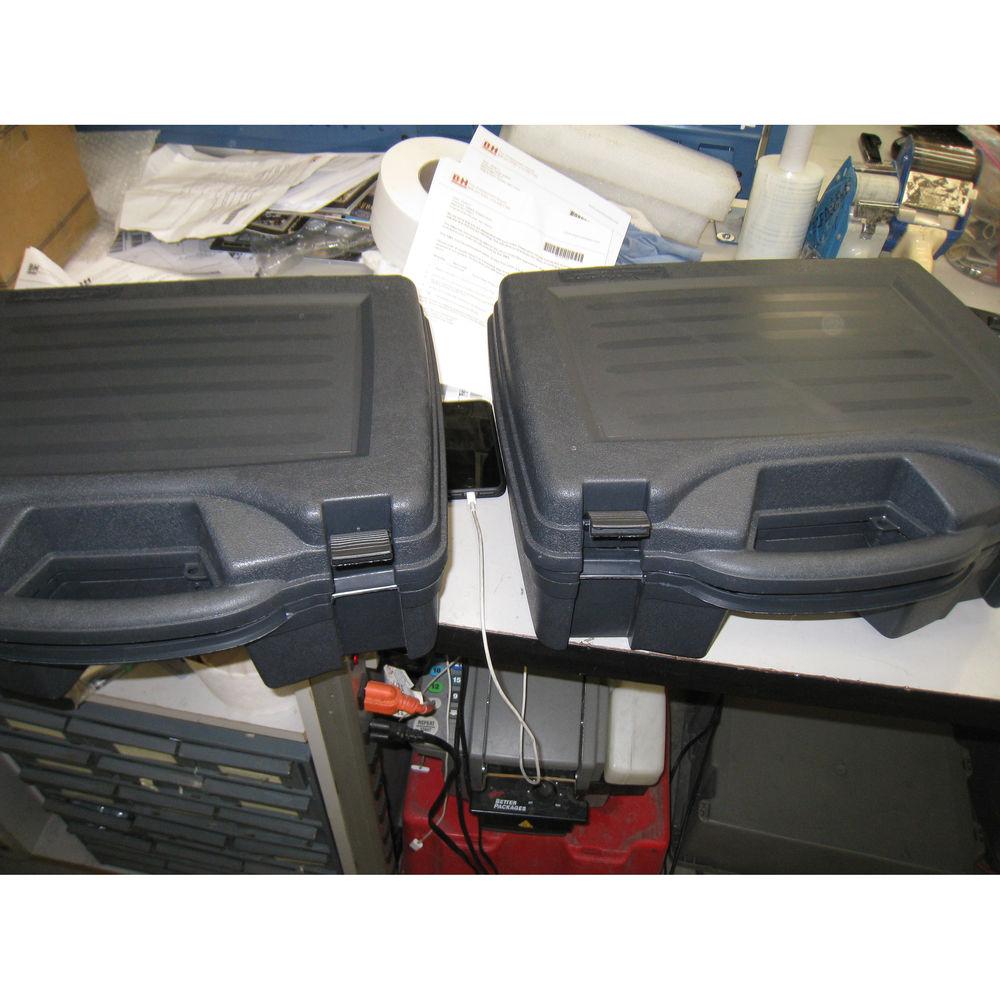

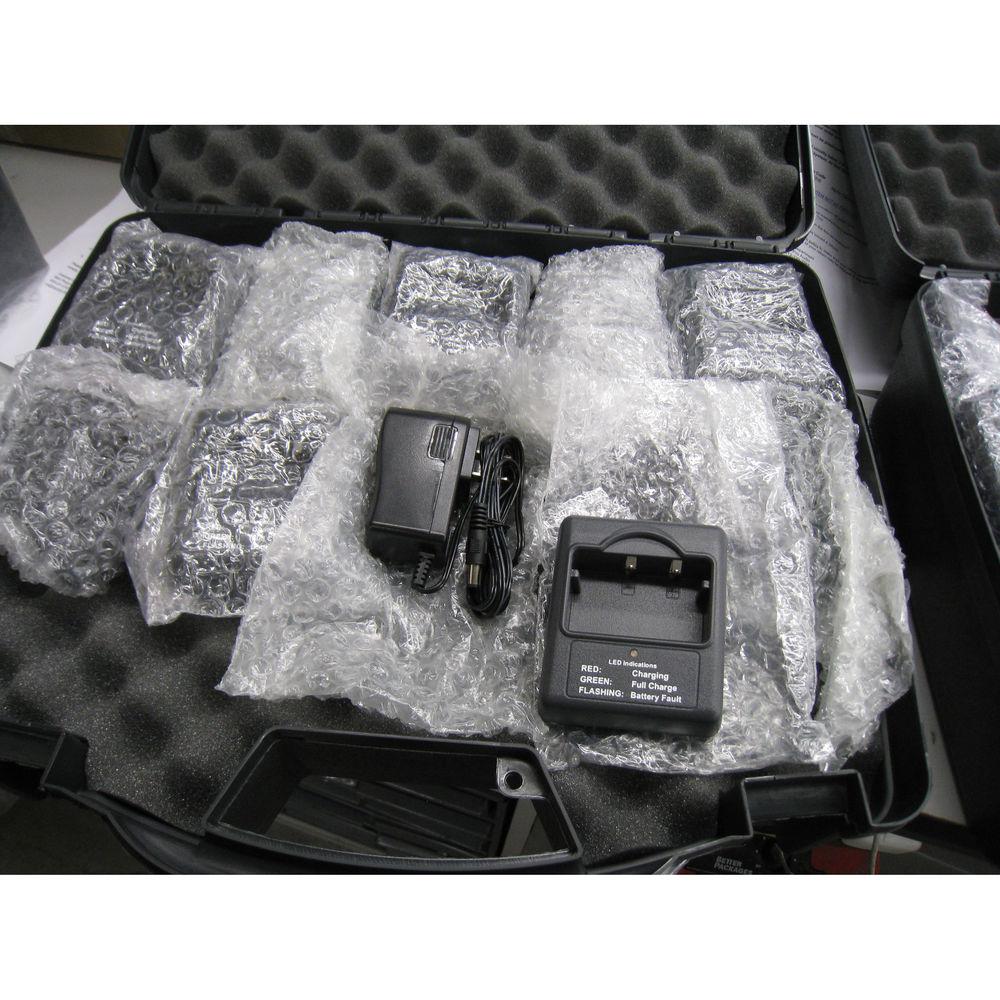

In the Box Eartec 5-User SC-1000 Two-Way Radio System with Loop Lapel Mic Headsets 5 x SC-1000 UHF Wireless Radio Transceiver 5 x Loop Inline PTT Headset for SC-1000 Radio Transceiver Case Limited 1-Year Warranty for SC-1000 Radio System Limited 30-Day Warranty for Loop Inline Headset Table of Contents
|
Upload User Manual
Have you got an user manual for the Eartec 5-User SC-1000 Two-Way Radio System with Loop Lapel Mic Headsets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEartec SC-1000 Specs | | | Frequency Range | UHF 462 to 467.7 MHz | | Maximum Deviation | < ±5 kHz | | Channels | 14 UHF | | Spurious Emission | ≤60 dB | | Tones | 38 CTCSS | | Frequency Stability | ± 5 ppm | | Operating Voltage | 7.2 V | | Receiving Data | Stability: <0.2 uV | | Audio Output Power | >500 mW | | Operating Modes | Simplex | | Output Power | 0.38 W | | Modulation | FM (F3E) | | Operating Temperature | 86 to 140°F (30 to 60°C) | | Dimensions (W x H x D) | 2.4 x 1.5 x 4" (60.96 x 38.1 x 101.6 mm) | | Weight | 5 oz (141.74 g) | | | | Type | Ear loop | | Microphone Type | Electret condenser | | Mic Frequency Response | 100 Hz to 10 kHz | | Impedance | 8 Ohms | | Sensitivity | 96 dB | | Connectors | 2.5 to 3.5 mm, molded plug | | Cable Length | 32" (812.8 mm) | | Weight | 1 oz (28.34 g) | | | | Package Weight | 7.31 lb | | Box Dimensions (LxWxH) | 19.4 x 14.7 x 12.2" |
