User Manual for Eartec 5-User SC-1000 Two-Way Radio System with Monarch Inline PTT Headsets Click to enlarge the picture
Contents of the user manual for the Eartec 5-User SC-1000 Two-Way Radio System
- Product category: 2-Way Radios Eartec
- Brand: Eartec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eartec 2-Way Radios
|
User manual for the Eartec 5-User SC-1000 Two-Way Radio System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eartec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eartec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eartec product will considerably shorten its lifespan!
|

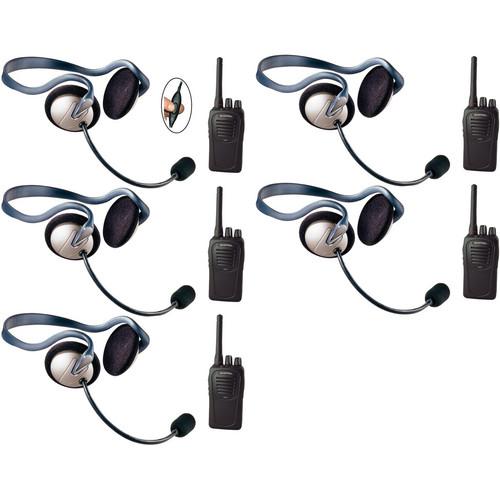

Product description The Eartec 5-User SC-1000 Two-Way Radio System with Monarch Inline PTT Headsets is a complete system that consists of 5 of the company's Scrambler SC-1000 UHF radio transceivers, each with its own Monarch Inline Headset with Push-to-Talk activation.
The SC-1000 system allows for crystal clear voice communication to production teams on the move. This wireless transmitter operates in the simplex mode, which means that when one person in a group transmits, the message is received by everyone. An unlimited number of transceivers can operate at the same frequency and the system can also be utilized as a dual-channel intercom with switching.
This transceiver features a full watt of transmission power at a distance of up to 1 mile (1.61 km). It utilizes UHF high-band frequencies that can penetrate concrete or steel surfaces. This makes the SC-1000 a cost-effective sound solution for schools, churches, community theatres, or any on-location venue where users need to communicate between buildings or through walls. This unit operates with a rechargeable lithium polymer battery (included). It also comes with a military belt clip for convenient carrying.
The Edge Inline Headset with Push-to-Talk activation is a versatile headset accessory for the SC-1000 radio transceiver. Each Edge headset includes a streamlined inline PTT button and clothing clip as well as a 2-pin radio plug. This allows you to clip the radio to your belt as well as send and receive voice messages through the headset. - Outstanding Range
- UHF high band signals transmit through concrete, range is up to 1 mile (1.61 km)
- Channel Selectivity
- 16 UHF frequency combinations allow multiple groups to operate without interference
- No Interference
- Scrambled transmissions and digital receive tones guaranteeing complete privacy
- Expandable
- Add stations to an existing Scrambler intercom without system modification
- Channel Enunciation
- System automatically tells the user to which channel the radio is tuned
- Industrial Headset Jack
- Robust dual-pin design
- Excellent Voice Tone
- Fine-tuned receive circuit provides optimum voice reception with any Eartec headset
- No FCC License Required
- Ready to go right out of the box. No licensing paperwork or additional costs necessary
In the Box Eartec 5-User SC-1000 Two-Way Radio System with Monarch Inline PTT Headsets 5 x SC-1000 UHF Wireless Radio Transceiver cqfbydsaerbrsvetbfyruvwu 5 x Monarch Inline PTT Headset for SC-1000 Radio Transceiver 1-Year Warranty for SC-1000 Radio System 30-Day Warranty for Monarch Inline Headset Table of Contents
|
Upload User Manual
Have you got an user manual for the Eartec 5-User SC-1000 Two-Way Radio System with Monarch Inline PTT Headsets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEartec SC-1000 Specs | | | Frequency Range | UHF 462 to 467.7 MHz | | Maximum Deviation | < ±5 KHz | | Channels | 14 UHF | | Spurious Emission | ≤60 dB | | Tones | 38 CTCSS | | Frequency Stability | ± 5 ppm | | Operating Voltage | 7.2 V | | Receiving Data | Stability: <0.2 uV | | Audio Output Power | >500 mW | | Operating Modes | Simplex | | Output Power | 0.38 W | | Modulation | FM (F3E) | | Battery Type | Lithium polymer | | Operating Temperature | 86 to 140°F (30 to 60°C) | | Dimensions (W x H x D) | 2.4 x 1.5 x 4" (60.96 x 38.1 x 101.6 mm) | | Weight | 5 oz (141.74 g) | | | | Type | Over ear | | Microphone Type | Electret condenser | | Mic Frequency Response | 100 Hz to 10 KHz | | Impedance | 32 Ω | | Sensitivity | 96 dB | | Connectors | 2.5 to 3.5 mm molded plug | | Cable Length | 32" (812.8 mm) | | Weight | 3 oz (85.04 g) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 19.3 x 14.8 x 12.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
