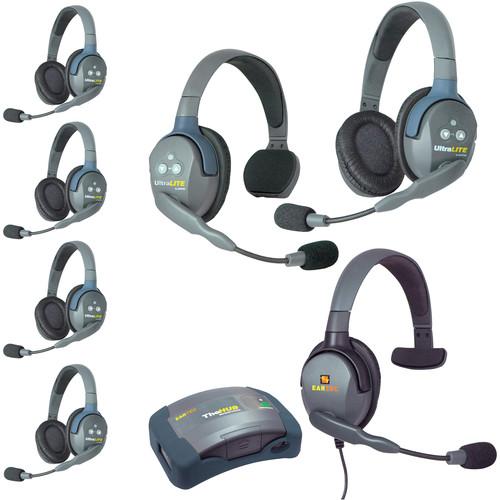

User Manual for Eartec HUB715MXSEU UltraLITE 7-Person HUB Intercom System with Max 4G Single Headset Click to enlarge the picture
Contents of the user manual for the Eartec HUB715MXSEU UltraLITE 7-Person HUB Intercom
- Product category: Wireless Intercoms Eartec
- Brand: Eartec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eartec Wireless Intercoms
|
User manual for the Eartec HUB715MXSEU UltraLITE 7-Person HUB Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eartec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eartec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eartec product will considerably shorten its lifespan!
|
Product description The Eartec HUB715MXSEU UltraLITE 7-Person HUB Intercom System includes one HUB Mini Base Station, one UltraLITE Single Remote headset, five UltraLITE Double Remote headsets, one Max 4G Single headset, seven LX600LI lithium batteries, an 8-port charger, and a large soft-side case. It is designed to accommodate seven-person crews who need to communicate wirelessly while simultaneously working with their hands. This system is designed to work in Europe.
The Hub is designed to extend the range of your existing Eartec wireless system by over 1000', and moreover, to be portable; you can wear it on a belt, and thus allow your hotspot to travel with you, or place it in a single, changeable location. The UltraLITE single and dual headsets works in conjunction with the Hub for controlling the voice communication between users. They provide two-way voice communication and the microphone arm can swivel 270°. The Max 4G Single headset features an adjustable headband and a boom arm that rotates 270° and automatically mutes when placed in an "up" position. Note: Please note this product is intended for use in the Europe. It's not intended for use outside of Europe. - HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (EU) Expand the capacity of UltraLite wireless headsets with the HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets from Eartec. This transceiver can be used when on-the-go as it comes equipped with a LiPo battery or it can be plugged-in using the included AC adapter. Regardless of how you power it, the HUB offers 1/4-mile range along with two channels of communication as well as DECT technology making it easy to stay connected across the job site.
- Clips to Waist
- Provides total mobility and increases system capacity to seven
- DECT Technology
- Digital Enhanced Cordless Telecommunications technology
- Dual Power Option
- Choose between a rechargeable lithium battery or AC wall plug, both included
- LiPo Batteries
- Take advantage of 6-hour operation
- No FCC Licensing
- Ready-to-go right out of the box
- UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery (European Version) The European version UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery from Eartec is a self-contained, replacement full-duplex wireless intercom headset. It can be used to provide simultaneous talk and two-way voice communication for users that need to work with their hands, yet also require one ear free to listen to what is going on around them. The system eliminates belt-worn radios because all electronics are built into the ear cups. The fully adjustable noise cancelling microphone ensures effective voice communication.
- UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery (European Version) The European version UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery from Eartec is a self-contained, replacement full-duplex wireless intercom headset. It can be used to provide simultaneous talk and two-way voice communication for users that need to work with their hands, yet also require effective voice communication even in high-noise environments. The system eliminates belt-worn radios because all electronics are built into the ear cups. The fully adjustable noise cancelling microphone ensures effective voice communication.
- Max 4G Single Headset with Dual 3.5-2.5mm Connectors Designed to be used with UltraLITE HUB full duplex wireless intercoms and most PTT radios, this Eartec Max4G Headset is single-eared and features a molded connection with 3.5 and 2.5mm plugs. Its headband is fully adjustable and its leatherette earpad fully encompasses the ear, thus providing a firm yet pleasant fit. Its on-board electret-condenser microphone is noise cancelling, and sits at the end of a boom arm that can swivel 270°.You'll note an inline PTT button for push-to-talk functionality. Rotating the microphone into a fully upright position—parallel to the headset's headband—automatically mutes the microphone, ensuring a more convenient way to kill the signal to the mic rather than fumbling for a button on a beltpack. Lightweight at 5.0 oz, this headset sports a 3' cable.
- 8-Bay Multi-Port Charging Base with EU Plug Adapter The Eartec Multi-Port Charging Base with EU Plug Adapter features 8 bays to recharge the batteries for UltraLITE, UltraPAK, and HUB. When the batteries reach full charge, the corresponding LED turns from red to green indicating that the battery is charged up and ready to go. The use of external batteries allows users to keep their systems up and running with minimal down time. The charge time is approximately three hours. The charging base ships with an AC adapter and EU plug.
- Large Soft Padded Case for Select Hub Series Headset Systems
In the Box Bundle Items HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (EU) wxfrywtqexxfxwtdawwcbtvyaddfrawzfzt UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery (European Version) - Limited 60-Day Warranty for Rechargeable Batteries
5 x UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery (European Version) - Limited 60-Day Warranty for Rechargeable Batteries
Max 4G Single Headset with Dual 3.5-2.5mm Connectors 8-Bay Multi-Port Charging Base with EU Plug Adapter Large Soft Padded Case for Select Hub Series Headset Systems Table of Contents
|
Upload User Manual
Have you got an user manual for the Eartec HUB715MXSEU UltraLITE 7-Person HUB Intercom System with Max 4G Single Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (EU)
| Standard | DECT 6.0 | | Frequency | 1880 to 1900 MHz | | Connector | 2.5 / 3.5 mm plug-in | | Channel Bandwidth | 1.728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Mode | Time Division Duplex (TDD) | | Encoding | Speech Encoding
ADPCM / 32 bit/s | | RF | RF Accessing
Time Division Multiple Access (TDMA) | | Range | 0.25 mile / 400 m in open space | | Power Supply | Headset Power Supply
Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh
Charger Power Supply
AC / Adapter: Input 100 to 240 VAC | | Charge Time | 3 hours | | Operation Time | 4 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 5.50 x 1.50 x 3.75" / 13.97 x 3.81 x 9.53 cm | | Weight | 4.0 oz / 113.4 g | | | | Box Dimensions (LxWxH) | 9.3 x 4.5 x 3.6" | - UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery (European Version)
| Standard | DECT 6.0 (Digital Enhanced Cordless Telecommunications) | | Frequency | 1880 to 1900 MHz | | Channel Bandwidth | 1728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Operation | Time division duplex (TDD) | | Speech Coding | ADPCM / 32 bits per second | | RF Characteristics | Time division multiple access (TDMA) | | Range | 1312' / 400 m open space | | Power Supply | Rechargeable lithium 3.7 V/800 mAh 3.0 Wh | | Charger Type | AC Adapter:
Input 110-40 VAC
Output 5.0 V 11000 mA | | Charge Time | 3 hours | | Operation Time | 6 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | Not specified by manufacturer | | Weight | 4.0 oz / 113.4 g | | | | Box Dimensions (LxWxH) | 7.8 x 6.1 x 2.1" | - UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery (European Version)
| Standard | DECT 6.0 (Digital Enhanced Cordless Telecommunications) | | Frequency | 1880 to 1900 MHz | | Channel Bandwidth | 1728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Operation | Time division duplex (TDD) | | Speech Coding | ADPCM / 32 bits per second | | RF Characteristics | Time division multiple access (TDMA) | | Range | 1312' / 400 m open space | | Power Supply | Rechargeable lithium 3.7 V/800 mAh 3.0 Wh | | Charger Type | AC Adapter:
Input 110-40 VAC
Output 5.0 V 11000 mA | | Charge Time | 3 hours | | Operation Time | 6 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | Not specified by manufacturer | | Weight | 4.0 oz / 113.4 g | | | | Box Dimensions (LxWxH) | 7.3 x 4.3 x 1.6" | - Max 4G Single Headset with Dual 3.5-2.5mm Connectors
| Type | Over Ear, Single-Eared | | Microphone Type | Electret Condenser | | Impedance | 32 Ohms | | Connection | 1 x 3.5 mm
1 x 2.5 mm | | Cable Length | 3.0" / 7.6 cm | | Weight | 5.0 oz / 141.7 g | | | | Box Dimensions (LxWxH) | 9.65 x 6.95 x 3.15" | - 8-Bay Multi-Port Charging Base with EU Plug Adapter
| For Use with | 8 x UltraLITE, UltraPAK, and HUB batteries | | Charge Time | Approximately three hours | | Input Power | 100 to 240 VAC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 10.5 x 4.6 x 2.0" | - Large Soft Padded Case for Select Hub Series Headset Systems
| | | Box Dimensions (LxWxH) | 16.3 x 9.2 x 3.2" |
