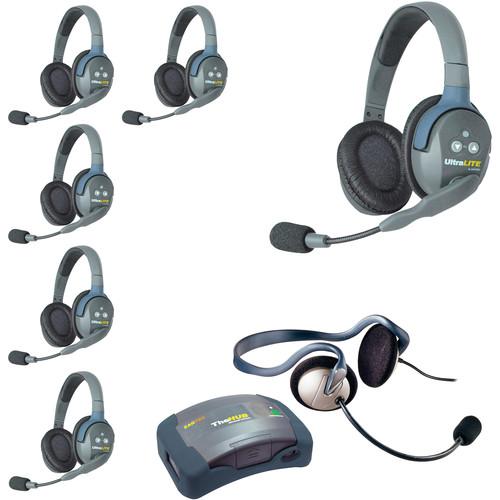

User Manual for Eartec HUB7DMONAU UltraLITE 7-Person HUB Intercom System with Monarch Headset Click to enlarge the picture
Contents of the user manual for the Eartec HUB7DMONAU UltraLITE 7-Person HUB Intercom
- Product category: Wireless Intercoms Eartec
- Brand: Eartec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eartec Wireless Intercoms
|
User manual for the Eartec HUB7DMONAU UltraLITE 7-Person HUB Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eartec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eartec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eartec product will considerably shorten its lifespan!
|
Product description The Eartec HUB7DMONAU UltraLITE 7-Person HUB Intercom System includes one HUB Mini Base Station, six UltraLITE Double Remote headset, one Monarch headset, seven LX600LI lithium batteries, an 8-port charger, and a large soft-side case. It is designed to accommodate seven-person crews who need to communicate wirelessly while simultaneously working with their hands. This system is designed to work in Australia.
The Hub is designed to extend the range of your existing Eartec wireless system by over 1000', and moreover, to be portable; you can wear it on a belt, and thus allow your hotspot to travel with you, or place it in a single, changeable location. The UltraLITE single and dual headsets works in conjunction with the Hub for controlling the voice communication between users. They provide two-way voice communication and the microphone arm can swivel 270°. The lightweight Monarch headset features a slender backhand that offers a unisex fit, and is suitable for rough industrial environments. Note: Please note this product is intended for use in the Australia. It's not intended for use outside of Australia. - HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (AU) Expand the capacity of UltraLite wireless headsets with the HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets from Eartec. This transceiver can be used when on-the-go as it comes equipped with a LiPo battery or it can be plugged-in using the included AC adapter. Regardless of how you power it, the HUB offers 1/4-mile range along with two channels of communication as well as DECT technology making it easy to stay connected across the job site.
- Clips to Waist
- Provides total mobility and increases system capacity to seven
- DECT Technology
- Digital Enhanced Cordless Telecommunications technology
- Dual Power Option
- Choose between a rechargeable lithium battery or AC wall plug, both included
- LiPo Batteries
- Take advantage of 6-hour operation
- No FCC Licensing
- Ready-to-go right out of the box
- UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery (Australian Version) The Australian version UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery from Eartec is a self-contained, replacement full-duplex wireless intercom headset. It can be used to provide simultaneous talk and two-way voice communication for users that need to work with their hands, yet also require effective voice communication even in high-noise environments. The system eliminates belt-worn radios because all electronics are built into the ear cups. The fully adjustable noise cancelling microphone ensures effective voice communication.
- Monarch Low-Profile Midweight Plug-In Headset for UltraLITE HUB Intercom System Provided by third party: If you require comfortable industrial headsets, look no further than the Monarch. These lightweight headsets were originally designed for use with commercial speech recognition computers. They are manufactured with PBT, the same material used to make automobile bumpers and are built for rough industrial environments. Monarch headsets feature a slender backhand that offers a unisex fit.
- 8-Bay Multi-Port Charging Base with AU Plug Adapter The Eartec Multi-Port Charging Base with AU Plug Adapter features 8 bays to recharge the batteries for UltraLITE, UltraPAK, and HUB. When the batteries reach full charge, the corresponding LED turns from red to green indicating that the battery is charged up and ready to go. The use of external batteries allows users to keep their systems up and running with minimal down time. The charge time is approximately three hours. The charging base ships with an AC adapter and AU plug.
- Large Soft Padded Case for Select Hub Series Headset Systems
In the Box Bundle Items HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (AU) tftvasyfesrzsuxwwvsuewysbvsfacrad 6 x UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery (Australian Version) - Limited 60-Day Warranty for Rechargeable Batteries
Monarch Low-Profile Midweight Plug-In Headset for UltraLITE HUB Intercom System 8-Bay Multi-Port Charging Base with AU Plug Adapter Large Soft Padded Case for Select Hub Series Headset Systems Table of Contents
|
Upload User Manual
Have you got an user manual for the Eartec HUB7DMONAU UltraLITE 7-Person HUB Intercom System with Monarch Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (AU)
| Standard | DECT 6.0 | | Frequency | 1880 to 1900 MHz | | Connector | 2.5 / 3.5 mm plug-in | | Channel Bandwidth | 1.728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Mode | Time Division Duplex (TDD) | | Encoding | Speech Encoding
ADPCM / 32 bit/s | | RF | RF Accessing
Time Division Multiple Access (TDMA) | | Range | 0.25 mile / 400 m in open space | | Power Supply | Headset Power Supply
Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh
Charger Power Supply
AC / Adapter: Input 100 to 240 VAC | | Charge Time | 3 hours | | Operation Time | 4 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 5.50 x 1.50 x 3.75" / 13.97 x 3.81 x 9.53 cm | | Weight | 4.0 oz / 113.4 g | - UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery (Australian Version)
| Standard | DECT 6.0 (Digital Enhanced Cordless Telecommunications) | | Frequency | 1880 to 1900 MHz | | Channel Bandwidth | 1728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Operation | Time division duplex (TDD) | | Speech Coding | ADPCM / 32 bits per second | | RF Characteristics | Time division multiple access (TDMA) | | Range | 1312' / 400 m open space | | Power Supply | Rechargeable lithium 3.7 V/800 mAh 3.0 Wh | | Charger Type | AC Adapter:
Input 110-40 VAC
Output 5.0 V 11000 mA | | Charge Time | 3 hours | | Operation Time | 6 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | Not specified by manufacturer | | Weight | 4.0 oz / 113.4 g | - Monarch Low-Profile Midweight Plug-In Headset for UltraLITE HUB Intercom System
| | | Product Type | Headset | | Weight | 3.99 oz | | Recommended Use | 2-way radio | | | | Headphones Form Factor | Supraaural - behind-the-neck mount | | Connectivity Technology | Wired | | Available Microphone | Yes | | Sound Output Mode | Stereo | | Frequency Response | 20 - 20000 Hz | | Sensitivity | 96 dB | | Impedance | 32 Ohm | | Diaphragm | Mylar - 1.2 in | | | | Type | Boom | | Form Factor | Headset microphone | | Microphone Technology | Electret condenser | | | | Controls | Push to Talk (PTT) | | | | Cables Included | Headset cable - 3 ft | | | | Service & Support | Limited warranty - 6 months | | | | Box Dimensions (LxWxH) | 10.0 x 4.0 x 4.0" | - 8-Bay Multi-Port Charging Base with AU Plug Adapter
| For Use with | 8 x UltraLITE, UltraPAK, and HUB batteries | | Charge Time | Approximately three hours | | Input Power | 100 to 240 VAC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | - Large Soft Padded Case for Select Hub Series Headset Systems
| | | Box Dimensions (LxWxH) | 16.3 x 9.2 x 3.2" |
