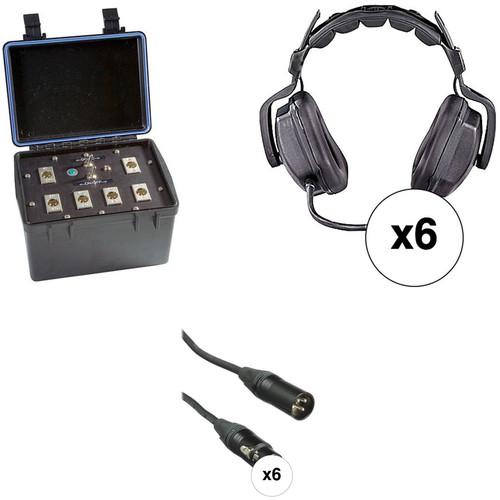

Product description This Eartec intercom kit provides you with everything you need to create a six-user full-duplex intercom system. It consists of the TCS Intercom Power Station, six Ultra Heavy-Duty Dual-Ear Headsets, and six XLR cables.
The TCS Intercom Power Station can support up to six wired headsets in full-duplex mode with no beltpacks required for simultaneous hands-free talking between all users. It is housed in a rugged plastic console to withstand the rigors of use in the field. It is portable, but can also be permanently installed, and runs off the included 12V battery or on AC power.
The Ultra Heavy-Duty Dual-Ear Headsets feature a unique heptagonal earcup design that fully covers the ear for long-lasting comfort. They do not require beltpacks because all volume, amplification, and mute switches are built into the headsets. Each headset is constructed from durable polycarbonate and has a flexible gooseneck mic boom.
Each cable has a 3-pin female XLR connector on one end and a 3-pin male XLR connector on the other to connect the headsets to the power station. The broadcast-grade cables are shielded to protect against signal interference and provide a grounded connection. Note: This system can be expanded to accommodate 12 users by adding a junction box per each additional user. - Eartec TCS 6-User Wired Intercom Station The Eartec TCS Intercom Power Station supports up to 6 wired headsets for full communication flexibility. No beltpacks are required, as amplification and volume control are built into the headsets. Housed in a rugged plastic console, the power station can take the rigors of field work with ease.
It operates in full-duplex mode, offering full hands-free simultaneous talk among all stations. The unit is portable, but can also be permanently installed. It is powered by either the included 12-volt battery, or by AC power. Note: The system can be expanded to support up to 12 users by adding a junction box per each additional user. - Support for 6 Wired Users (Up to 12 with Added Junction Boxes)
- Portable or Permanently Installable
UPC: 032705005431 - 6 x Eartec Ultra Heavy-Duty Dual-Ear Headset (TCS) The Ultra Heavy-Duty Dual-Ear Headset from Eartec features a heptagonal earcup design that covers the ear fully. Its earpads are soft and wide, becoming thicker at the bottom and rear of the pads. They sport a flexible gooseneck mic boom. This unit is designed for TCS systems.
- 6 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 50' (15.2 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (50') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558335 In the Box - TCS 6-User Wired Intercom Station fubsbdruwqduessbwrttbw
- 12-Volt Lantern Battery
- 1-Year Limited Warranty
- 6 x Ultra Heavy-Duty Dual-Ear Headset (TCS) fubsbdruwqduessbwrttbw
- 6 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 50' (15.2 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Eartec Six-Person Wired Intercom System with Dual-Sided Headsets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Eartec TCS 6-User Wired Intercom Station
| | | Box Dimensions (LxWxH) | 10.5 x 10.3 x 10.2" | - 6 x Eartec Ultra Heavy-Duty Dual-Ear Headset (TCS)
| Type | Over-ear | | Frequency Range | 18 Hz to 22 kHz | | Microphone Type | Electret condenser | | Mic Frequency Response | 100 Hz - 10 kHz | | Impedance | 150 Ohms | | Sensitivity | 96 ±3 dB 60 mV | | Connectors | 2.5 mm to 3.5 mm molded plug | | Cable Length | 3.0' / 0.9 m | | Weight | 15.0 oz / 425.2 g | | | | Box Dimensions (LxWxH) | 9.05 x 8.55 x 4.0" | - 6 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 50' (15.2 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 50' / 15.2 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 1.0" |
