User Manual for Eartec UL2S UltraLITE 2-Person Headset System Click to enlarge the picture
Contents of the user manual for the Eartec UL2S UltraLITE 2-Person Headset System
- Product category: Wireless Intercoms Eartec
- Brand: Eartec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eartec Wireless Intercoms
 |
User manual for the Eartec UL2S UltraLITE 2-Person Headset System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eartec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eartec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eartec product will considerably shorten its lifespan!
|

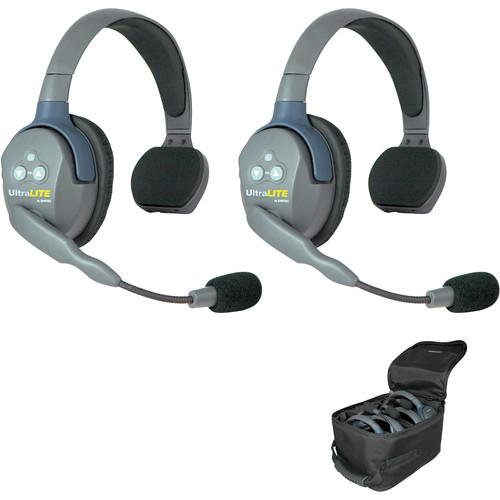

Product description The UL2S UltraLITE 2-Person Headset System from Eartec includes one UltraLITE Single Master headset, one UltraLITE Single Remote headset, two batteries, a two-port charger, and a medium soft-side case. It is designed to accommodate two people who need to communicate wirelessly while simultaneously working with their hands. It's intended for use in the United States.

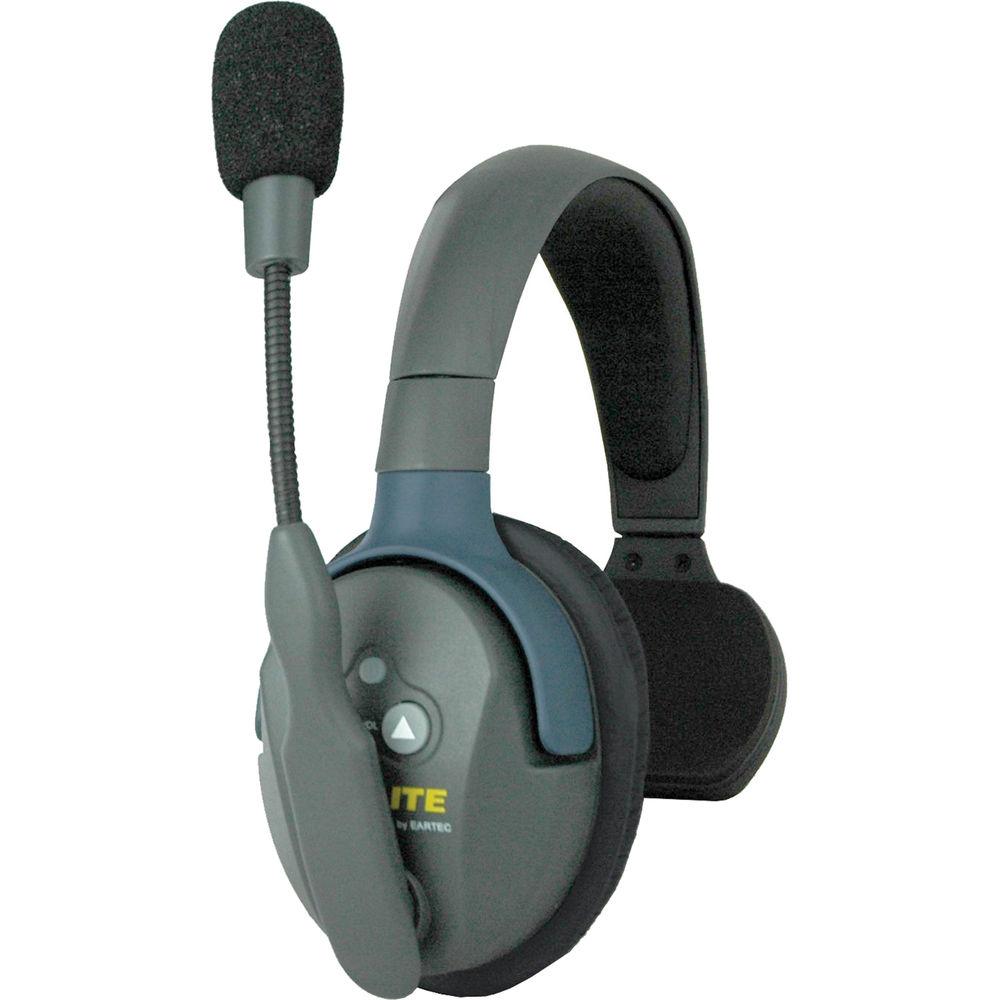

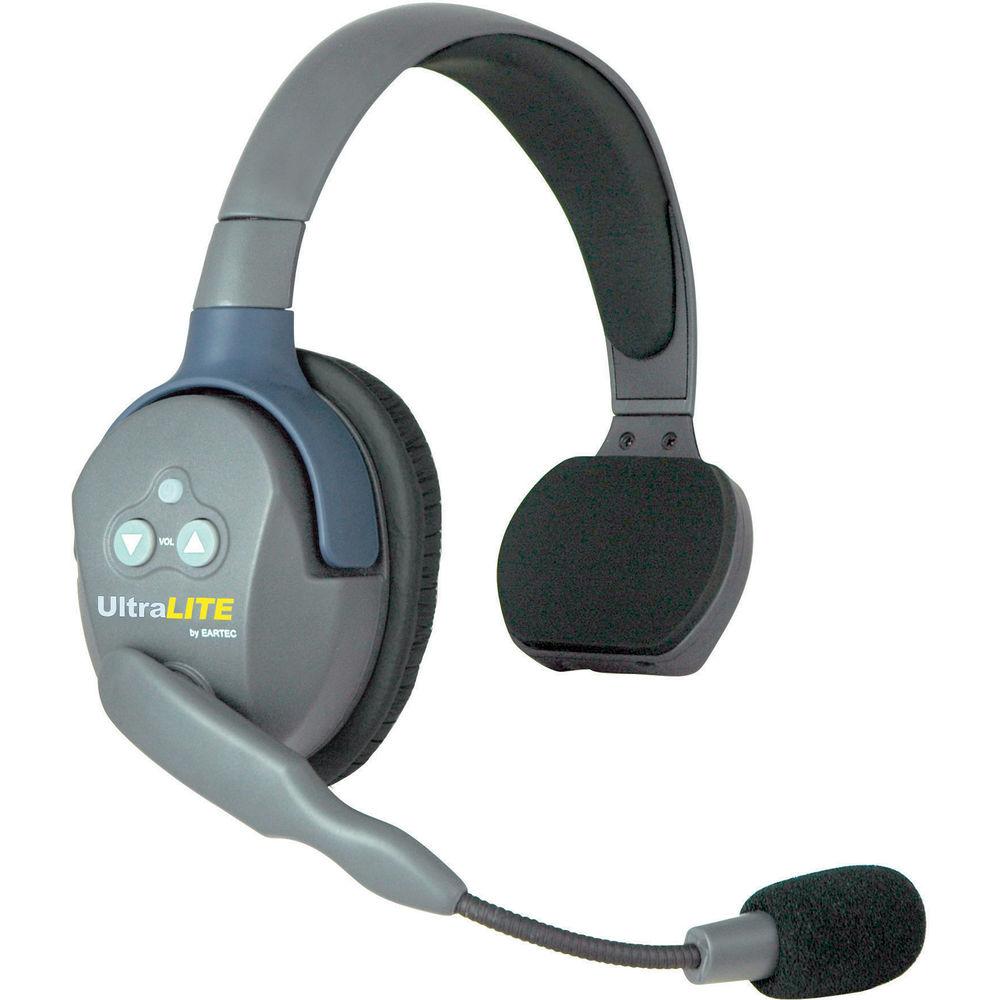

The UltraLITE single and dual headsets have the tranceiver built right inside the ear-cup, eliminating headset wires and belt worn radios. They provide two-way voice communication and the microphone arm can swivel 270°. Note: Please note this product is intended for use in the the United States. It's not intended for use outside of the United States. - UltraLITE Single-Ear Master Headset with Rechargeable Lithium Battery (USA Version) The USA version UltraLITE Single-Ear Master Headset with Rechargeable Lithium Battery from Eartec is a self-contained, replacement full-duplex wireless intercom headset. It can be used to provide simultaneous talk and two-way voice communication for users that need to work with their hands, yet also require one ear free to listen to what is going on around them. The system eliminates belt-worn radios because all electronics are built into the ear cups. The fully adjustable noise cancelling microphone ensures effective voice communication.
- UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery (USA Version) The USA version UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery from Eartec is a self-contained, replacement full-duplex wireless intercom headset. It can be used to provide simultaneous talk and two-way voice communication for users that need to work with their hands, yet also require one ear free to listen to what is going on around them. The system eliminates belt-worn radios because all electronics are built into the ear cups. The fully adjustable noise cancelling microphone ensures effective voice communication.
- 2-Bay Multi-Port Charging Base The Eartec Multi-Port Charging Base features 2 bays to recharge the batteries for UltraLITE, UltraPAK, and HUB. When the batteries reach full charge, the corresponding LED turns from red to green indicating that the battery is charged up and ready to go. The use of external batteries allows users to keep their systems up and running with minimal down time. The charge time is approximately three hours. The charging base ships with an AC adapter.
In the Box Bundle Items UltraLITE Single-Ear Master Headset with Rechargeable Lithium Battery (USA Version) yqtsyvfycdbrsqxxyffvad - Limited 60-Day Warranty for Rechargeable Batteries
UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery (USA Version) - Limited 60-Day Warranty for Rechargeable Batteries
2-Bay Multi-Port Charging Base

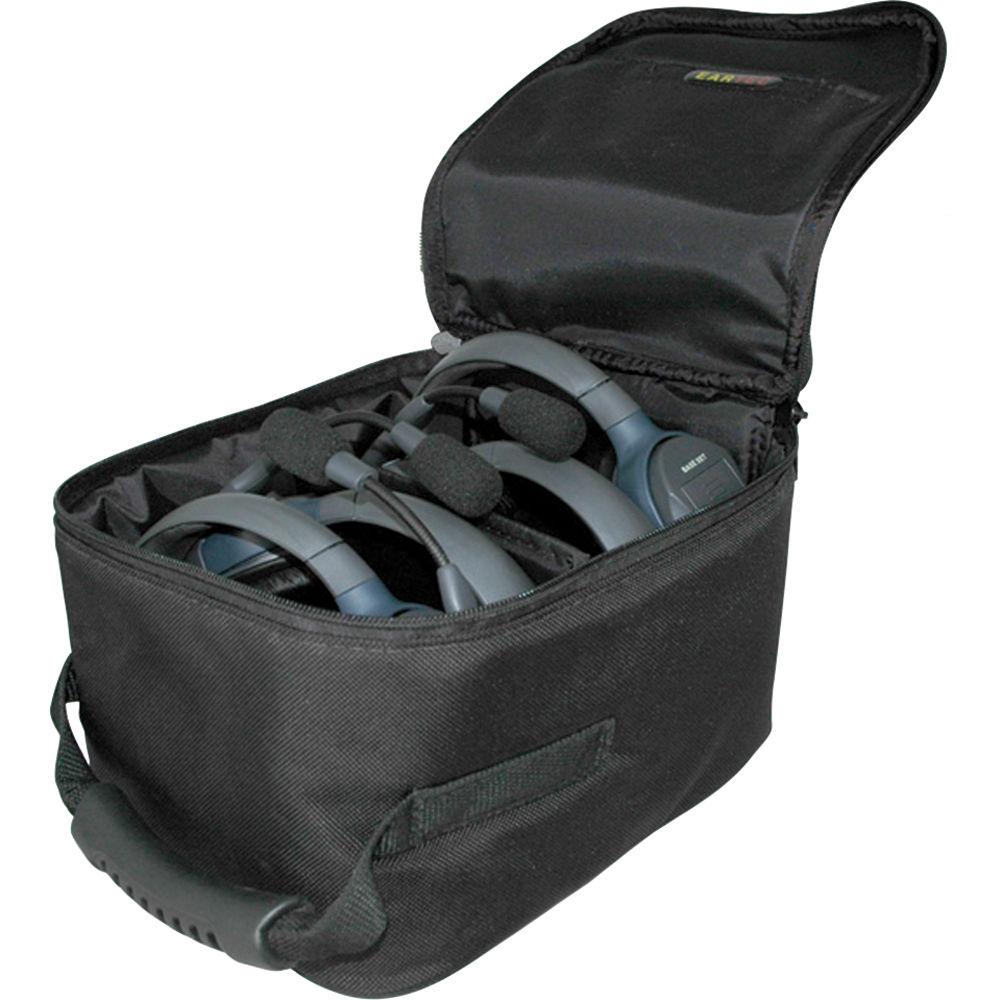

Also Includes - Medium Soft-Side Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Eartec UL2S UltraLITE 2-Person Headset System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - UltraLITE Single-Ear Master Headset with Rechargeable Lithium Battery (USA Version)
| Standard | DECT 6.0 (Digital Enhanced Cordless Telecommunications) | | Frequency | 1920 to 1930 MHz | | Channel Bandwidth | 1728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Operation | Time division duplex (TDD) | | Speech Coding | ADPCM / 32 bits per second | | RF Characteristics | Time division multiple access (TDMA) | | Range | 1312' / 400 m open space | | Power Supply | Rechargeable lithium 3.7 V/800 mAh 3.0 Wh | | Charger Type | AC Adapter:
Input 110-40 VAC
Output 5.0 V 11000 mA | | Charge Time | 3 hours | | Operation Time | 6 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | Not specified by manufacturer | | Weight | 4.0 oz / 113.4 g | | | | Box Dimensions (LxWxH) | 10.4 x 7.8 x 5.3" | - UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery (USA Version)
| Standard | DECT 6.0 (Digital Enhanced Cordless Telecommunications) | | Frequency | 1920 to 1930 MHz | | Channel Bandwidth | 1728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Operation | Time division duplex (TDD) | | Speech Coding | ADPCM / 32 bits per second | | RF Characteristics | Time division multiple access (TDMA) | | Range | 1312' / 400 m open space | | Power Supply | Rechargeable lithium 3.7 V/800 mAh 3.0 Wh | | Charger Type | AC Adapter:
Input 110-40 VAC
Output 5.0 V 11000 mA | | Charge Time | 3 hours | | Operation Time | 6 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | Not specified by manufacturer | | Weight | 4.0 oz / 113.4 g | | | | Box Dimensions (LxWxH) | 7.0 x 6.5 x 3.0" | - 2-Bay Multi-Port Charging Base
| For Use with | 2 x UltraLITE, UltraPAK, and HUB batteries | | Charge Time | Approximately three hours | | Input Power | 100 to 240 VAC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 3.4 x 3.0 x 1.3" |
