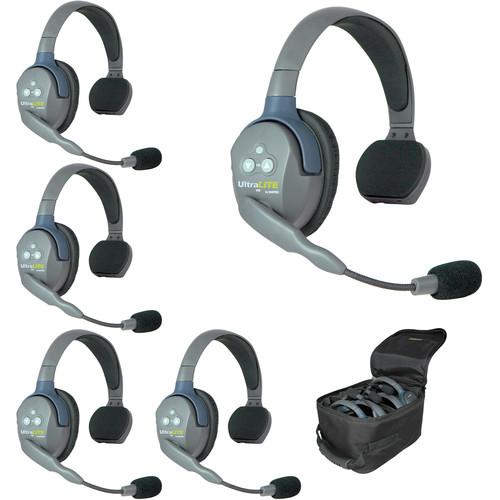

User Manual for Eartec UL5S 5-Person Full-Duplex Wireless Intercom with 5 UltraLITE Single-Ear Headsets Click to enlarge the picture
Contents of the user manual for the Eartec UL5S 5-Person Full-Duplex Wireless Intercom
- Product category: Wireless Intercoms Eartec
- Brand: Eartec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eartec Wireless Intercoms
|
User manual for the Eartec UL5S 5-Person Full-Duplex Wireless Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eartec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eartec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eartec product will considerably shorten its lifespan!
|
Product description The Eartec UL5S is a full-duplex wireless intercom suitable for facilitating communication among five people. It comes with one single-ear master headset for the team leader, and four single-ear remote headsets for everyone else. All technology necessary for operating the intercom system, including batteries, has been built into the headset's ear cups. This eliminates the need for wires or belt-worn items. 5 rechargeable Lithium batteries, an eight-bay multi-port charger, and a soft-side case are provided. - UltraLITE Single-Ear Master Headset with Rechargeable Lithium Battery (USA Version) The USA version UltraLITE Single-Ear Master Headset with Rechargeable Lithium Battery from Eartec is a self-contained, replacement full-duplex wireless intercom headset. It can be used to provide simultaneous talk and two-way voice communication for users that need to work with their hands, yet also require one ear free to listen to what is going on around them. The system eliminates belt-worn radios because all electronics are built into the ear cups. The fully adjustable noise cancelling microphone ensures effective voice communication.
- UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery (USA Version) The USA version UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery from Eartec is a self-contained, replacement full-duplex wireless intercom headset. It can be used to provide simultaneous talk and two-way voice communication for users that need to work with their hands, yet also require one ear free to listen to what is going on around them. The system eliminates belt-worn radios because all electronics are built into the ear cups. The fully adjustable noise cancelling microphone ensures effective voice communication.
- Rechargeable 3.7V Lithium-Ion Battery for UltraLITE & HUB Systems The Eartec Rechargeable 3.7V Lithium-Ion Battery is designed for use with the UltraLITE Wireless Headsets, and hub systems. This lightweight battery is about the size of a match book, and is installed directly into the headset. Since the battery is Li-ion, it doesn't need to be drained, nor will it develop memory issues.
- 8-Bay Multi-Port Charging Base The Eartec Multi-Port Charging Base features 8 bays to recharge the batteries for UltraLITE, UltraPAK, and HUB. When the batteries reach full charge, the corresponding LED turns from red to green indicating that the battery is charged up and ready to go. The use of external batteries allows users to keep their systems up and running with minimal down time. The charge time is approximately three hours. The charging base ships with an AC adapter.
In the Box Bundle Items UltraLITE Single-Ear Master Headset with Rechargeable Lithium Battery (USA Version) - Limited 60-Day Warranty for Rechargeable Batteries
UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery (USA Version) - Limited 60-Day Warranty for Rechargeable Batteries
5 x Rechargeable 3.7V Lithium-Ion Battery for UltraLITE & HUB Systems rrbxxqdtdxbyuztrsedxecxacewz 8-Bay Multi-Port Charging Base
Also Includes - Soft-Side Case (Medium Size)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Eartec UL5S 5-Person Full-Duplex Wireless Intercom with 5 UltraLITE Single-Ear Headsets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - UltraLITE Single-Ear Master Headset with Rechargeable Lithium Battery (USA Version)
| Standard | DECT 6.0 (Digital Enhanced Cordless Telecommunications) | | Frequency | 1920 to 1930 MHz | | Channel Bandwidth | 1728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Operation | Time division duplex (TDD) | | Speech Coding | ADPCM / 32 bits per second | | RF Characteristics | Time division multiple access (TDMA) | | Range | 1312' / 400 m open space | | Power Supply | Rechargeable lithium 3.7 V/800 mAh 3.0 Wh | | Charger Type | AC Adapter:
Input 110-40 VAC
Output 5.0 V 11000 mA | | Charge Time | 3 hours | | Operation Time | 6 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | Not specified by manufacturer | | Weight | 4.0 oz / 113.4 g | | | | Box Dimensions (LxWxH) | 10.4 x 7.8 x 5.3" | - UltraLITE Single-Ear Remote Headset with Rechargeable Lithium Battery (USA Version)
| Standard | DECT 6.0 (Digital Enhanced Cordless Telecommunications) | | Frequency | 1920 to 1930 MHz | | Channel Bandwidth | 1728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Operation | Time division duplex (TDD) | | Speech Coding | ADPCM / 32 bits per second | | RF Characteristics | Time division multiple access (TDMA) | | Range | 1312' / 400 m open space | | Power Supply | Rechargeable lithium 3.7 V/800 mAh 3.0 Wh | | Charger Type | AC Adapter:
Input 110-40 VAC
Output 5.0 V 11000 mA | | Charge Time | 3 hours | | Operation Time | 6 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | Not specified by manufacturer | | Weight | 4.0 oz / 113.4 g | | | | Box Dimensions (LxWxH) | 7.0 x 6.5 x 3.0" | - Rechargeable 3.7V Lithium-Ion Battery for UltraLITE & HUB Systems
| For Use with | UltraLITE headsets and UltraLITE charging hubs (optional) | | Charge Time | 3 hours | | Battery Life | 6 hours | | Battery Type | Lithium-ion | | Battery Voltage | 3.7 V | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 2.0 x 1.5 x 0.25" | - 8-Bay Multi-Port Charging Base
| For Use with | 8 x UltraLITE, UltraPAK, and HUB batteries | | Charge Time | Approximately three hours | | Input Power | 100 to 240 VAC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 11.15 x 5.35 x 1.95" |
