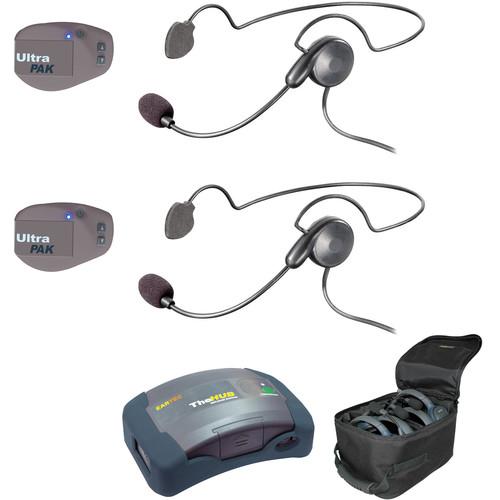

User Manual for Eartec UPCYB2 UltraPAK 2-Person HUB Intercom System with Cyber Headset Click to enlarge the picture
Contents of the user manual for the Eartec UPCYB2 UltraPAK 2-Person HUB Intercom
- Product category: Wireless Intercoms Eartec
- Brand: Eartec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eartec Wireless Intercoms
|
User manual for the Eartec UPCYB2 UltraPAK 2-Person HUB Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eartec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eartec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eartec product will considerably shorten its lifespan!
|
Product description The UPCYB2 UltraPAK 2-Person HUB Intercom System from Eartec includes one HUB Mini Base Station, two UltraPAK Remote Beltpacks, two Cyber Headsets, three rechargeable batteries, an 8-port battery charger, and a medium soft-side case. It is designed to accommodate two-person crews who need to communicate wirelessly while simultaneously working with their hands.
The Hub is designed to extend the range of your existing Eartec wireless system by over 1000', and moreover, to be portable; you can wear it on a belt, and thus allow your hotspot to travel with you, or place it in a single, changeable location. The UltraPAK utilizes Digital Enhanced Cordless Technology (DECT) to provide simultaneous talk wireless communication within a quarter mile range. It weighs only 2.5 oz and includes volume control, a mute button, and LED indicator. The Cyber Headset features a thin, malleable back band, which runs around the neck, and a miniature speaker that sits in the ear. - HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (USA) Expand the capacity of UltraLite wireless headsets with the HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets from Eartec. This transceiver can be used when on-the-go as it comes equipped with a LiPo battery or it can be plugged-in using the included AC adapter. Regardless of how you power it, the HUB offers 1/4-mile range along with two channels of communication as well as DECT technology making it easy to stay connected across the job site.
- Clips to Waist
- Provides total mobility and increases system capacity to seven
- DECT Technology
- Digital Enhanced Cordless Telecommunications technology
- Dual Power Option
- Choose between a rechargeable lithium battery or AC wall plug, both included
- LiPo Batteries
- Take advantage of 6-hour operation
- No FCC Licensing
- Ready-to-go right out of the box
- Cyber Lightweight Plug-In Headset with Back Band for UltraLITE HUB Intercom System Provided by third party: For those who prefer a lightweight headset the CYBER is a terrific option. A thin, malleable back band is what sets the Cyber apart from regular headsets. Instead of a standard over the top style headband the Cyber's band actually runs behind the user's neck while the miniature speaker sits comfortably on the ear. This unique design is what provides a discreet fit.
- 8-Bay Multi-Port Charging Base The Eartec Multi-Port Charging Base features 8 bays to recharge the batteries for UltraLITE, UltraPAK, and HUB. When the batteries reach full charge, the corresponding LED turns from red to green indicating that the battery is charged up and ready to go. The use of external batteries allows users to keep their systems up and running with minimal down time. The charge time is approximately three hours. The charging base ships with an AC adapter.
- UltraPAK Remote Beltpack for UltraLITE & HUB
In the Box Bundle Items HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (USA) 2 x UltraPAK Remote Beltpack for UltraLITE & HUB - Rechargeable Lithium Battery
2 x Cyber Lightweight Plug-In Headset with Back Band for UltraLITE HUB Intercom System 8-Bay Multi-Port Charging Base
Also Includes - Medium Soft-Side Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Eartec UPCYB2 UltraPAK 2-Person HUB Intercom System with Cyber Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (USA)
| Standard | DECT 6.0 | | Frequency | 1920 to 1930 MHz | | Connector | 2.5 / 3.5 mm plug-in | | Channel Bandwidth | 1.728 GHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (baud rate) | | Duplex Mode | Time Division Duplex (TDD) | | Encoding | Speech Encoding
ADPCM / 32 bit/s | | RF | RF Accessing
Time Division Multiple Access (TDMA) | | Range | 0.25 mile / 400 m in open space | | Power Supply | Headset Power Supply
Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh
Charger Power Supply
AC / Adapter: Input 100 to 240 VAC | | Charge Time | 3 hours | | Operation Time | 4 hours | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 5.50 x 1.50 x 3.75" / 13.97 x 3.81 x 9.53 cm | | Weight | 4.0 oz / 113.4 g | | | | Box Dimensions (LxWxH) | 6.0 x 4.3 x 2.3" | - Cyber Lightweight Plug-In Headset with Back Band for UltraLITE HUB Intercom System
| | | Product Type | Headset | | Weight | 3.99 oz | | Recommended Use | 2-way radio | | | | Headphones Form Factor | Supraaural - behind-the-neck mount | | Connectivity Technology | Wired | | Available Microphone | Yes | | Sound Output Mode | Mono | | Frequency Response | 20 - 20000 Hz | | Sensitivity | 96 dB | | Impedance | 32 Ohm | | Diaphragm | Mylar - 0.9 in | | | | Type | Boom | | Form Factor | Headset microphone | | Microphone Technology | Electret condenser | | | | Cables Included | Headset cable - 3 ft | | | | Service & Support | Limited warranty - 30 days | | | | Box Dimensions (LxWxH) | 6.1 x 4.1 x 0.3" | - 8-Bay Multi-Port Charging Base
| For Use with | 8 x UltraLITE, UltraPAK, and HUB batteries | | Charge Time | Approximately three hours | | Input Power | 100 to 240 VAC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 11.15 x 5.35 x 1.95" | - UltraPAK Remote Beltpack for UltraLITE & HUB
