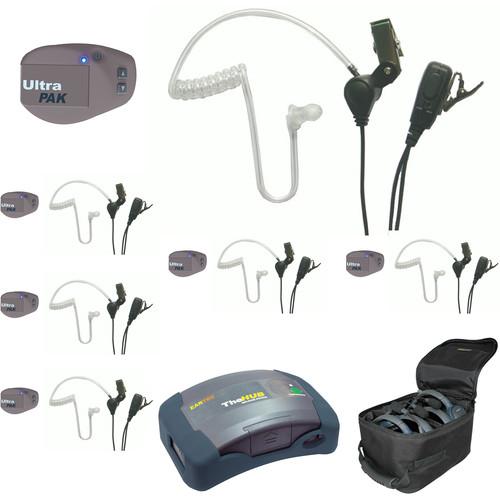

Eartec UPSST6 UltraPAK 6-Person HUB Intercom

User Manual for Eartec UPSST6 UltraPAK 6-Person HUB Intercom System with SST Headset

• Product category: Wireless Intercoms Eartec
• Brand: Eartec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Eartec Wireless Intercoms

Product description

• HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (USA) Expand the capacity of UltraLite wireless headsets with the HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets from Eartec. This transceiver can be used when on-the-go as it comes equipped with a LiPo battery or it can be plugged-in using the included AC adapter. Regardless of how you power it, the HUB offers 1/4-mile range along with two channels of communication as well as DECT technology making it easy to stay connected across the job site.
  Clips to Waist
  • Provides total mobility and increases system capacity to seven
  DECT Technology
  • Digital Enhanced Cordless Telecommunications technology
  Dual Power Option
  • Choose between a rechargeable lithium battery or AC wall plug, both included
  LiPo Batteries
  • Take advantage of 6-hour operation
  No FCC Licensing
  • Ready-to-go right out of the box
• ULPSST Secret Service Style Headset for HUB Mini Base and UltraLITE Headsets The Eartec ULPSST Secret Service Style Headset for HUB Mini Base and UltraLITE Headsets is a lightweight headset that includes a flexible, clear audio tube with an earbud. This headset uses a 2.5mm / 3.5mm two-pin plug that plugs into the Eartec wireless radios, and features a 3' long cable. The headset can be used for listening in a wide variety of applications, such as by coaches, equestrian riding instructors, and production teams.
• 8-Bay Multi-Port Charging Base The Eartec Multi-Port Charging Base features 8 bays to recharge the batteries for UltraLITE, UltraPAK, and HUB. When the batteries reach full charge, the corresponding LED turns from red to green indicating that the battery is charged up and ready to go. The use of external batteries allows users to keep their systems up and running with minimal down time. The charge time is approximately three hours. The charging base ships with an AC adapter.

• UltraPAK Remote Beltpack for UltraLITE & HUB

• Rechargeable Battery

• AC Adapter

• Limited 1-Year Warranty

• Rechargeable Lithium Battery

• Limited 1-Year Warranty

• Limited 30-Day Warranty

• AC Adapter

• Limited 1-Year Warranty

Also Includes

• Medium Soft-Side Case
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 6 Wireless UltraLITE Headsets (USA)

  Standard	DECT 6.0
  Frequency	1920 to 1930 MHz
  Connector	2.5 / 3.5 mm plug-in
  Channel Bandwidth	1.728 GHz
  Modulation Type	GFSK
  Transmission Speed	1.152 Mbps (baud rate)
  Duplex Mode	Time Division Duplex (TDD)
  Encoding	Speech Encoding ADPCM / 32 bit/s
  RF	RF Accessing Time Division Multiple Access (TDMA)
  Range	0.25 mile / 400 m in open space
  Power Supply	Headset Power Supply Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh Charger Power Supply AC / Adapter: Input 100 to 240 VAC
  Charge Time	3 hours
  Operation Time	4 hours
  Storage Temperature	14 to 140°F / -10 to 60°C
  Dimensions	5.50 x 1.50 x 3.75" / 13.97 x 3.81 x 9.53 cm
  Weight	4.0 oz / 113.4 g

  Box Dimensions (LxWxH)	6.0 x 4.3 x 2.3"

• ULPSST Secret Service Style Headset for HUB Mini Base and UltraLITE Headsets

  Compatibility	HUB Mini Base and UltraLITE headsets
  Type	Over-ear
  Microphone	Electret condenser
  Frequency Response	20 Hz to 20 kHz
  Impedance	16 Ohms
  Sensitivity	105 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 72 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
