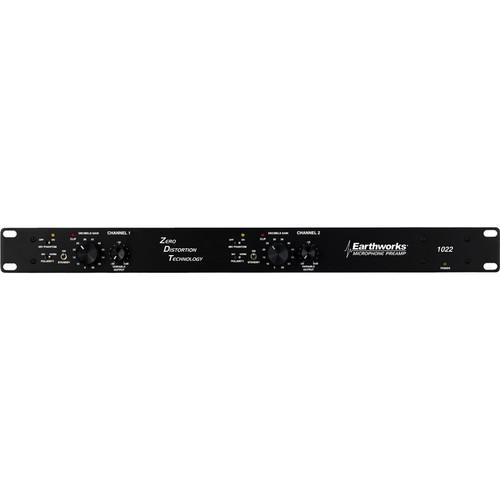

User Manual for Earthworks 1022 Microphone Preamp Click to enlarge the picture
Contents of the user manual for the Earthworks 1022 Microphone Preamp
- Product category: Microphone Preamps Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Microphone Preamps
|
User manual for the Earthworks 1022 Microphone Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The Earthworks 1022 is a dual channel microphone preamp, based on the philosophy that extended frequency response and faster, cleaner time domain performance will yield more life-like results. The unit is housed in a 1U rackmount chassis. Earthworks was formed by David Blackmer, the inventor of dbx, to realize his vision of upgrading the entire audio chain to new standards of sonic realism. To that end, the unit is currently the quietest preamp available, particularly evident when high gain is used in recording classical music. Any change that an electric signal undergoes as a result of passing through electronic components is referred to as distortion (clipping heavy metal guitar signals being an extreme example,) but is not limited to clipping alone. For the audio purist, the goal is to have as little distortion as possible affecting the audio signal. The 1022 with its Zero Distortion Technology (ZDT) delivers immeasurable amounts of all forms of distortion, with a frequency response that is flat and wideband. Further, the preamp provides the recording engineer with the ability to accurately capture sound exactly as it happens in any sonic environment. This still allows for making sonic coloration and textural choices at a later stage, while retaining the original, life-like recording. - Dual channel, discrete-component, Class A precision microphone preamplifier
- Precision stepped gain switch from 5dB to 60dB in 5dB steps
- Variable output gain control allows 20dB of gain reduction feeding a separate output amplifier
- Standby switch mutes the output of the preamp while the microphone remains powered
- Perfect for use with ribbon microphones, providing 100kΩ impedance with phantom power off
- Each preamplifier has a separate signal board divided by an electromagnetic shield to minimize crosstalk
UPC: 827517112008 In the Box Earthworks 1022 Microphone Preamp AC Power Cable 15 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks 1022 Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks 1022 Specs | Number of Channels | 2 | | Inputs | 2 x XLR (pin 2+) | | Output | 2 x XLR (pin 2+)
2 x 1/4" TRS phone | | Phantom Power | Yes | | Multi Function | No | | Gain Range | 5dB to 60dB, 5dB steps | | Maximum Output Level | +33dBu (37V peak-to-peak) | | Frequency Response | 2Hz to 100kHz, +/-0.1dB
1Hz to 200kHz, +/-0.5dB | | Noise | EIN: 132dBV @ 20dB gain | | Dimensions (WxDxH) | 19" x 10 3/8" x 1 3/4" | | Weight | 6 lbs | | Specialties | Polarity reverse switch on each channel | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 25.0 x 15.0 x 5.0" |
