User Manual for Earthworks CMK1 CloseMic Kit Click to enlarge the picture
Contents of the user manual for the Earthworks CMK1 CloseMic Kit
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
|
User manual for the Earthworks CMK1 CloseMic Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|

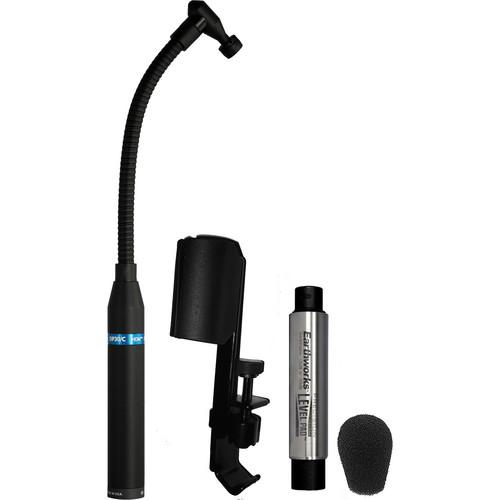

Product description The CMK1 CloseMic Kit from Earthworks is designed for close miking tom and snare. It is housed in a high impact case that will withstand the rigors of the road. The high impact cases allow you to store the Drum Periscope microphone with the RM1 attached, thus saving time in setup and teardown. This kit consists of the DP30/C Tom & Snare Drum Periscope Microphone, LevelPad, PW1 Foam Teardrop Windscreen, and RM1 RimMount.
The DP30/C Tom & Snare Drum Periscope Microphone is designed for close miking toms and snare drums, and will take a direct hit from a drumstick. A right angle mic head is mounted to the gooseneck for easy positioning. The Drum Periscope is mounted parallel to the drum shell with the RM1 RimMount. - Improved impulse response for fast and more accurate transients
- Shorter diaphragm settling time to prevent quieter attacks from being blurred by earlier loud attacks
- Extended frequency response to 30 kHz to capture a crisper and more realistic image
- Near perfect polar patterns that remain even across all frequencies and at any position within the pattern
- More cohesive and unified drum sound
- Hear more attack and subtle detail
- Increased detail and dynamic range
- Versatile, multi-use microphones
- Microphones are protected in a high impact case
- Application: Percussion, Snare, and Tom
- DP30/C Tom & Snare Drum Periscope Microphone
- Near perfect cardioid polar pattern that remain even across all frequencies and at any position within the pattern
- Right angle microphone head is mounted to the gooseneck for easy positioning
- Stiff mini-gooseneck that will not move when the drums are hit hard
- Microphone capsule housing is designed to protect the microphone capsule and withstand a direct hit from a drumstick
- Mini-gooseneck allows quick and easy positioning
- Electronics are housed in a cylindrical tube attached to the other end of the mini-gooseneck and provide a high level, low impedance output that will prevent RFI
- 145 dB SPL capability ensures the microphone will not overload from the loudest of drum attacks
- Heavy construction enables it to withstand the punishment of the road
In the Box Earthworks CMK1 CloseMic Kit DP30/C Tom & Snare Drum Periscope Microphone LP20 LevelPad PW1 Foam Teardrop Windscreen RM1 RimMount Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks CMK1 CloseMic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks CMK1 Specs | | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 30 kHz | | Signal to Noise Ratio | 72 dB A-Weighted | | Equivalent Noise Level | 20 dB A-Weighted | | Maximum SPL | 145 dB SPL | | Impedance | 65 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 10 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 10 mA | | Operating Voltage | 48 V | | Length | 10.75" / 273.05 mm | | Diameter | 0.86" / 21.84 mm | | Weight | 0.22 lb / 100 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
