User Manual for Earthworks DK25 L Live Performance Drum Microphone Set - Includes: SR25 Cardioid Microphones and KickPad Click to enlarge the picture
Contents of the user manual for the Earthworks DK25 L Live Performance Drum
- Product category: Instrument Microphones Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Instrument Microphones
|
User manual for the Earthworks DK25 L Live Performance Drum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description With a history for manufacturing quality measurement and studio microphones, the Earthworks DK25/L drum microphone set represents an innovative approach to drum miking for live sound applications. The set includes three SR25 cardioid condenser microphones and a KickPad in-line pad adapter. Earthworks engineers have developed a 25kHz percussion microphone series, challenging the traditional 5 to 7 microphone technique with just 2 overhead and 1 kick drum microphone. The result is a level of clarity, cohesiveness and transparency that rival industry favorite drum microphones and miking techniques, while reproducing an image of the entire drum kit. The microphone set features the KickPad, an in-line adapter that optimizes any of the SR25 microphones for use as a kick drum microphone. - Optimized For Live Sound
- Optimized for live sound applications, the cardioid pattern of the SR25 microphones feature a focused pick up. The result minimizes ambient noise caused by adjacent drum resonance, additional instruments and nearby monitor speakers.
- Extended Frequency Response
- The Earthworks 25kHz series of percussion microphones feature a flat, wide frequency response that accurately capture the slightest nuance in rich detail.
- KickPad In-Line Pad
- The microphone set includes the KickPad, an in-line pad adapter that optimizes the SR25 to accurately capture kick drums.

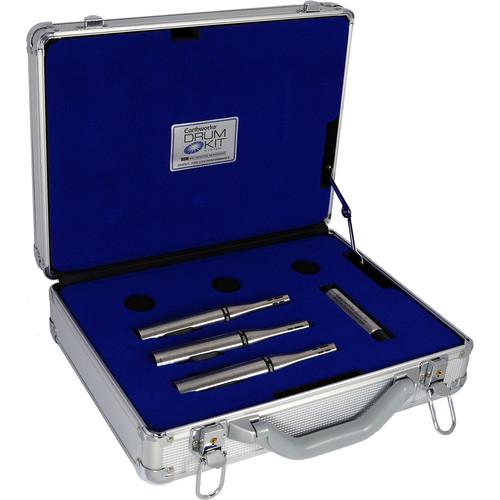

UPC: 827517103020 In the Box Earthworks DK25/L Live Performance Drum Microphone Set - Includes: (3) SR25 Cardioid Microphones and KickPad 3 x SR25 Cardioid Microphones KickPad In-Line Pad Adapter Wood Case 15 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks DK25 L Live Performance Drum Microphone Set - Includes: SR25 Cardioid Microphones and KickPad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks DK25 Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50Hz to 25kHz +/- 2dB @ 15cm | | Dynamic Range (Typical) | 72dB | | Signal-to-Noise Ratio | 22dB SPL equivalent (A weighted) | | Maximum Input Sound Level | 145dB SPL | | Power Requirements | 48V Phantom, 10mA | | Output Impedance | Min output load - 600 ohms between pins 2&3 | | Output Connectors | 3-pin XLR | | Pad | Includes KickPad inline pad adapter. Optimizes SR25's frequency response and headroom for capturing kick drum | | Low Frequency Roll-Off | No | | Dimensions | 6.5 x 0.860" (165 x 22mm) (Length x Diameter) | | Weight | 0.35 lb (160 g) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 15.0 x 11.6 x 4.8" |
