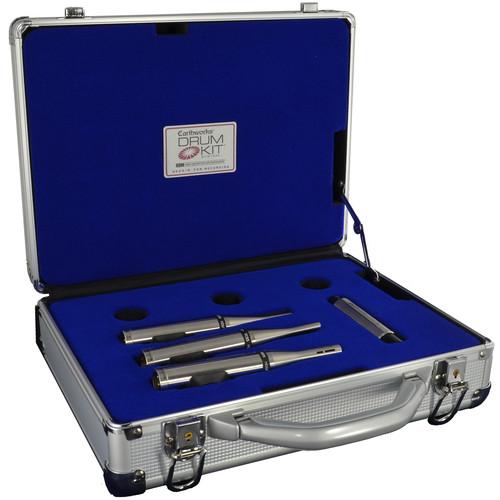

User Manual for Earthworks DK25 R Drum Kit System for Studio Recording Click to enlarge the picture
Contents of the user manual for the Earthworks DK25 R Drum Kit System
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
|
User manual for the Earthworks DK25 R Drum Kit System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description With a history for manufacturing quality measurement and studio microphones, the DK25/R from Earthworks drum microphone set represents an innovative approach to drum miking for live sound applications. The set includes two TC25 omnidirectional condenser microphones, an SR25 cardioid microphone and a KickPad in-line pad adapter. Earthworks engineers have developed a 25kHz percussion microphone series, challenging the traditional 5 to 7 microphone technique with just 2 overhead and 1 kick drum microphone. The result is a level of clarity, cohesiveness and transparency that rival industry favorite drum microphones and miking techniques, while reproducing an image of the entire drum kit. The microphone set features the KickPad, an in-line adapter that optimizes the included SR25 cardioid microphone for use on a kick drum. - TC25 Omnidirectional Condenser Microphone (Single Microphone) The TC25 from Earthworks is an omnidirectional microphone. The TC25's design is intended for crucial capturing of loud, transient rich sources such as drums, percussion, amplified instruments, horns and much more. The prepolarized omnidirectional capsule exhibits fast response to transient (peak) signals.The capsule is coupled with a dedicated low output impedance preamplifier resulting in transparent signal reproduction without noise and peak distortion. An impressively wide, flat frequency response and omnidirectional pick up pattern further maximize detail and eliminate noise due to proximity effect. Overall the TC25 is a valued addition to professional and project recording facilities as well as sound reinforcement rigs.
- Ultra-Wide Frequency Response
- The TC25 exhibits a frequency response of 9 Hz to 25 kHz resulting in impressively detailed signal reproduction.
- Fast Transient Response
- The prepolarized condenser capsule is capable of capturing signal rich in transient peaks without noise due to distortion.
- High SPL Handling
- The TC25's high SPL provides incredible headroom which further minimizes noise due to peak distortion and excessively loud signals at close proximity.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides rich, consistent detail at the off and direct sections of the capsule.
- Compact Profile
- The TC25 shares similar features to the TC30 except a maximum high frequency response at 25 Hz and a much smaller profile.
- SR25 Studio Condenser Microphone (Single Microphone) The SR25 from Earthworks is a condenser microphone. This cardioid condenser studio microphone is designed for precision pick up in crucial recording and sound reinforcement environments. Its precision cardioid pickup pattern provides exceptional rejection of off-axis signal and noise due to room ambiance, instruments, monitor speakers, etc.The condenser element provides a warm, transparent sonic character with an even 50 Hz to 25 kHz frequency response. Sonic timbre, frequency response and transparency remain uniform across the entire front of the capsule, providing maximum sound reproduction regardless of placement. The capsule boasts an SPL rating of 145 dB allowing exceptional reproduction of audio peaks without distortion and overload. The SR25 is powered via 48V phantom power and is suitable for instrument, vocal and live concert recording.
- Cardioid Pickup Pattern
- The capsule features a cardioid pick up pattern providing high gain before feedback.
- Off-Axis Rejection
- Superb off-axis rejection of audio signal make the SR25 suitable for capturing audio in highly ambient environments and near monitor speakers.
- Even Frequency Response
- The SR25 features an even frequency and sensitivity response at the entire front of the capsule.
UPC: 827517160016 In the Box Bundle Items 2 x TC25 Omnidirectional Condenser Microphone (Single Microphone) dqcrbqfwfaeu SR25 Studio Condenser Microphone (Single Microphone)
Also Includes - KickPad In-Line Pad Adapter
- Windscreen
- Wood Case
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks DK25 R Drum Kit System for Studio Recording in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TC25 Omnidirectional Condenser Microphone (Single Microphone)
| | | Polar Pattern | Omnidirectional | | Frequency Range | 9 Hz to 25 kHz | | Equivalent Noise Level | 27 dB A-Weighted | | Maximum SPL | 150 dB SPL | | Impedance | 100 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 8 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 10 mA | | Operating Voltage | 48 V | | Length | 6.5" / 165.10 mm | | Diameter | 0.86" / 21.84 mm | | Weight | 0.35 lb / 159 g | | | | Box Dimensions (LxWxH) | 8.4 x 5.9 x 3.5" | - SR25 Studio Condenser Microphone (Single Microphone)
| | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 25 kHz | | Equivalent Noise Level | 22 dB A-Weighted | | Maximum SPL | 145 dB SPL | | Impedance | 100 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 10 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 10 mA | | Operating Voltage | 48 V | | Length | 6.5" / 165.10 mm | | Diameter | 0.86" / 21.84 mm | | Weight | 0.35 lb / 159 g | | | | Box Dimensions (LxWxH) | 8.6 x 3.9 x 2.4" |
