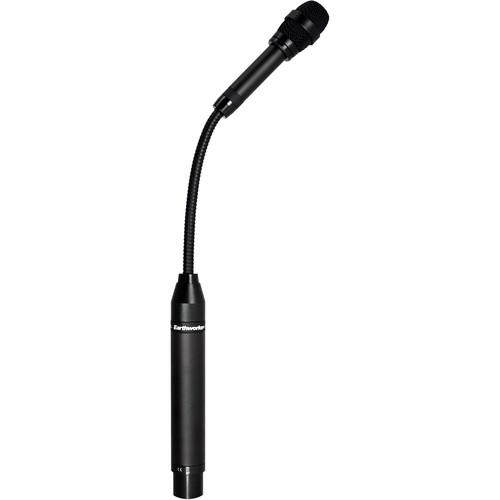

User Manual for Earthworks FM360 Flexible Hypercardioid Podium Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks FM360 Flexible Hypercardioid Podium Microphone
- Product category: Gooseneck Microphones Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Gooseneck Microphones
|
User manual for the Earthworks FM360 Flexible Hypercardioid Podium Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The Earthworks FM360 is a professional podium microphone with a flexible gooseneck and sensitive hypercardioid capsule. As expected with Earthworks, the FM720 delivers pristine audio quality and accurate speech reproduction at up to 90 degrees off-axis. The microphone features a standard 3-pin XLR male base for easy installation into desk and podium flange mounts. The flexible gooseneck provides accurate, quiet microphone positioning. The incredible intelligibility and range make the Earthworks podium microphones a perfect choice for speech in conference rooms, lecture halls, houses-of-worship, auditoriums and more. - Hypercardioid Polar Pattern
- This version of the FM360 podium microphone features a hypercardioid polar pattern for maximum gain-before-feedback response.
- Flat Frequency Response
- The flat 50Hz to 20kHz frequency response is optimized for speech. The natural low frequency roll-off eliminates noise and proximity effect.
- Adjustable Gooseneck
- Adjustable gooseneck provides quiet capsule positioning.
- High SPL Handling
- The Earthworks podium microphones handle high sound pressure levels for minimal distortion and noise at close proximity.
- XLR Base
- All Earthworks podium microphones feature a 3-pin XLR-male base for easy installation.
UPC: 827517107035 In the Box Earthworks FM360 Flexible Hypercardioid Podium Microphone (13") (360mm) Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks FM360 Flexible Hypercardioid Podium Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks FM360 Specs | Transducer | Condenser | | Polar Pattern | Hypercardioid | | Frequency Response | 50Hz to 20kHz +/- 2dB @ 6" (15cm) | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 22dB SPL Equivalent (A Weighted) | | Maximum Input Sound Level | 145dB SPL | | Power Requirements | +48V Phantom Power | | Output Impedance | 600 ohms between pins 2&3 | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 13 x .860" (360 x 22mm) (Length x Diameter) | | Weight | .25lb (120 kg) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 14.6 x 3.4 x 3.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
